M12 Connectors for Vehicle-Mounted Camera Systems in Germany

MS27505 Military Connectors Series Overview

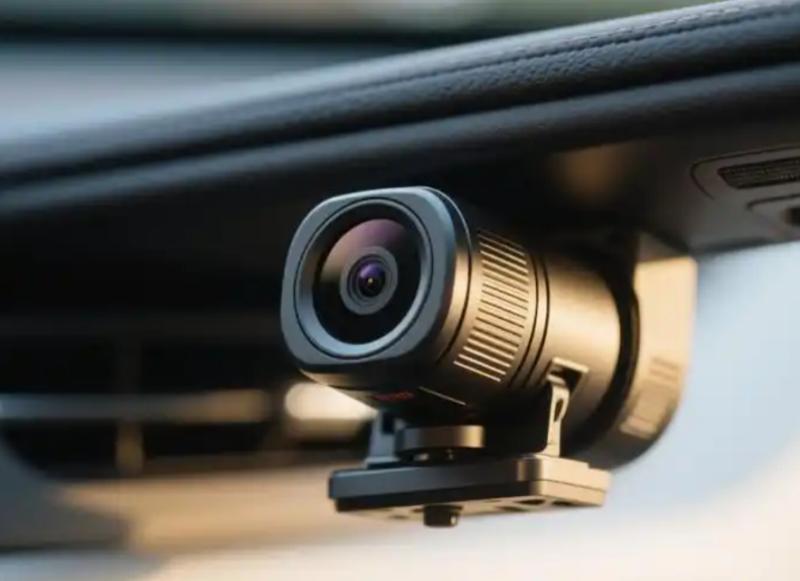

Application Background: Vehicle-Mounted Camera Systems in Germany

In Germany, advanced driver assistance systems (ADAS) in modern commercial and specialized vehicles increasingly rely on external camera modules for functions such as parking assistance, surround view, and safety monitoring. These camera systems are mounted on different parts of the vehicle, including the rear, sides, and front grille, where they face demanding mechanical and environmental conditions.

Reliable signal transmission between cameras and central processing units is essential for system performance, particularly in applications where a connection failure could interrupt a safety-critical function.

Connector Application: M12 Interfaces in Camera Systems

M12 connectors are used in certain vehicle-mounted camera systems, particularly in commercial vehicles and specialized automotive applications. Typical connection points include:

• Camera module interfaces
• Extension cables linking cameras to control units
• Signal transmission lines within protected housings

For engineers evaluating these systems, the choice of connector affects not only signal integrity but also the ease of assembly and long-term serviceability of the camera module.

Design Considerations for Reliable Signal Transmission

The threaded coupling mechanism of M12 connectors ensures secure engagement under vibration and vehicle movement. Their circular design also supports compact installation in limited mounting spaces, which is a common constraint in vehicle body panels and mirror housings.

Different coding types may be selected depending on signal requirements. For example, D-coded M12 connectors are typically used for Ethernet-based camera links, while A-coded versions may suit simpler signal or power connections. The correct coding also prevents mismating between different circuits in the same harness.

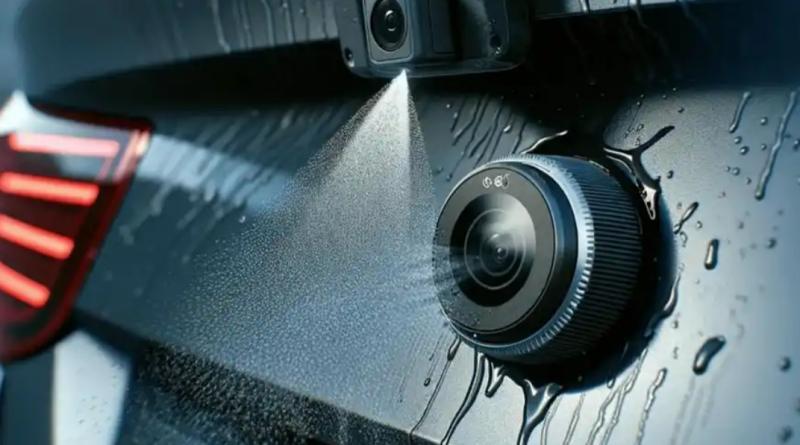

Environmental Performance and Sealing

External camera systems are exposed to rain, dust, and temperature variation. M12 connectors with appropriate sealing provide protection against environmental ingress when properly installed. The IP rating of the mated connector pair should be verified against the specific mounting location, as a connector mounted in a protected cavity may have different requirements than one exposed directly to the elements.

For applications requiring a fully sealed cable assembly, pre-molded M12 cables with integrated gaskets can reduce installation error compared to field-wireable versions. For related guidance on sealed circular connector designs, see the Aviation Plug Connectors range, which shares similar threaded coupling and environmental sealing principles.

Conclusion

In vehicle-mounted camera systems, M12 connectors offer a practical solution for stable signal transmission in applications where durability and environmental resistance are required. When selecting a connector for a specific camera platform, verify the coding type, IP rating, and cable strain relief against the actual mounting position and expected vibration profile. For a broader view of sealed connector options, the SP Series Waterproof Wire Connector with Cable for In-Line Power and Signal solution page provides additional configuration examples.

If you are defining a camera-to-control-unit connection and need assistance with coding selection, cable length, or sealing requirements, please use the inquiry form below to share your application details.
