SD13 Connectors
< >

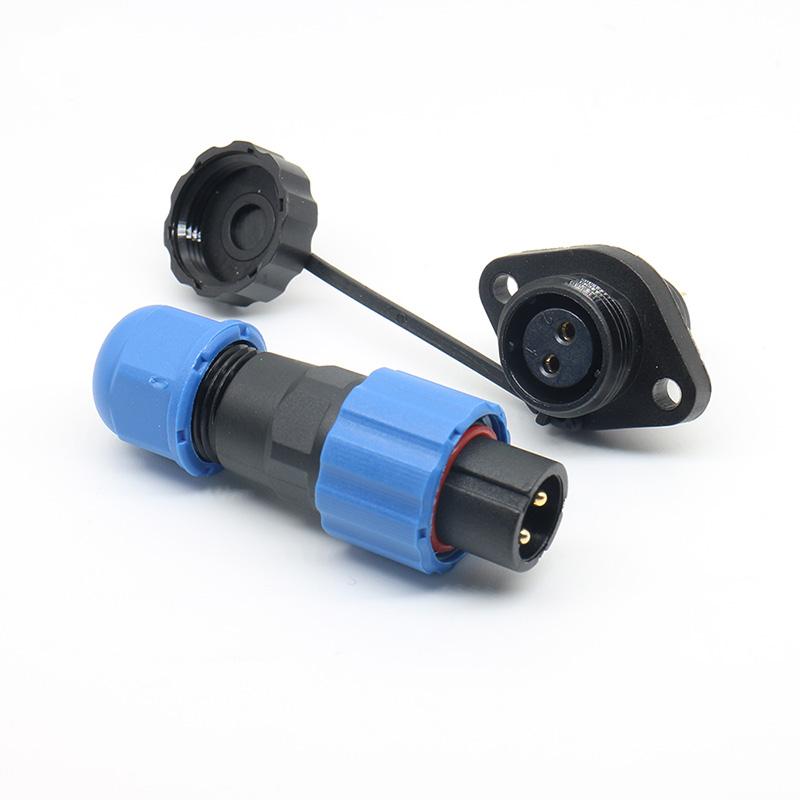

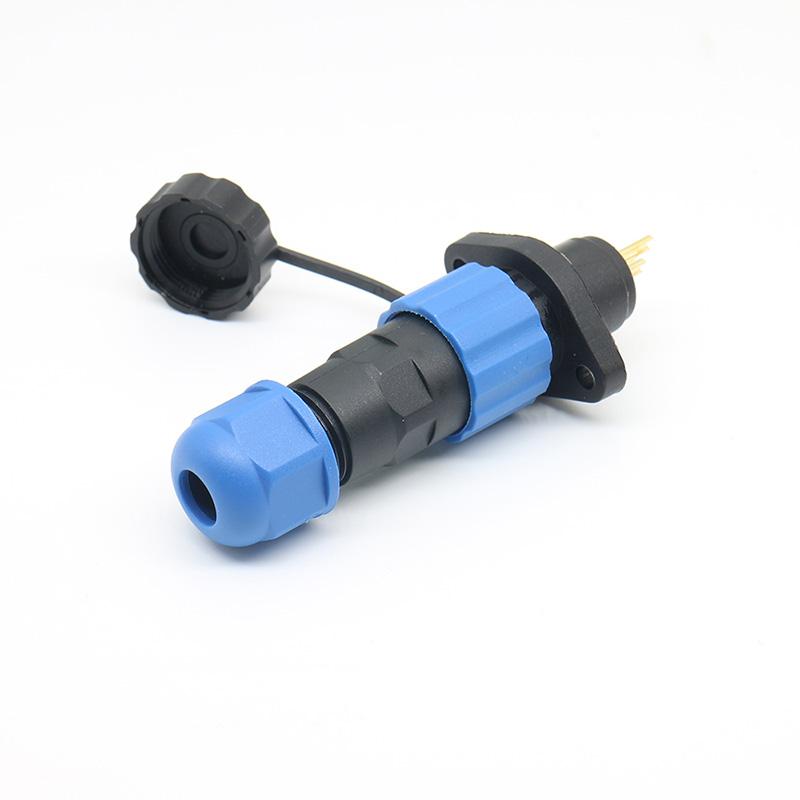

IP68 SD13/SP13 Flange Cable Connector 1-7 Pins

MOQMOQ >200
PricePrice $1.65 - $2.37
>Number Of CoresNumber Of Cores 1 - 7Pins
Contact DiameterContact Diameter(mm) 1.0mm - 2.8mm
IP RatingIP Rating IP68
Shell MaterialShell Material PC,Nylon66
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Welding
Rated CurrentRated Current(A) 5A - 25A
Rated VoltageRated Voltage(Ac.V) 250V/380V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+8619924482730

IP68 SD13 / SP13 Flange Cable Connector - 1 - 7 Pins Compact Sealed Interface Solution

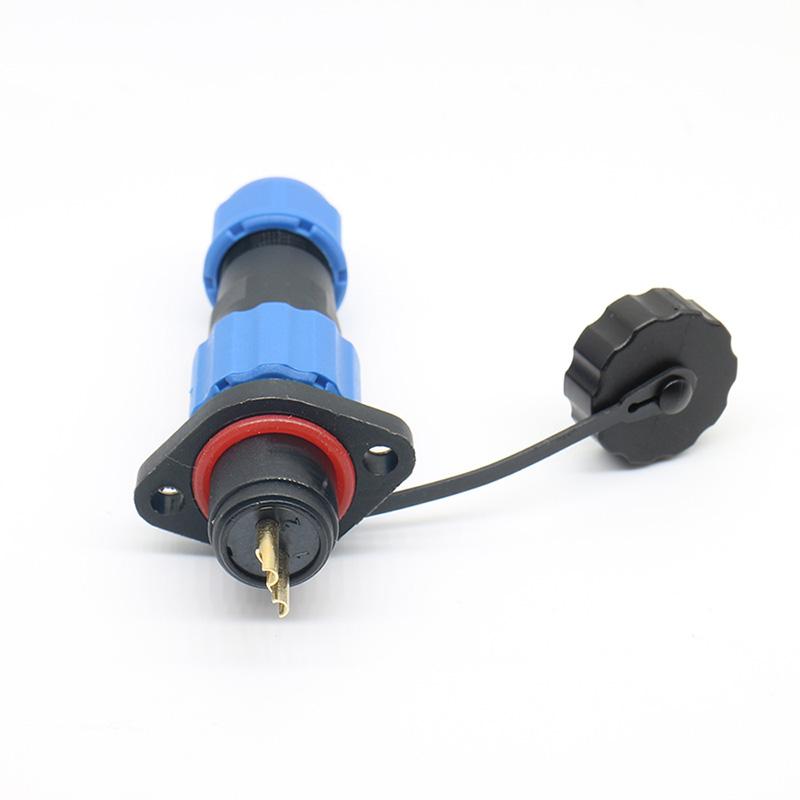

The SD13 / SP13 IP68 Flange Cable Connector (1 - 7 Pins) is designed for equipment that requires a compact waterproof panel interface combined with flexible cable integration. It provides a reliable connection point between internal wiring and external circuits, making it suitable for industrial devices, outdoor electronics, and compact control systems.
Connector
With its small SD13/SP13 housing and flange mounting structure, this connector is ideal for applications where installation space is limited but environmental protection and stable performance are still critical.

Compact Design for Tight Installation Space
Compared with larger industrial connectors, the SD13/SP13 series is optimized for miniaturized equipment design. The flange structure allows secure panel mounting while keeping the overall footprint small, helping engineers achieve cleaner and more efficient system layouts.
It is especially suitable for devices that require:
Space-saving installation
Stable panel-to-cable transition

Reliable sealing in compact housings


Key Product Advantages
IP68 High-Level Waterproof Protection

Provides strong resistance against water, dust, and environmental contamination, ensuring stable operation in outdoor and industrial environments.



1 - 7 Pins Flexible Configuration
Supports a wide range of applications:
1 - 2 Pins: Simple power transmission
3 - 5 Pins: Power + basic signal integration

6 - 7 Pins: Multi-signal compact systems

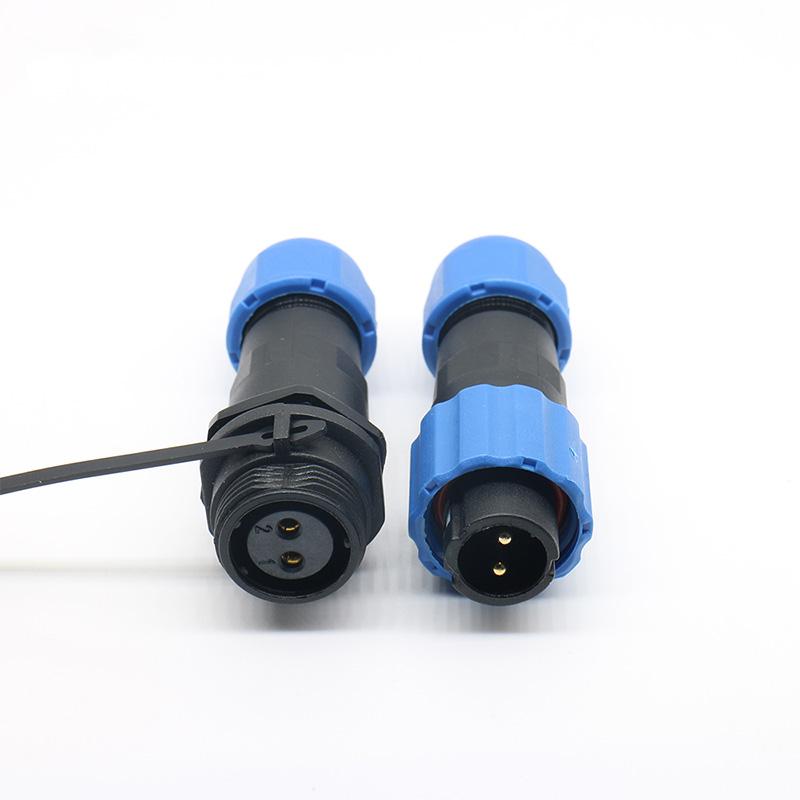

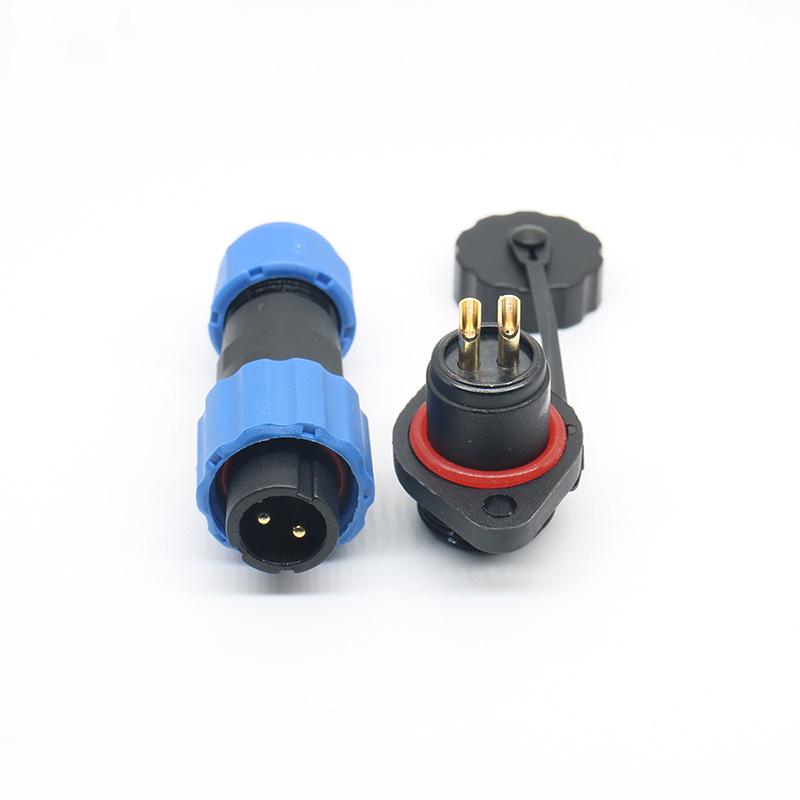

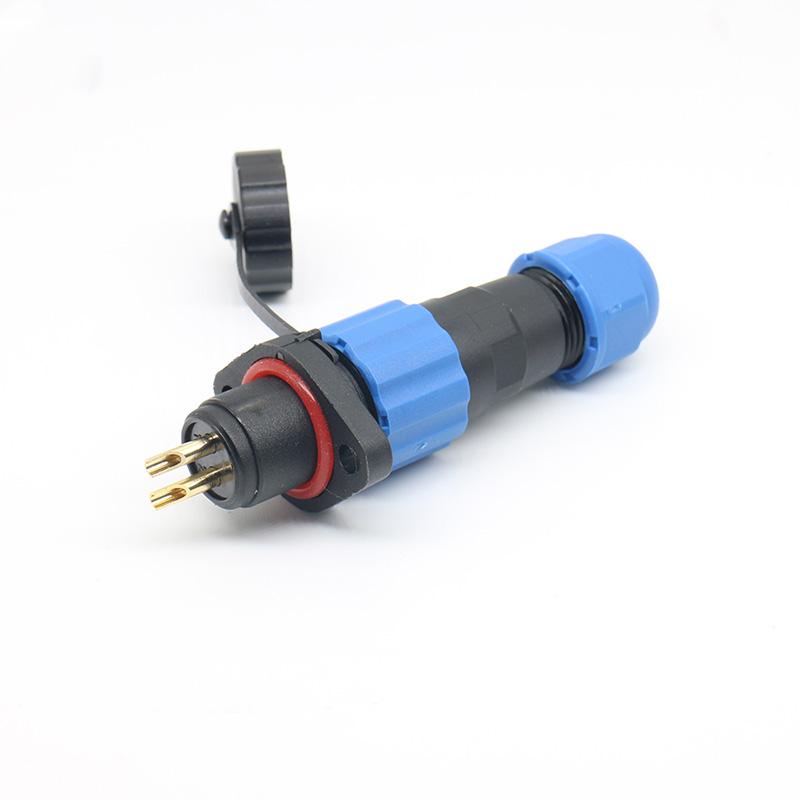

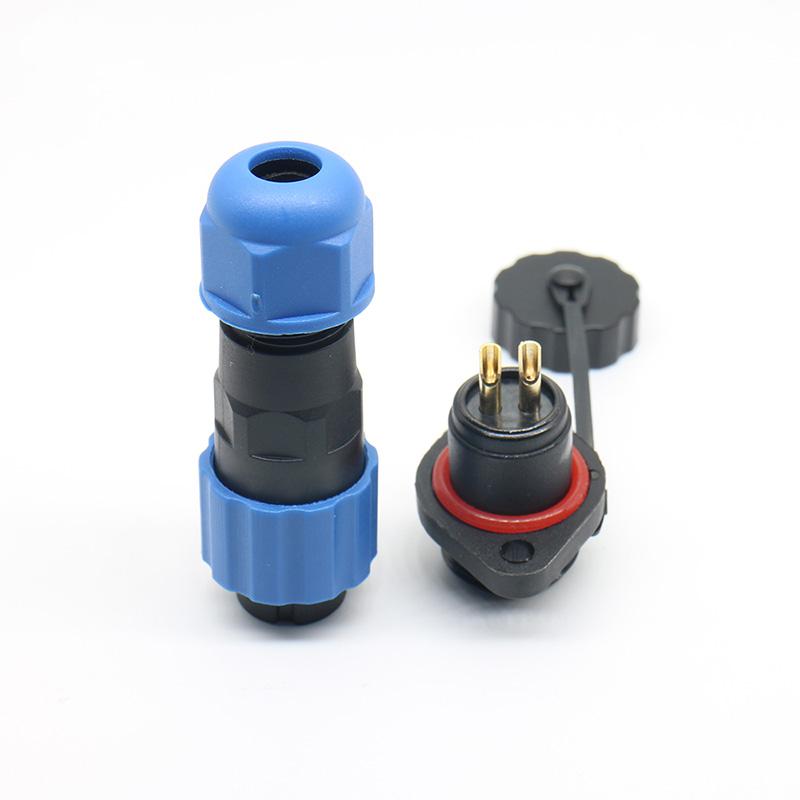

SD13 connector

Flange Mounting for Secure Installation
The flange design ensures firm fixation on equipment panels, reducing loosening caused by vibration or long-term use.

Cable Integration for Easy Wiring
Cable-mounted structure simplifies internal wiring and improves installation flexibility during assembly.

Stable Electrical Performance

Precision contact design ensures reliable conductivity and consistent transmission quality.

Connector


Manufacturing Strength Behind Stable Quality

We are a professional connector manufacturer with over 15 years of experience in waterproof connectors and cable assembly production, serving global customers in industrial automation, smart devices, energy systems, and communication equipment.

Connector

Our factory operates a fully integrated production system, including:
Mold design and tooling development
Zinc alloy die-casting
CNC precision machining
Injection molding
Cable processing and connector assembly
Connector
This in-house manufacturing capability allows us to maintain strict quality control, stable production consistency, and fast delivery capability.


Strict Quality Assurance System
Each SD13/SP13 connector undergoes multiple inspection processes before shipment:
IP68 waterproof sealing test
Electrical conductivity and continuity testing
Plugging cycle durability testing
Mechanical strength inspection
Dimensional accuracy verification
Connector
All products are manufactured under ISO9001 quality management standards and comply with CE and RoHS international requirements.
Connector
Customization Support
We provide flexible OEM/ODM services to meet different project requirements:
Customized pin configuration (1 - 7 pins)
Cable length and wire specification options
Shielding and anti-interference solutions
Structural and material customization
Application-specific design support
Our engineering team supports customers from prototype development to mass production.

Application Areas
Compact industrial control systems
Outdoor electronic devices
Smart sensors and monitoring equipment
LED and lighting systems
Automation modules
Power and signal distribution units
A Compact Yet Reliable Industrial Interface
The SD13/SP13 IP68 flange cable connector is designed to provide a small-size, high-reliability waterproof connection solution for modern compact equipment.

Contact Us
We offer samples, technical support, and customized production solutions.
Contact us today for professional assistance and competitive quotations.

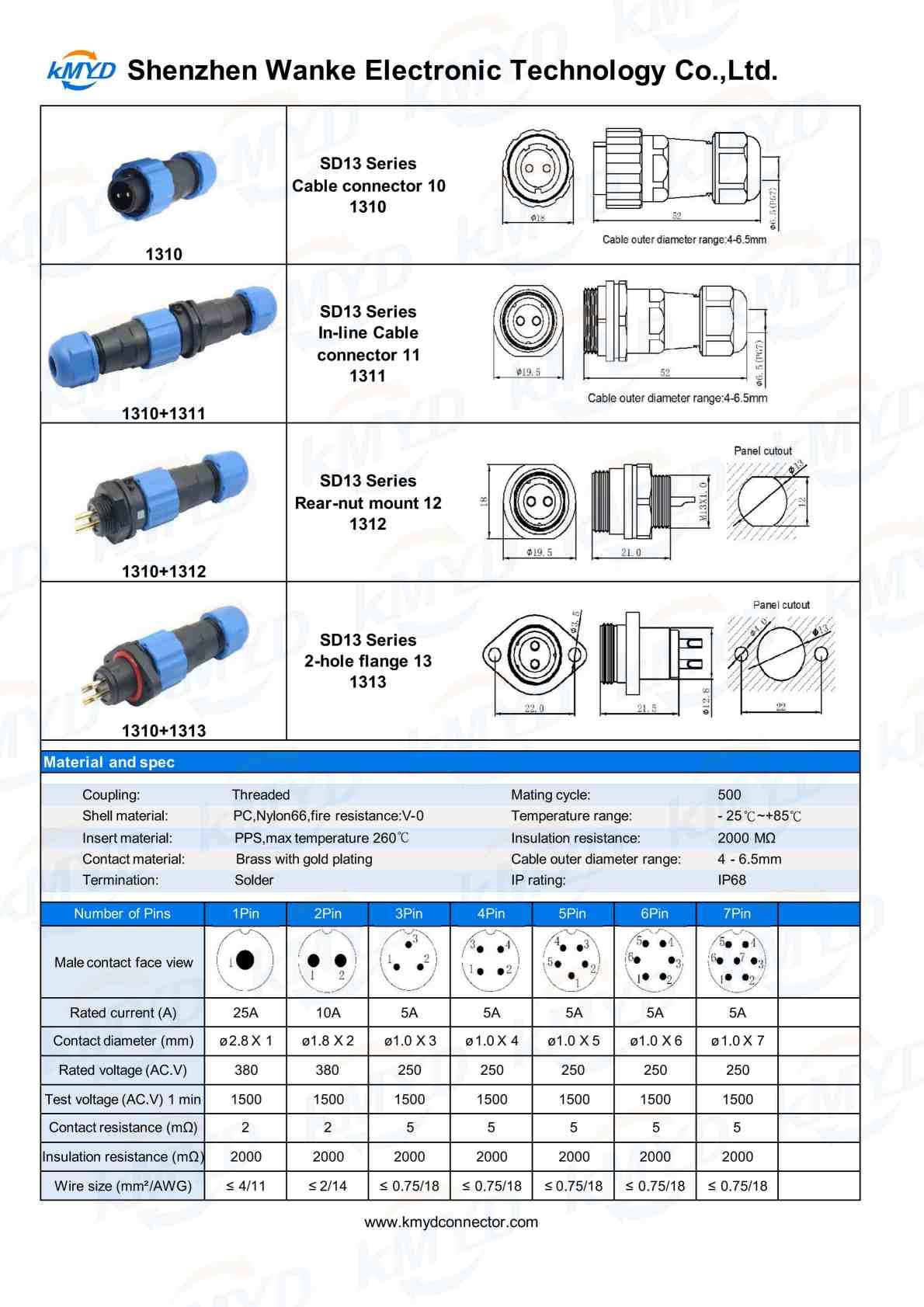

Item

 Parameters

Number of Cores

 1-7Pin

Gender

 Male/Female

Housing Material

PC,Nylon66


Cores Material

 Brass Plated with Silver

Insulator Material

 PPS

Locking System

 Threaded Connection

Temperature Range

 -20℃, +85℃

Rated Current (A)

 5A - 25A

Rated Voltage (AC.V)

 250V/380V

Test Voltage (AV.C)1Min

 1500V

Insulation Resistance (㏁)

 2000㏁

Contact Resistance (㏁)

 ≤5㏁

Termination

 Welding


Related Products

More》

Related Resource


SD13/SP13 Connector
Related Cases
KMYD Connectors KNOWS WHAT YOU NEED,
IP68 SD13/SP13 Flange Cable Connector 1-7 Pins Market Leader！

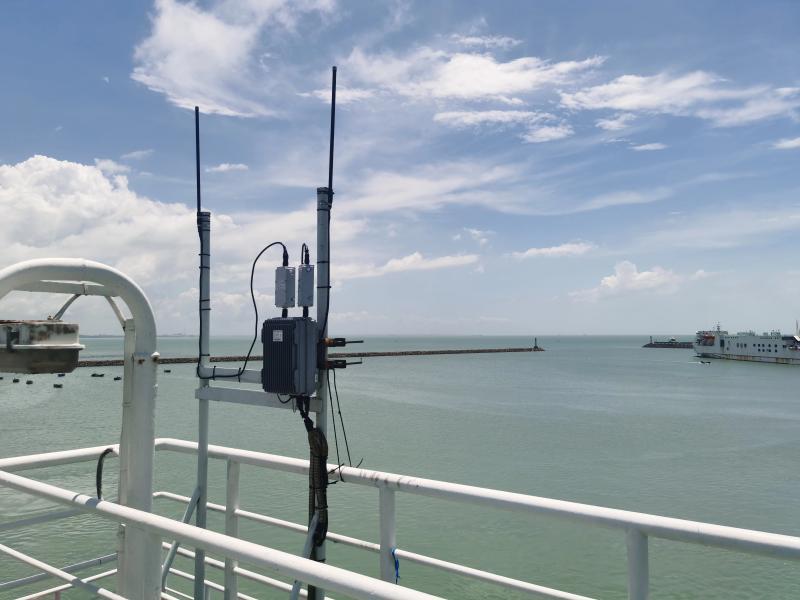

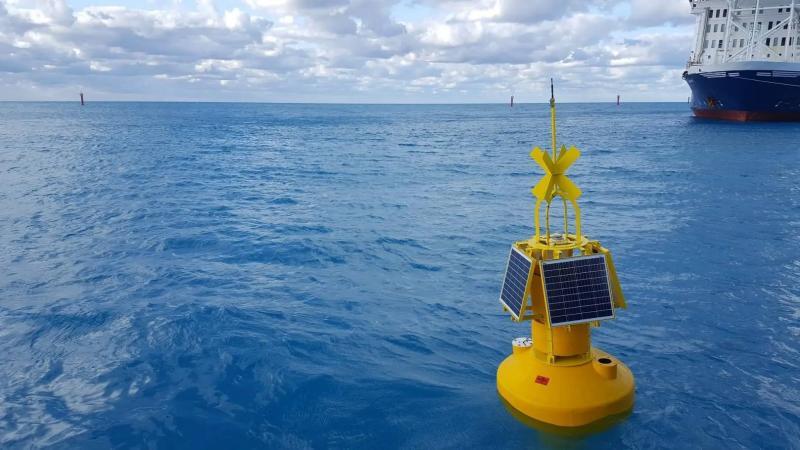

Offshore Monitoring and Sensor Systems in the United States
Offshore Monitoring and Sensor Systems in the United States
Discover how push-pull connectors are used in offshore monitoring systems in the United States, supporting reliable signal connections in control and data acquisition equipment.

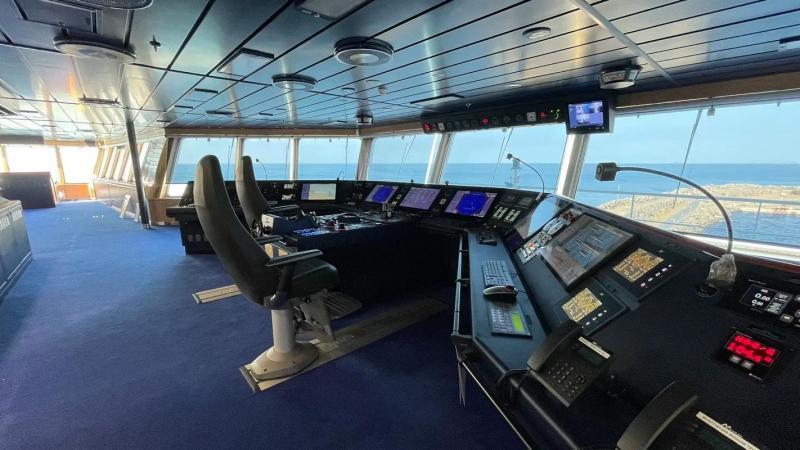

Marine Navigation and Bridge Control Panels in South Korea
