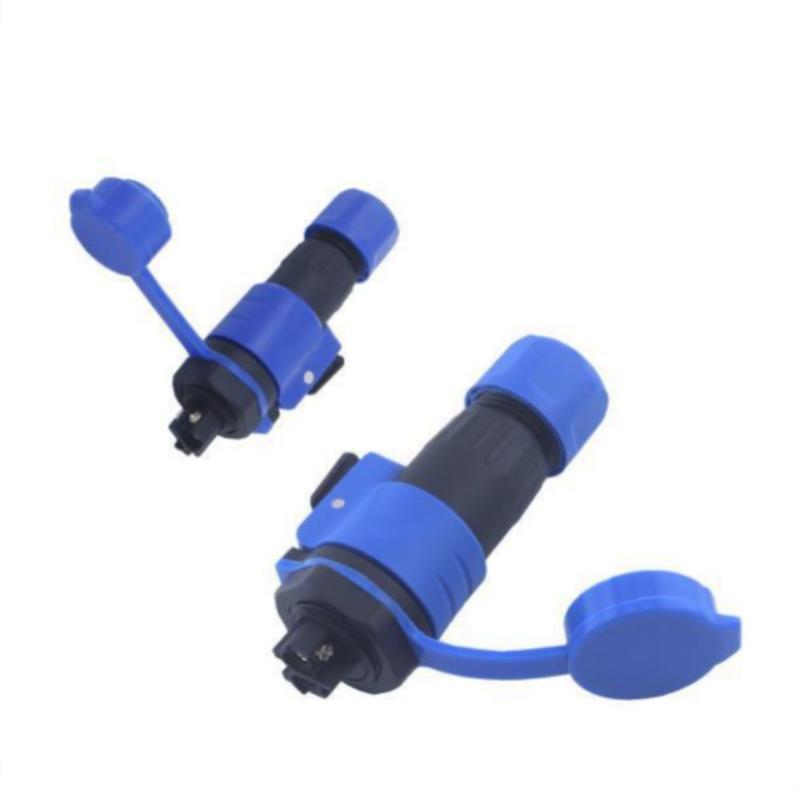

FD12 2-Pin Waterproof Panel Mount Connector Overview

The FD12 2-Pin Waterproof Panel Mount Connector is a compact circular connector engineered for reliable electrical connections in industrial and outdoor environments. Its nylon housing, secure panel mounting structure, and protective dust cap support dependable performance and straightforward installation.

This 2-pin configuration suits low-power electrical transmission and signal connections. Typical uses include industrial control systems, LED lighting equipment, electronic devices, and other applications requiring stable, protected electrical connections.

Its compact structure, simplified wiring, and environmental protection make the FD12 a practical choice for equipment manufacturers and electrical engineers.

Durable Nylon Housing

The FD12 connector uses a high-strength nylon shell for mechanical protection and insulation. Nylon is common in electrical connectors due to its resistance to impact, heat, and environmental exposure.

Key benefits of the nylon housing include:

• Lightweight and durable construction
• High electrical insulation performance
• Resistance to corrosion and environmental damage
• Long service life in industrial environments

This structure helps protect internal contacts while supporting reliable connectivity over extended use.

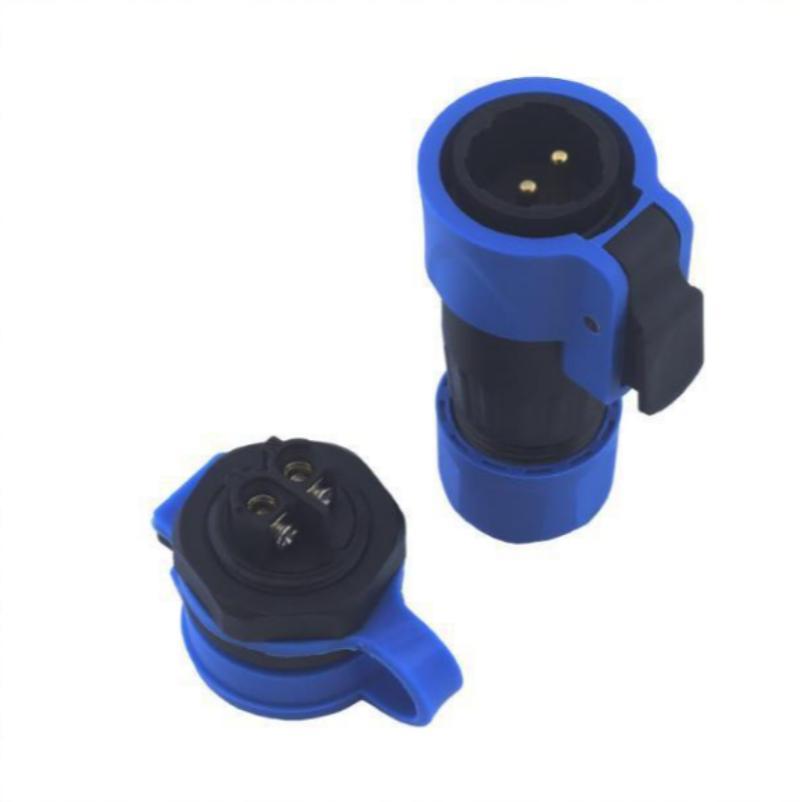

Panel Mount Installation

The FD12 features a panel mount design for secure installation on equipment panels or enclosures. This mounting method provides a stable connection, which is important for industrial equipment and electronic systems.

Advantages of panel mounting include:

• Secure installation on control panels or equipment housings
• Improved mechanical stability
• Easy integration into electrical systems
• Clean and organized wiring layout

This design also simplifies maintenance and replacement when required.

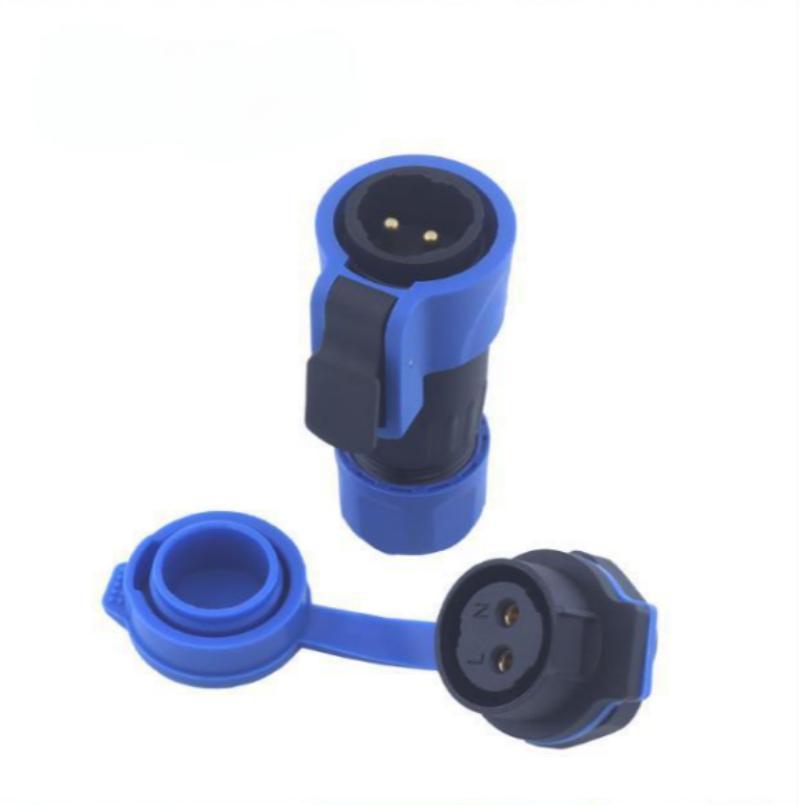

Waterproof Design with Protective Dust Cap

The FD12 connector includes a protective dust cap that helps prevent water, dust, and debris from entering the connector when it is not in use. This feature supports reliable operation in challenging environments.

The waterproof structure improves reliability in outdoor or industrial applications where environmental protection is necessary. The dust cap also helps extend connector lifespan by protecting internal contacts.

Typical Applications

Due to its durable construction and waterproof design, the FD12 connector is used across various industries. Common applications include:

• Industrial automation equipment
• LED lighting systems
• Outdoor electrical installations
• Electronic control devices
• Small power distribution equipment
• Automation and monitoring systems

Its compact size and easy installation make it a practical connector for many modern electrical systems.

Selection and Ordering Guidance

To ensure the correct FD12 connector configuration for your application, please provide the following details when inquiring:

• Mating connector requirement (plug or socket, male or female)
• Pinout or wiring diagram
• Cable outside diameter and conductor size
• Electrical load (current and voltage)
• Operating environment and required protection level
• Order quantity

For related panel mount options, see the LD32/SP32 Electrical Panel Mount Connector. For additional FD series configurations, review the FD20 5 Pin Panel Mount Cable Connector for Industrial Power and Signal.

Conclusion

The FD12 2-Pin Waterproof Nylon Panel Mount Connector provides a reliable and durable electrical connection solution for industrial and electronic applications. With its nylon housing, secure panel mounting structure, protective dust cap, and stable electrical performance, the FD12 connector supports safe and long-lasting operation.

For equipment manufacturers and engineers seeking a compact and dependable waterproof connector, the FD12 offers an efficient and practical solution.
