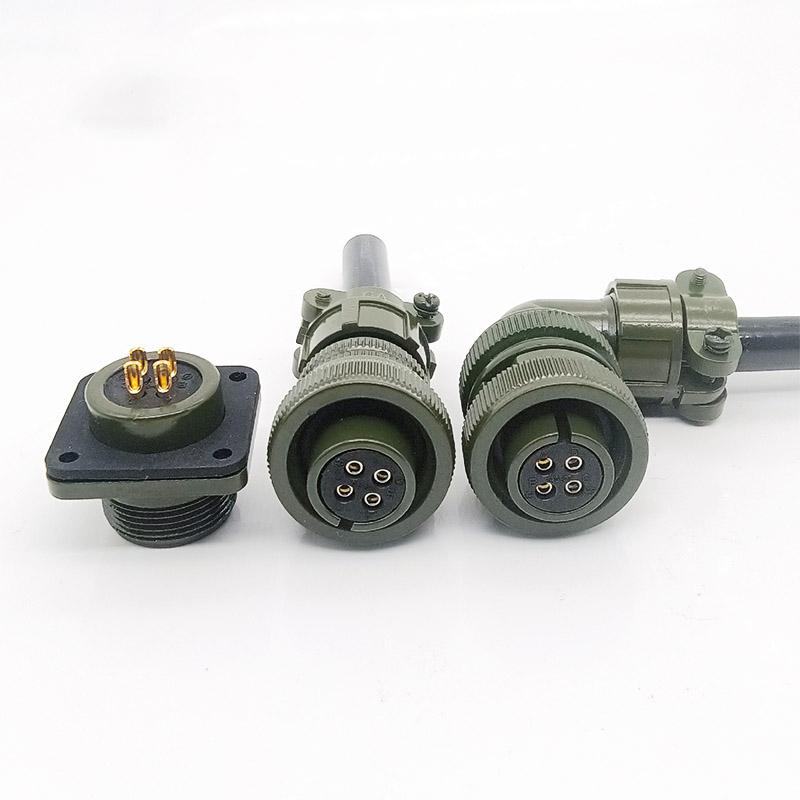

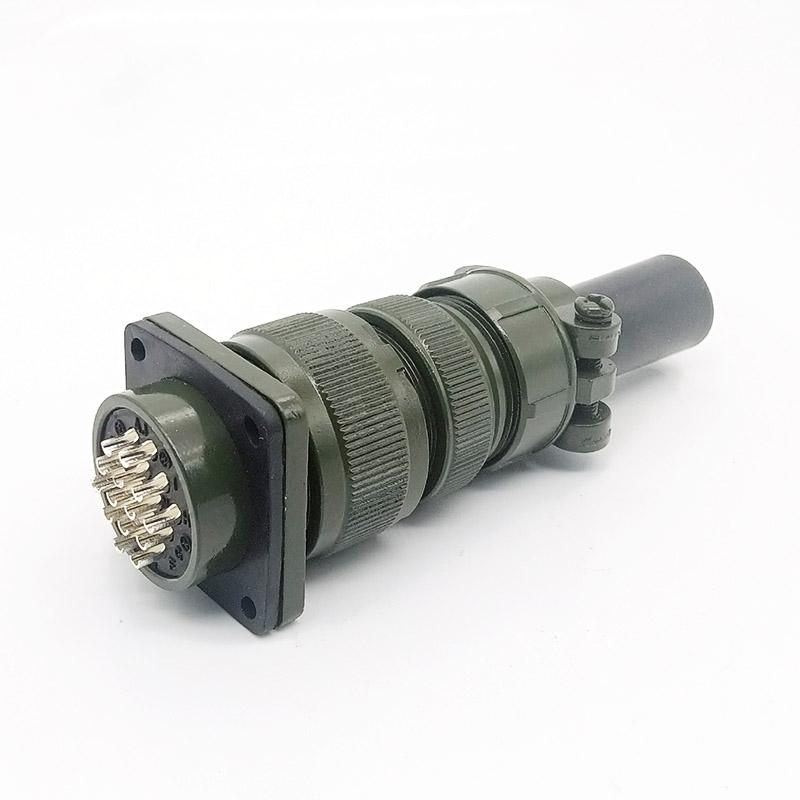

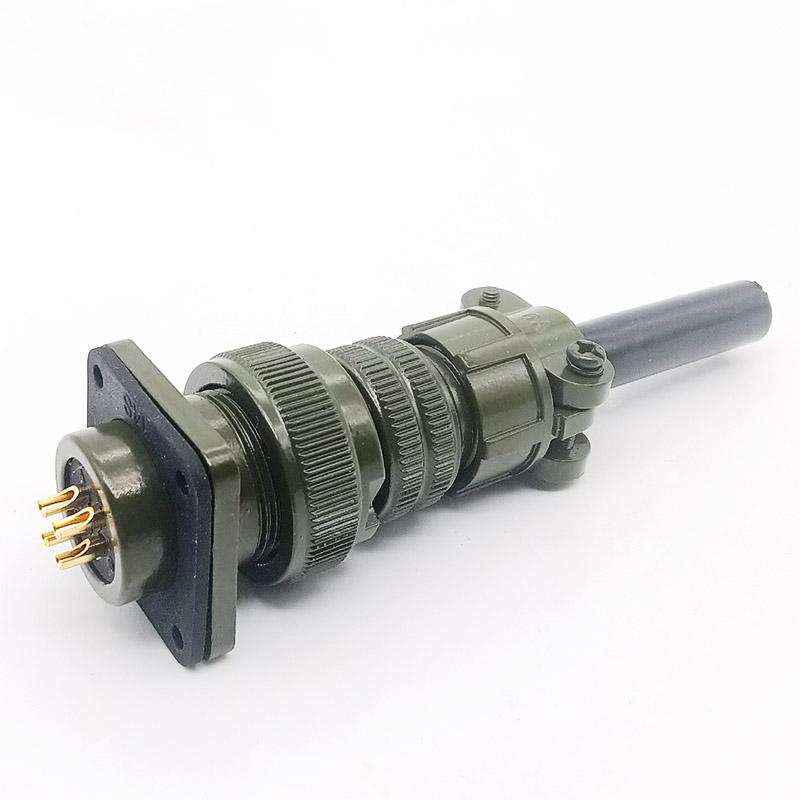

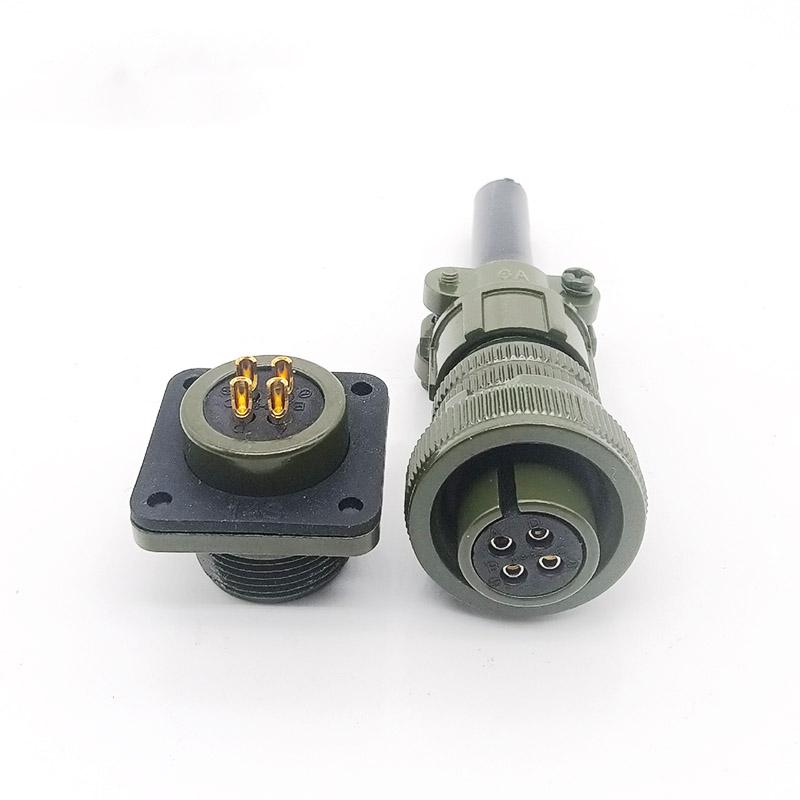

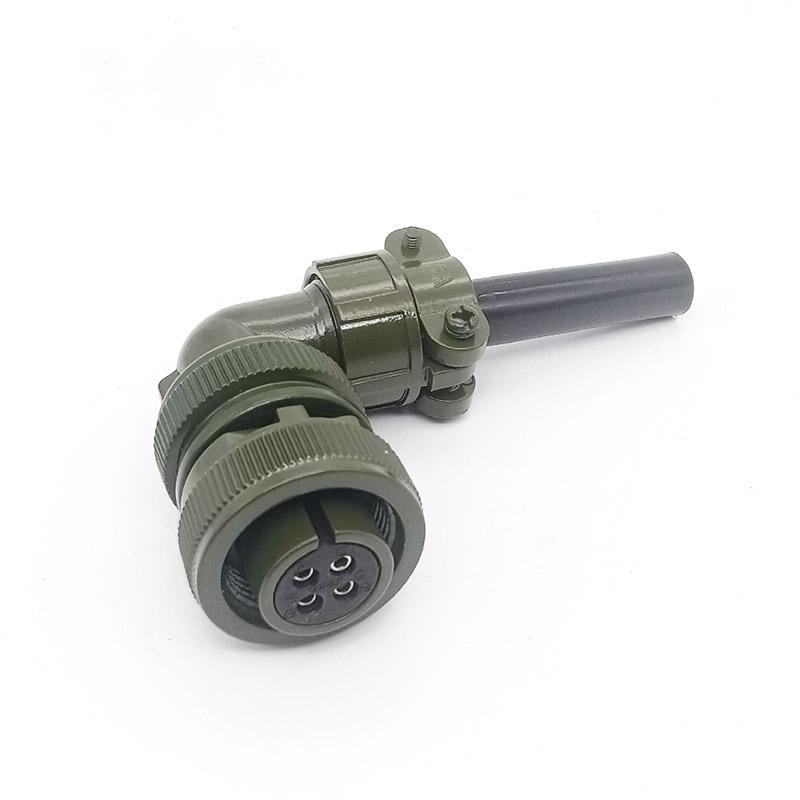

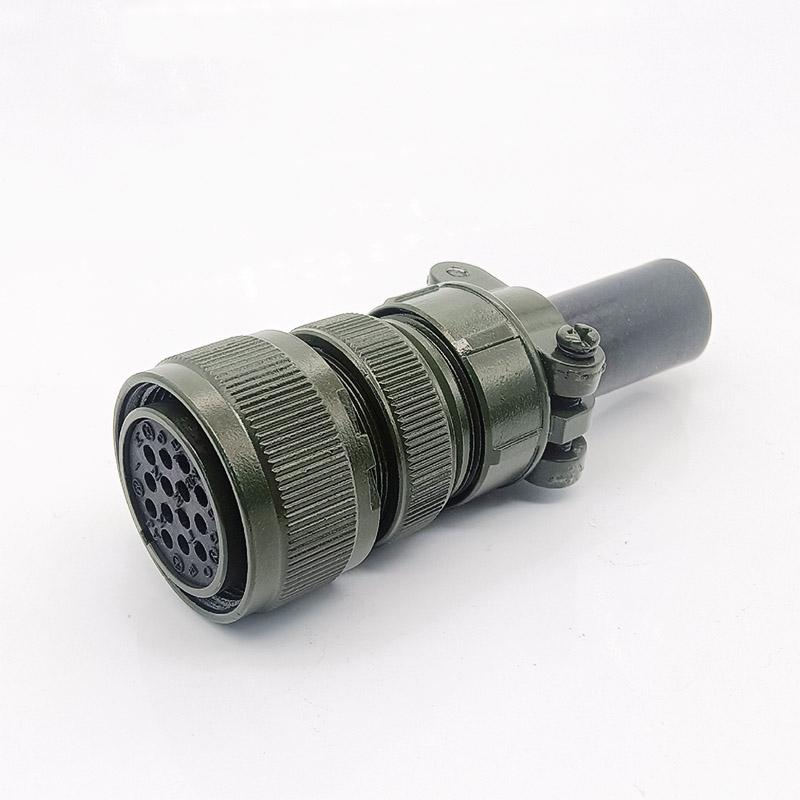

MIL-DTL-5015 Connector for Wind Turbine Control Units

MIL-DTL-5015 Connector for Wind Turbine Control Units

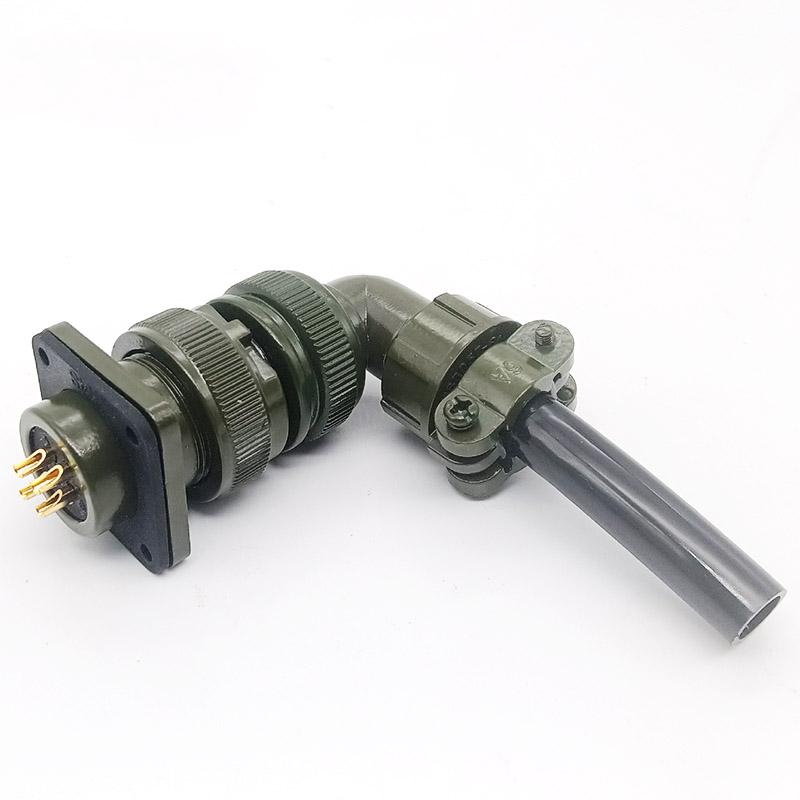

The MIL-DTL-5015 connector is engineered for wind turbine control units, providing dependable electrical connections in demanding renewable energy environments. Its robust design ensures stability and long-term performance, making it a suitable choice for nacelle and tower control systems where vibration and temperature fluctuations are common.

Key Selection Criteria

When evaluating this connector for your wind turbine application, consider the following decision points:

• Pin Configuration: Available in 2 to 52 pins, allowing you to match the connector to your control unit's power and signal wiring requirements.
• Gender and Mounting: Offered in male and female versions, with a standard MIL-DTL-5015 design that supports quick mounting and maintenance in confined control cabinets.
• Environmental Protection: IP67-rated dustproof and waterproof construction supports outdoor installation in wind farms, protecting contacts from moisture and particulate ingress.
• Material Compatibility: Aluminum alloy housing with brass, gold-plated contacts provides corrosion resistance and stable conductivity in coastal or high-humidity sites.

Construction and Reliability

The connector's high-quality materials resist corrosion, vibration, and extreme weather conditions. Precision contacts ensure stable power and signal transmission, reducing the risk of intermittent faults that can lead to turbine downtime. The aluminum alloy housing offers a balance of strength and weight, suitable for panel-mounted or cable-to-cable connections within the control unit.

Application Scope

This MIL-DTL-5015 connector is intended for use in the following renewable energy applications:

• Wind turbine control units
• Renewable energy monitoring systems
• Power distribution in wind farms

It is not designed for subsea or underwater mating applications, nor for use in explosive atmospheres unless separately verified. For high-vibration nacelle environments, confirm the connector's locking mechanism and cable strain relief meet your specific installation requirements.

Parameter Interpretation

The connector supports 2-52 cores with male or female genders. The housing is made of aluminum alloy, and the contacts are brass plated with gold. These values indicate a connector suited for moderate-current control and signal circuits rather than high-power main feeders. For exact current, voltage, and temperature ratings, refer to the Technical Specifications field and confirm the final configuration with your application's electrical load.

Installation and Maintenance Considerations

Before installation, verify the following to ensure a reliable connection:

• Confirm the mating connector gender and pin layout match your control unit's wiring diagram.
• Check the cable diameter and termination method against the connector's contact barrel size.
• Ensure the mounting surface provides adequate clearance for the connector's coupling nut and cable bend radius.
• Plan for periodic inspection of contact integrity and housing seal condition in high-vibration zones.

Inquiry Checklist

To receive an accurate quotation and configuration recommendation, please provide the following details when contacting us:

• Required pin count and gender (male or female) for both plug and socket.
• Cable type, conductor size, and outer diameter for termination.
• Mounting style: panel mount, cable mount, or in-line.
• Operating environment specifics, such as temperature range and vibration levels.
• Any need for custom cable lengths or pre-assembled harnesses.

For related products, see the SP21 IP68 Connector for Wind Turbine Control Units or review the SD13/SP13 Durable Flange Connector Dimensions and Materials for alternative mounting options. For a broader selection, browse the Waterproof Connectors catalog.
