M8 Connectors with Cable for EV Battery Management Systems

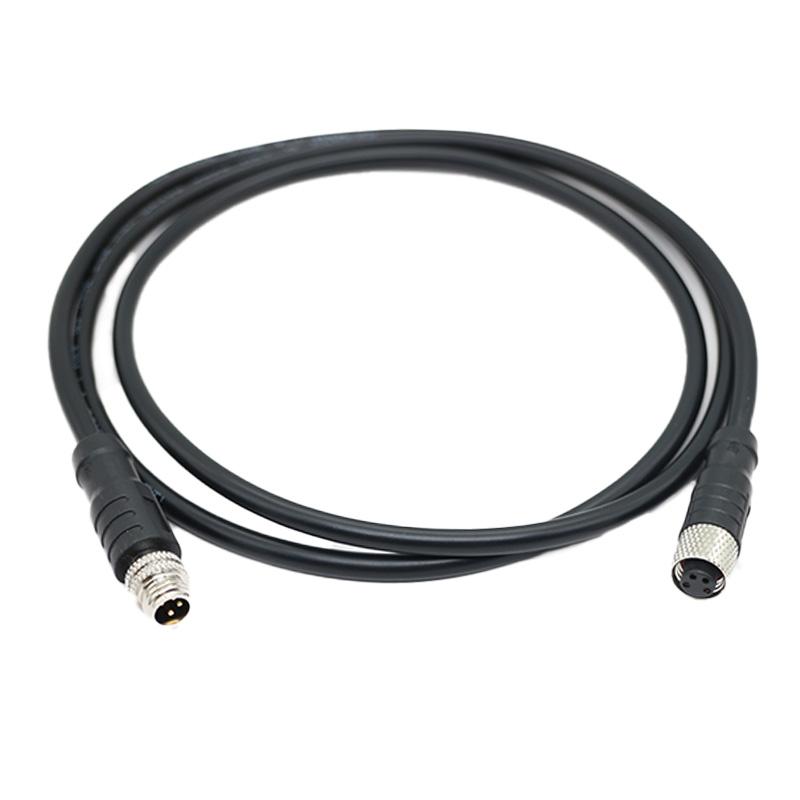

The M8 connector with cable for EV Battery Management Systems is engineered to deliver reliable signal transmission within electric vehicle battery packs. It is commonly used in BMS modules to connect temperature sensors, voltage monitoring devices, and control units, supporting accurate battery data acquisition and safe system operation.

Why Choose an M8 Connector for BMS Applications

Selecting the right interconnect for battery management begins with understanding the electrical and mechanical demands of the module. The M8 series offers a compact threaded locking design that provides secure, vibration-resistant connections, which is essential in the demanding environment of an electric vehicle. Its small footprint allows installation in space-constrained battery packs while maintaining consistent electrical performance.

Key Decision Points for Buyers

• Pin Configuration: Available in 2 to 8 pin options, allowing you to match the connector to the number of signal lines in your BMS design.

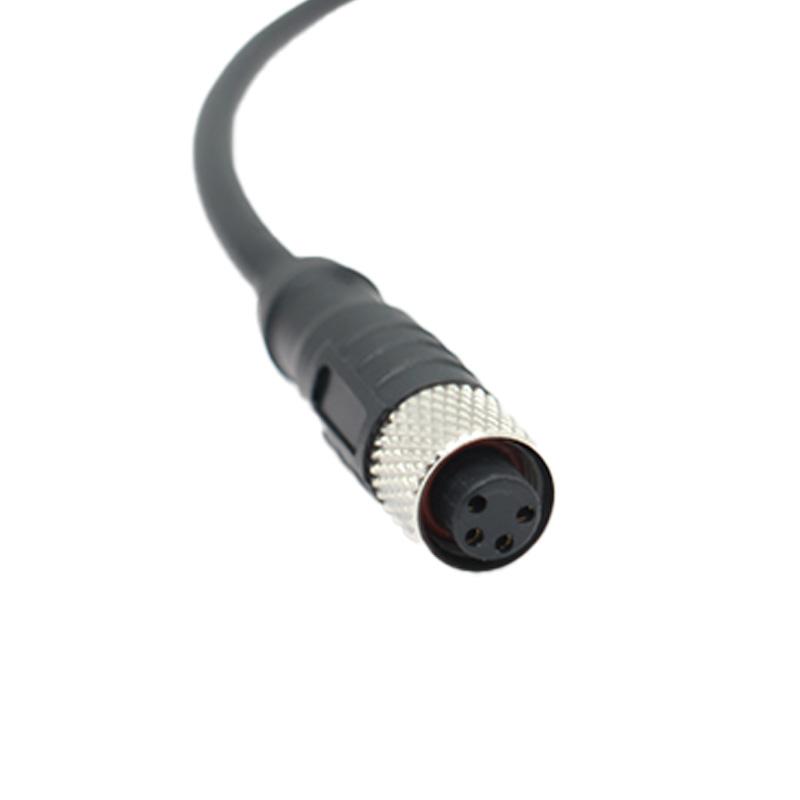

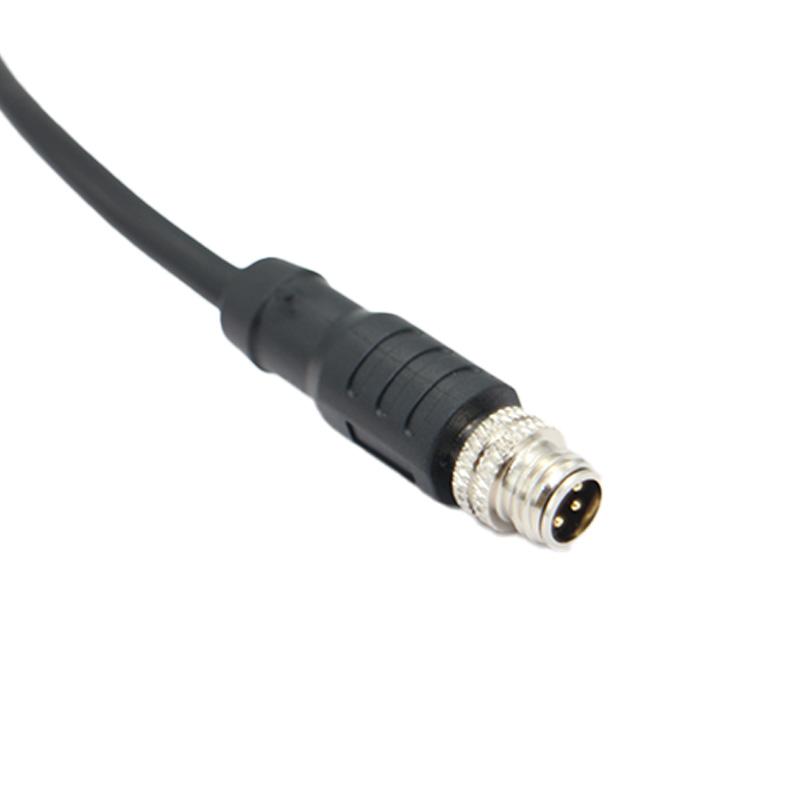

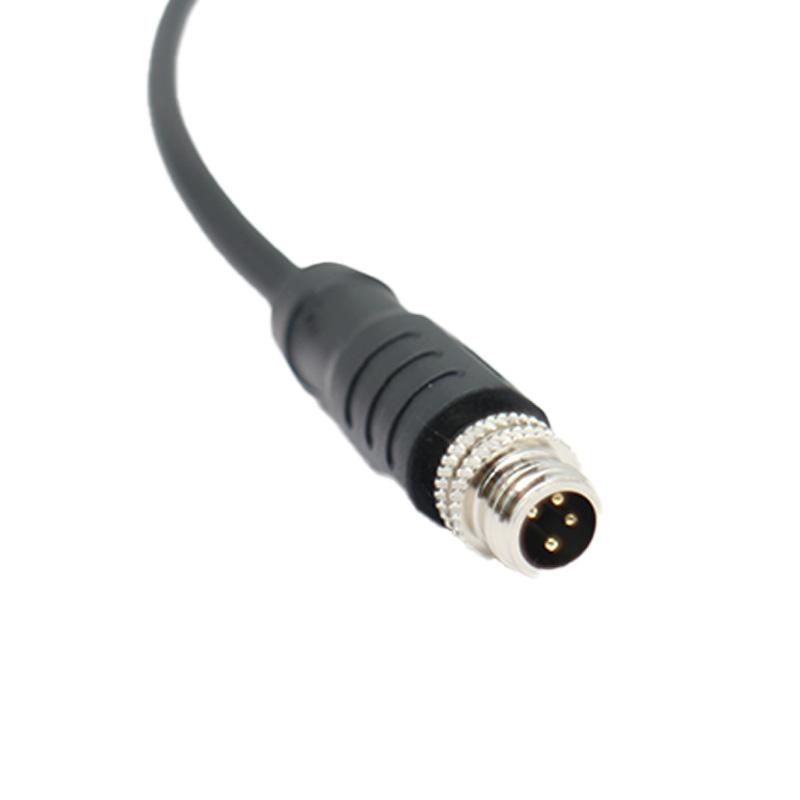

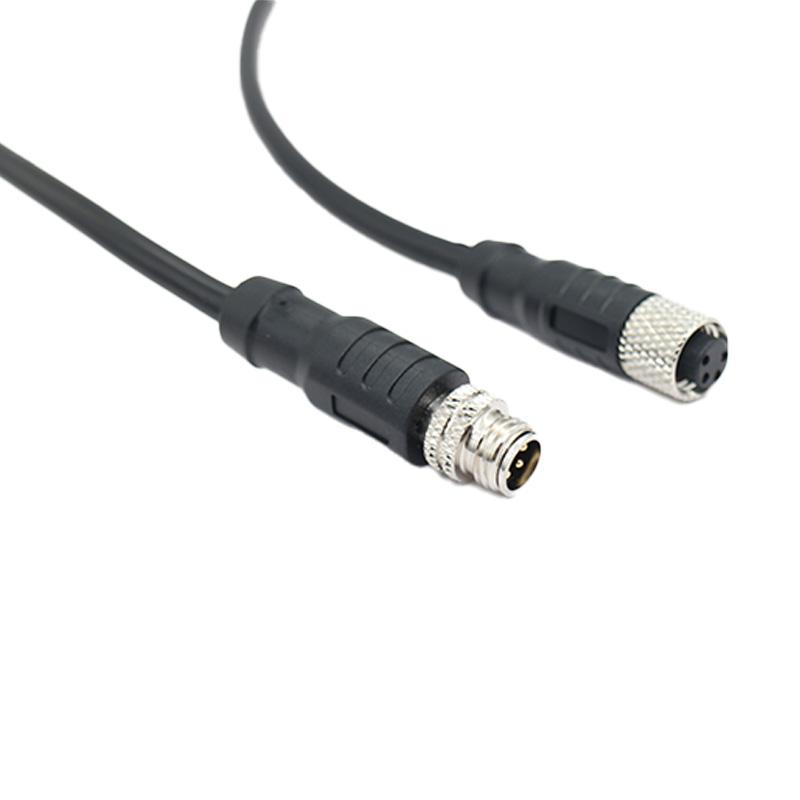

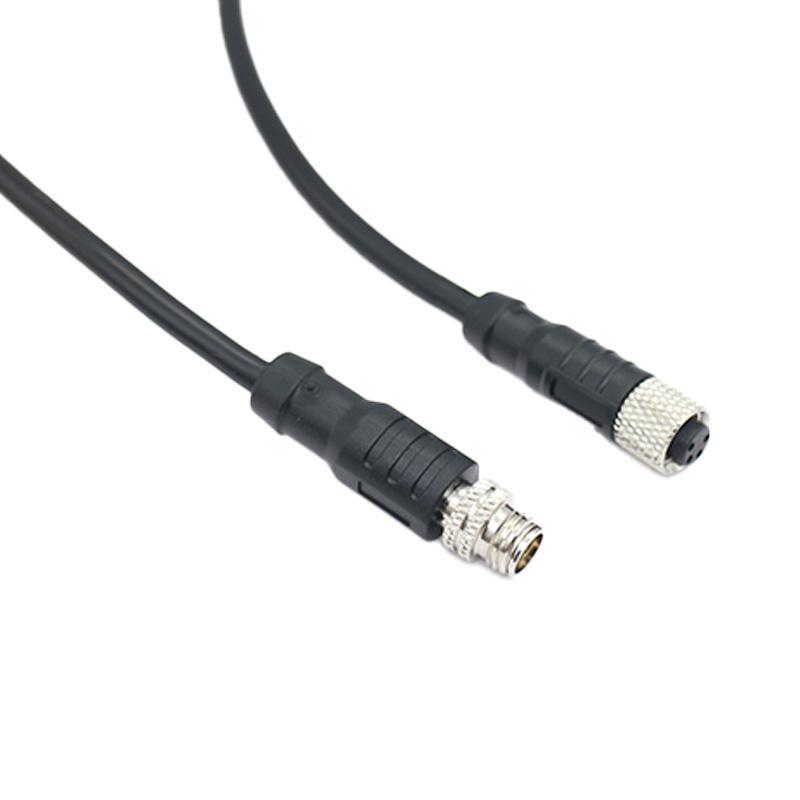

• Gender and Orientation: Offered in male and female versions to suit cable-to-panel or cable-to-cable mating requirements.
• Material Compatibility: Housing is constructed from zinc alloy with nickel plating for durability, while contacts are brass with silver or gold plating to support reliable signal transfer.
• Environmental Fit: The threaded coupling mechanism helps maintain connection integrity under vibration, a critical factor for on-road and off-road EV applications.

Typical Applications

• EV Battery Management Systems (BMS)
• Battery pack temperature sensors
• Voltage monitoring modules
• Electric vehicle control units
• Energy storage monitoring systems

Application Boundaries

This connector is well suited for signal-level connections in new energy applications, including EV battery packs, battery monitoring systems, energy storage equipment, and other new energy control devices. It is not intended for high-current power transmission; for power distribution within the battery pack, please consult our FD10/FD20/FD30/FD50 connectors for EV BMS and energy storage systems. For applications requiring a larger form factor with higher pin counts, review the aviation plug connector series.

Installation and Mating Considerations

Before specifying the connector, confirm the cable diameter and conductor size to ensure proper fit with the contact and strain relief. The threaded locking mechanism requires adequate access for tightening; verify the mating space in your enclosure. For customized cable lengths or specific pinout arrangements, please provide your wiring diagram and mechanical drawing during inquiry.

Inquiry Checklist

To receive an accurate quotation and sample arrangement, please prepare the following information:

• Required pin count (2-8 pins) and gender (male or female)
• Cable length and conductor gauge
• Operating temperature range and vibration profile of the application
• Any specific plating preference for contacts (silver or gold)
• Quantity and target delivery schedule

For detailed electrical ratings, mechanical dimensions, and material specifications, please refer to the Technical Specifications section on this page. If your application requires a different connector series or a custom cable assembly, contact our engineering team with your project requirements.
