M12 Connectors in Wind Turbine Control Systems in Germany

Project Background

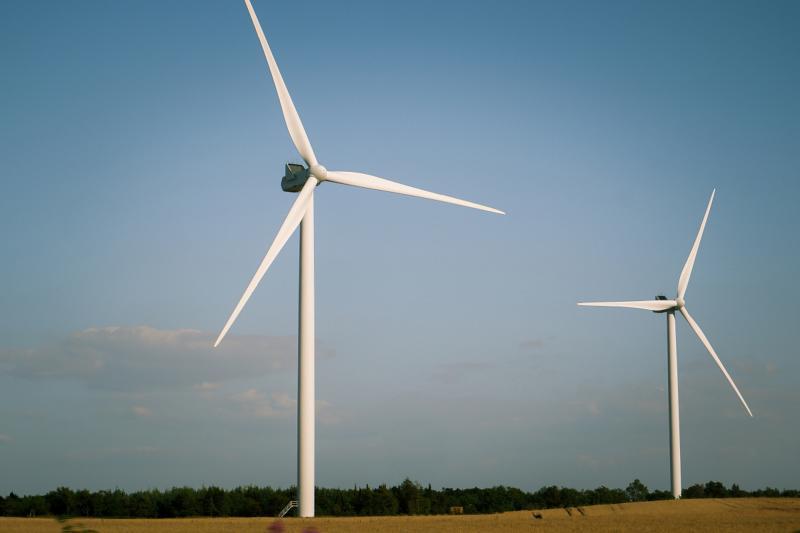

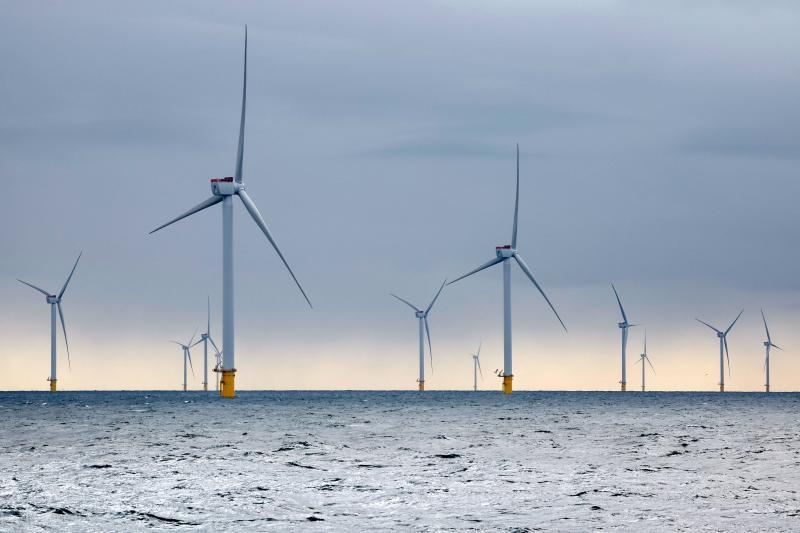

Wind turbines depend on a network of sensors and actuators to regulate blade pitch, monitor wind speed, and manage operational parameters. These components are distributed across the nacelle and along the tower, where they must withstand continuous vibration, temperature swings, and exposure to moisture. In Germany, where wind energy capacity continues to expand, reliable signal transmission between field devices and control cabinets is critical to turbine uptime and predictive maintenance programs.

Connector Application

M12 circular connectors are specified for sensor and actuator interfaces within wind turbine control systems. Typical connection points include:

• Position sensors mounted on pitch-adjustable blades
• Temperature and vibration sensors located in the nacelle
• Signal wiring between actuators and PLC control cabinets

These applications require a compact, threaded coupling that can be field-terminated or factory-molded, depending on the maintenance strategy of the turbine operator.

Design Characteristics

The M12 series provides threaded locking, vibration-resistant contact retention, and IP67 sealing when mated. These characteristics support stable electrical continuity in outdoor and rotating environments where loose connections would otherwise cause intermittent faults or unplanned downtime.

Operational Environment

Wind turbines operate under high vibration and harsh weather conditions, including rain, ice, and UV exposure. Connectors must maintain reliable contact over long service intervals, with mating cycles and cable strain relief matched to the installation location. For tower-top installations, the connector's locking mechanism and sealing performance are primary selection criteria.

Selection Considerations

When specifying M12 connectors for wind turbine control systems, engineers should verify the following parameters against the turbine's interface requirements:

• Pin count and coding (A-coded, B-coded, D-coded, or X-coded) to match the signal type and prevent mismating
• Rated voltage and current for the connected sensor or actuator load
• IP rating and temperature range for the specific mounting location
• Cable diameter range and shielding requirements for EMI protection
• Mating cycles and locking torque for maintenance access frequency

For applications requiring higher pin density or different sealing performance, engineers may evaluate alternative circular connector series before finalizing the control system architecture.

Related Resources

For detailed specifications and configuration options, refer to the M12 Circular Connectors product page. For guidance on vibration-resistant connections in wind power equipment, see the FAQ on preventing nacelle connector detachment under high-altitude vibration.
