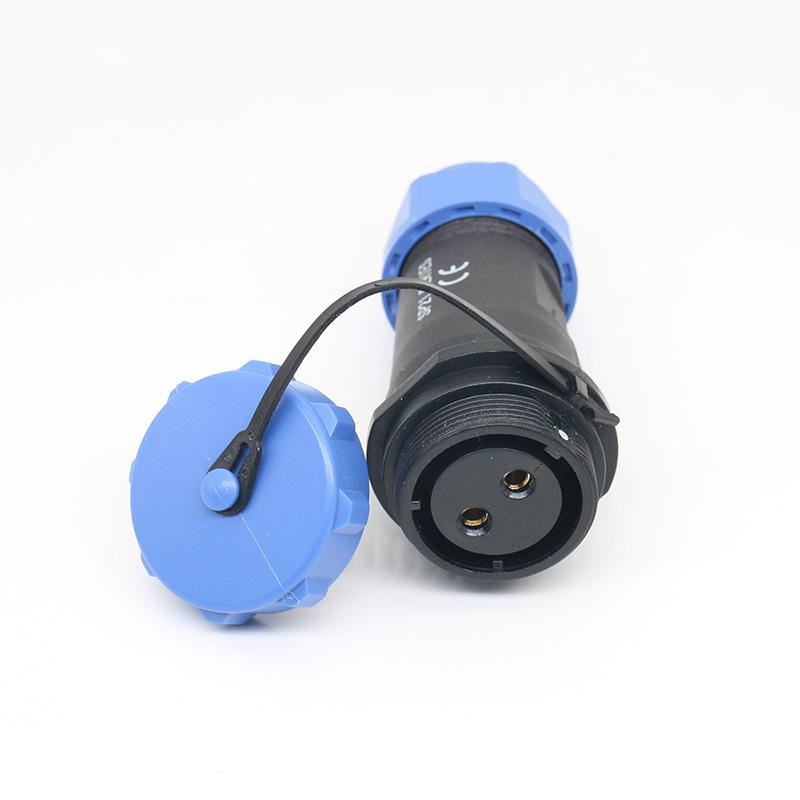

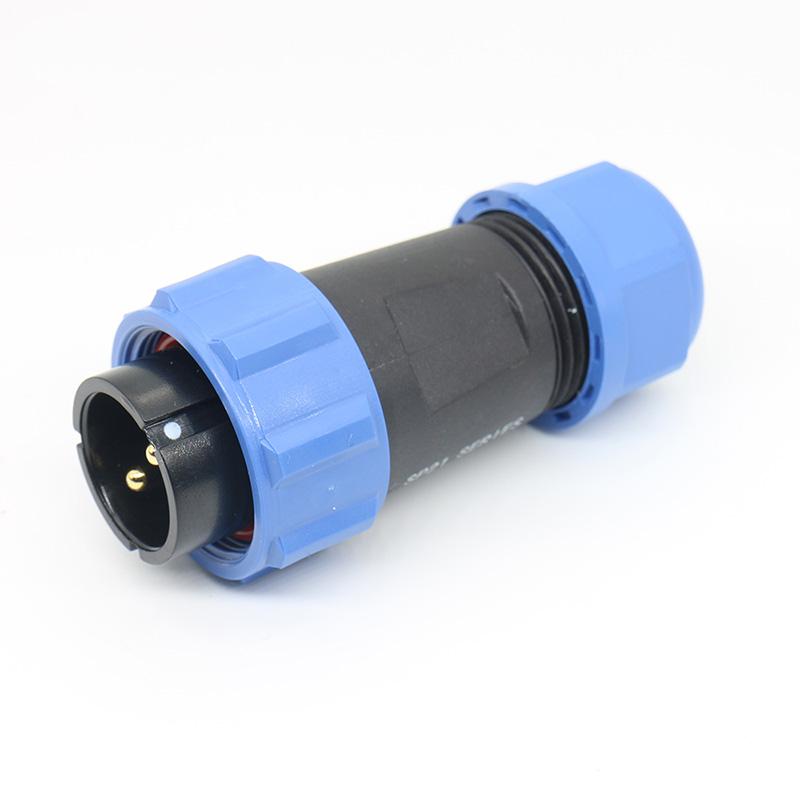

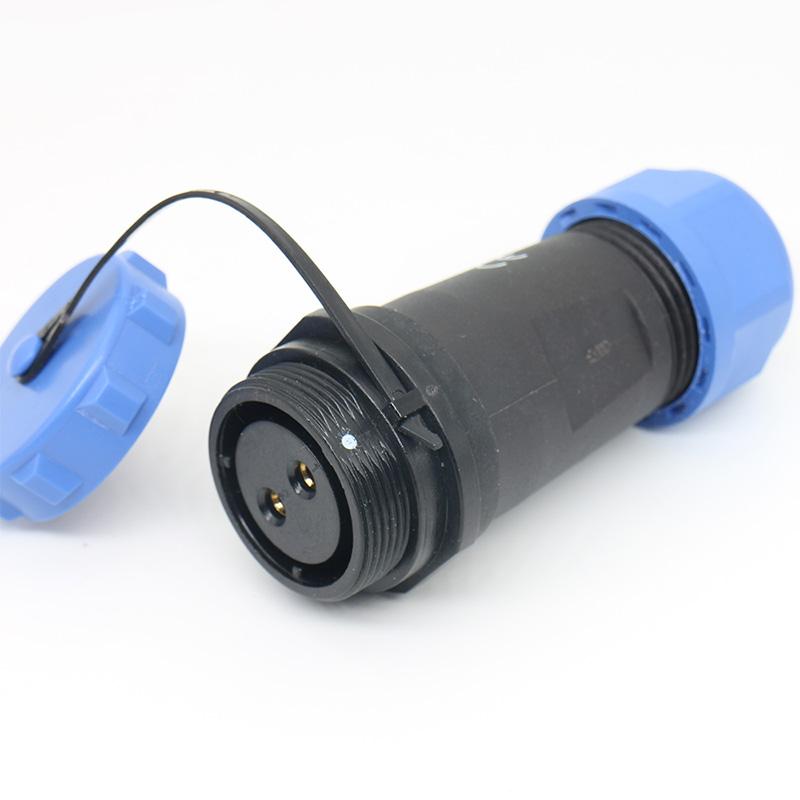

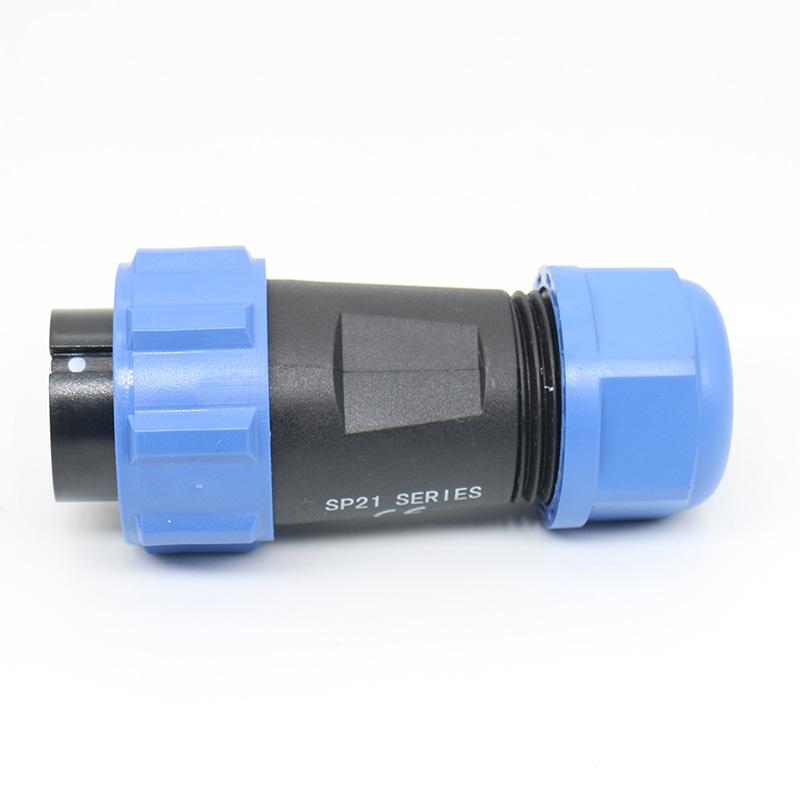

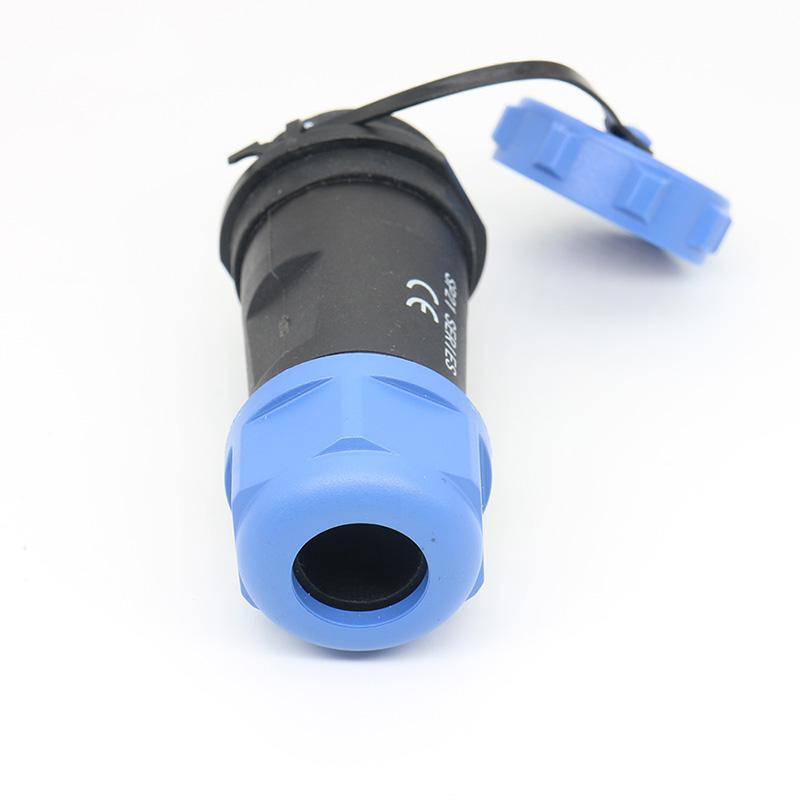

SP21 IP68 Connector for Wind Turbine Control Units

SP21 Connector for Wind Turbine Control Units

The SP21 connector is a circular interface engineered for wind turbine control units, providing stable power and data transmission in nacelle and control panel environments. Its IP68-rated housing and corrosion-resistant contacts make it a practical choice for renewable energy installations where moisture, dust, and vibration are routine concerns. This page helps buyers evaluate the SP21 against their specific turbine control, monitoring, and maintenance requirements.

Key Selection Considerations for the SP21 Connector

• Core Configuration: Available in 2 to 12 pin arrangements, with male or female gender options to match your existing control unit wiring and mating connectors.
• Environmental Protection: The IP68 rating indicates protection against prolonged water immersion and dust ingress, suitable for exposed turbine nacelle and outdoor cabinet locations.
• Material Durability: The PC/PA66 housing resists impact and weathering, while brass contacts with gold plating support reliable signal transfer and corrosion resistance over extended service intervals.
• Installation Fit: Its compact form factor is designed for space-constrained control panels and nacelle junction boxes, simplifying routing and connection during assembly or retrofit.

Application Scope and Integration Notes

The SP21 is intended for control and monitoring circuits within wind turbine systems, including pitch control, yaw drives, and sensor feedback loops. When integrating, confirm the mating connector type, pin assignment, and cable entry method to ensure a secure and correct fit. For applications involving high vibration or frequent mating cycles, verify that the connector's locking mechanism and strain relief are compatible with your installation practice.

Parameter Interpretation and Configuration Guidance

While the full technical specification is listed in the Technical Specifications field, the selection logic depends on your circuit requirements. The 2-12 pin range covers simple power feeds to multi-signal control links. Gold-plated brass contacts are chosen for low and stable contact resistance, which is critical for accurate sensor data. The housing material provides a balance of mechanical strength and weight, suitable for fixed or semi-permanent mounting in turbine cabinets.

Suitable and Unsuitable Use Cases

Suitable: The SP21 is well-suited for new wind turbine control unit builds, replacement of worn connectors in existing nacelles, and control panel wiring where IP68 protection is mandated.

Unsuitable: It is not designed for high-current main power transmission, subsea or continuous underwater deployment, or applications requiring frequent field rewiring without proper tooling. For high-vibration environments, additional mechanical support or locking options should be evaluated.

Inquiry Input Checklist for Accurate Quoting

To receive a precise quotation and configuration match, please provide the following details with your inquiry:

• Required number of cores (pins) and gender (male or female).
• Your cable outer diameter and conductor cross-section for proper cable gland selection.
• Mating connector type or existing interface standard, if any.
• Specific mounting requirements (panel cutout, flange, or inline).
• Environmental conditions beyond IP68, such as temperature range or chemical exposure.
