SY17 / SY21 Waterproof Circular Connectors for Solar Inverter Control

The SY17 and SY21 series waterproof circular connectors are designed for control and auxiliary interfaces in solar inverter systems. They support reliable signal transmission and power distribution in outdoor and semi-protected environments, where consistent performance is critical for renewable energy operations.

Application in Solar Inverter Systems

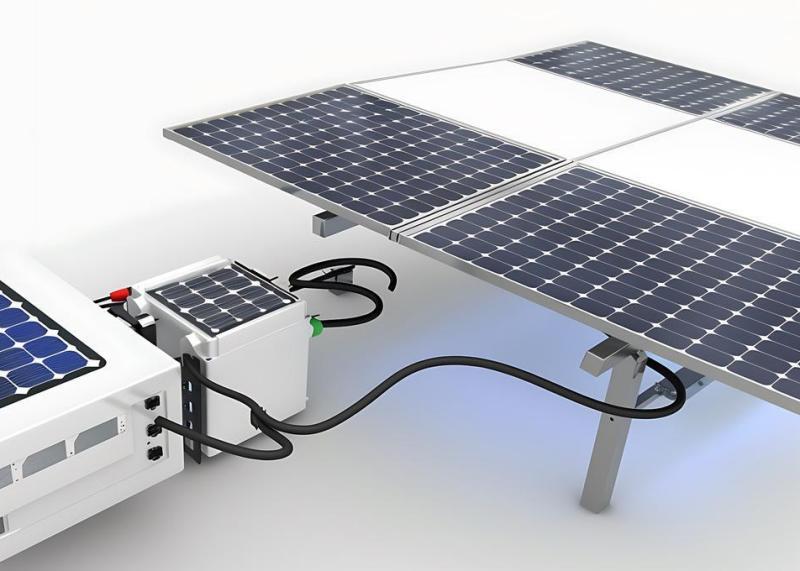

These connectors are typically installed on inverter enclosures or within protected compartments. Common use cases include:

• Control signal connections between inverter modules and monitoring systems
• Interfaces for cooling fans and auxiliary power units
• Communication links for diagnostics and system integration
• External cable connections in modular inverter designs

Their compact circular structure supports space-efficient installation, while the secure coupling ensures stable operation in solar power generation facilities.

Design and Coupling Mechanism

The SY series features a bayonet (quick-lock) coupling mechanism, enabling fast and secure connections without complex tooling. Key design characteristics include:

• IP67 sealing for protection against dust and temporary water immersion
• Multiple pin configurations for signal and mixed power/signal applications
• Stable electrical contact under vibration and mechanical stress
• Compact circular form factor for high-density installations

Environmental and Mechanical Performance

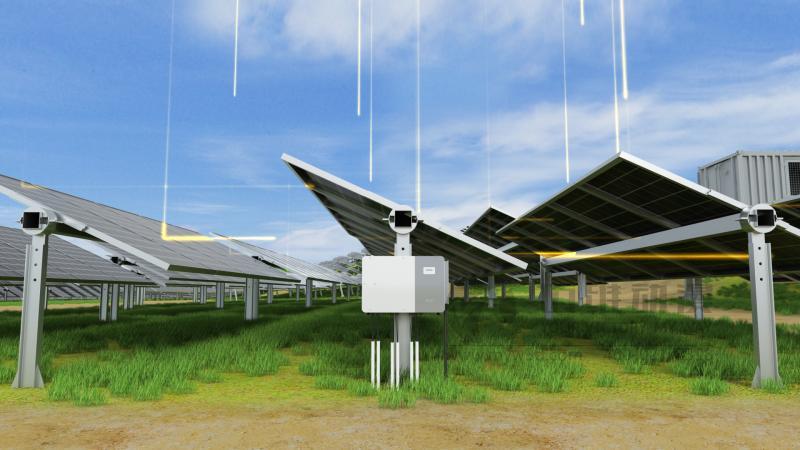

Solar inverter systems are often deployed outdoors or in semi-protected enclosures. Connectors must withstand temperature fluctuations, dust, humidity, and mechanical vibration during operation. The SY17 and SY21 are designed to maintain reliable electrical performance under these conditions, supporting long-term service in renewable energy applications.

Installation and Maintenance Benefits

The bayonet locking system simplifies connection and disconnection, which is particularly useful during system installation, equipment replacement, and routine maintenance. This reduces downtime and simplifies field operations, making these connectors a practical choice for inverter manufacturers and maintenance teams.

Related Solutions

For similar industrial circular connector requirements, explore the 12G Series Circular Connectors or review the IP68 SP17 Cable Connector for Solar Systems in Egypt case study for additional application insights.

Conclusion

The SY17 and SY21 waterproof circular connectors offer a reliable solution for control and auxiliary connections in solar inverter systems. Their IP67 rating, bayonet coupling, and compact design make them well-suited for outdoor solar installations requiring dependable performance and ease of maintenance.
