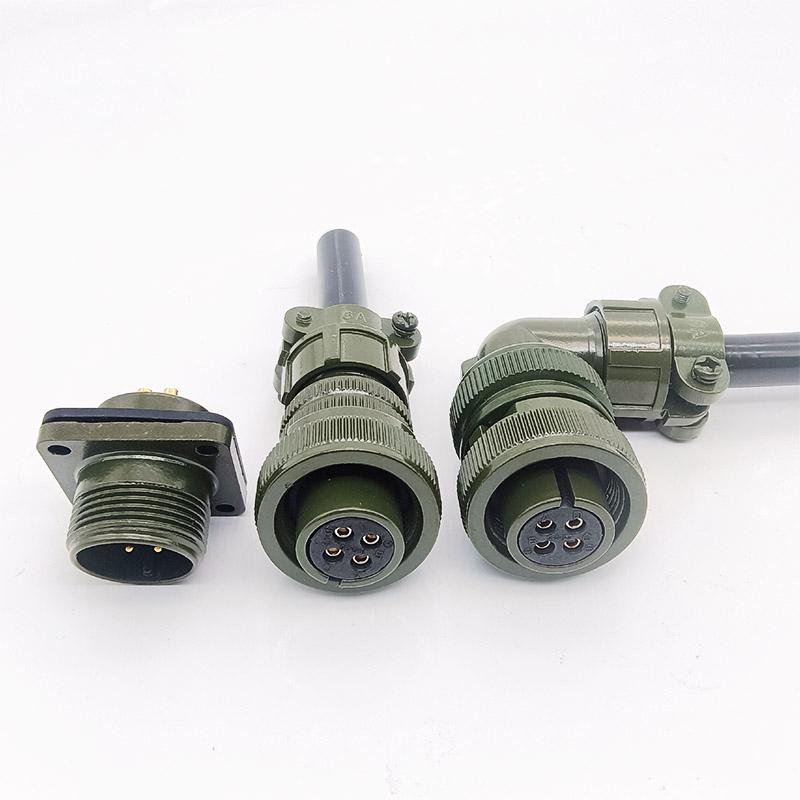

MIL-DTL-5015 Connector for Industrial Flow and Pressure Measurement Instruments

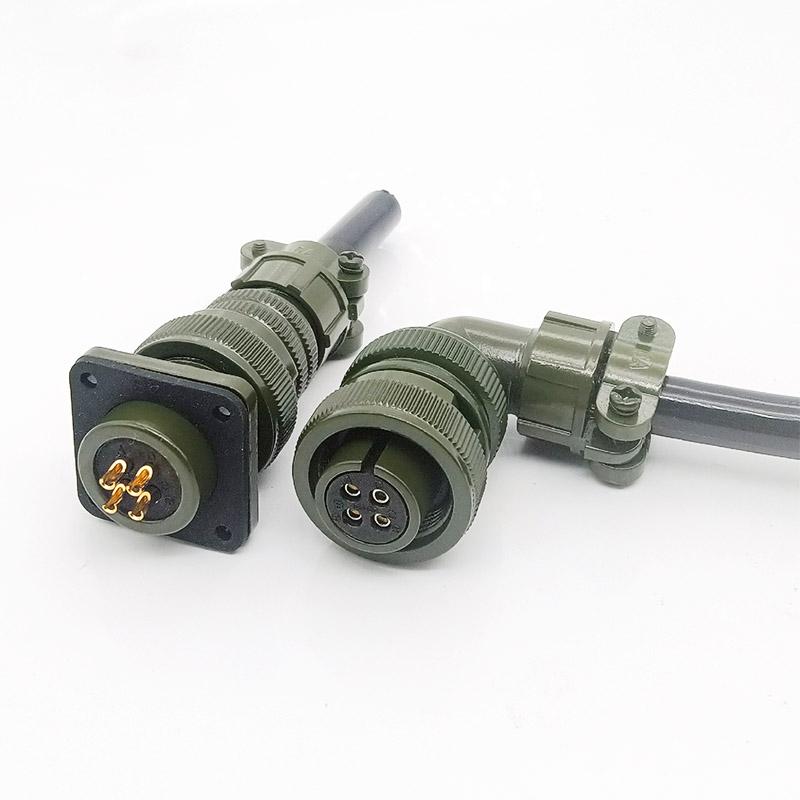

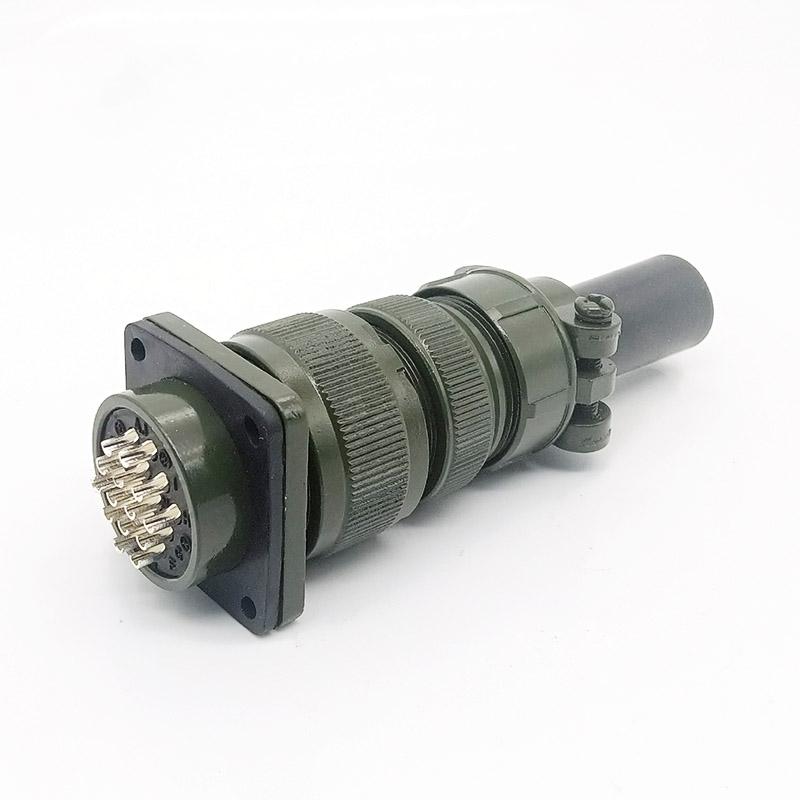

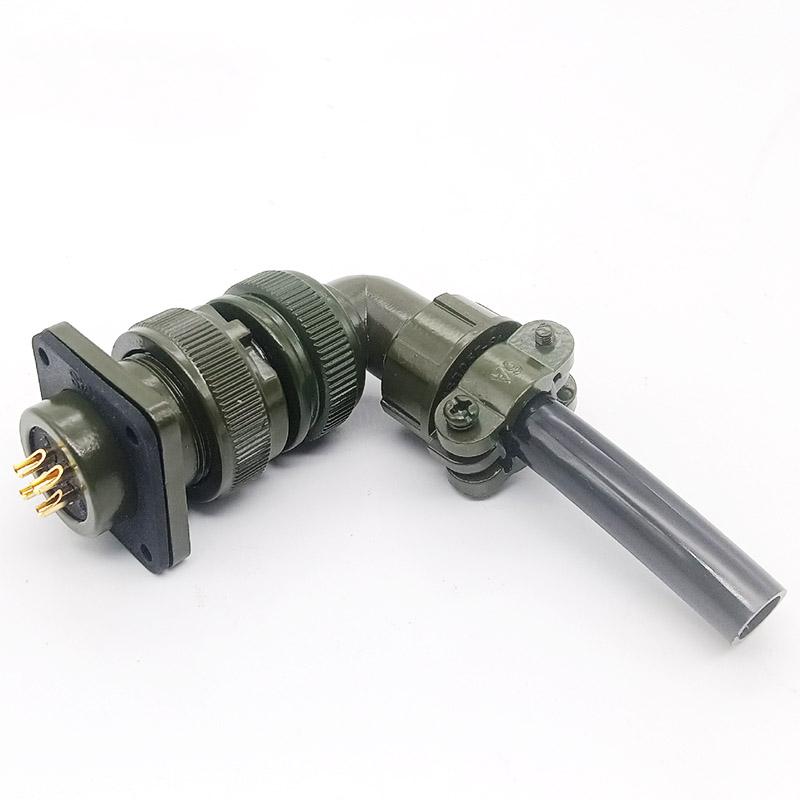

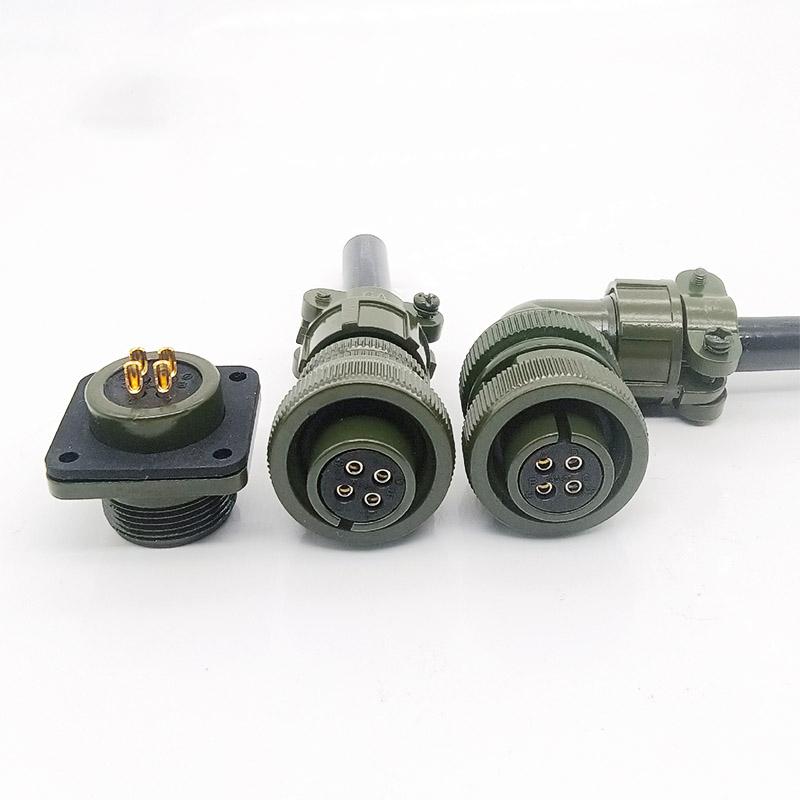

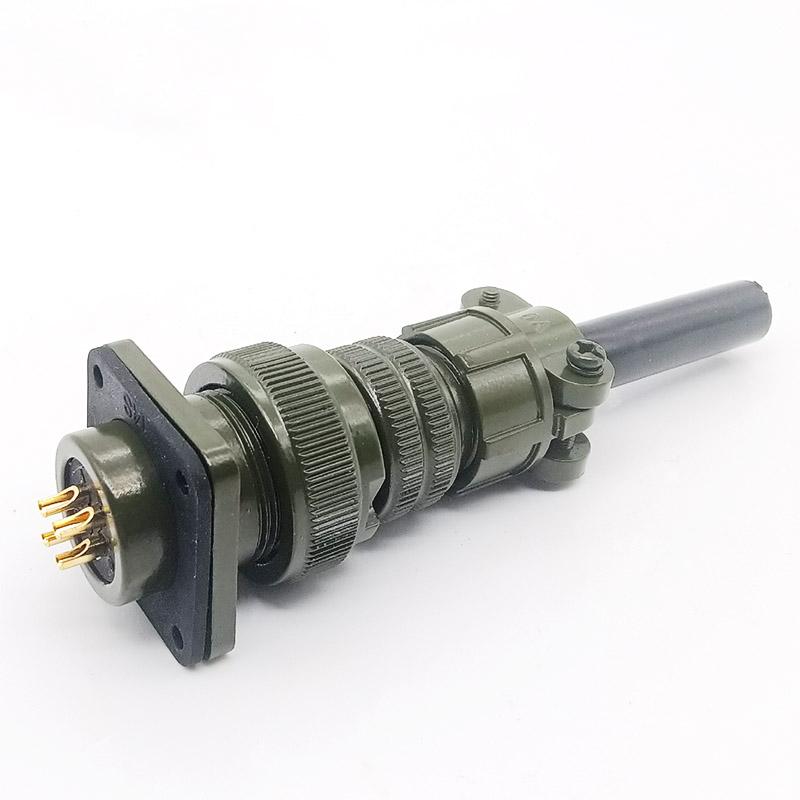

The MIL-DTL-5015 connector is designed for industrial flow and pressure measurement instruments, delivering reliable and secure connections in harsh environments. Its circular, threaded-coupling design provides a robust interface for instrumentation where signal integrity and mechanical retention are critical.

Key Selection Considerations

When selecting a MIL-DTL-5015 connector for your measurement application, evaluate these decision points:

• Pin Configuration: Available in 2 to 52 pins, the connector supports various signal and power combinations. Confirm the required pin count and layout for your instrument's wiring scheme.

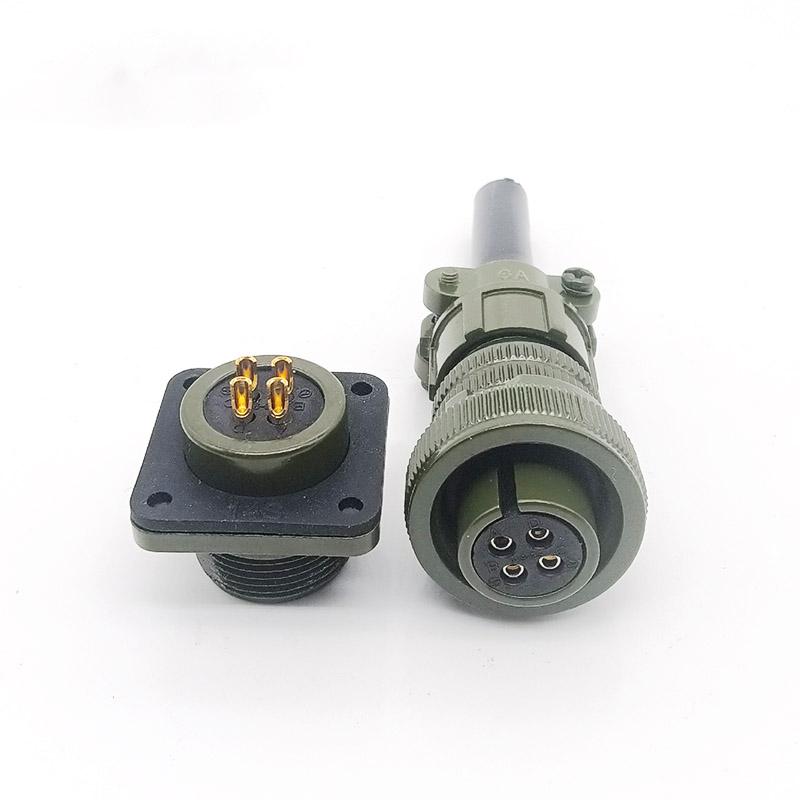

• Gender and Mounting: Choose between male and female contacts, and determine whether you need a cable plug or panel-mounted receptacle for your installation.
• Environmental Fit: The aluminum alloy housing with corrosion-resistant finish is suited for demanding industrial settings. Verify the specific IP rating and temperature range against your installation environment.
• Contact Performance: Brass contacts plated with gold provide stable conductivity for sensitive measurement signals. Confirm the current rating for your application's power requirements.

Application Scope

This connector series is well-suited for a range of measurement and monitoring equipment:

• Industrial flow measurement instruments
• Pressure monitoring systems
• Gas and liquid measurement devices
• Laboratory and field measurement equipment

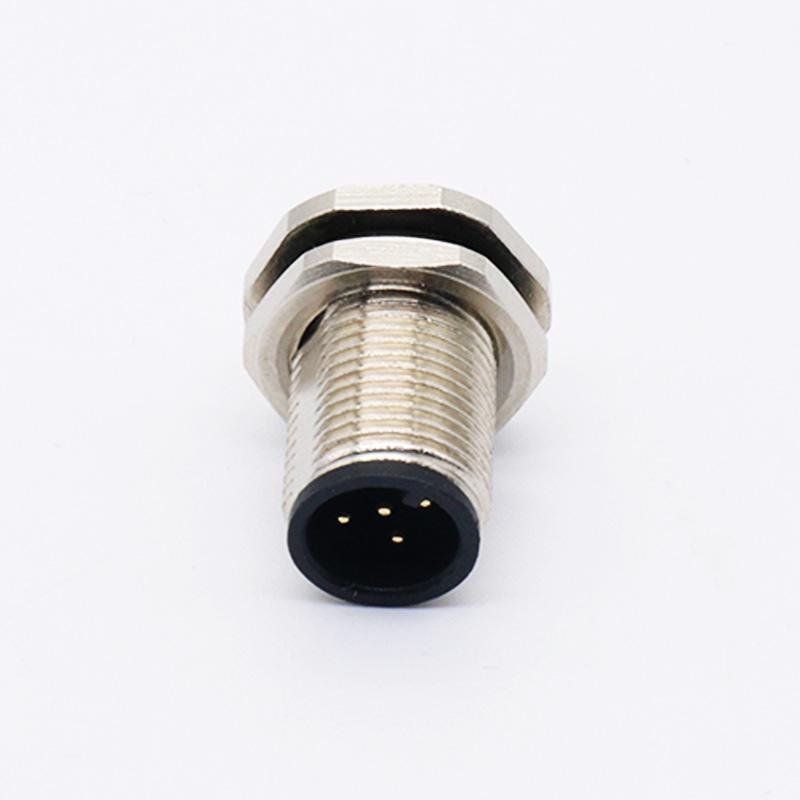

For related instrumentation connector options, explore the M12 Connector for Laboratory Analytical Instruments or the SP13 Connector for Gas Detection and Analysis Instruments.

Construction and Reliability

The connector's heavy-duty metal construction resists corrosion, vibration, and mechanical stress, ensuring stable electrical connections under demanding conditions. The quick-mating and locking design reduces assembly time while maintaining a secure connection, which is essential for instruments that may be subject to periodic maintenance or recalibration.

Installation and Configuration Guidance

Proper installation is critical for long-term performance. Consider the following when preparing your order:

• Cable Preparation: Confirm the cable diameter and conductor size to ensure a proper fit with the connector's clamping and termination range.
• Mating Dependencies: Verify that the plug and receptacle are correctly keyed and aligned before mating to prevent pin damage.
• Torque Requirements: Follow the recommended coupling torque to achieve the specified environmental seal without over-stressing the threads.

Suitable and Unsuitable Use Cases

Suitable: This connector is appropriate for fixed and portable industrial measurement instruments where a rugged, threaded circular interface is required. It performs well in environments with moderate vibration and mechanical stress.

Unsuitable: It is not recommended for applications requiring frequent high-speed mating cycles, such as test bench hot-swap scenarios, or for installations where a smaller form factor like M8 or M12 is mandated by space constraints. For high-vibration wind power applications, consult the guidance on preventing connector detachment under high-altitude vibration.

Inquiry Checklist

To receive an accurate quotation and configuration support, please provide the following details:

• Required pin count and contact arrangement
• Plug (cable) or receptacle (panel) configuration
• Male or female contacts
• Cable outer diameter and conductor gauge
• Operating temperature range and environmental exposure
• Any specific mounting or termination requirements

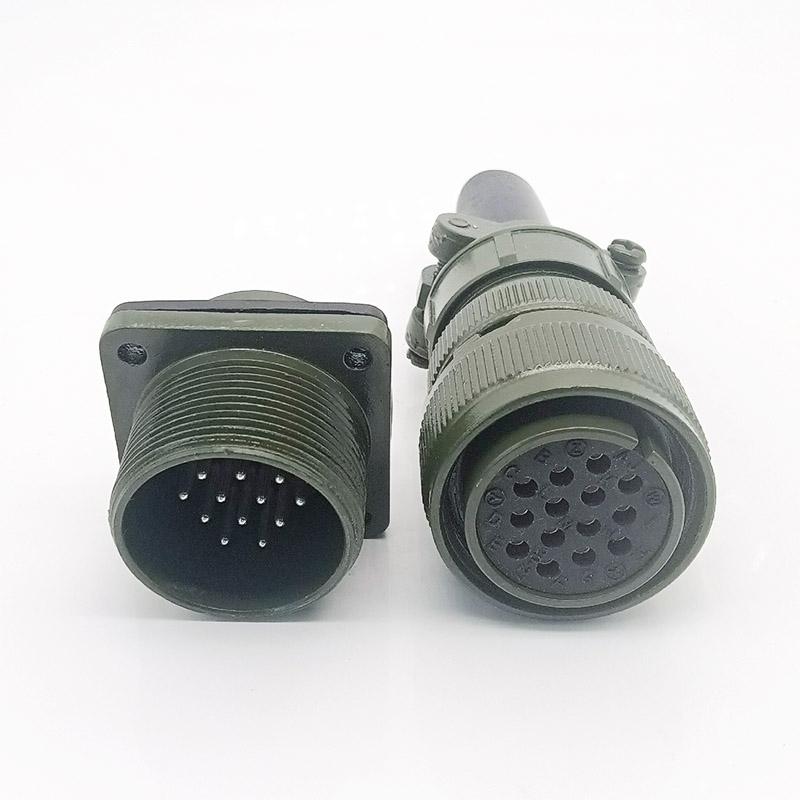

For a complete overview of available configurations, refer to the MS5015 Connectors catalog.
