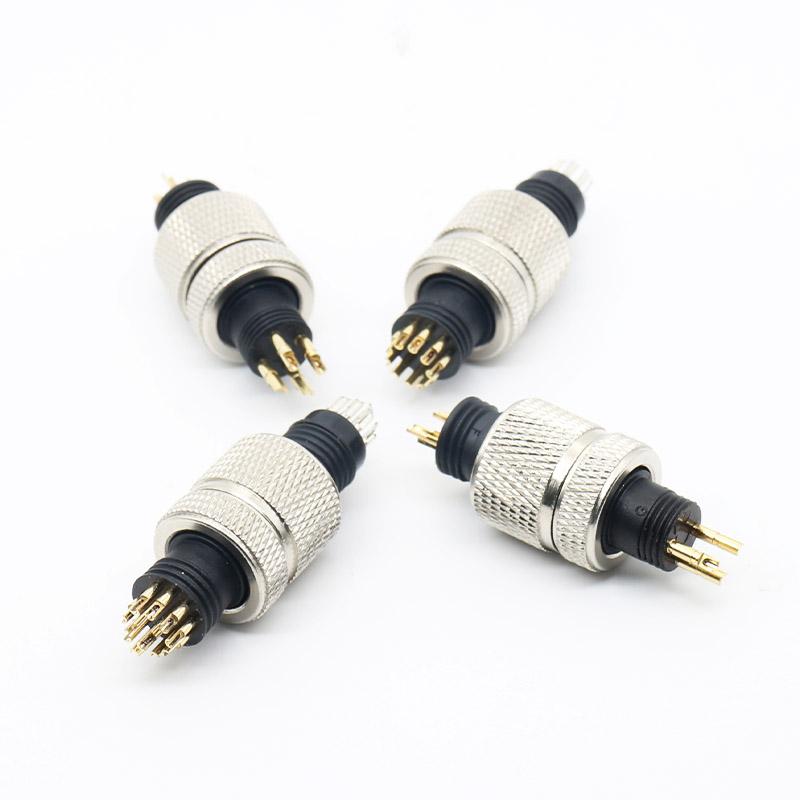

M12 Connector with 5-8μm Gold Plating for Low Contact Resistance

RF Connector Types, Materials, and Electrical Specs

Why Electrical Performance Matters in Connector Selection

When you specify a circular or waterproof connector, the electrical parameters determine whether your system delivers reliable power and clean signals over its service life. Contact resistance, shielding effectiveness, and current-carrying capacity are not abstract numbers—they directly affect heat generation, signal integrity, and long-term stability in industrial environments.

This guide explains the key electrical characteristics that separate high-performance connectors from cost-reduced alternatives, and how those characteristics translate into measurable benefits for your application.

Contact Plating: The Foundation of Stable Connections

Contact plating quality is the first factor that influences long-term electrical stability. Thin gold plating, often below 3 μm, may reduce initial cost but can wear or oxidize over repeated mating cycles, increasing contact resistance and risking intermittent failures.

In contrast, a robust 5–8 μm gold layer on critical contacts provides:

• Stable, low contact resistance below 5 mΩ throughout the connector's service life
• Resistance to temperature cycling and vibration, which can otherwise degrade unprotected surfaces
• Consistent performance across repeated insertion and withdrawal cycles

For applications subject to frequent mating or harsh environmental conditions, the thicker plating is a reliability investment rather than a specification luxury.

Signal Integrity: Shielding and Crosstalk Reduction

For signal transmission, the connector's shielding design and internal layout determine how much interference reaches your data lines. A full-shield design combined with optimized contact arrangement reduces crosstalk by up to 60% compared to unshielded or partially shielded alternatives.

This improvement delivers approximately 30% greater usable bandwidth, which matters for:

• Industrial Ethernet and fieldbus communication
• Sensor and encoder signal transmission
• Video or high-frequency data links where signal purity is critical

When evaluating connectors for signal applications, verify both the shielding method and the measured crosstalk performance rather than relying on generic "shielded" claims.

Power Transmission: Higher Current in the Same Footprint

Power connectors face a different constraint: carrying higher continuous current without excessive temperature rise. Optimized conductor design and material selection allow the same compact connector footprint to safely handle increased current loads.

This is particularly valuable in space-constrained machinery, robotics, and automation systems where panel space is limited but power demands continue to grow. Before selecting a power connector, compare the rated current against your actual load profile, including any derating factors for ambient temperature or bundled cables.

System-Level Benefits of Electrical Fundamentals

The cumulative effect of low contact resistance, effective shielding, and optimized conductors is system-level reliability. Cleaner signals reduce data errors and retransmissions. Minimal power loss reduces heat generation inside enclosures. Consistent long-term performance reduces unplanned maintenance and downtime.

These factors are especially critical in applications where connectors are inaccessible after installation, such as automated production lines, outdoor equipment, or embedded systems.

How to Evaluate Connector Electrical Specifications

When comparing connector options, review the following parameters against your application requirements:

• Contact resistance rating and whether it is measured before or after environmental testing
• Current rating at specified ambient temperature, with derating curves if available
• Shielding effectiveness and crosstalk data for signal applications
• Plating thickness and material on mating contacts
• Insulation resistance and dielectric withstand voltage for safety margins

If a datasheet does not state test conditions or measurement methods, request clarification from the manufacturer before finalizing your selection.

Next Steps for Your Connector Project

To select a connector that meets your electrical performance requirements, prepare your operating parameters—voltage, current, signal type, ambient temperature, and mating frequency—and compare them against verified specifications. For applications requiring both power and signal in one interface, review the connector's combined ratings rather than assuming independent limits.
