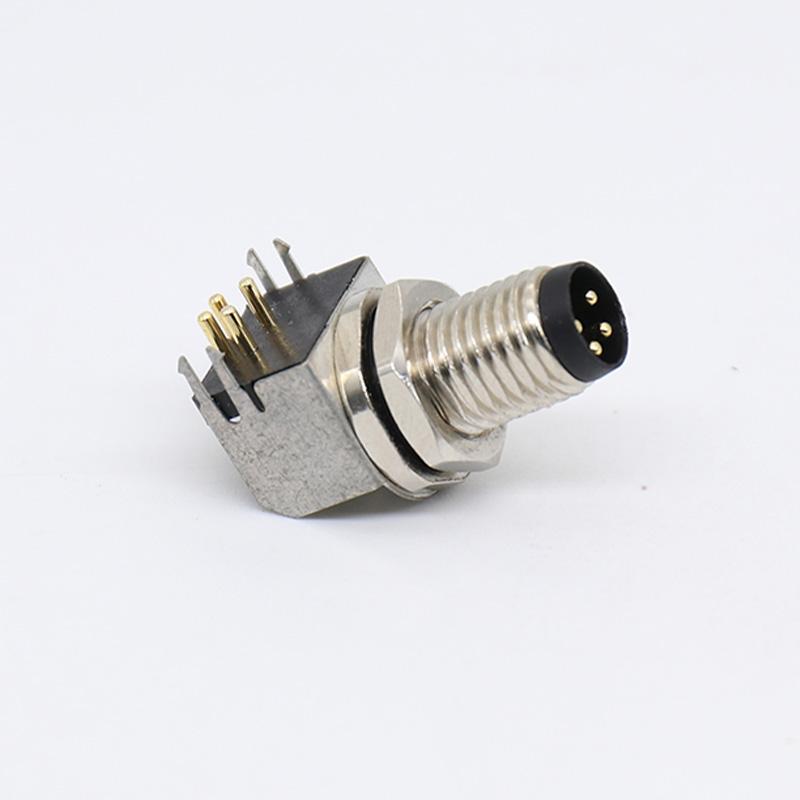

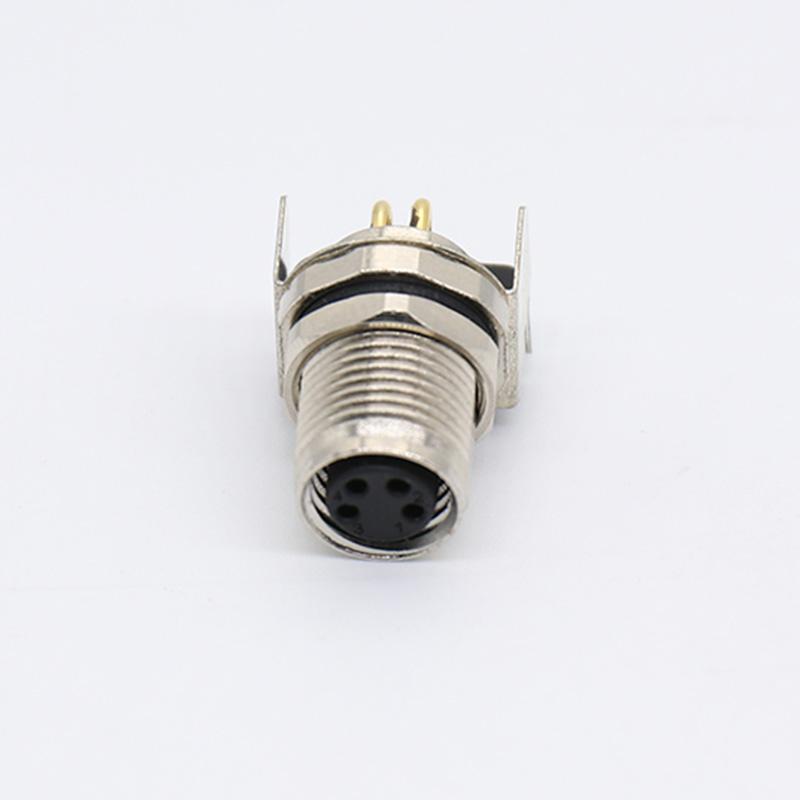

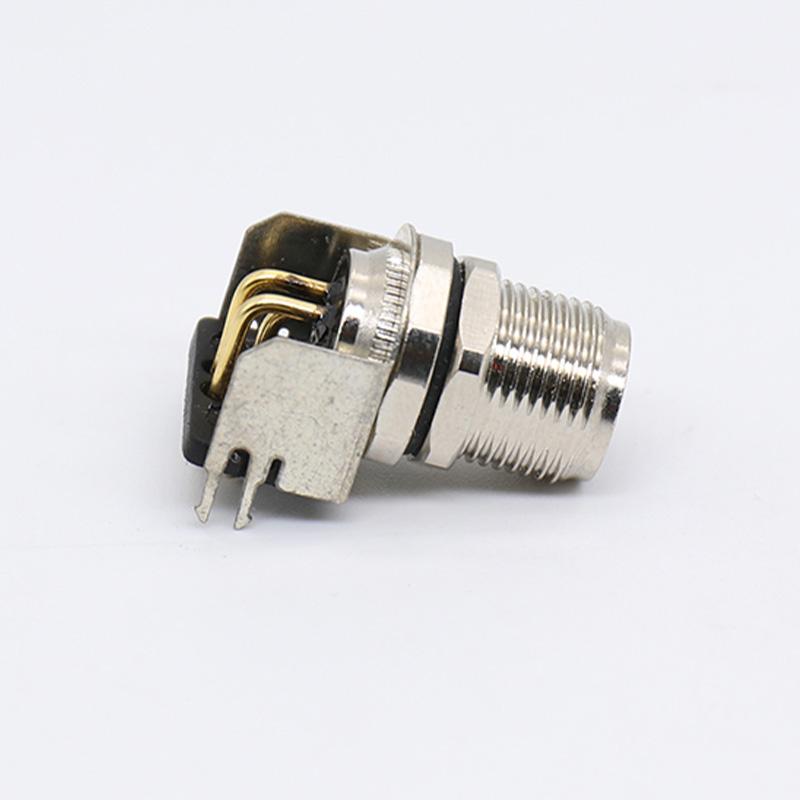

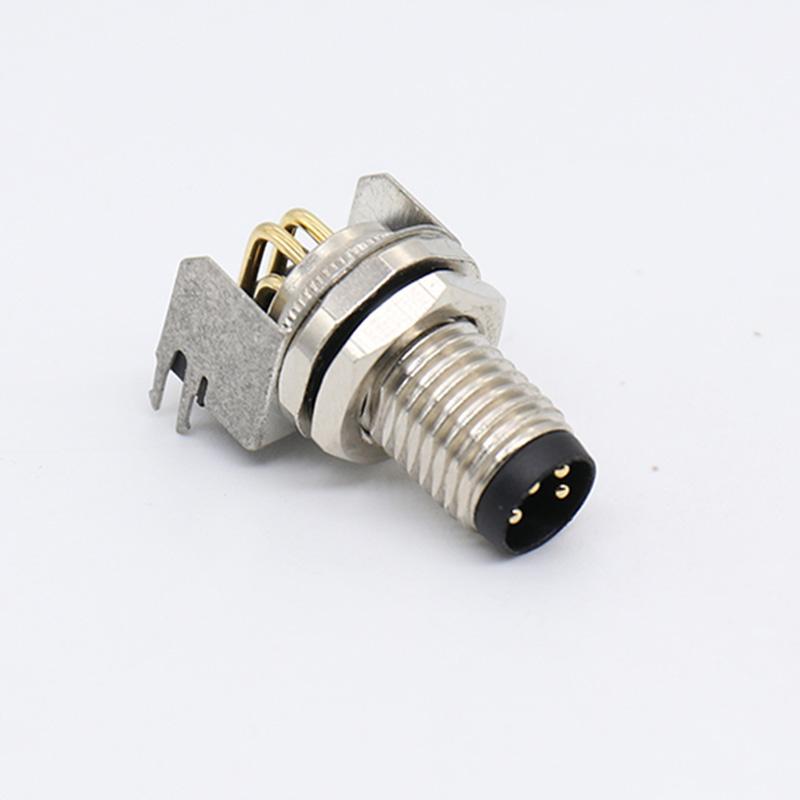

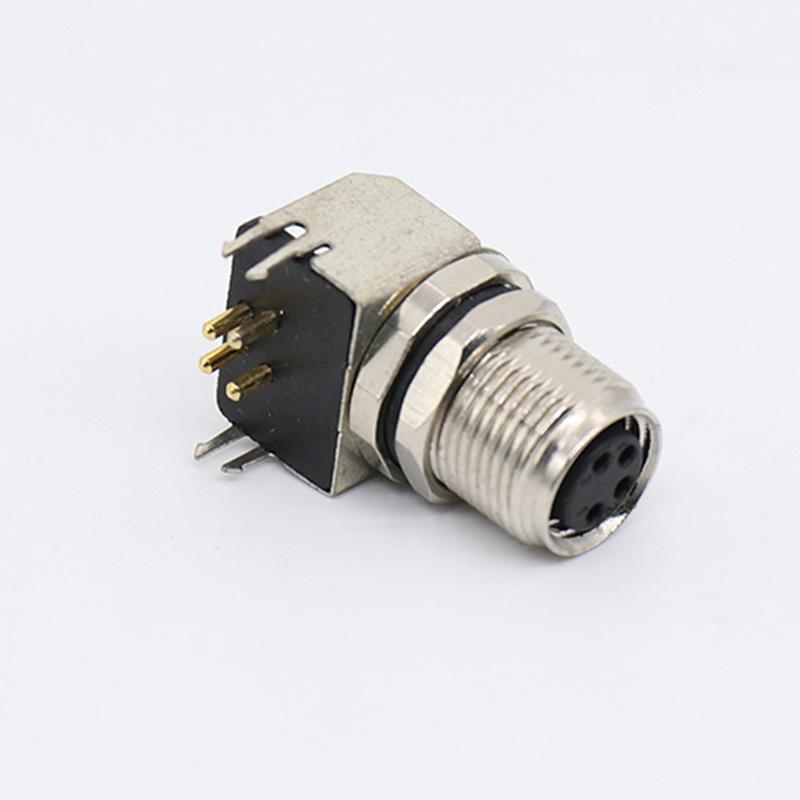

Right Angle M8 Waterproof PCB Connector IP67 4 Pin

Name: Right Angle M8 Waterproof PCB Connector IP67 4 Pin
Brand: KMYD
SKU: 2-8 Pin
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (9 reviews)

MOQ	>200
Price
Number Of Cores	2-8 Pin
Contact Diameter(mm)	1.0mm/0.72mm/0.6mm
IP Rating	IP67
Shell Material	PA66/Nickel Plated Brass
Temperature Range	-25℃ ~ +85℃
Termination	Solder
Rated Current(A)	3A/1A
Rated Voltage(Ac.V)	180V
Test Voltage(Ac.V)1Min	1000V
Insulation Resistance (MΩ)	1500MΩ
Contact Resistance (MΩ)	≤10MΩ
Certification	CE,ISO9001, RoHS

Get Quote

+8619924482730

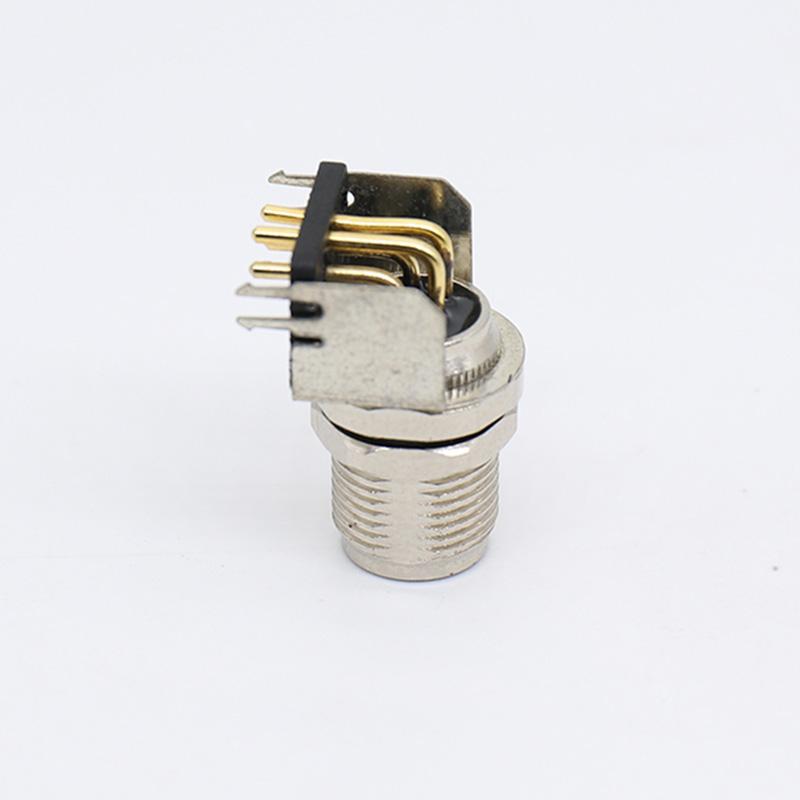

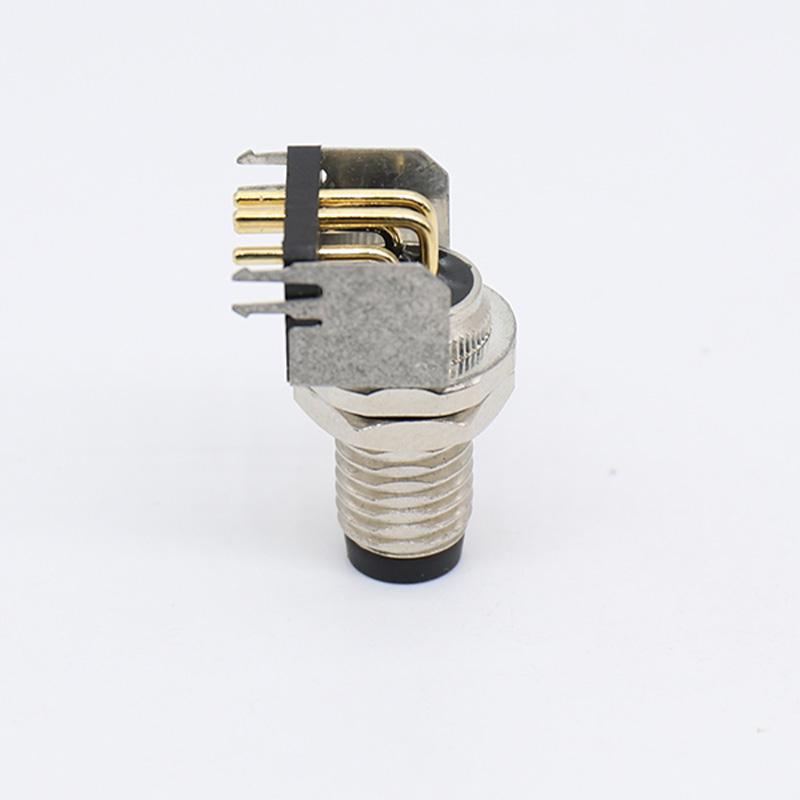

Right Angle M8 Waterproof PCB Connector IP67 - 4 Pin Space-Saving Board Interface

The Right Angle M8 Waterproof PCB Connector IP67 (4 Pin) is designed for compact electronic and industrial systems that require a low-profile PCB-mounted connection with reliable waterproof protection. Its right-angle structure allows the cable direction to run parallel to the PCB surface, helping engineers optimize internal space and improve overall equipment layout efficiency.

Connector

With a 4-pin configuration, this connector is ideal for applications that combine power supply and basic signal transmission in a compact and stable interface.

Engineered for Tight PCB Layout Environments
In modern electronic device design, internal space is often extremely limited, especially in control modules, sensors, and compact automation units. A standard straight connector may increase height and interfere with nearby components.
The right-angle structure solves this by:
Reducing vertical space usage on PCB
Allowing horizontal cable routing
Improving internal airflow and wiring organization
Supporting denser circuit board layouts
This makes it a practical solution for miniaturized industrial and smart electronic systems.

4 Pin Configuration for Practical Use
The 4-pin design provides a balanced interface for common industrial applications, typically including:
Power input/output
Basic control signals
Sensor communication lines
It helps simplify circuit design while maintaining stable and reliable transmission performance.

Key Product Features
IP67 Waterproof Protection
Sealed structure protects PCB connection points from dust, moisture, and industrial environmental exposure.
Right Angle Compact Design
Optimized for low-profile PCB installation and space-constrained electronic assemblies.
Direct PCB Mount Integration
Ensures stable board-level connection and reduces additional wiring complexity inside equipment.
Stable Electrical Performance
Precision contact design ensures reliable conductivity for continuous operation.
Industrial Durability

Designed for repeated use and long-term stability in demanding environments.

Connector

Manufacturing Strength Behind the Product

We are a professional connector manufacturer with over 15 years of experience in waterproof connectors and cable assembly solutions.

Connector

Our factory operates a fully integrated production system, including:
Mold development and tooling design
CNC precision machining
Injection molding
Connector assembly and integration

Cable processing and testing

Connector

This vertical manufacturing capability allows us to ensure consistent quality, stable production efficiency, and reliable delivery performance for global industrial customers.

Strict Quality Control System
Each connector is tested before shipment to ensure reliability:
Waterproof IP67 sealing test
Electrical conductivity and continuity testing
PCB mounting accuracy inspection
Mechanical durability testing

Plugging cycle life verification

Connector

All products are manufactured under ISO9001 quality management standards and comply with CE and RoHS requirements.

Customization Support
We provide flexible OEM/ODM services for different applications:
Pin configuration customization
PCB structure optimization
Cable and wiring integration solutions
Material and housing adjustments
Application-specific connector design
Our engineering team supports customers from prototype development to mass production.

Application Areas
Industrial control systems
Smart sensors and modules
Automation equipment
Communication devices
Compact PCB electronic systems
Monitoring and data acquisition systems

Compact Design for Advanced Electronics
The right-angle M8 PCB connector IP67 4-pin is designed to provide a stable, low-profile, and waterproof board-level connection solution for modern compact electronic and industrial systems.

Contact Us
We provide samples, technical support, and customized production services.
Contact us today for professional connector solutions and competitive quotations.

Item	Parameters
Number of Cores	2-8Pin
Gender	Male/Female
Housing Material	Nickel Plated Brass
Cores Material	Gold Plated Brass
Insulator Material	PA66
Locking System	Screw Locking
Temperature Range	-30℃, +85℃
Rated Current (A)	3A(2-5Pin)/ 1A(6-8Pin)
Rated Voltage (AC.V)	180v
Test Voltage (AV.C)1Min	1000V
Insulation Resistance (㏁)	1500㏁
Contact Resistance (㏁)	≤10㏁
Termination	Solder
