LD24 Connectors
< >

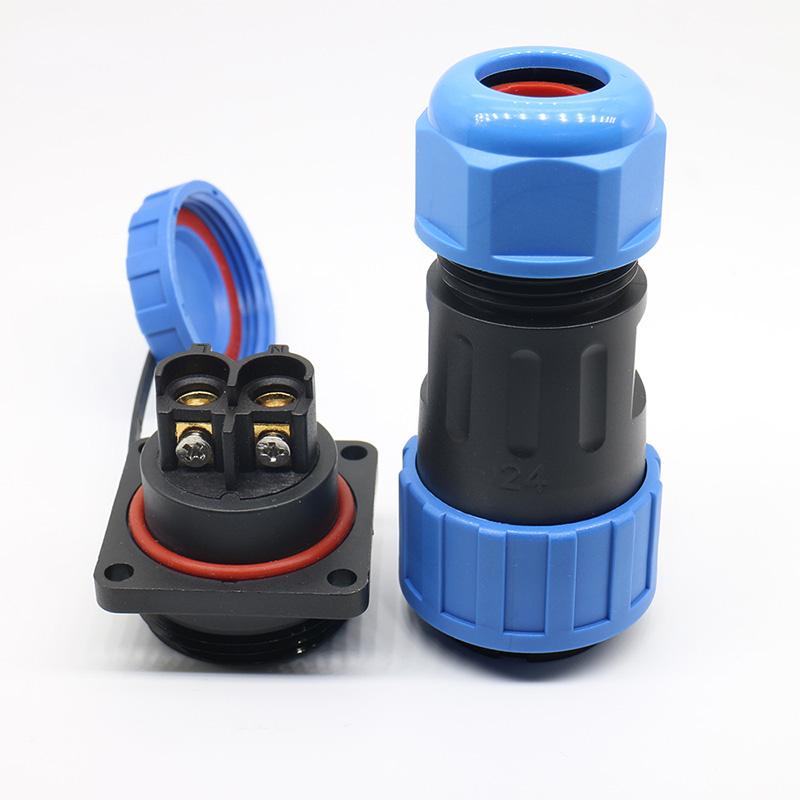

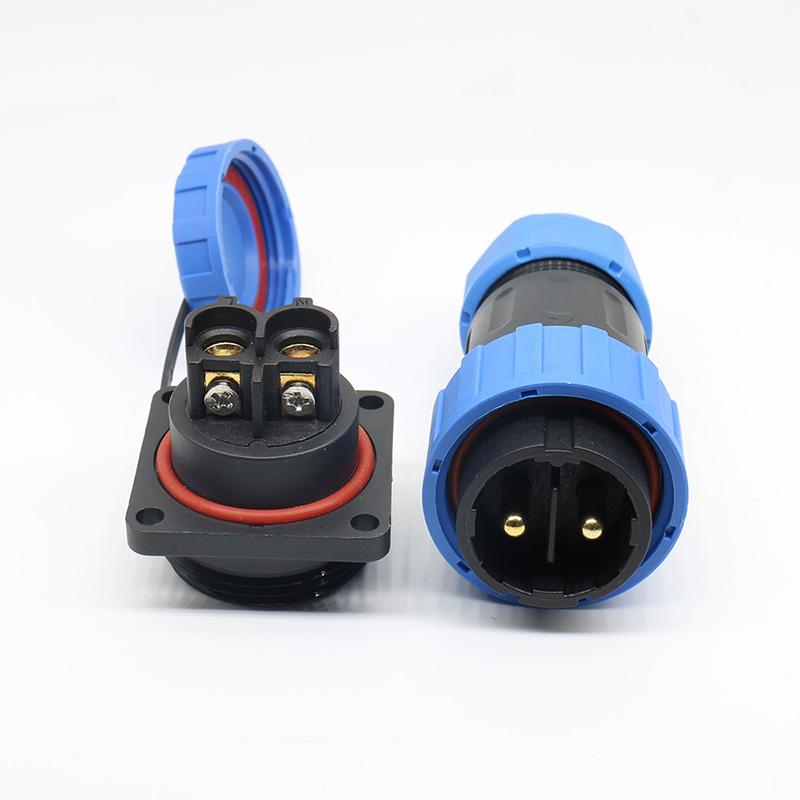

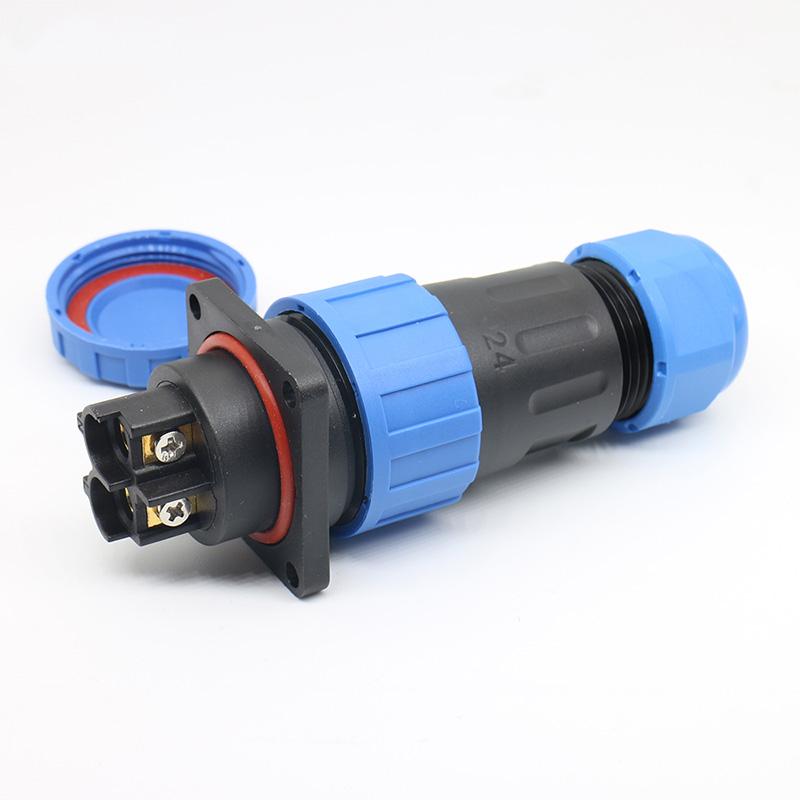

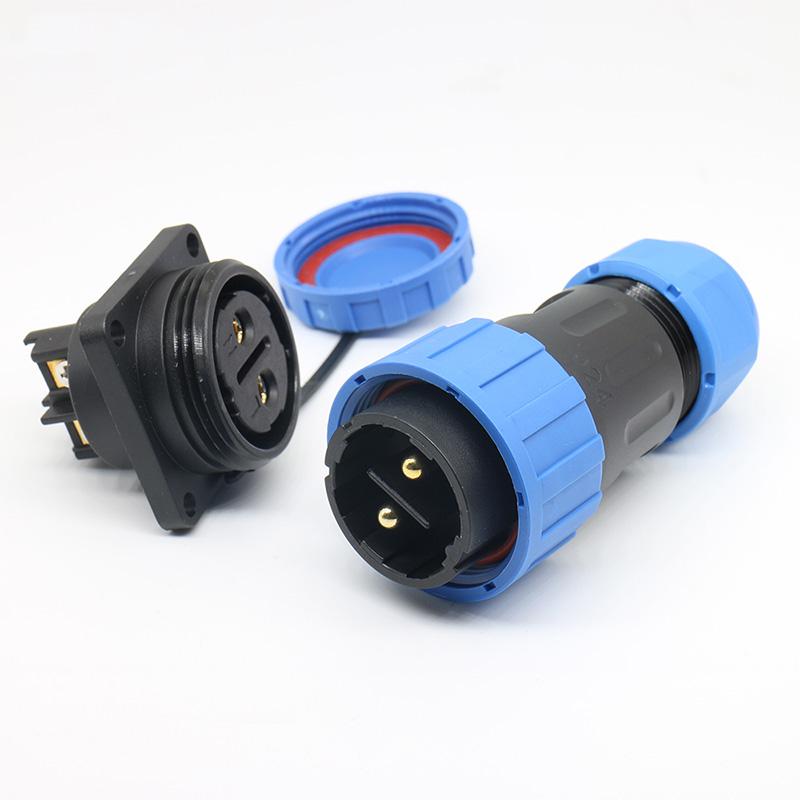

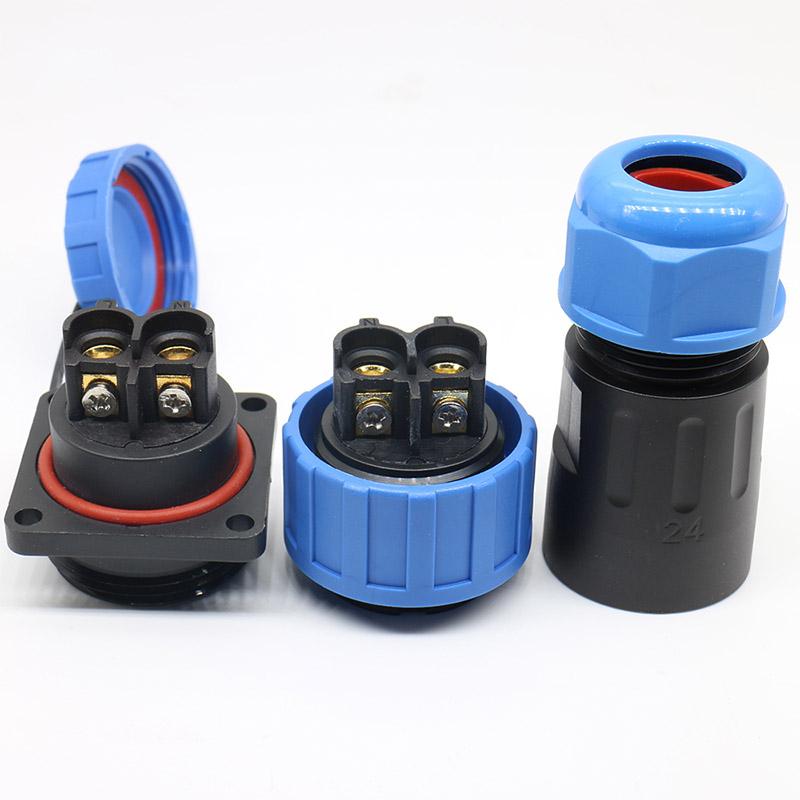

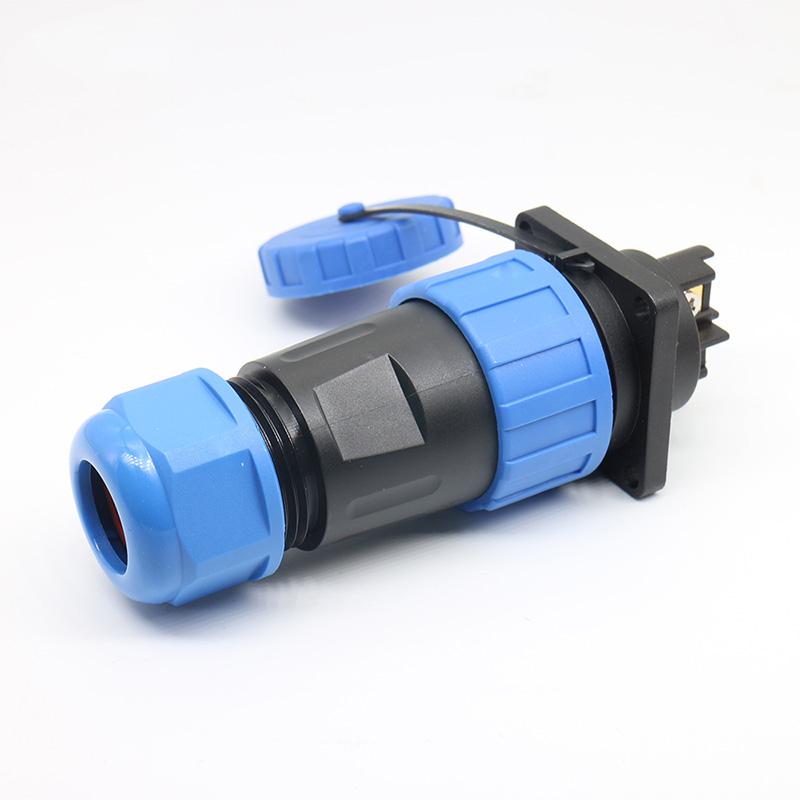

LD24/SP24 7 Pins Waterproof 4-Hole Square Flange Connector

MOQMOQ >200
PricePrice $3.74 - $5.20
>Number Of CoresNumber Of Cores 2 - 9 Pins
Contact DiameterContact Diameter(mm) 1.2mm/1.8mm/3.2mm/3.2mm
IP RatingIP Rating IP68
Shell MaterialShell Material PC,Nylon66
Temperature RangeTemperature Range -25°C to +85°C
TerminationTermination Screw Crimping
Rated CurrentRated Current(A) 5A /10A/25A/32A/45A
Rated VoltageRated Voltage(Ac.V) 380V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 1 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+8619924482730

LD24 / SP24 7 Pins Waterproof 4-Hole Square Flange Connector IP68
The LD24 / SP24 7 Pins Waterproof Square Flange Connector is a heavy-duty industrial connector designed for secure panel-mounted electrical connections in demanding environments. Featuring a 4-hole square flange mounting structure, it provides strong mechanical fixation and excellent sealing performance, ensuring stable operation even under vibration, moisture, and outdoor exposure.
Connector
With IP68 protection capability, this connector is built to withstand harsh industrial and outdoor conditions while maintaining reliable power and signal transmission. It is widely used in automation systems, industrial equipment, marine applications, and outdoor electrical installations where multi-pin connectivity and waterproof performance are required.

Unlike inline connectors, the flange-mounted design allows the connector to be firmly installed onto equipment panels, making it ideal for applications that require repeated connection and disconnection while maintaining a stable fixed interface.

Key Features
IP68 high-level waterproof and dustproof protection
4-hole square flange mounting for strong and stable panel installation
7-pin configuration supporting multi-signal or hybrid power transmission
Robust locking structure for anti-vibration performance
Industrial-grade housing material for durability and long service life
Reliable electrical contact design for stable conductivity

Suitable for harsh outdoor and industrial environments


Technical Overview
The LD24 / SP24 flange connector is engineered for multi-pin electrical systems requiring both compact design and high reliability. It supports customized cable configurations and different electrical ratings depending on application requirements.
The connector housing is manufactured using high-strength engineering plastics, providing resistance to heat, corrosion, and mechanical impact. Internal contacts are precision-machined and typically gold-plated to ensure low resistance and stable long-term performance.
LD24 Connector
The square flange structure allows easy panel integration and ensures tight sealing when properly mounted, making it suitable for equipment requiring waterproof front-panel interfaces.

Applications
This connector is widely used in:
Industrial automation equipment
LED display and lighting systems
Marine and shipboard electrical systems
Outdoor control cabinets
Sensors and multi-channel signal systems
Renewable energy equipment

Communication and control devices


Manufacturer Capability
We are a professional manufacturer specializing in waterproof circular connectors and custom cable assemblies. With full in-house production capabilities, we manage the entire process including mold development, injection molding, assembly, and testing.

We support OEM and ODM customization, including pin layout, cable length, flange structure, sealing level, and private label branding. Each connector is strictly tested for waterproof performance, electrical stability, mechanical durability, and environmental resistance.

Connector

Our products are widely used in industrial automation, energy systems, transportation, and outdoor electrical industries, providing stable and cost-effective connection solutions for global customers.


 Item

 Parameters

 Number of Cores

 2 - 9 Pin

 Gender

 Male/Female

 Housing Material

 PC,Nylon66

 Cores Material

 Brass Plated with Gold

 Insulator Material

PPS

 Locking System

Threaded Connection

 Temperature Range

 -25℃, +85℃

 Rated Current (A)

 5A /10A/25A/32A/45A

 Rated Voltage (AC.V)

 380V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 2000㏁

 Contact Resistance (㏁)

 ≤1㏁

 Termination

 Screw Crimping


Related Products

More》

Related Resource


LD24/SP24 Connector
Related Cases
KMYD Connectors KNOWS WHAT YOU NEED,
LD24/SP24 7 Pins Waterproof 4-Hole Square Flange Connector Market Leader！
Offshore Monitoring and Sensor Systems in the United States
Offshore Monitoring and Sensor Systems in the United States
Discover how push-pull connectors are used in offshore monitoring systems in the United States, supporting reliable signal connections in control and data acquisition equipment.
Underwater Inspection Cameras for Offshore Operations in Norway
Underwater Inspection Cameras for Offshore Operations in Norway
Explore how push-pull connectors are used in underwater inspection camera systems in Norway, supporting reliable signal transmission and efficient equipment handling in offshore environments.
SP21 Waterproof Connector for Fishing Light Lighting in the United States
SP21 Waterproof Connector for Fishing Light Lighting in the United States
SP21 Waterproof Connector – the perfect fit for marine LED fishing lights! Engineered for US marine environments, this 9pin connector solves humidity, salt corrosion, and space issues. With IP68 protection, brass nickel-plated contacts, and ABYC C-5/UL 508 compliance, it resists salt fog over 500 hours. Compact Ø21mm×L36mm design halves installation time. 30A rating supports 5–25W lights, reducing failure rates to 0.3% and cutting maintenance costs by 80%, fully complying with USCG.
Marine Navigation and Bridge Control Panels in South Korea
Marine Navigation and Bridge Control Panels in South Korea
Learn how push-pull connectors are applied in marine navigation and bridge control panels in South Korea, supporting compact layouts and efficient maintenance.
Related Application
SP17 Waterproof Connectors in Digital Video Recorder (DVR) Interfaces
SP17 Waterproof Connectors in Digital Video Recorder (DVR) Interfaces
M12 Connectors in Flow and Pressure Measurement Equipment
M12 Connectors in Flow and Pressure Measurement Equipment
MIL-DTL-5015 Circular Connectors in Battery to Vehicle Systems
MIL-DTL-5015 Circular Connectors in Battery to Vehicle Systems
RJ45 Connectors in Radar Data Transmission Systems
RJ45 Connectors in Radar Data Transmission Systems
M12 Connectors in CNC Machine Automation Systems
M12 Connectors in CNC Machine Automation Systems
GX12 Aviation Connectors in Avionics Navigation
GX12 Aviation Connectors in Avionics Navigation
VG95234 Connectors in Automotive Wiring Harness
VG95234 Connectors in Automotive Wiring Harness
Power Connectors in Radar Control Units
Power Connectors in Radar Control Units
Related Catalog
Learn More

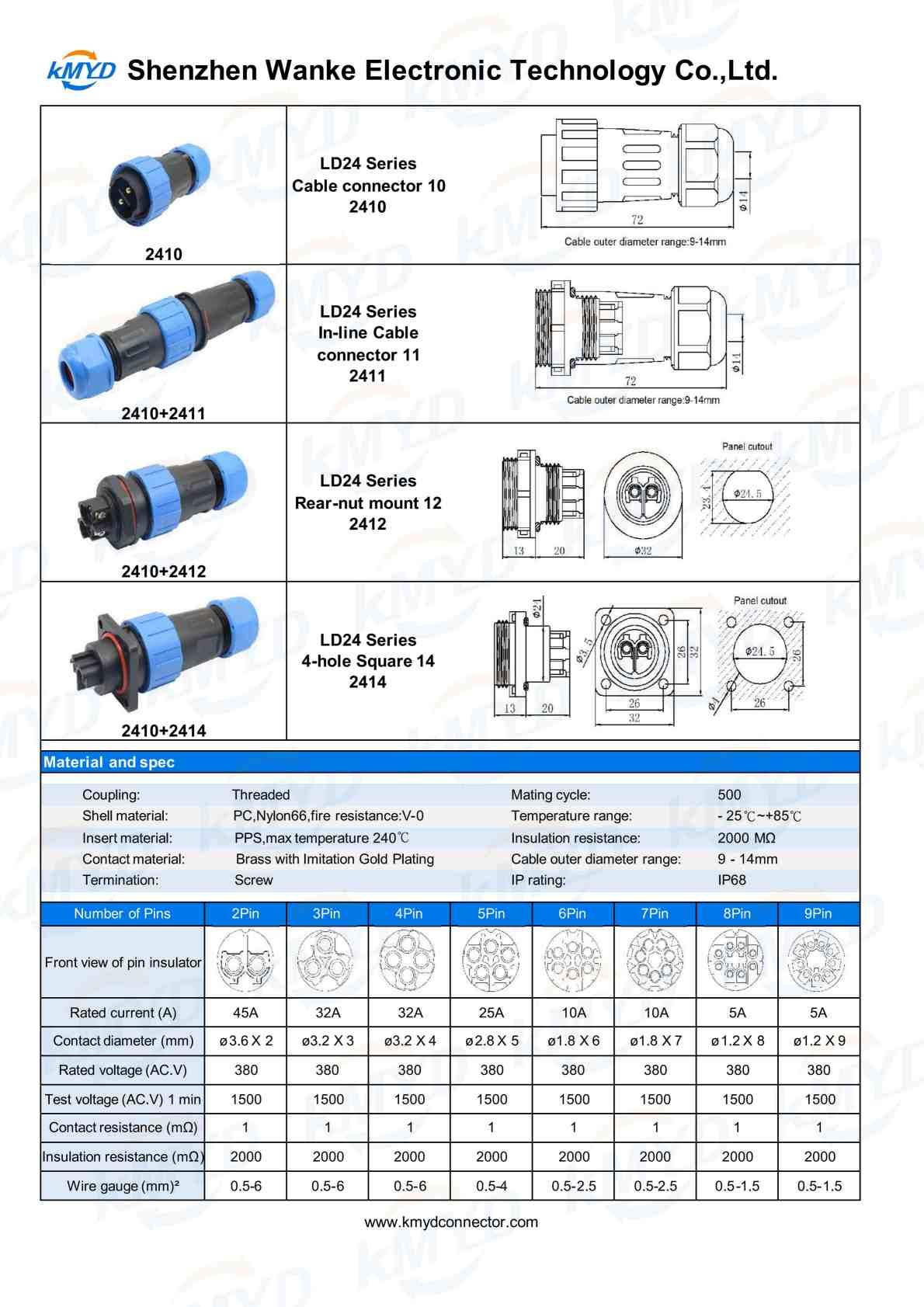

LD24/SP24 Square Flange Connector
