FD20 Connector
< >

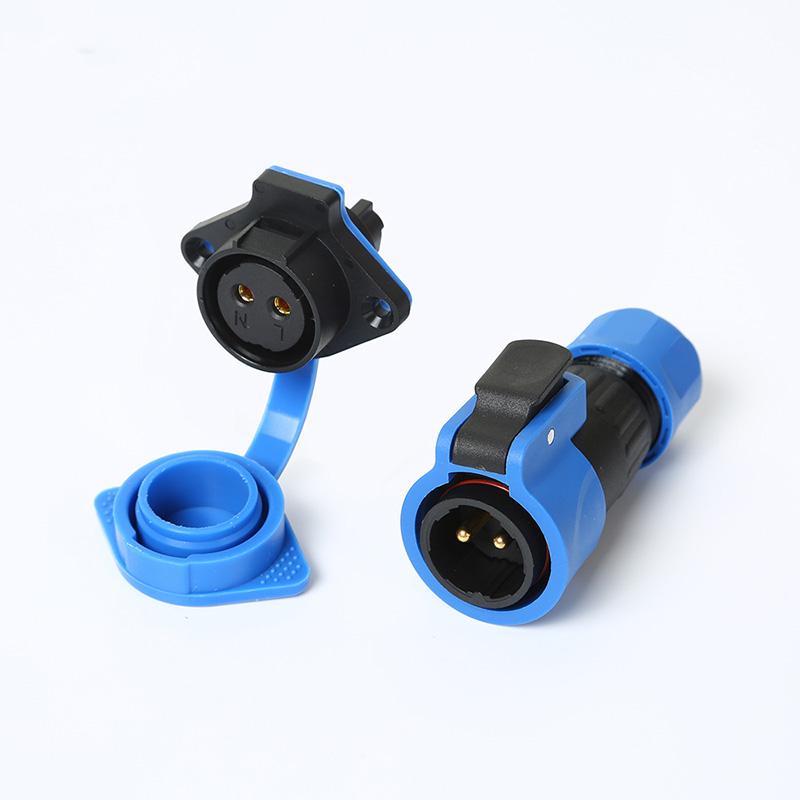

IP68 Waterproof FD20 Flange Cable Connector

>Number Of CoresNumber Of Cores 2 - 20 Pin
Contact DiameterContact Diameter(mm) 1.0mm / 1.5mm / 2.0mm
IP RatingIP Rating IP68
Shell MaterialShell Material PC/PA66
Temperature RangeTemperature Range -40°C to +105°C
TerminationTermination Solder / Crimp / PCB
Rated CurrentRated Current(A) 5–15 A
Rated VoltageRated Voltage(Ac.V) 250 V AC
Test VoltageTest Voltage(Ac.V)1Min 1500 V AC
Insulation ResistanceInsulation Resistance (MΩ) ≥1000MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 5 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

IP68 Waterproof FD20 Flange Cable Connector - 2-Hole Mounting Type
The IP68 Waterproof FD20 Flange Cable Connector with a 2-hole flange mounting design is developed for applications requiring reliable sealing performance and efficient installation in limited panel spaces. Its streamlined structure allows for quick mounting while maintaining stable electrical connections, making it a practical solution for compact equipment and outdoor systems.
FD20 Flange Connector
Engineered to meet demanding environmental requirements, this connector features a high-performance sealing structure that protects internal contacts from water, dust, and moisture intrusion. The two-hole flange design reduces installation complexity and provides a secure yet flexible mounting solution for a wide range of industrial and commercial equipment.

Key Product Advantages of FD20 Flange Connector
Compact 2-Hole Flange Design
Compared with multi-hole mounting structures, the two-hole flange offers a simpler and more space-saving installation method, ideal for equipment with limited panel space or lightweight structures.

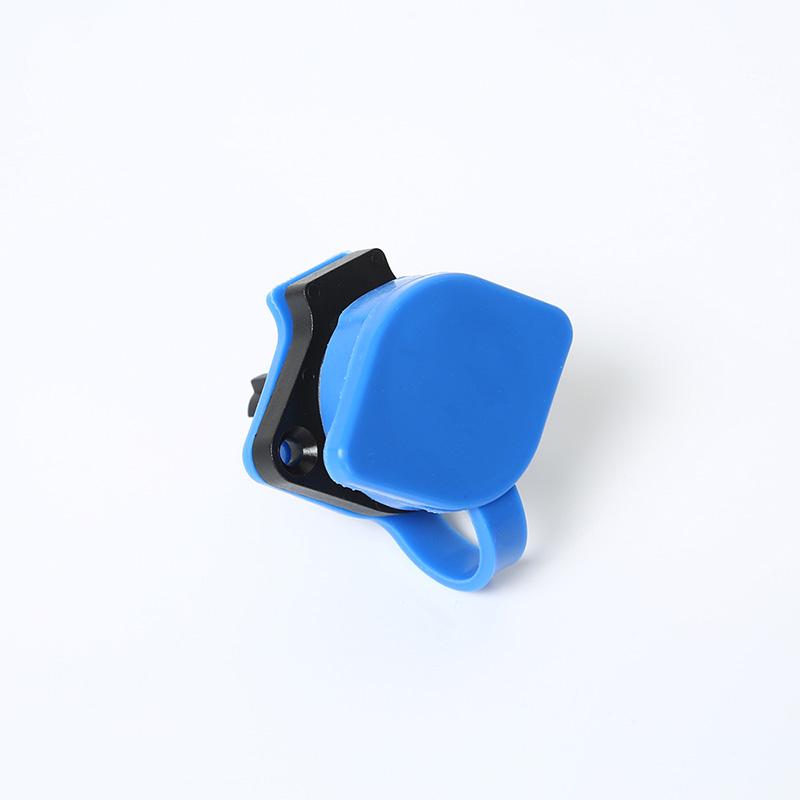

Connector
IP68 Reliable Waterproof Protection
The connector is designed with precision sealing components to achieve dependable waterproof and dustproof performance, ensuring stable operation in outdoor and humid environments.

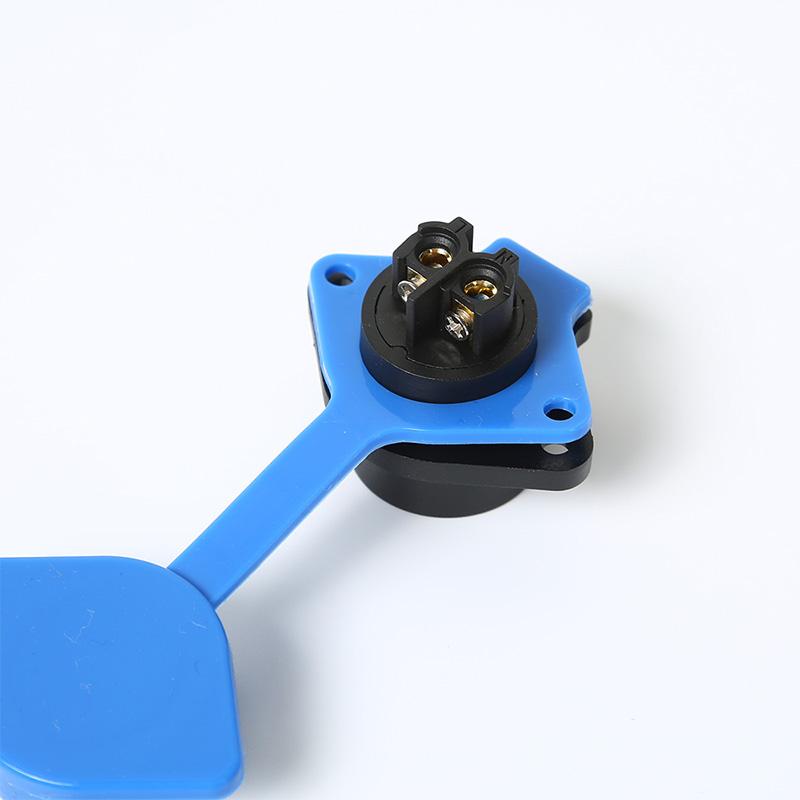

Connector
Efficient and Quick Installation
The simplified mounting structure reduces installation time and maintenance effort, helping manufacturers improve assembly efficiency and reduce labor costs.
Connector
Stable and Durable Performance
Manufactured with high-quality materials and strict production standards, the connector provides consistent electrical performance and long service life under continuous operation.

Flexible Cable Integration
Supplied as a cable connector solution, it supports customized cable length, wire type, and configuration to match different application requirements.

Our Strength - Reliable Manufacturing Partner
Experienced Connector Manufacturer
With over 15 years of specialization in circular connectors and cable assemblies, we have built strong expertise in delivering reliable connectivity solutions for global customers.
Connector
Complete Production Capability
Our factory integrates mold development, die-casting, CNC machining, injection molding, cable processing, and final assembly into a fully controlled manufacturing system, ensuring stable quality and fast production turnaround.
Connector

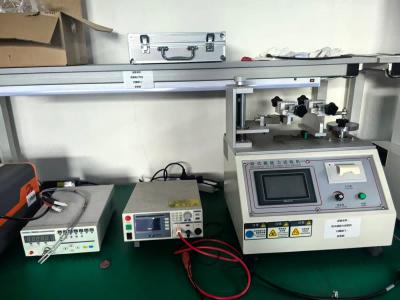

Strict Quality Control System
Each connector is tested through multiple procedures, including waterproof testing, electrical performance verification, mechanical strength testing, and dimensional inspection before shipment.
Connector
Stable Supply and Customization Support
We support OEM and ODM services, offering flexible customization options to meet specific project requirements and ensure consistent supply for long-term cooperation.

 Item

 Parameters

 Number of Cores

 2-20Pin

 Gender

 Male/Female

 Housing Material

 PC/PA66

 Cores Material

 Brass Plated with Gold

 Insulator Material

 PPS

 Locking System

 Screw Locking

 Temperature Range

 -40℃, +105℃

 Rated Current (A)

 5A - 15A

 Rated Voltage (AC.V)

 250V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 1000㏁

 Contact Resistance (㏁)

 ≤5㏁

 Termination

 Solder
