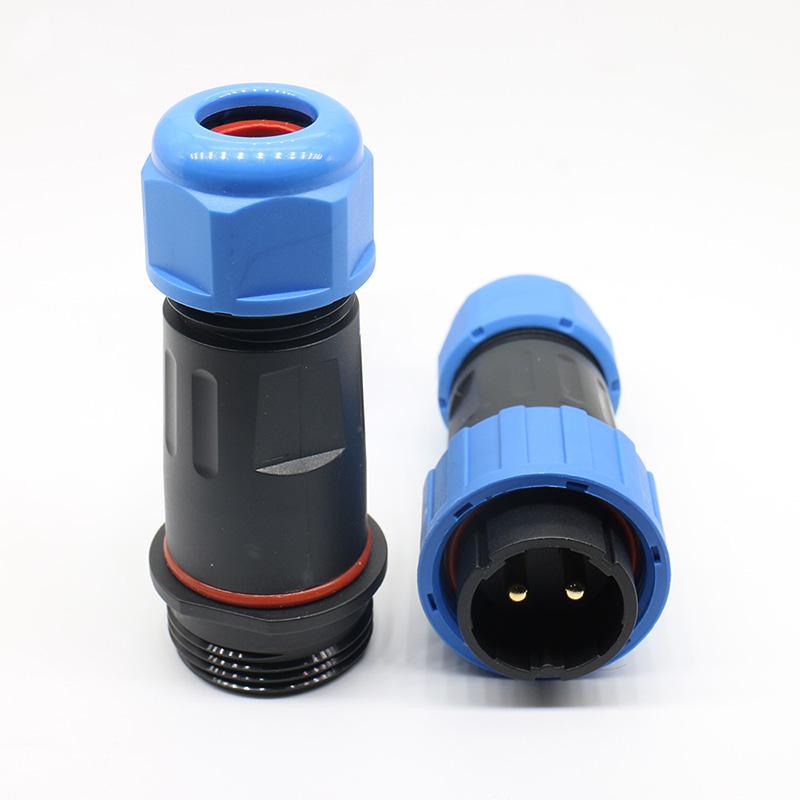

LD20 Connector
< >

LD20/SP20 IP68 Waterproof Docking Connector

>Number Of CoresNumber Of Cores 2 - 12Pins
Contact DiameterContact Diameter(mm) 1.0mm/1.8mm/2.8mm
IP RatingIP Rating IP68
Shell MaterialShell Material Thermoplastic PA6(Flame Retardant)
Temperature RangeTemperature Range -25°C to +85°C
TerminationTermination Screw Crimping
Rated CurrentRated Current(A) 5A/10A/25A
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 1 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

LD20 / SP20 IP68 Waterproof Docking Connector - Fast & Reliable Connection Solution
The LD20 / SP20 IP68 Waterproof Docking Connector is specially designed for applications that require frequent connection and disconnection with high reliability. Featuring a precise docking structure, this connector enables quick and secure mating, significantly improving operational efficiency in systems where fast assembly and maintenance are essential.

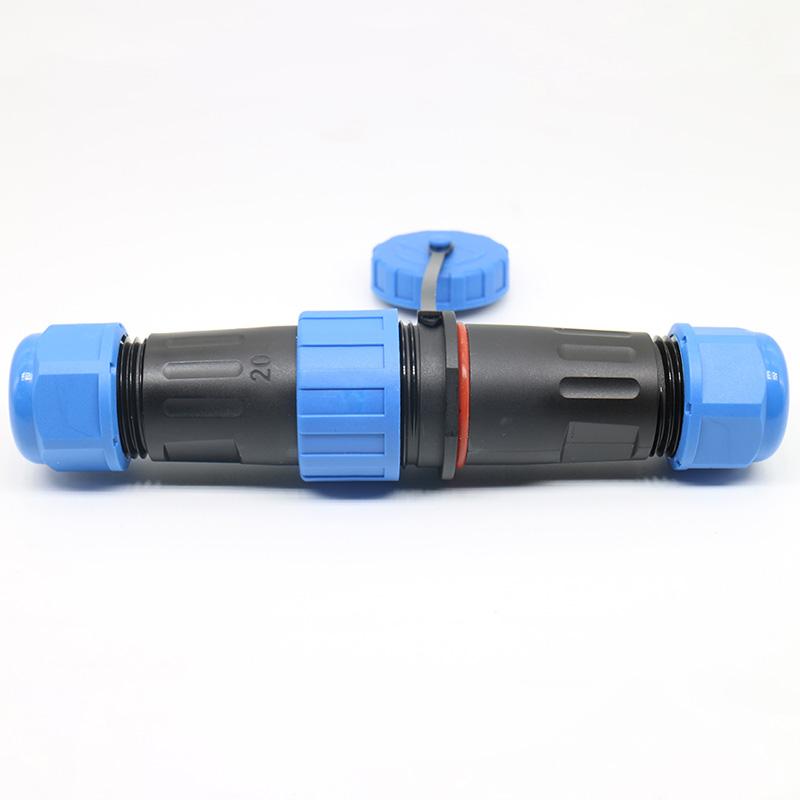

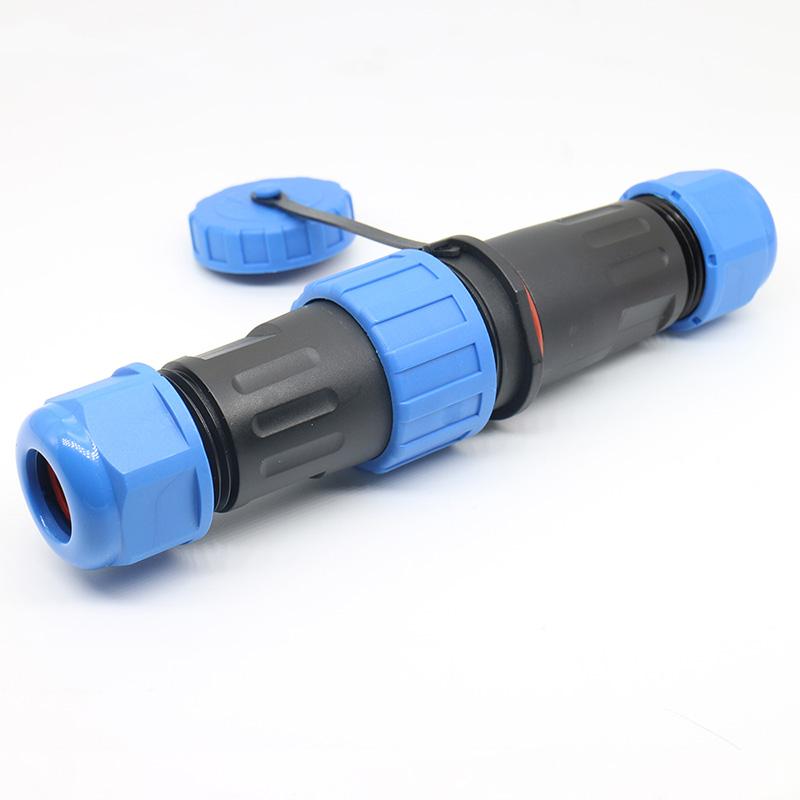

LD20/SP20 Waterproof Connector
Built for demanding environments, the connector combines robust mechanical design with dependable sealing performance, ensuring stable electrical transmission even under exposure to moisture, dust, and vibration.

Designed for Quick Connection & High Efficiency

Unlike traditional fixed connectors, the docking design allows for fast plug-and-play operation, making it ideal for modular systems and equipment that require regular maintenance or replacement. It helps reduce downtime and simplifies system upgrades.

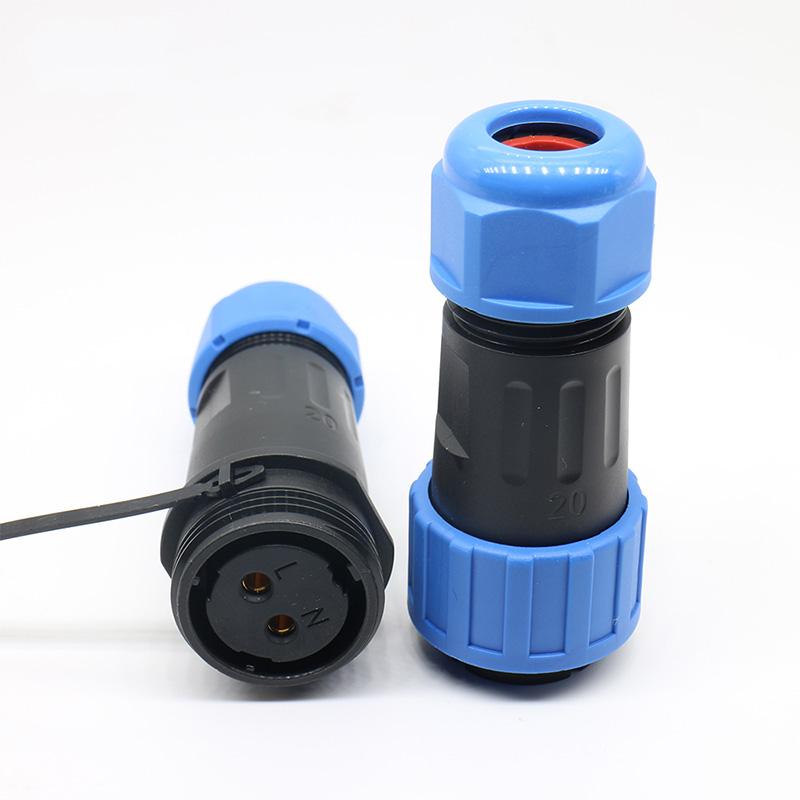

SP20 Connector


Key Advantages of LD16/SP16 Connector
Fast Docking Connection
Engineered for smooth and accurate alignment, enabling quick mating and unmating without complicated installation procedures.

IP68 Waterproof Protection
Provides reliable sealing against water and dust, ensuring stable performance in outdoor and harsh industrial environments.

Ideal for Frequent Plugging Cycles
Designed to withstand repeated connection and disconnection while maintaining consistent electrical performance.

Strong and Durable Construction
High-quality materials and precision manufacturing ensure resistance to vibration, impact, and long-term use.

Improved Maintenance Efficiency
Simplifies equipment servicing by allowing quick replacement and reconnection, reducing downtime and labor costs.

Our Manufacturing Strength
Professional Connector Manufacturer
With over 15 years of experience, we specialize in circular connectors and provide reliable solutions for industrial applications worldwide.
SP20 Connector
Complete Production System
From mold development and die-casting to machining, injection molding, and final assembly, all processes are controlled in-house to ensure stable quality and fast delivery.

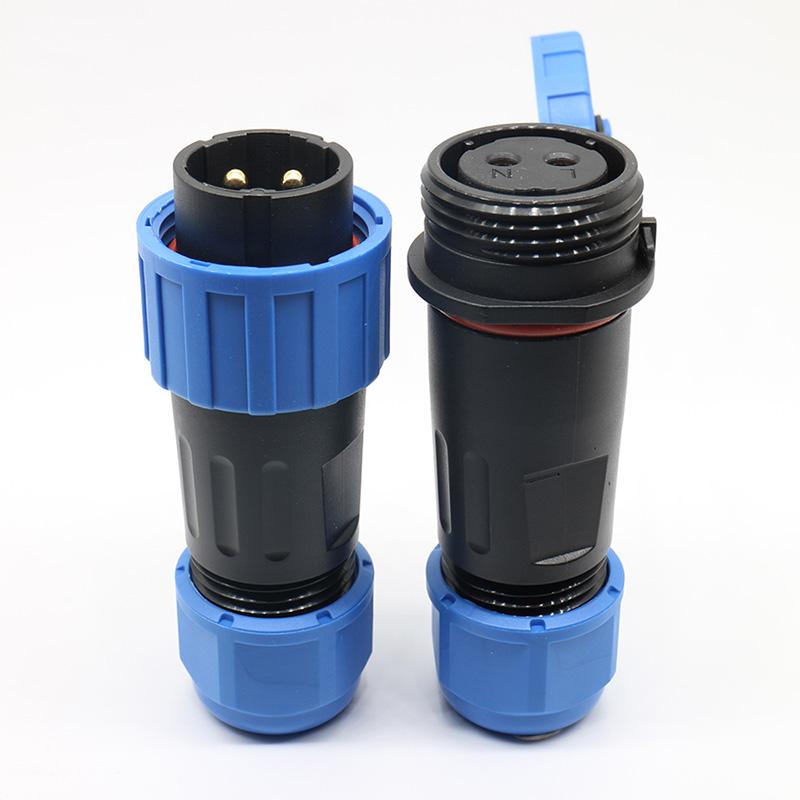

Waterproof Connector
Strict Quality Testing
Each connector undergoes waterproof testing, electrical performance testing, and durability verification to guarantee reliability before shipment.

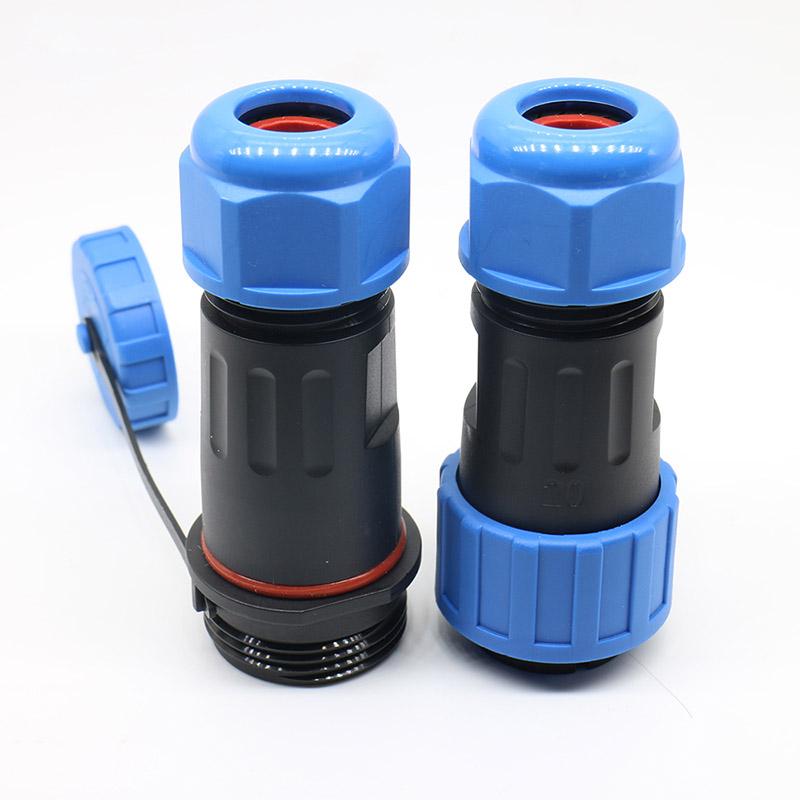

IP68 Connector
Customization Support
We offer flexible OEM/ODM services, including pin configuration, material selection, and special design requirements based on your project needs.

Typical Applications for LD16/SP16 Connector
Modular Equipment Systems
Industrial Automation Devices
Outdoor Electrical Equipment
Power and Control Systems
Communication Equipment

Equipment Requiring Frequent Maintenance


Why Choose This Docking Connector
If your application requires fast connection, high durability, and reliable waterproof performance, this docking connector provides a practical and efficient solution.

Upgrade your system with a fast and reliable docking connection solution.
Contact us now for samples, technical support, or a competitive quotation.

 Item

 Parameters

 Number of Cores

 2-12Pin

 Gender

 Male/Female

 Housing Material

 Thermoplastic PA6(Flame Retardant)

 Cores Material

 Brass Plated with Gold

 Insulator Material

 Thermoplastics

 Locking System

 Threaded Connection

 Temperature Range

 -25℃, +85℃

 Rated Current (A)

 5A/10A/25A

 Rated Voltage (AC.V)

 250V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 2000㏁

 Contact Resistance (㏁)

 ≤1㏁

 Termination

 Screw Crimping


Related Products

More》

Related Resource


LD20/SP20 Connector
Related Cases
KMYD Connectors KNOWS WHAT YOU NEED,
LD20/SP20 IP68 Waterproof Docking Connector Market Leader！
SP21 Waterproof Connector for Fishing Light Lighting in the United States
SP21 Waterproof Connector for Fishing Light Lighting in the United States
SP21 Waterproof Connector – the perfect fit for marine LED fishing lights! Engineered for US marine environments, this 9pin connector solves humidity, salt corrosion, and space issues. With IP68 protection, brass nickel-plated contacts, and ABYC C-5/UL 508 compliance, it resists salt fog over 500 hours. Compact Ø21mm×L36mm design halves installation time. 30A rating supports 5–25W lights, reducing failure rates to 0.3% and cutting maintenance costs by 80%, fully complying with USCG.
Marine Navigation and Bridge Control Panels in South Korea
Marine Navigation and Bridge Control Panels in South Korea
Learn how push-pull connectors are applied in marine navigation and bridge control panels in South Korea, supporting compact layouts and efficient maintenance.
Offshore Communication and Control Modules in the United Kingdom
Offshore Communication and Control Modules in the United Kingdom
Discover how push-pull connectors are used in offshore communication and control modules in the UK, supporting compact interfaces and efficient maintenance in platform environments.
Offshore Monitoring and Sensor Systems in the United States
Offshore Monitoring and Sensor Systems in the United States
Discover how push-pull connectors are used in offshore monitoring systems in the United States, supporting reliable signal connections in control and data acquisition equipment.
Related Application
SP17 Waterproof Connectors in Robotic Vision Cameras
SP17 Waterproof Connectors in Robotic Vision Cameras
XLR Connectors in Recording Studio Microphone Systems
XLR Connectors in Recording Studio Microphone Systems
Monitoring Component for Automatic Feeder
Monitoring Component for Automatic Feeder
GOST OHS Series Connectors in Mobile Patient Monitors
GOST OHS Series Connectors in Mobile Patient Monitors
SP29 Connectors in Mobile X-ray Machines
SP29 Connectors in Mobile X-ray Machines
M12 Connectors in Analog Cameras
M12 Connectors in Analog Cameras
RJ45 Connectors in Laboratory Data Acquisition Systems
RJ45 Connectors in Laboratory Data Acquisition Systems
GOST OHS Series Connectors in ADAS System Sensors
GOST OHS Series Connectors in ADAS System Sensors
Related Catalog
Learn More

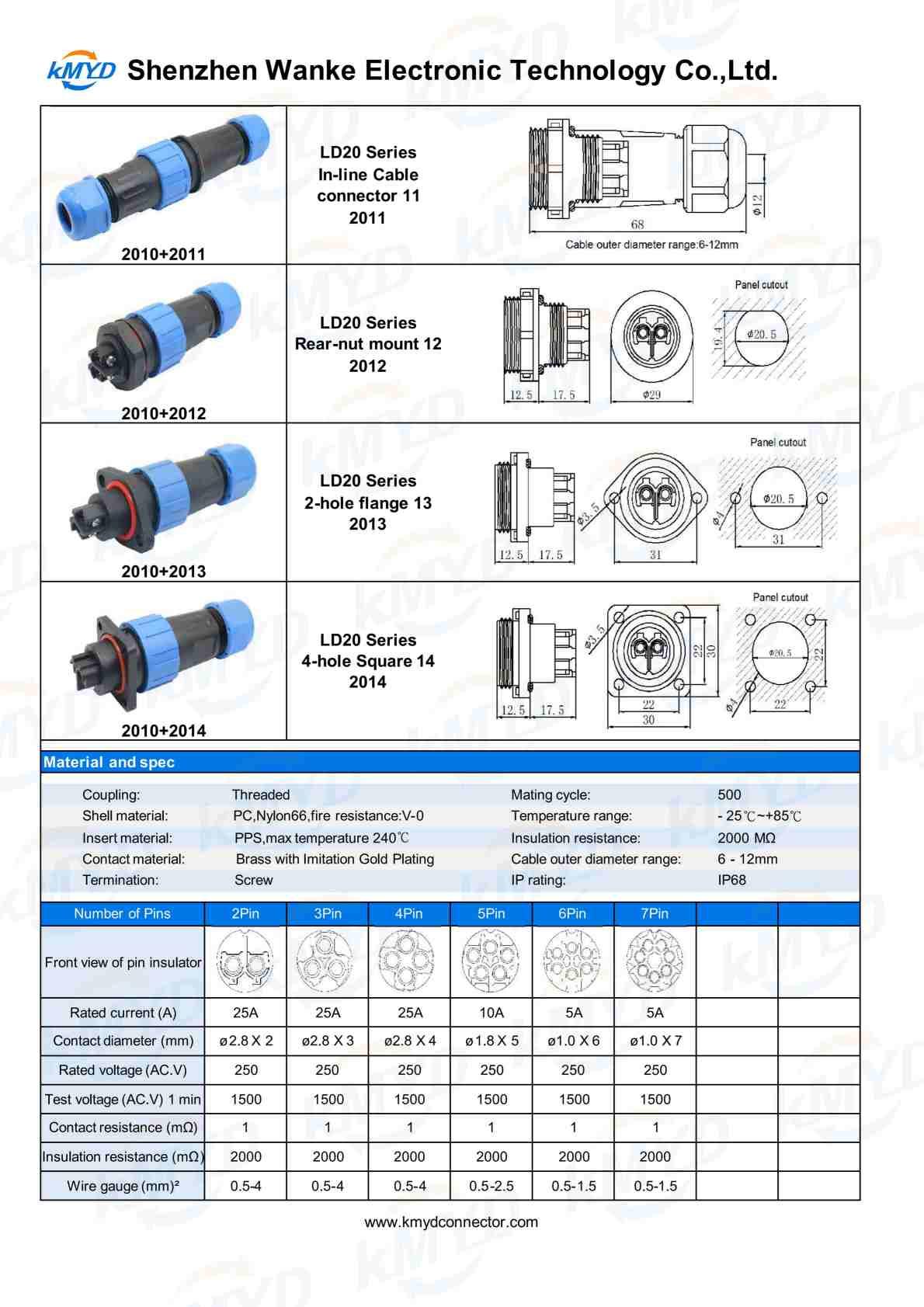

LD20/SP20 IP68 Waterproof Docking Connector
