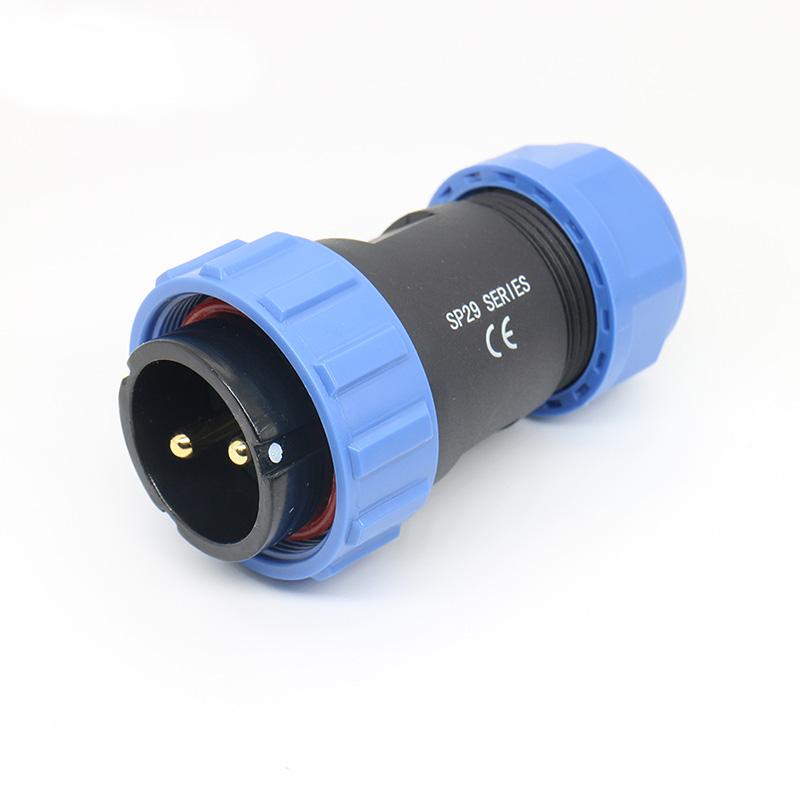

SP29 Electrical Flange Connector Overview

The SP29 electrical flange connector is a large-size industrial circular connector designed for high-reliability power and signal connections in demanding environments. With a reinforced flange mounting structure and robust housing design, it provides secure installation and stable electrical performance for heavy-duty equipment and outdoor systems.

This connector is available in multiple pin configurations from 2 to 26 pins, allowing flexible integration into complex electrical systems that require multi-circuit connections. Its larger contact capacity and strong mechanical structure make it suitable for applications where durability, safety, and long-term reliability are critical.

Built for Heavy-Duty Electrical Applications

Compared with smaller connector series, the SP29 connector is engineered to handle higher load requirements and more complex wiring configurations. The flange mounting design ensures firm attachment to equipment panels, reducing movement and improving connection stability during operation.

Key functional characteristics include:

• Heavy-duty flange mounting structure

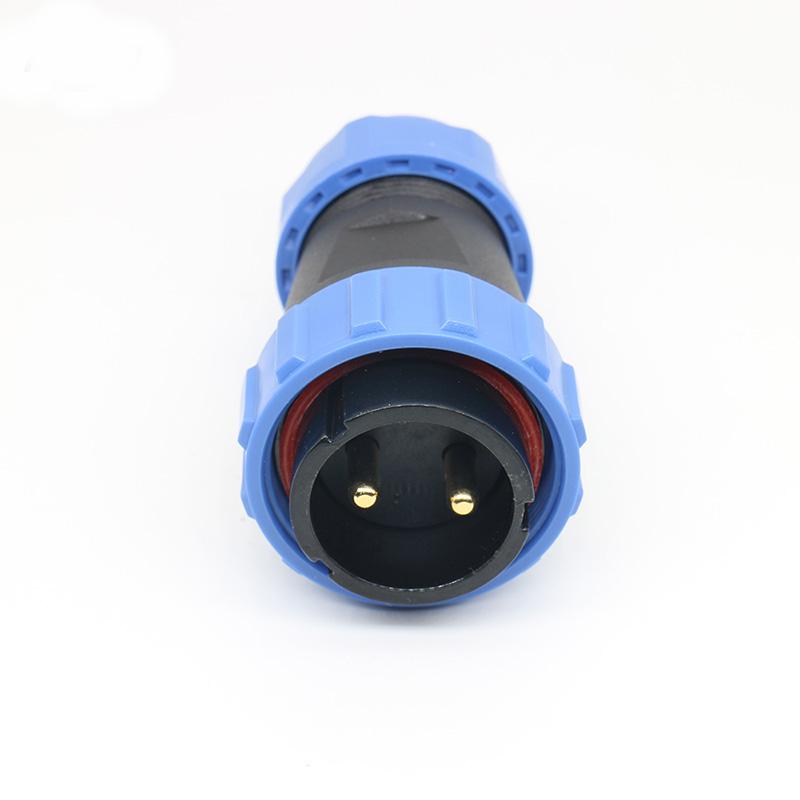

• IP67 / IP68 waterproof and dustproof protection
• High mechanical strength for industrial environments
• Stable power and signal transmission
• Reliable performance under vibration and outdoor conditions

Flexible Engineering & Configuration Options

The SP29 flange connector is designed to support a wide range of electrical and mechanical installation requirements:

• Multiple pin options: 2 - 26 Pins

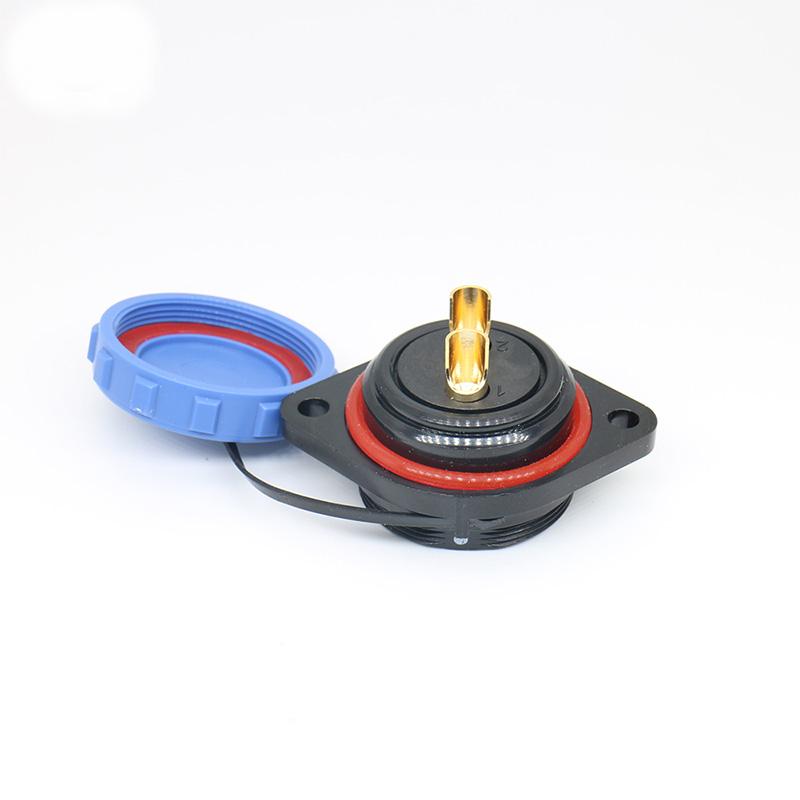

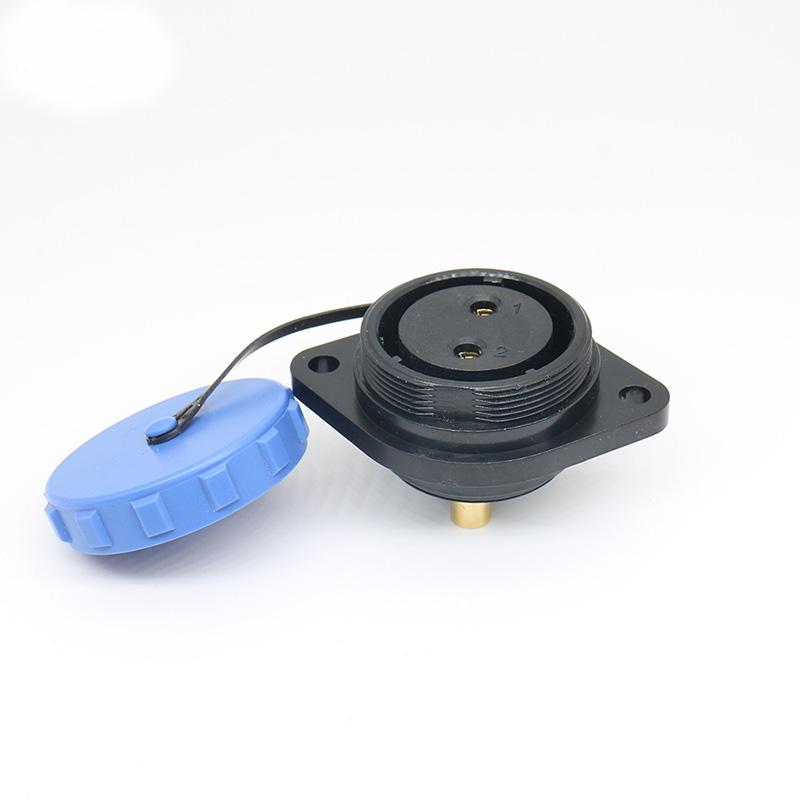

• Panel mount flange installation structure
• Solder or crimp termination types
• Compatibility with larger cable diameters

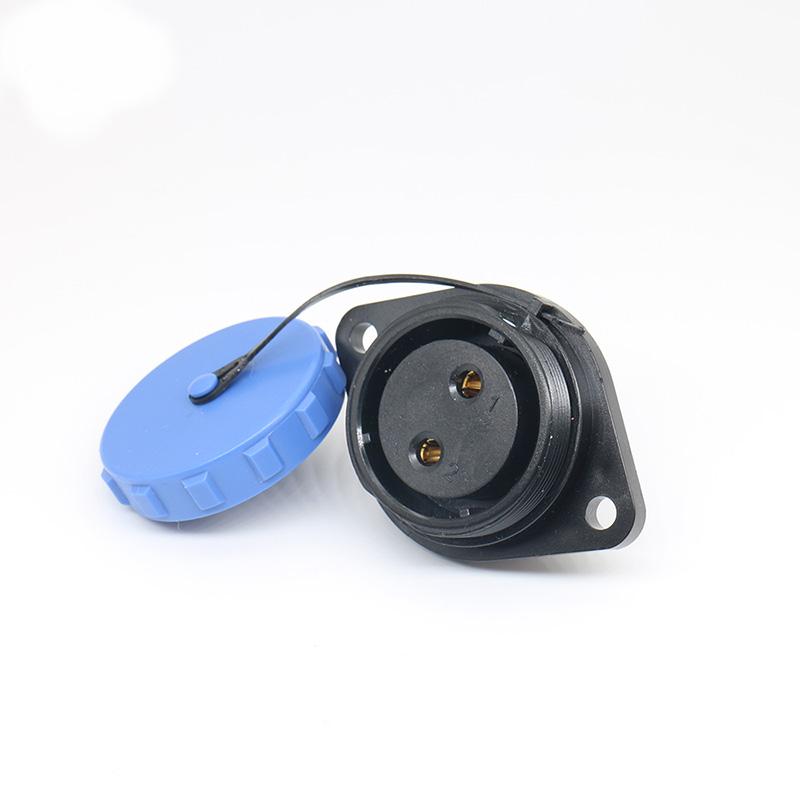

• Optional protective caps and sealing accessories
• OEM customization for mechanical design and branding

This flexibility makes the connector suitable for both standard industrial equipment and customized system integration projects.

Typical Application Environments for SP29 Flange Connector

The SP29 flange connector is commonly used in applications where strong electrical capacity and reliable environmental protection are required:

• Industrial machinery and heavy equipment
• Power distribution and control systems
• Outdoor electrical cabinets
• Marine and transportation equipment
• Renewable energy systems
• Automation and large-scale industrial installations

KYMD'S Manufacturing Capability & Production Strength

Our factory specializes in the production of industrial circular connectors and waterproof connection systems, with manufacturing experience since 2007. We operate a fully integrated production process that allows us to control product quality from component manufacturing to final assembly.

Our core manufacturing strengths include:

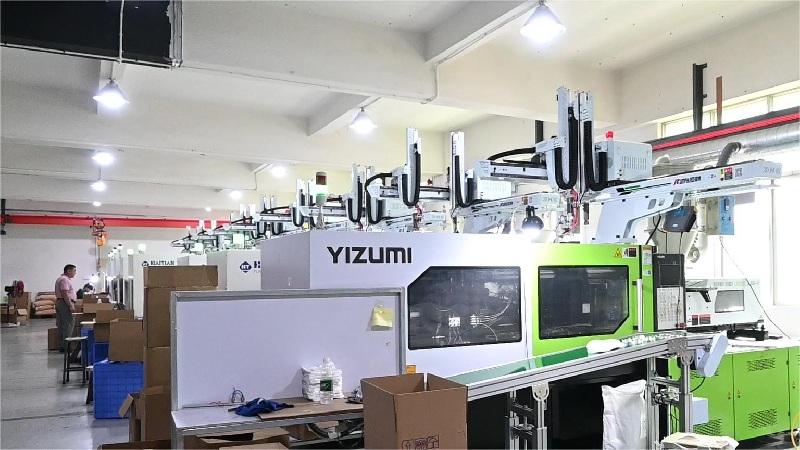

• In-house mold development and precision injection molding
• Metal component machining and surface finishing
• Automated and semi-automated assembly lines
• Stable large-volume production capability
• Flexible customization for OEM and industrial projects

This production structure enables us to maintain consistent product performance while supporting both small-batch and large-scale orders.

Quality Control & Reliability Assurance

To ensure long-term reliability in industrial environments, every SP29 connector undergoes strict inspection and verification procedures before shipment.

Our quality control system includes:

• Waterproof sealing performance testing
• Electrical conductivity and contact resistance testing
• Mechanical strength and durability verification
• Dimensional accuracy inspection
• Batch consistency monitoring

These procedures help ensure stable performance across different operating conditions.

Certifications & Compliance

Our products are manufactured in accordance with international quality and safety standards to support global market requirements.

We hold the following certifications:

• ISO9001 Quality Management System
• CE Certification for European market compliance
• RoHS Compliance for environmental safety
• IP68 Waterproof Protection Standards

These certifications demonstrate our commitment to product safety, reliability, and consistent manufacturing quality.

Selection Guidance and Inquiry Checklist

When selecting the SP29 flange connector for your project, consider the following decision points:

• Pin count and layout: Confirm the number of circuits required and the corresponding pin arrangement.
• Termination method: Choose between solder and crimp types based on your assembly process and maintenance needs.
• Cable diameter: Verify the cable outside diameter and conductor size to ensure compatibility with the connector's cable range.
• Environmental rating: Confirm the required IP protection level for your specific installation environment.
• Mounting configuration: Check panel thickness and cutout dimensions for proper flange mounting.

For accurate matching, please provide the following information when making an inquiry:

• Mating-side connector requirement (plug or socket)
• Pinout or wiring diagram
• Cable outside diameter and conductor size
• Electrical load (current and voltage)
• Operating environment and required IP rating
• Order quantity and target delivery schedule

For related flange connector designs, see the SD20/SP20 Square Flange Connector Design and Installation Guide. For a practical application example, review the SP29 9-Pin Electrical Flange Connector for Smart Grid Control case study.

Reliable Partner for Industrial Connectivity

The SP29 electrical flange connector (2 - 26 pins) is designed to support complex electrical systems that require strong mechanical stability and dependable performance. With proven manufacturing capability, certified quality standards, and flexible customization support, we provide reliable connection solutions for demanding industrial applications.
