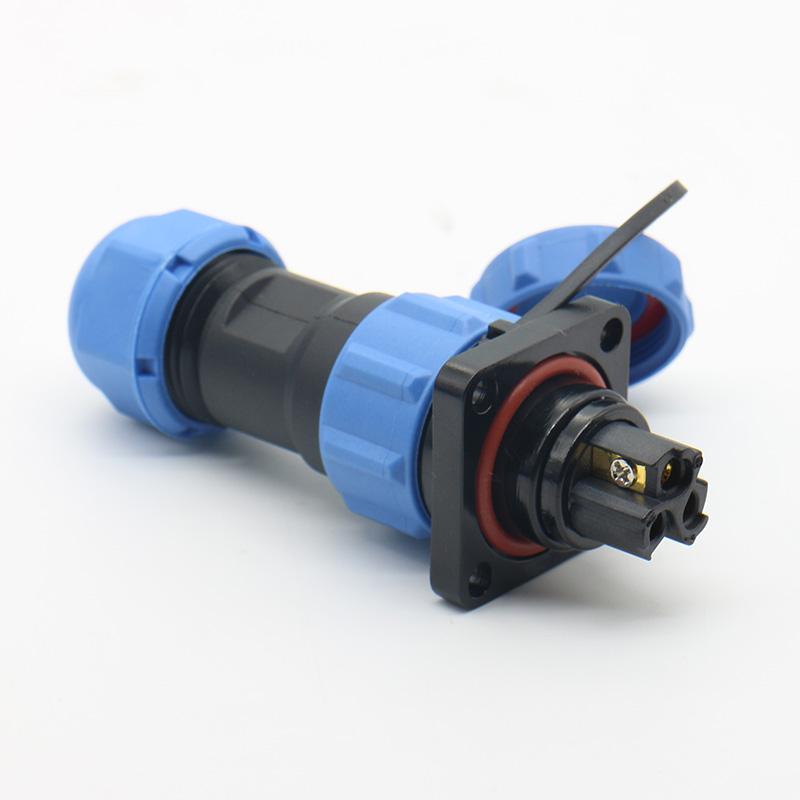

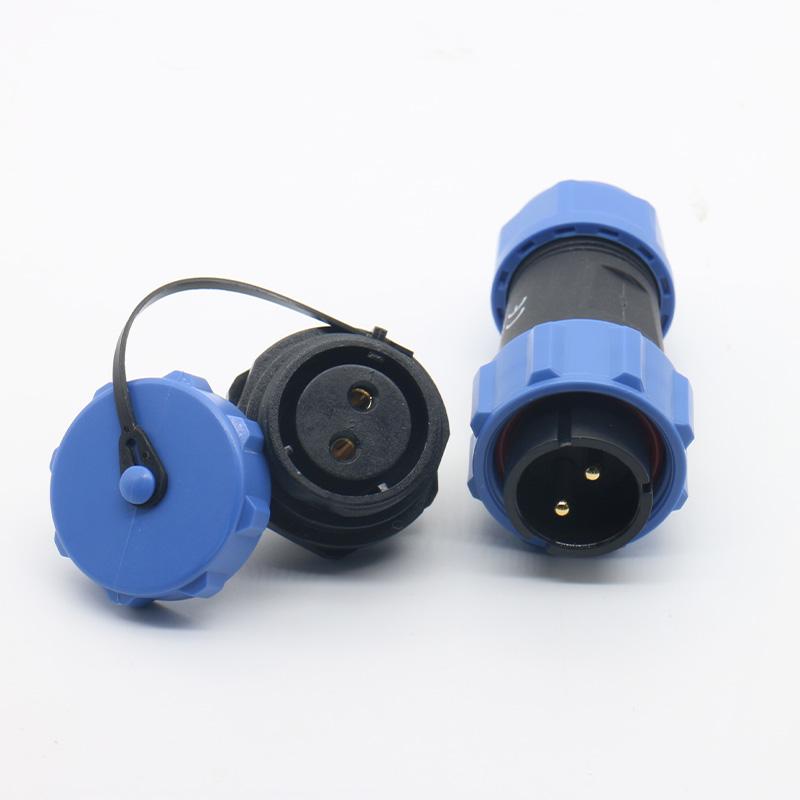

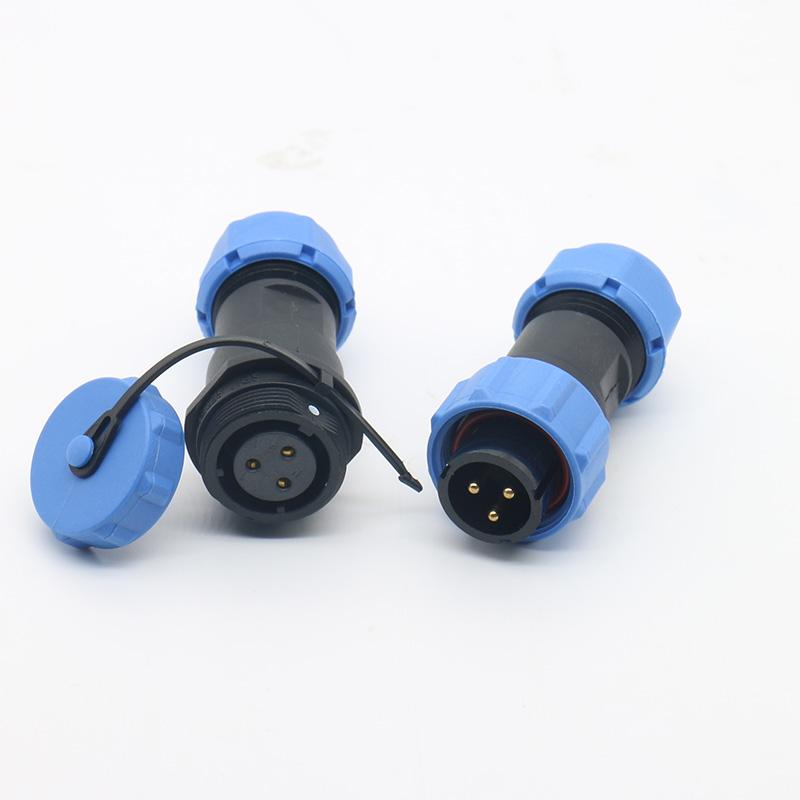

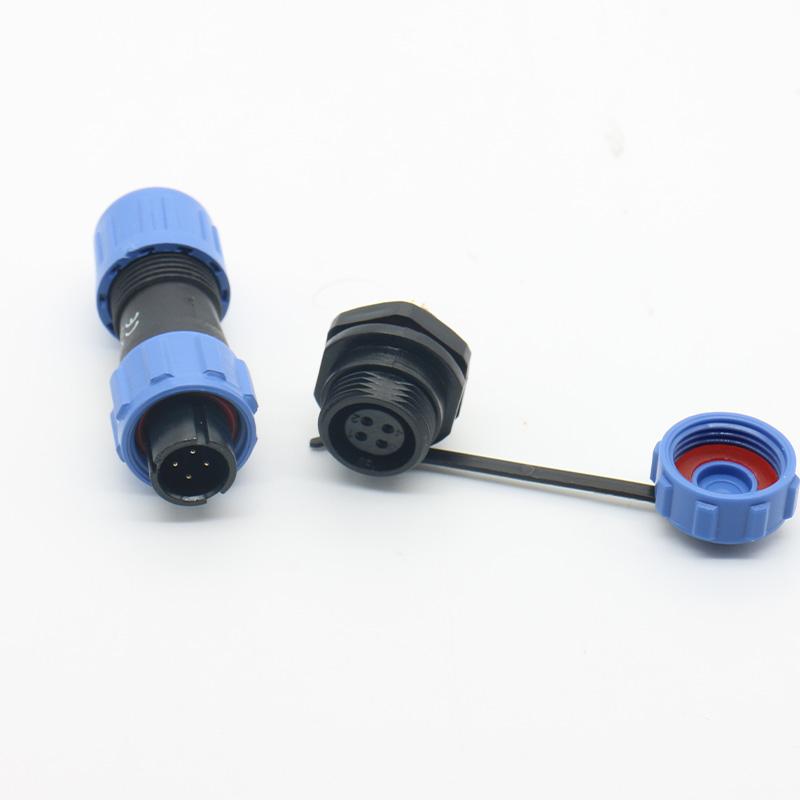

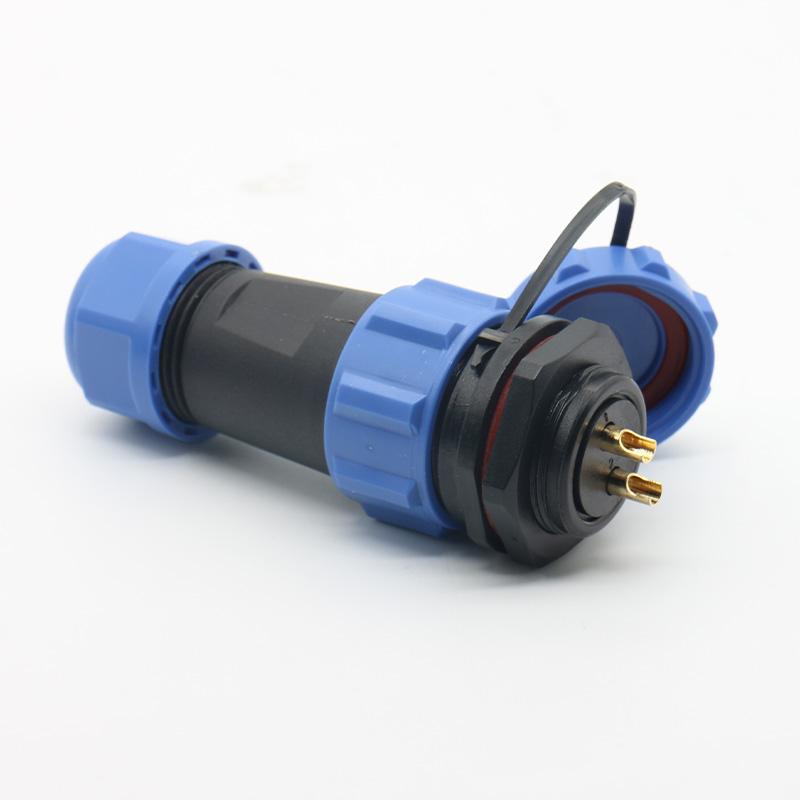

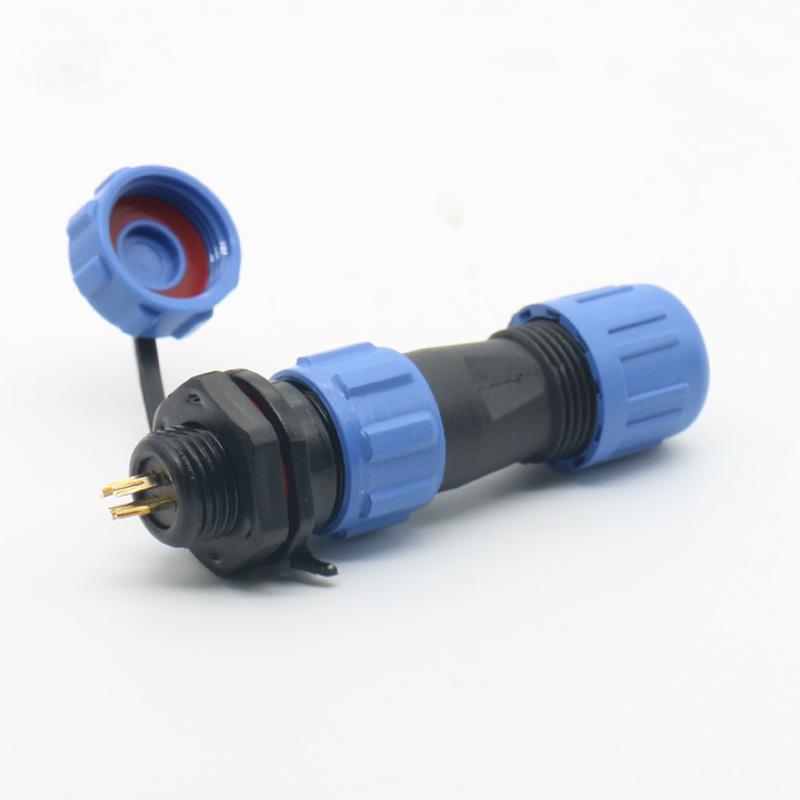

SP17 Connector for Automated Conveyor Systems

The SP17 Connector is a circular industrial connector engineered for reliable power and signal transmission in automated production environments. With a 2-9 pin configuration, male/female gender options, and an IP68 rating, this series supports conveyor systems, robotic arms, and packaging machinery where consistent connectivity and environmental sealing are required.

Key Selection Criteria for the SP17 Series

When evaluating the SP17 Connector for your application, consider the following decision points:

• Pin Count and Gender: Available in 2-9 pin configurations with male or female options, allowing you to match the connector to your existing cable assembly and equipment interface.
• Environmental Protection: The IP68 rating provides protection against dust ingress and continuous water immersion, making it suitable for washdown areas and humid factory floors.
• Material Compatibility: The PC/PA66 housing offers mechanical strength, while brass contacts plated with gold ensure stable conductivity and corrosion resistance over repeated mating cycles.
• Installation Efficiency: The quick and secure mating design helps reduce assembly time and minimizes downtime during maintenance or reconfiguration of automated lines.

Application Scope for Industrial Automation

The SP17 Connector is suited for automated conveyor systems, industrial robotic arms, packaging machines, and assembly line automation. Its sealed construction and stable electrical performance make it a practical choice for equipment operating in dusty or damp conditions.

For related industrial equipment connectivity, the GX16 Connector for Automated Conveyor Systems offers an alternative interface option. For broader selection guidance, review the Waterproof Connectors catalog.

Parameter Interpretation and Configuration Notes

The SP17 series supports 2-9 cores with brass gold-plated contacts. The housing is available in PC or PA66 materials. Final electrical ratings, cable range, and termination details should be confirmed against the Technical Specifications for your chosen pin count and gender.

When requesting a quote or sample, specify the exact pin count, gender (male or female), and whether your application requires panel mounting or cable mounting. This ensures the connector matches your existing wiring and enclosure layout.

Suitable and Unsuitable Use Cases

Suitable: The SP17 Connector is appropriate for automated conveyor systems, robotic arms, packaging machines, and assembly line automation where IP68 protection and reliable signal/power transmission are required.

Unsuitable: This connector is not intended for high-voltage power distribution, applications requiring frequent high-cycle mating beyond the rated specification, or environments with extreme chemical exposure unless verified with the manufacturer.

Inquiry Checklist for SP17 Connector

To receive an accurate quotation and technical recommendation, prepare the following information:

• Required pin count (2-9) and gender (male/female)
• Mounting style: cable mount or panel mount
• Cable outer diameter and conductor size for your application
• Operating environment details: temperature range, moisture exposure, vibration levels
• Required current and voltage for your specific load
• Target quantity and delivery timeline

Contact our engineering team with these details to confirm the correct SP17 configuration for your automated system.
