MIL-DTL-5015 Connector for Robotics Assembly Lines

MIL-DTL-5015 Connector Overview for Robotics Assembly Lines

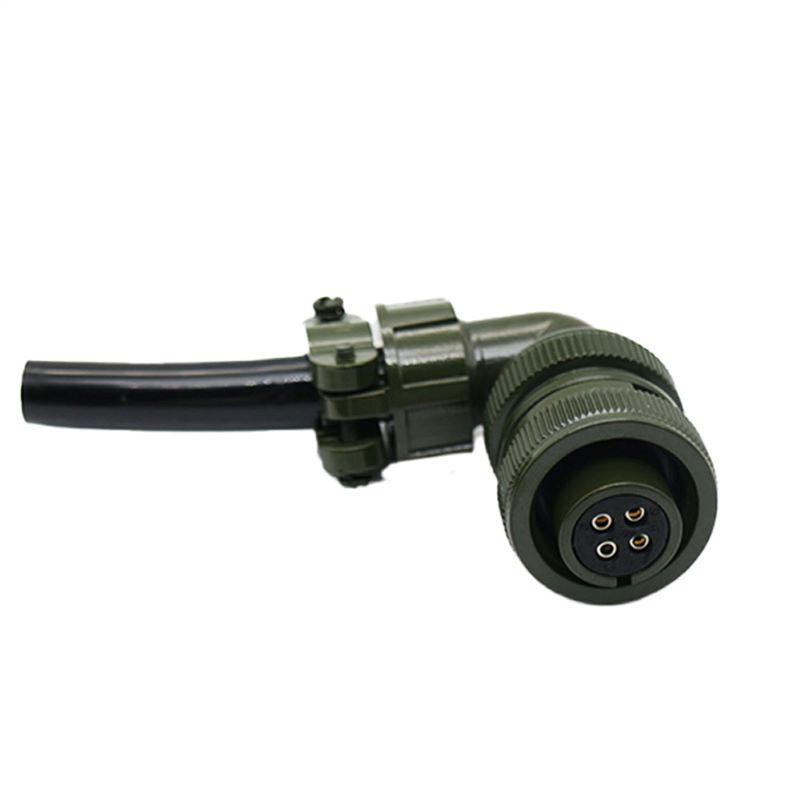

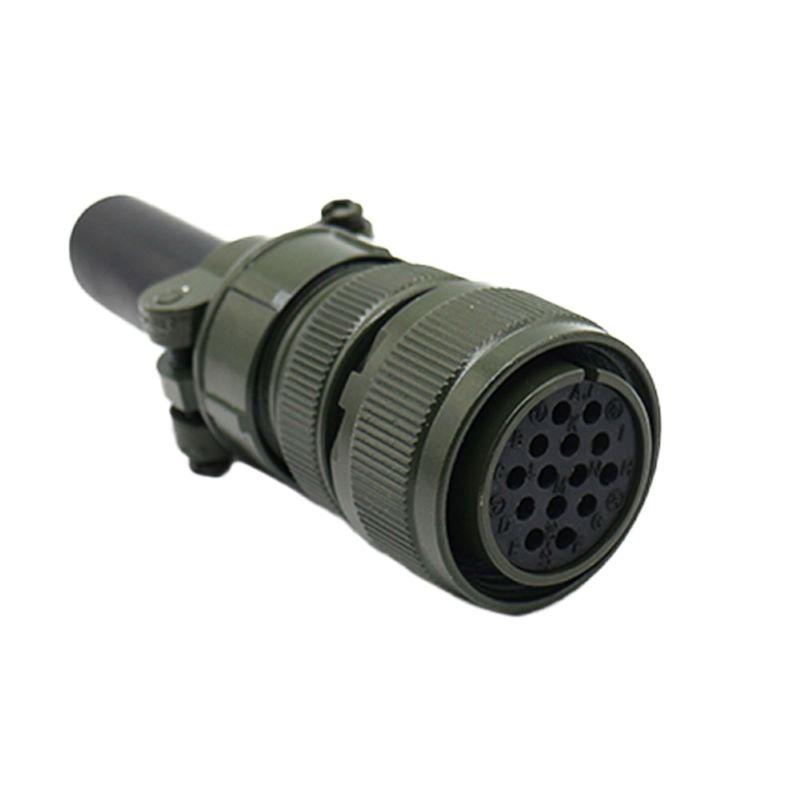

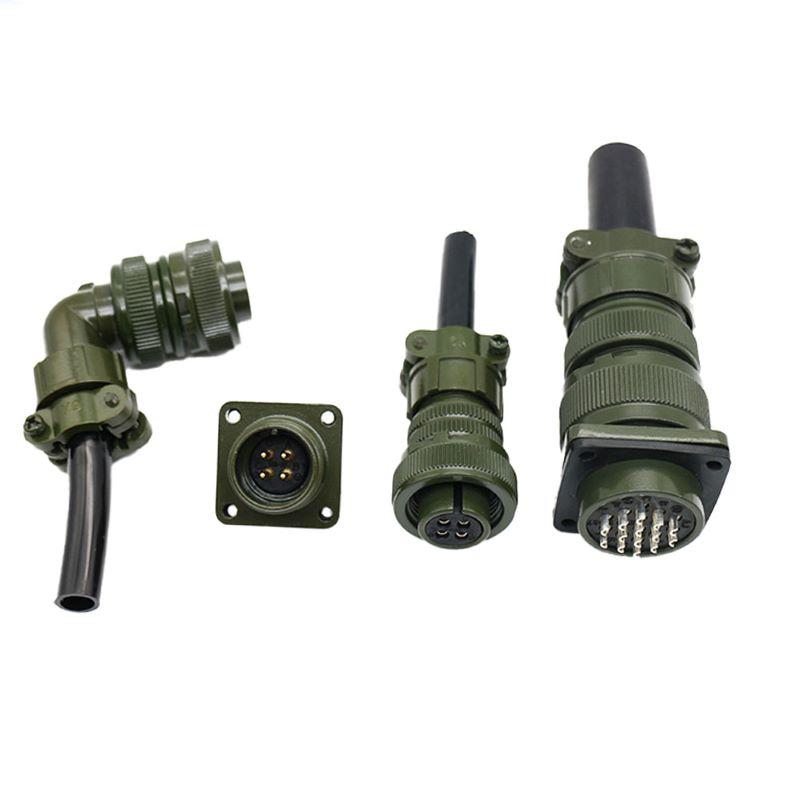

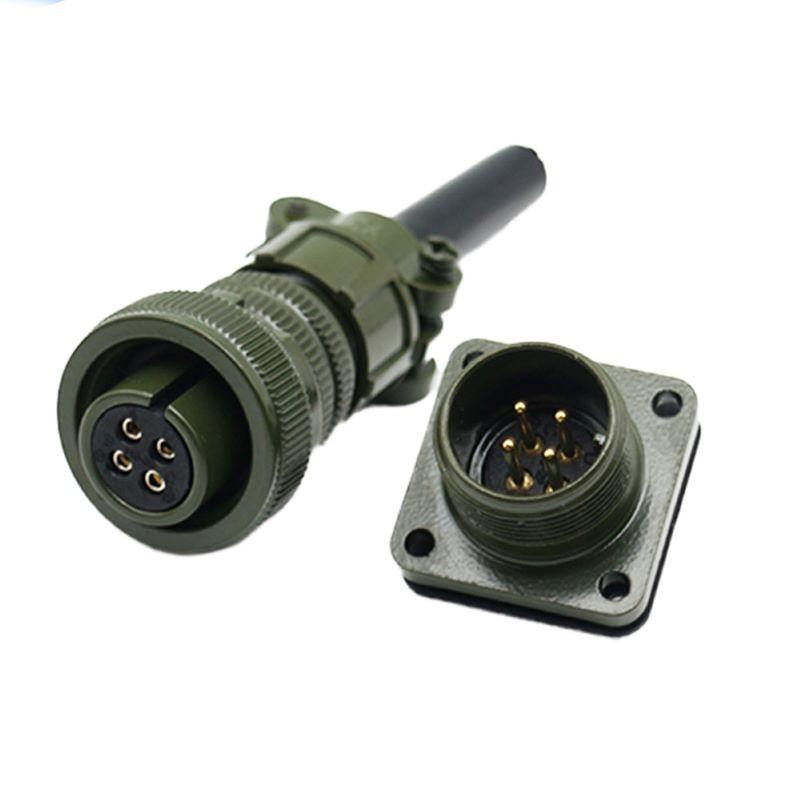

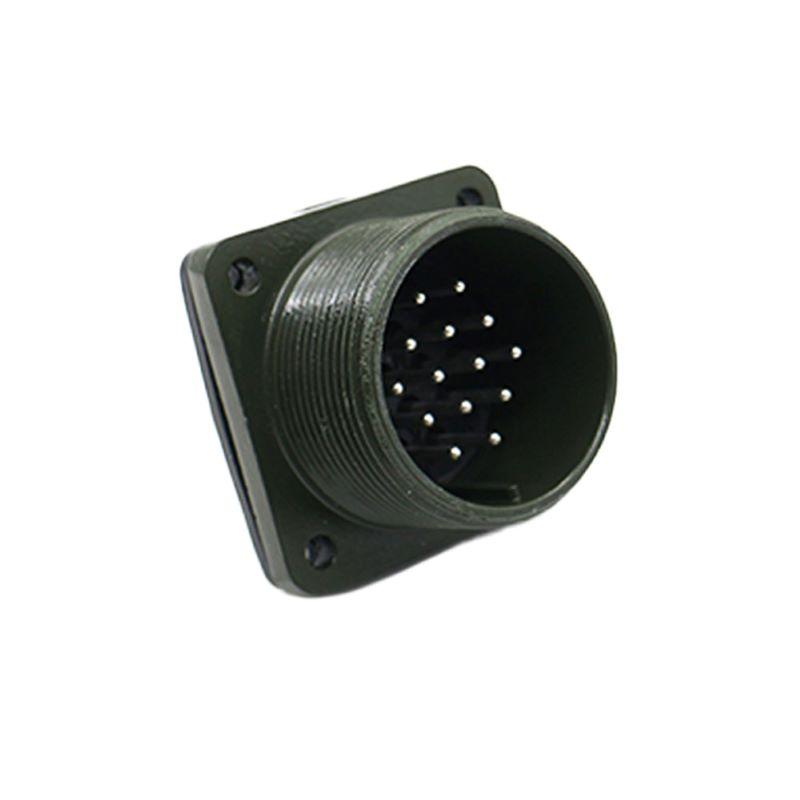

The MIL-DTL-5015 connector is designed for industrial robotics applications, offering rugged performance and long-lasting reliability in assembly line environments. Its circular, threaded-coupling design provides a secure connection for robotic arms, end-of-arm tooling, and automated stations where vibration and continuous cycling are common.

Why Choose This Connector for Your Robotic Systems?

When selecting a connector for assembly line robotics, focus on the following decision points to ensure a reliable match for your equipment:

• Pin Count and Configuration: Available in 2 to 52 pins, with male or female genders, allowing you to match the exact signal and power requirements of your robotic control system.
• Environmental Resistance: The aluminum alloy housing is engineered to resist vibration, shock, and harsh conditions, ensuring stable electrical performance and minimizing production downtime.
• Contact Reliability: Brass contacts plated with gold provide consistent conductivity and corrosion resistance, which is critical for high-cycle automation equipment.
• Installation Efficiency: The quick-connect, threaded coupling design allows for fast installation and maintenance, reducing changeover time on robotic arms and conveyor-integrated stations.

Interpreting Key Specifications for Your Application

While the full parameter list is available in the Technical Specifications section, here is how to interpret the core values for a robotics context:

• Core Range (2-52 Pin): This range covers simple sensor feedback loops (2-4 pins) up to complex servo motor and encoder connections (10+ pins). Confirm your exact pinout before ordering.
• Housing Material (Aluminum Alloy): Provides a good strength-to-weight ratio, suitable for robotic arms where payload weight is a concern. It is not a substitute for stainless steel in highly corrosive washdown environments.
• Contact Plating (Gold): Gold plating is ideal for low-voltage control circuits and ensures reliable signal transfer over many mating cycles, reducing intermittent faults common in automated lines.

Suitable and Unsuitable Use Cases

Understanding where this connector fits best helps avoid premature failure:

• Suitable: Robotic arms, automated assembly stations, robotic packaging systems, and conveyor-integrated robots where vibration resistance and secure mating are required.
• Unsuitable: Applications requiring submersion in liquids or continuous high-pressure washdown, where a higher IP-rated waterproof connector would be necessary. It is also not intended for high-speed data transmission (e.g., Ethernet or video), which requires specialized shielded connectors.

Quality and Construction Evidence

The connector's construction is based on the MIL-DTL-5015 standard, a long-established specification for circular, threaded-coupling connectors. The use of a robust aluminum alloy shell and gold-plated brass contacts is a proven combination for industrial environments. For a deeper look at the series variants and configuration options, refer to our MS5015 Connector Types, Configurations & Specifications guide.

Inquiry Checklist for Accurate Quoting

To receive an accurate quotation and ensure the correct connector is supplied, please prepare the following information when contacting us:

• Required pin count and whether you need a plug (male) or receptacle (female).
• Wire gauge (AWG) and outer cable diameter for the cable entry.
• Mounting style: cable-to-cable, cable-to-panel, or box mount.
• Specific current and voltage requirements for your servo drives or control signals.
• Any requirement for a mating cable assembly or a custom cable length.

For a broader selection of industrial interconnection options, you can also browse our Aviation Plug Connectors category. Send your checklist via the inquiry form or WhatsApp for a prompt review.
