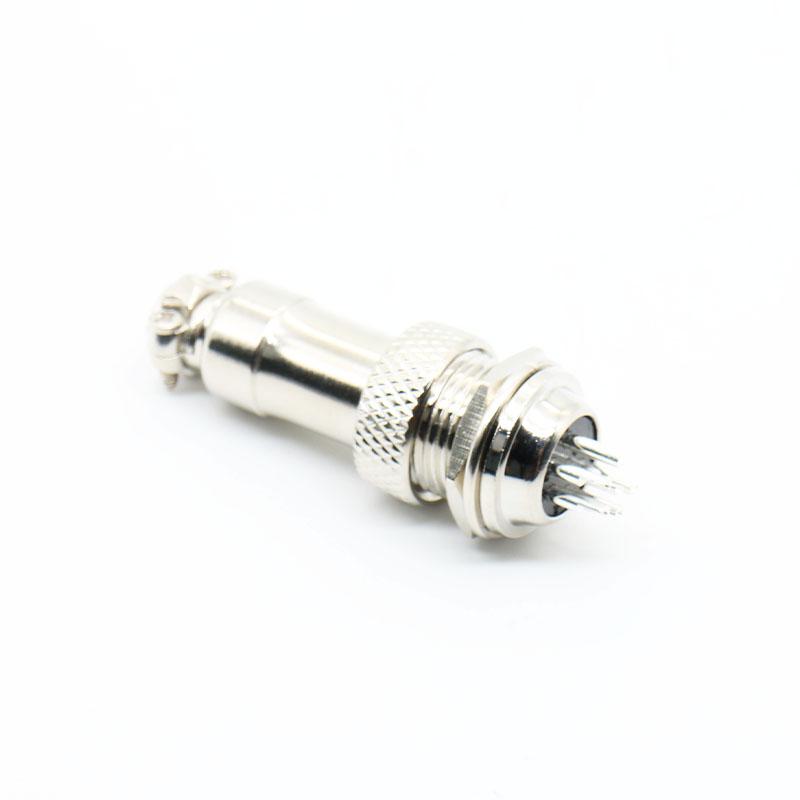

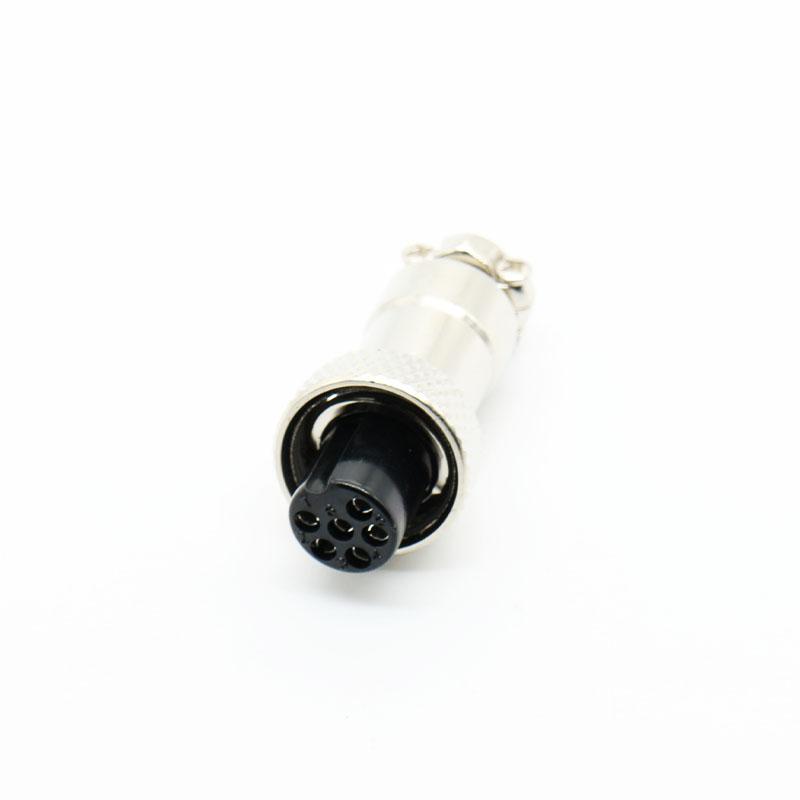

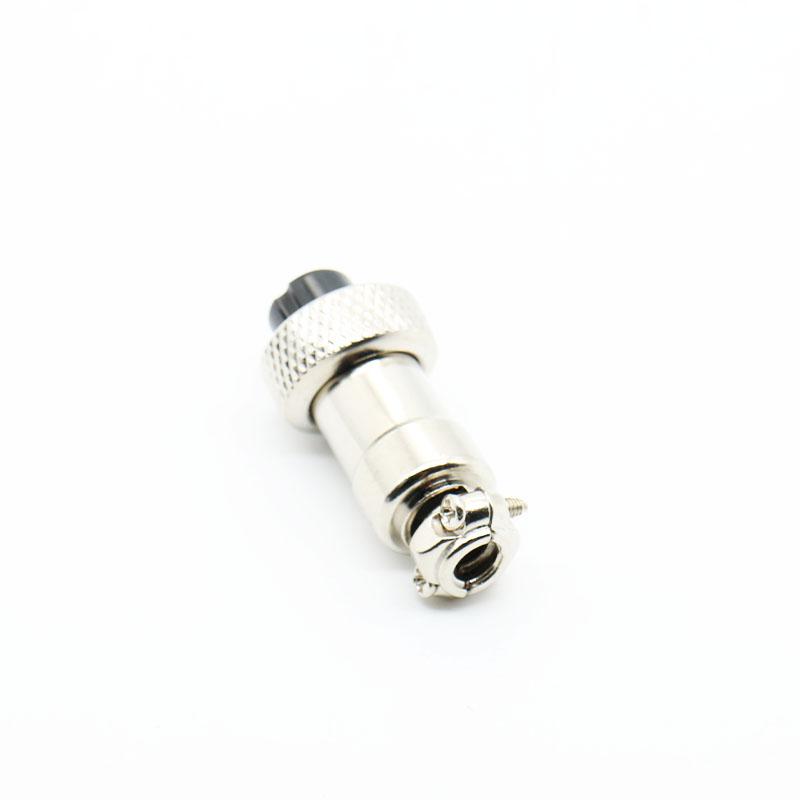

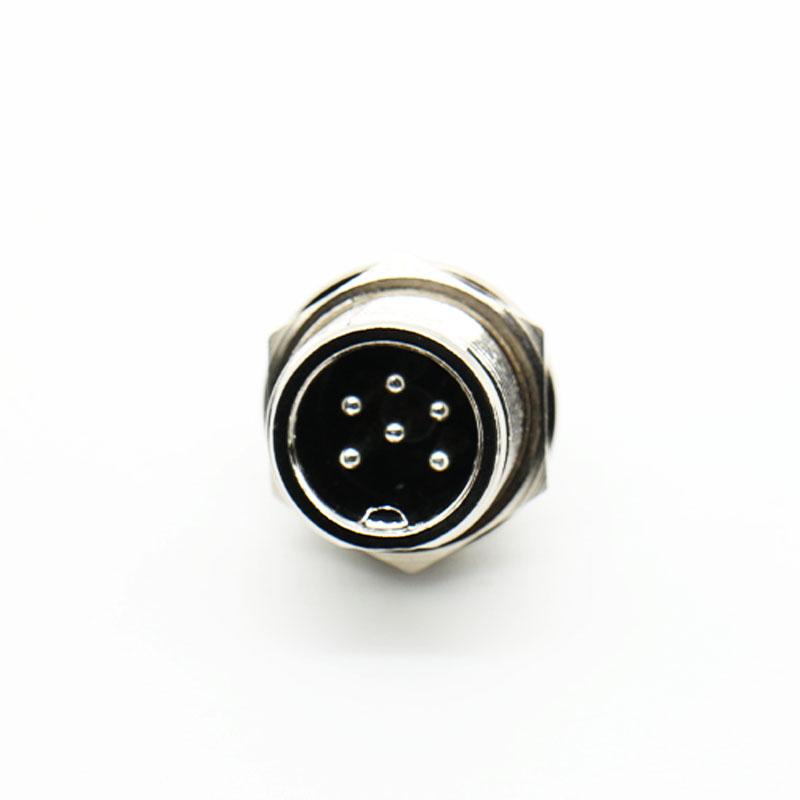

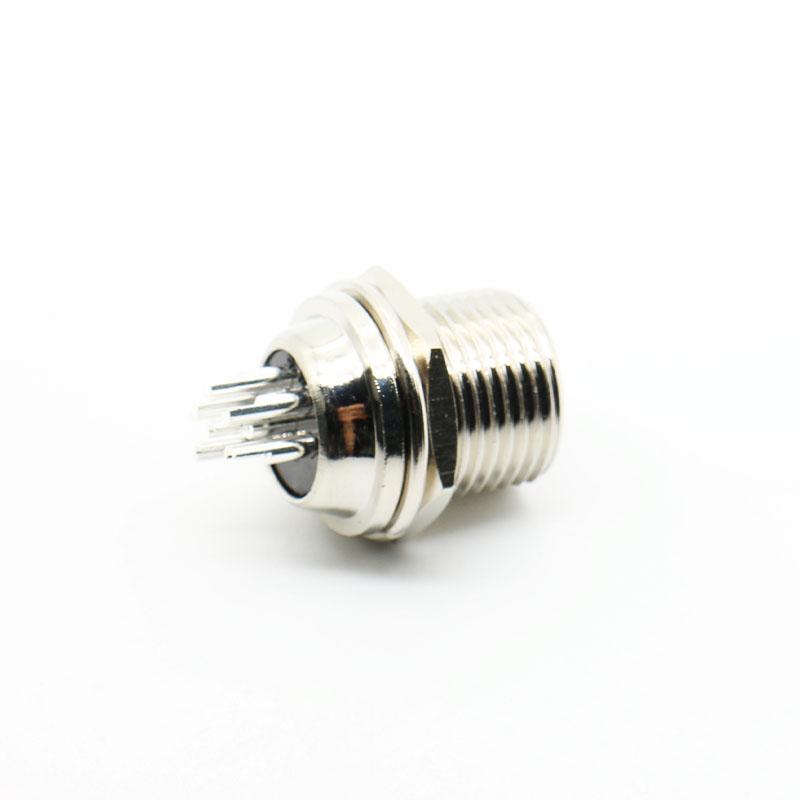

GX16 Connector for Automated Conveyor Systems

The GX16 connector is engineered for industrial automation, providing a secure and reliable connection for automated conveyor systems. Its rugged design ensures consistent performance even in harsh factory conditions, making it a practical choice for production lines that require dependable signal and power transmission.

Why Choose the GX16 for Your Conveyor Line

When selecting a connector for automated material handling, the GX16 offers a balance of mechanical strength and environmental sealing. Below are the key decision points that matter for conveyor system integrators and maintenance teams.

• Durable Metal Shell: Constructed with a zinc alloy housing and nickel plating, this connector withstands mechanical stress, vibrations, and daily industrial wear.
• IP67 Protection: The waterproof and dustproof design guarantees safe operation in environments with moisture, dust, or debris, protecting the connection from washdowns and particulate contamination.
• Easy and Secure Installation: Designed for quick mounting and stable connections, reducing downtime during conveyor system maintenance and reconfiguration.
• Wide Industrial Application: Ideal for automated conveyor systems, industrial robots, assembly lines, and other factory automation equipment where a compact circular interface is required.

Application Scope and Integration

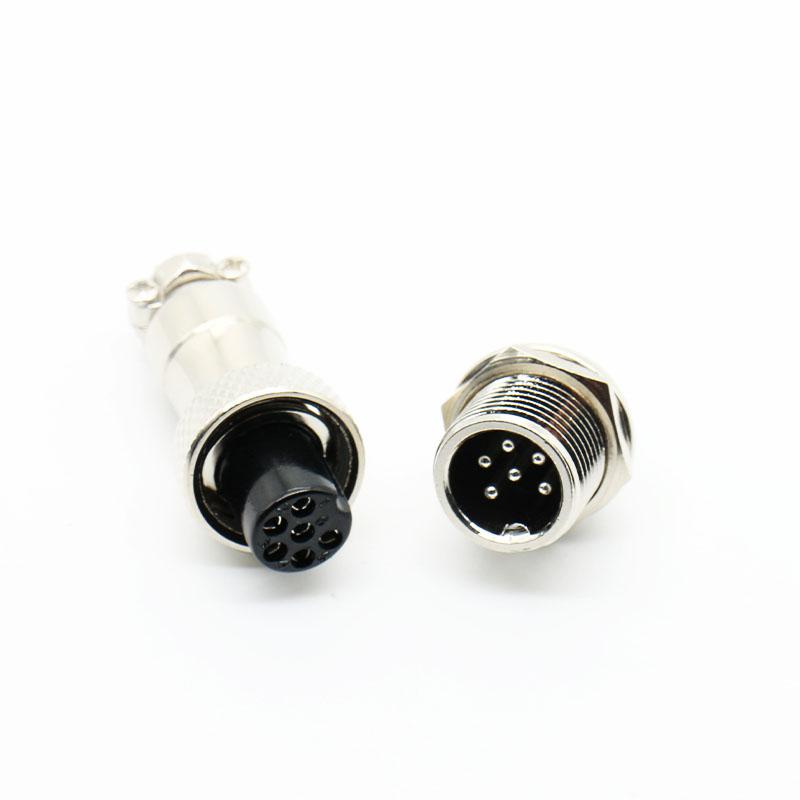

The GX16 series supports 2 to 10 pins in male or female configurations, making it suitable for both power distribution and control signal transmission within a conveyor network. Its threaded coupling mechanism provides a vibration-resistant lock, which is critical for sections of the line with high dynamic loads.

For engineers planning new installations, consider the cable entry orientation and panel cutout requirements during the design phase. The connector's compact footprint allows for dense mounting on control panels and junction boxes without compromising access for maintenance.

Selection and Compatibility Boundaries

While the GX16 is robust for general factory automation, it is not intended for high-voltage mains distribution or submersible applications beyond its IP67 rating. Verify the specific pin count and gender required for your application before ordering, as the series offers multiple configurations.

For conveyor systems operating in extreme temperature ranges or with continuous flexing cables, confirm the environmental limits against your specific line conditions. The connector is best suited for stationary or low-flex cable runs where the metal shell protects the internal contacts from mechanical damage.

Inquiry Checklist for Accurate Quoting

To receive an accurate quotation and ensure the correct configuration, please prepare the following details when contacting our engineering team:

• Required pin count (2-10 pins) and gender (male or female).
• Cable outer diameter and conductor gauge for the termination.
• Mounting style: panel mount, cable mount, or flange mount.
• Operating environment specifics, such as exposure to cutting fluids or washdown frequency.
• Any requirement for custom cable assembly or pre-wired connectors.

For related industrial connector options, review the Waterproof Connectors catalog or explore the LD20/SP20 Industrial Flange Connector for alternative mounting configurations. For a similar application in conveyor automation, see the SP17 Waterproof Connector for Automated Conveyor Systems.
