M12 Connector for CNC Machine Automation Systems

Selecting the Right M12 Connector for CNC Automation

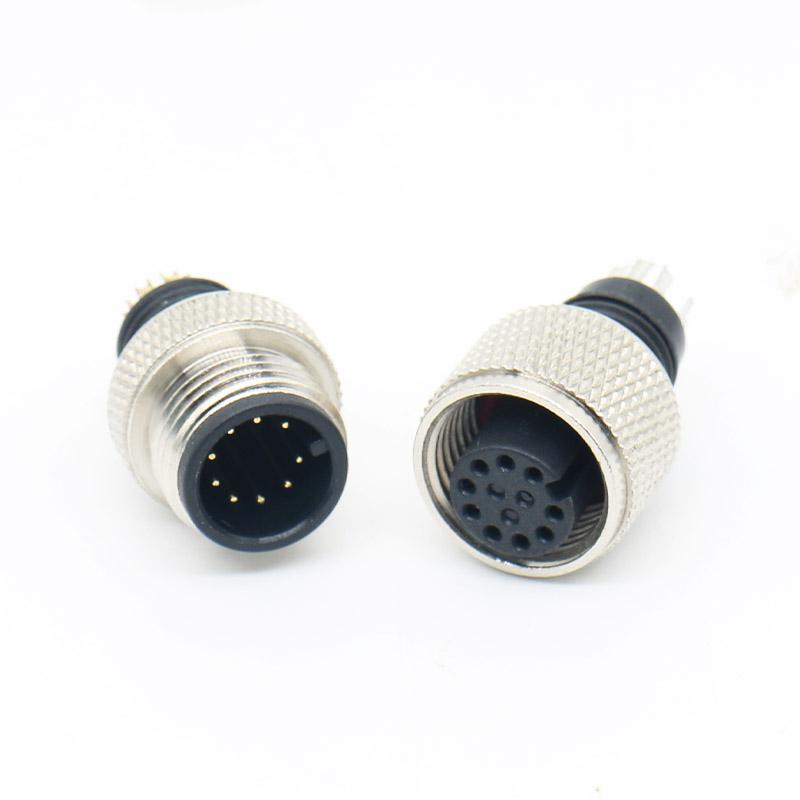

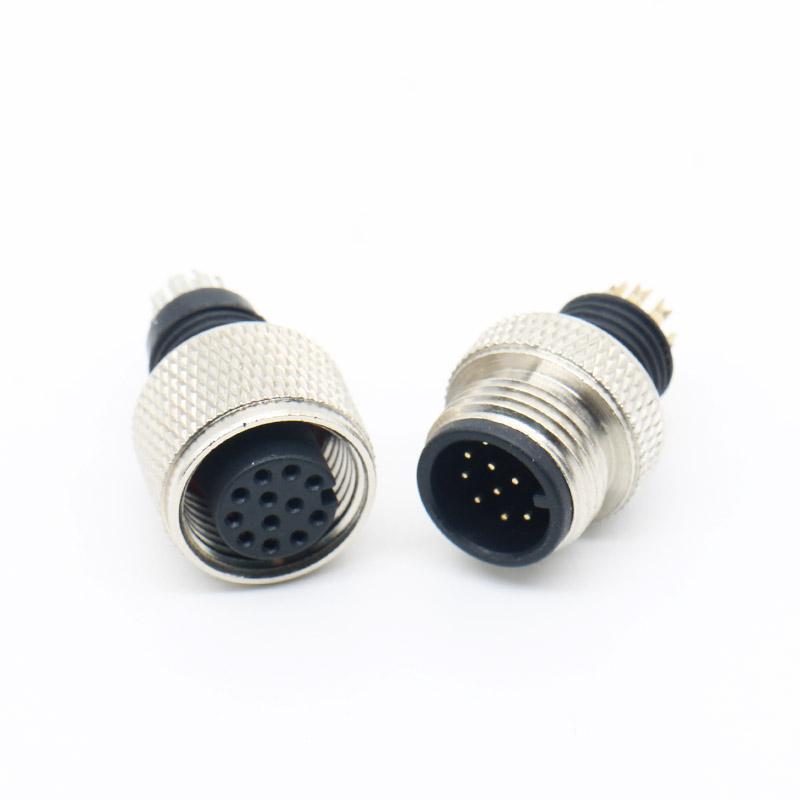

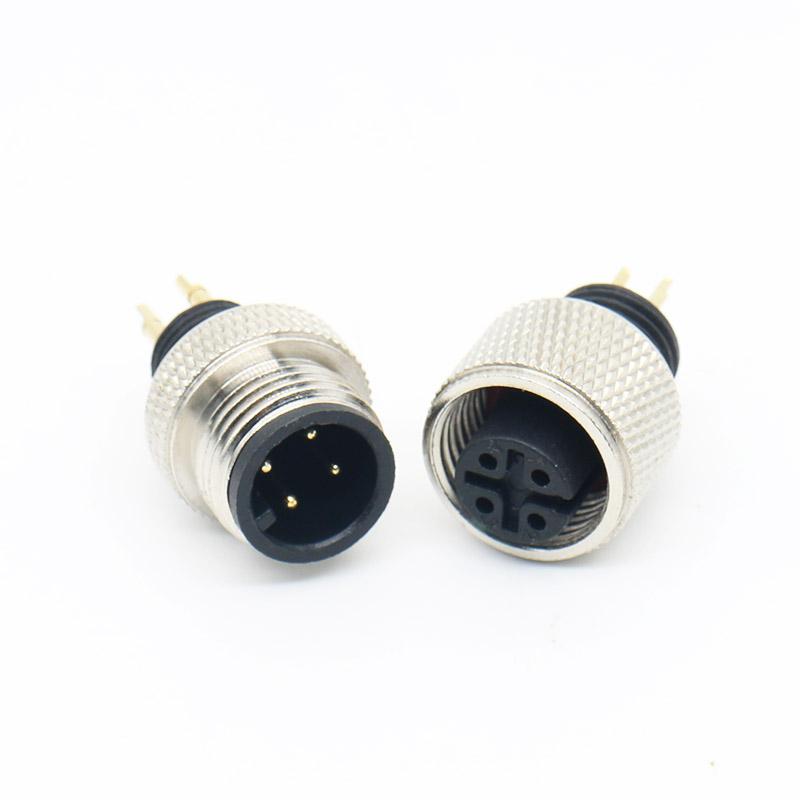

This M12 connector is designed for CNC machine automation systems, supporting stable electrical connections between servo motors, encoders, sensors, and PLC control units. It is engineered for precise signal transmission in high-speed machining environments, making it a suitable choice for control cabinets and field wiring on machining centers.

When evaluating this connector for your CNC application, consider the following decision points:

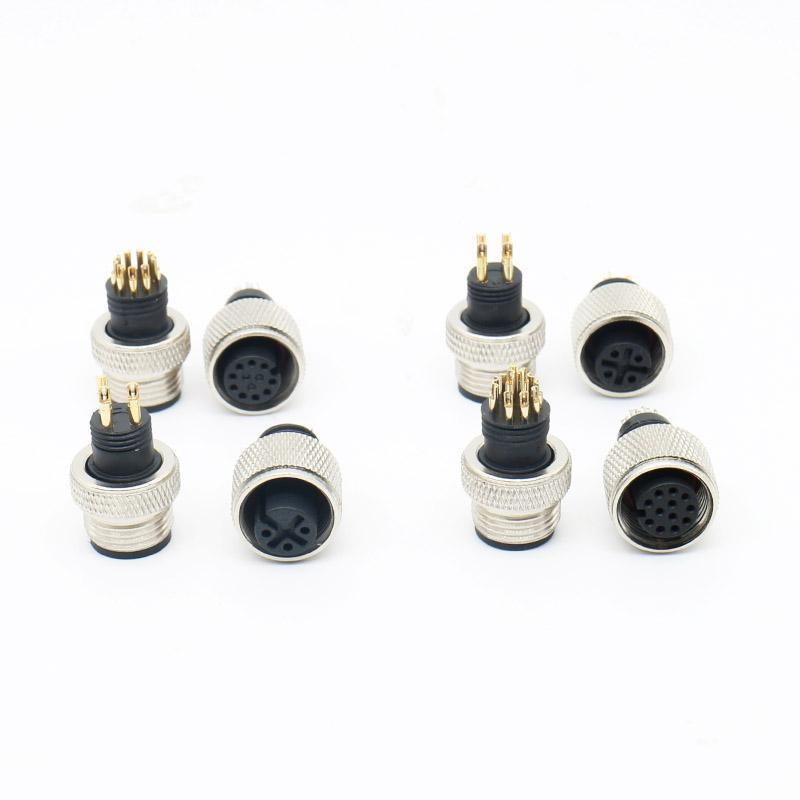

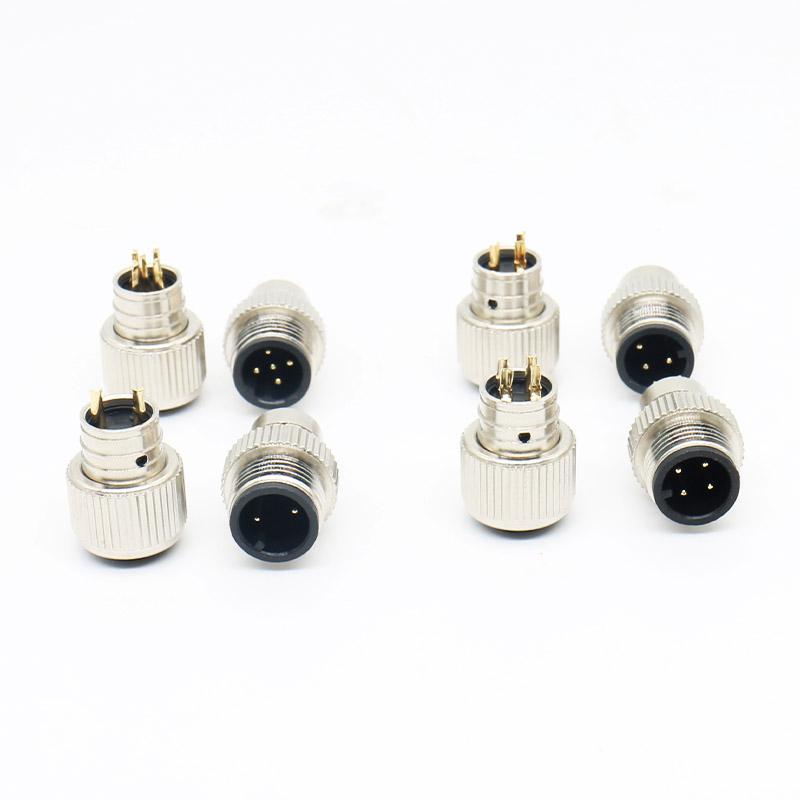

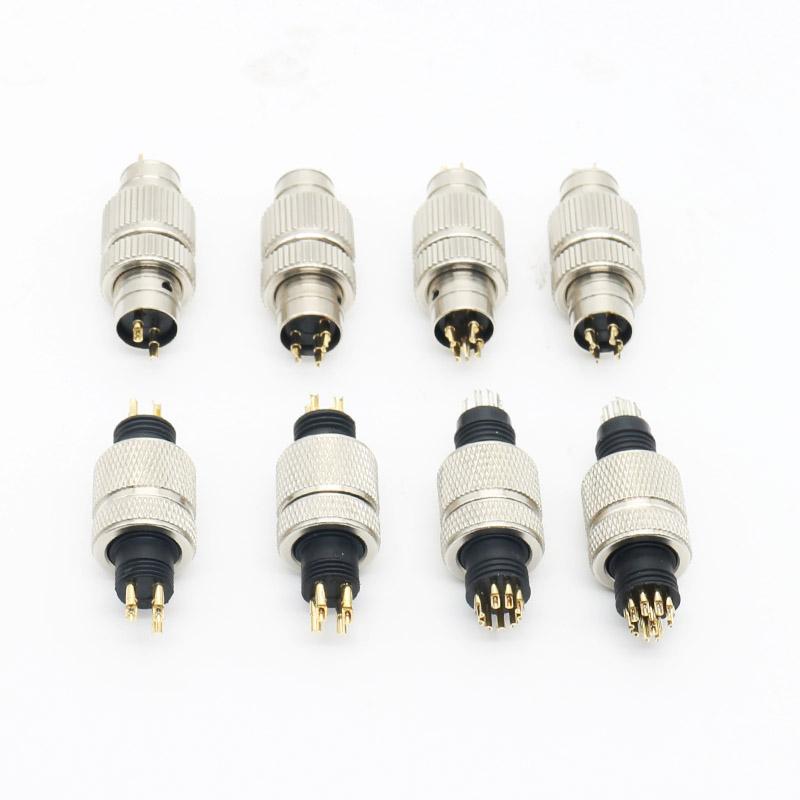

• Pin Configuration: Available in 2 to 17 cores, with male or female gender options, allowing you to match the connector to your device's pinout and wiring scheme.
• Environmental Resistance: The rugged PA66 housing and nickel-plated brass shell resist vibration, oil exposure, dust, and moisture commonly found in CNC workshops, supporting reliable operation in harsh conditions.
• Contact Reliability: Brass contacts plated with silver or gold provide stable signal and power transmission, which is critical for consistent performance in CNC milling machines, turning centers, and automated machining systems.
• Mating and Locking: The secure threaded locking mechanism helps prevent accidental disconnection due to machine vibration, a common concern in high-speed machining environments.

Application Scope and Installation Considerations

This M12 connector is well-suited for CNC milling machines, turning centers, and automated machining systems where consistent signal integrity and power delivery are required. It is also applicable to other industrial automation equipment that uses M12 interfaces for sensors, actuators, and fieldbus connections.

For installation planning, verify the cable diameter and termination method against your existing wiring. The connector supports field-wireable or molded configurations depending on the variant selected. Confirm the mating thread size and pin assignment with your device manufacturer to ensure compatibility before ordering.

Quality and Material Evidence

The housing material is PA66, a glass-reinforced nylon known for mechanical strength and chemical resistance, while the shell is nickel-plated brass for corrosion resistance. The contact cores are brass plated with silver or gold, providing low contact resistance and durability over repeated mating cycles. These material choices support long-term reliability in oil and coolant-exposed environments typical of CNC shops.

Suitable and Unsuitable Use Cases

Suitable: This connector is appropriate for CNC machine automation, including servo motor feedback, encoder signal transmission, sensor wiring, and PLC I/O connections in dry or mildly wet industrial environments.

Unsuitable: It is not intended for high-voltage power distribution, submersible applications, or environments with extreme chemical exposure beyond typical industrial oils and coolants. For applications requiring higher IP ratings or different pin configurations, consult the technical specifications or contact our engineering team.

Inquiry Input Checklist

To receive an accurate quotation and configuration recommendation, please prepare the following information:

• Required pin count (2-17) and gender (male/female)
• Cable diameter and conductor cross-section
• Termination preference: solder, crimp, or field-wireable
• Operating temperature range and exposure to oils or coolants
• Mating counterpart details or device model for pinout verification
• Quantity and target delivery timeline

For related industrial connector options, see the Aviation Plug Connectors series or the LD20/SP20 Industrial Flange Connector for alternative mounting styles. For a broader selection, download the Industrial Connector Catalog.
