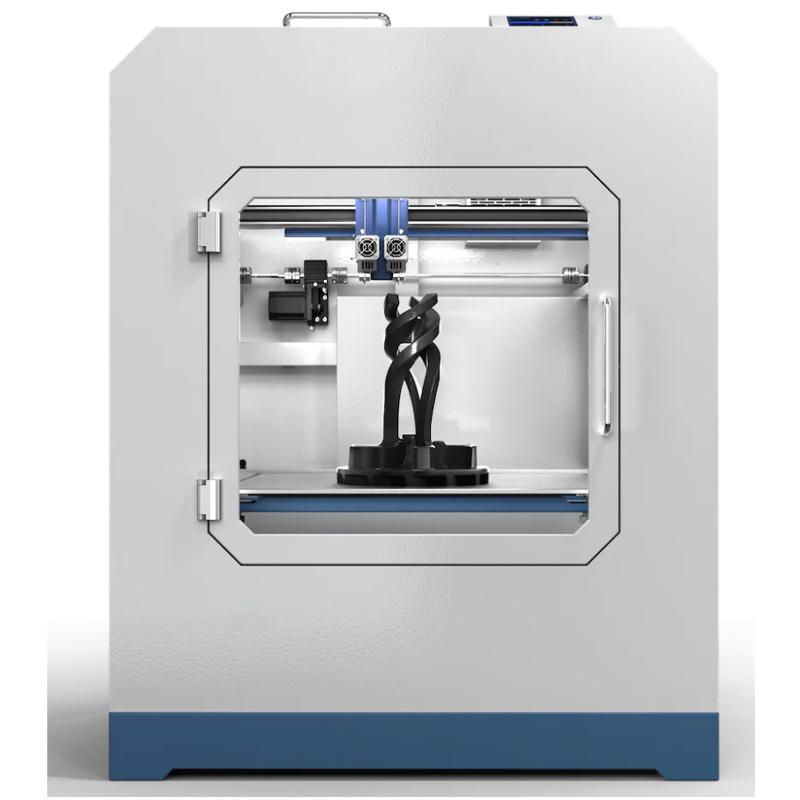

SP13 Connectors in Industrial 3D Printers: Project Background

Industrial 3D printers demand precise motion control, stable temperature regulation, and uninterrupted operation. In this project, the equipment manufacturer needed a reliable electrical interface to connect stepper motors, heating elements, sensors, and control boards. The goal was to ensure stable power and signal transmission for accurate and consistent printing performance across long production runs.

Interface and Environmental Requirements

The printing environment presented several challenges: continuous vibration from motion systems, elevated temperatures near heated beds and extruders, and exposure to fine dust and printing materials. The customer required a connector that could maintain a secure connection under these conditions while fitting into high-density control panels and tight spaces within the printer assembly.

SP13 Connector Solution

The SP13 series was selected for its waterproof design, rugged housing, and secure locking mechanism. Its compact form factor enabled integration into the printer's control panel without compromising layout density. The connector supported the required pin count for motor, sensor, and heater circuits, providing a single interface for both power and signal lines.

Commissioning and Delivery Process

During the commissioning phase, the SP13 connectors were tested for mating reliability under vibration and thermal cycling. The locking mechanism confirmed a stable connection, and the waterproof sealing met the dust and moisture protection requirements of the printing environment. Sample assemblies were verified against the printer's electrical load and cable specifications before full delivery.

Verified Results

The SP13 connectors enabled quick and secure reconnection during maintenance and component replacement, reducing downtime for motor, sensor, or heating module servicing. The installation supported stable operation and long-term performance in the industrial 3D printing system. For related applications, see the Waterproof Connectors catalog or review the SP13 3-Pin IP68 Waterproof Connector for Underwater Sensors case for additional environmental sealing evidence.

For further assistance with connector selection, configuration, or sample testing, please contact our engineering team through the inquiry form or WhatsApp.
