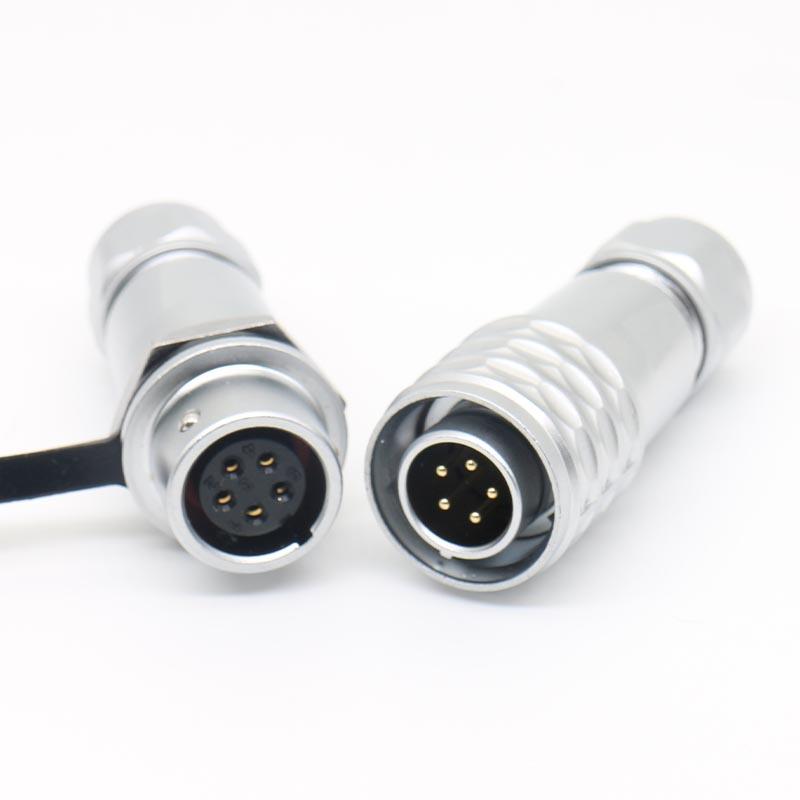

SF Circular Connector
< >

SF 2-9 Pin Push-Pull Circular Connector for Industrial Equipment

MOQMOQ >200
>Number Of CoresNumber Of Cores 2-9 Pin
Contact DiameterContact Diameter(mm) 0.7mm/1.0mm/1.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material Zinc Alloy
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder/Screw Crimping
Rated CurrentRated Current(A) 5A/13A
Rated VoltageRated Voltage(Ac.V) 125V/180V/200V/250V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

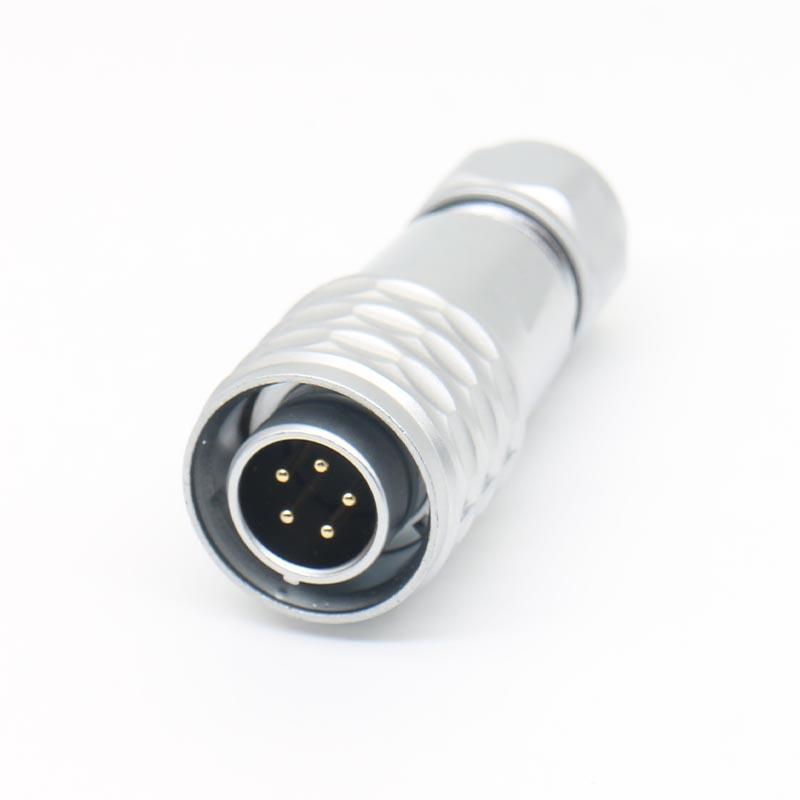

SF 2–9 Pin Push-Pull Circular Connector – Industrial-Grade Reliability and Ease of Use

The SF 2–9 Pin Push-Pull Circular Connector is a high-performance circular connector designed for industrial equipment, automation systems, and precision machinery. Its push-pull locking mechanism ensures fast, secure, and reliable connections, making it ideal for applications where frequent connection cycles, safety, and signal integrity are crucial.

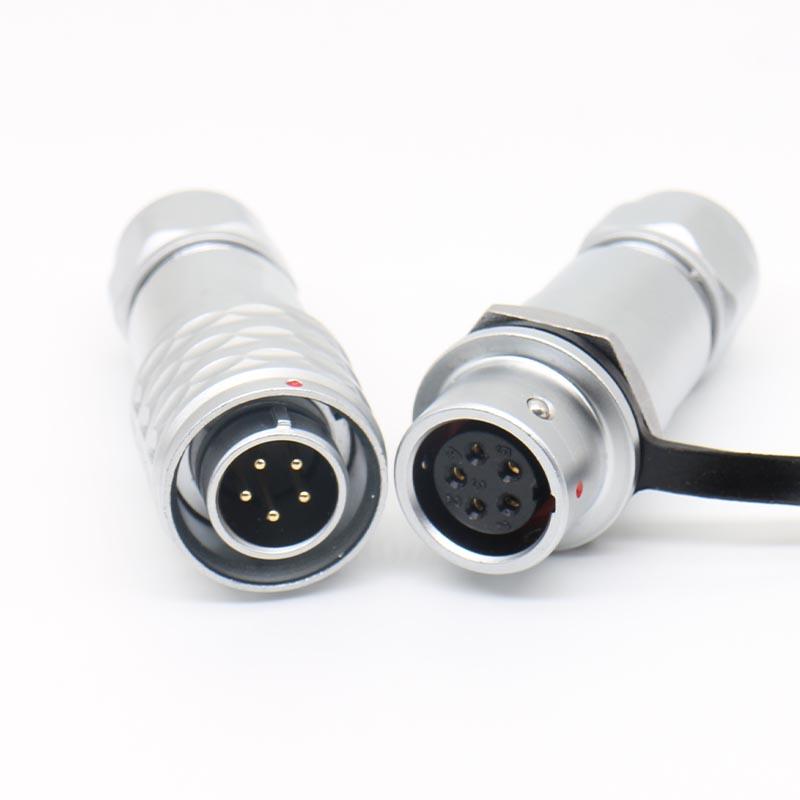

SF Aviation Connector

Unlike standard screw-type connectors, the push-pull design allows tool-free mating and demating, reducing downtime and simplifying maintenance in complex industrial environments.

Push-Pull Design – Efficiency Meets Reliability
The connector’s innovative push-pull mechanism provides:
Quick and secure connections, minimizing installation time
Automatic locking to prevent accidental disconnection
Stable electrical performance even under vibration or mechanical stress

Ease of maintenance, allowing technicians to connect or disconnect lines quickly

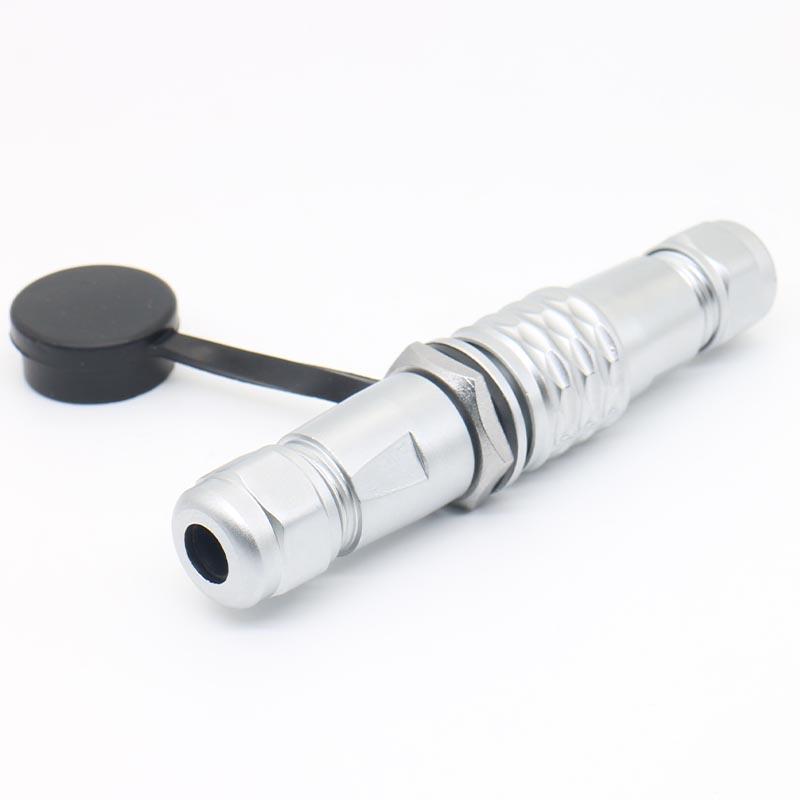

SF Connector

Its 2 - 9 pin configuration supports multiple signal or power lines, making it highly versatile for industrial electronics.

Key Features
Push-Pull Locking Mechanism
Ensures fast, secure, and repeatable connections without tools.
Flexible 2 - 9 Pin Configurations
Supports a wide range of signal and power applications.
Rugged Industrial Construction
High-quality metal housing and precision contacts resist vibration, shock, and repeated mating cycles.
Environmental Protection
Resistant to dust, moisture, and harsh industrial conditions.
Compact Circular Design
Space-efficient for integration into control panels, machinery, and automation devices.

Factory Capabilities & Strength
We are a professional connector manufacturer with over 15 years of experience, producing SF Series Push-Pull Circular Connectors with consistent quality and reliability.
Connector
Our capabilities include:
Advanced R&D and engineering for high-performance push-pull mechanisms
Precision CNC machining for housings and contacts
Injection molding for insulation and structural components
Complete assembly and cable integration
Rigorous electrical, mechanical, and environmental testing
Connector
Our vertical integration allows for fast production, strict quality control, and flexible OEM/ODM customization, making us a trusted partner for industrial connector solutions.

Quality Assurance
Every SF Connector undergoes:
Electrical continuity and insulation resistance testing
Vibration and shock resistance verification
Push-pull mating cycle durability assessment
Environmental exposure testing (dust, moisture)

Dimensional and structural inspection

Connector

All products meet ISO9001, CE, RoHS, and UL standards, ensuring reliable performance in industrial environments.
Connector
Customization Options
Pin configurations (2 - 9 pins)
Cable integration and custom lengths
Housing materials and surface finishes
Shielded or anti-interference designs
OEM branding and packaging
We support prototype to full-scale production, ensuring connectors meet your exact industrial equipment requirements.

Applications
Industrial automation and machinery
Control panels and instrumentation
Robotics and motion control systems
Sensors and actuator networks
Data acquisition and monitoring equipment
Harsh environment equipment requiring reliable connections

Why Choose SF Push-Pull Connectors?
The SF 2 - 9 Pin Push-Pull Circular Connector combines speed, durability, and industrial-grade reliability, providing a secure, easy-to-use solution for industrial equipment and automation systems.

Contact Us
We offer samples, technical support, and OEM/ODM customization services.
Contact us today for factory-direct SF Series push-pull circular connector solutions with guaranteed quality and competitive pricing.

 Item

 Parameters

 Number of Cores

 2-9Pin

 Gender

 Male/Female

 Housing Material

 Zinc Alloy with Nickel Plated

 Cores Material

 Brass Plated with Gold

 Insulator Material

 Phenolics

 Locking System

 Screw Locking

 Temperature Range

 -40℃, +85℃

 Rated Current (A)

 5A/13A

 Rated Voltage (AC.V)

 125V/180V/200V/250V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 2000㏁

 Contact Resistance (㏁)

 ≤5㏁

 Termination

 Solder/Screw Crimping


Related Products

More》

Related Material

More》

Related Resource


SF Circular Connector
Related Catalog
Learn More
SF Connectors
PDF
Download Resources
Get More Downloads >
SF 2-9 Pin Push-Pull Circular Connector for Industrial EquipmentMain Features

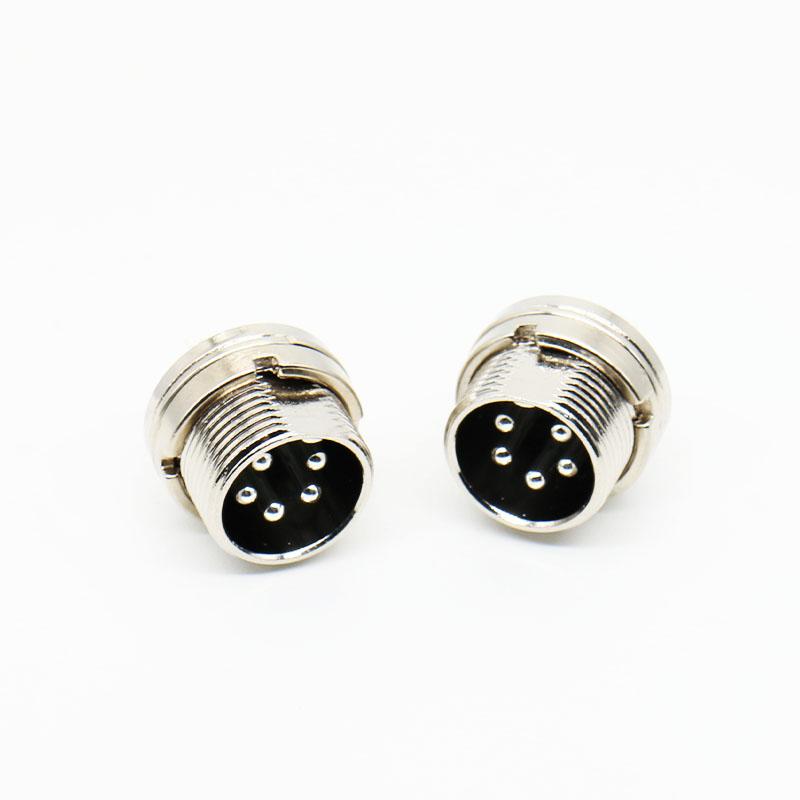

Precision-Built GX Connectors

Precision-Built GX Connectors

GX aviation connectors feature CNC-machined components with ±0.02mm tolerance, vacuum ion gold plating, and multi-stage inspection—delivering smooth mating, lasting performance, and superior reliability over conventional connectors.
GX Connectors: Built for Extreme Environments

GX Connectors: Built for Extreme Environments

GX aviation connectors operate from -55°C to +125°C, pass 72-hour salt spray tests, and withstand 10G vibration—outperforming standard connectors in extreme industrial, marine, and vehicle applications. Built for reliability where others fail.

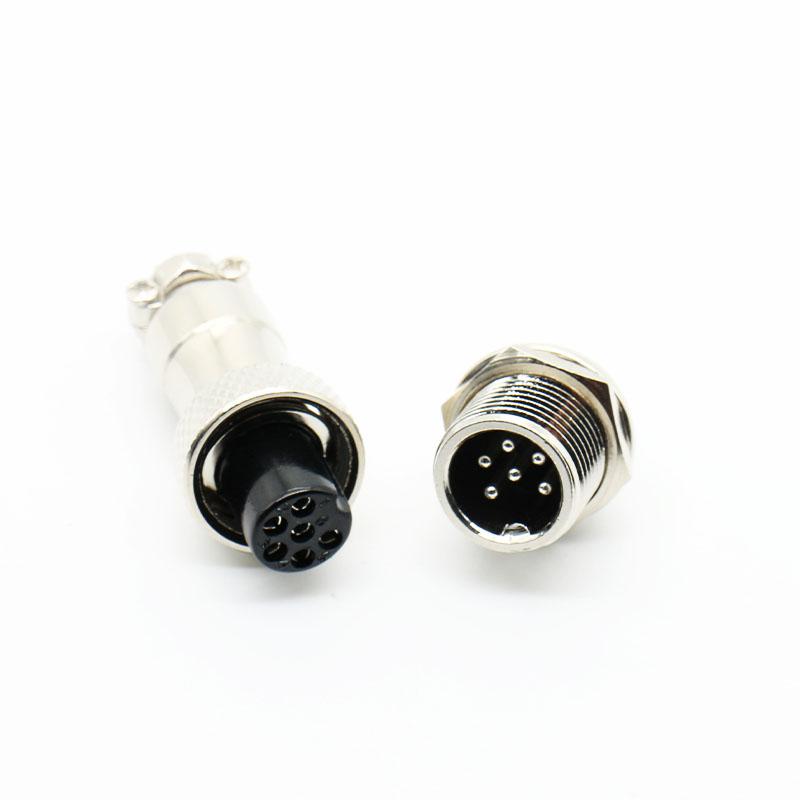

Strict Control of Material
