XS8 4-Core Aviation Connector for Compact Industrial Applications

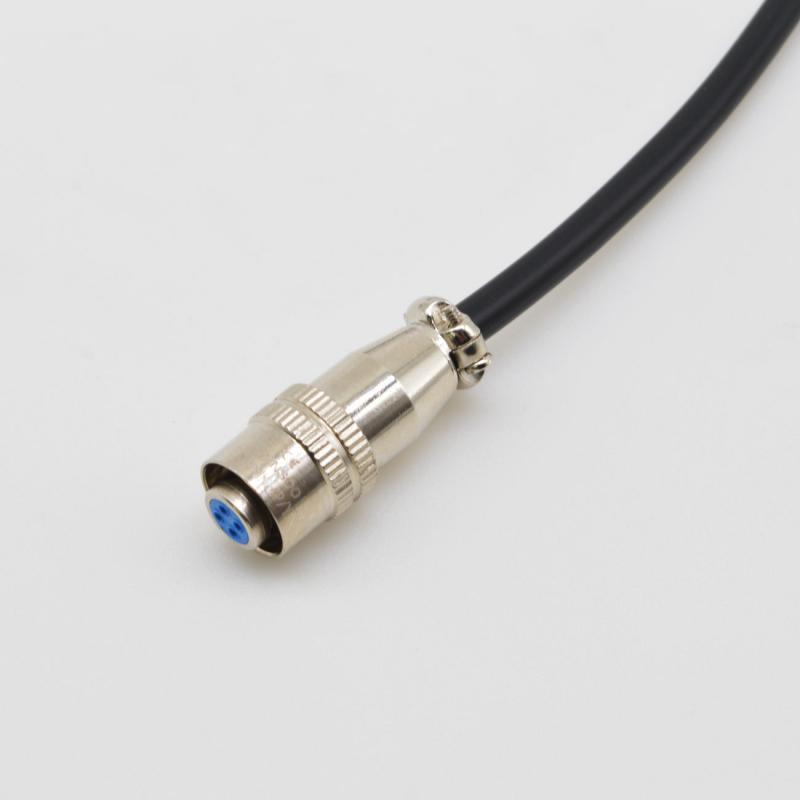

The XS8 4-core aviation connector is a circular connector engineered for compact industrial machinery, automation systems, and precision equipment. Its space-saving design allows integration into tight spaces without compromising electrical performance, making it suitable for applications where both reliability and compactness are critical. With four cores, this connector supports power, signal, or combined circuits, enabling multi-line connectivity in a single interface.

Construction and Material Advantages

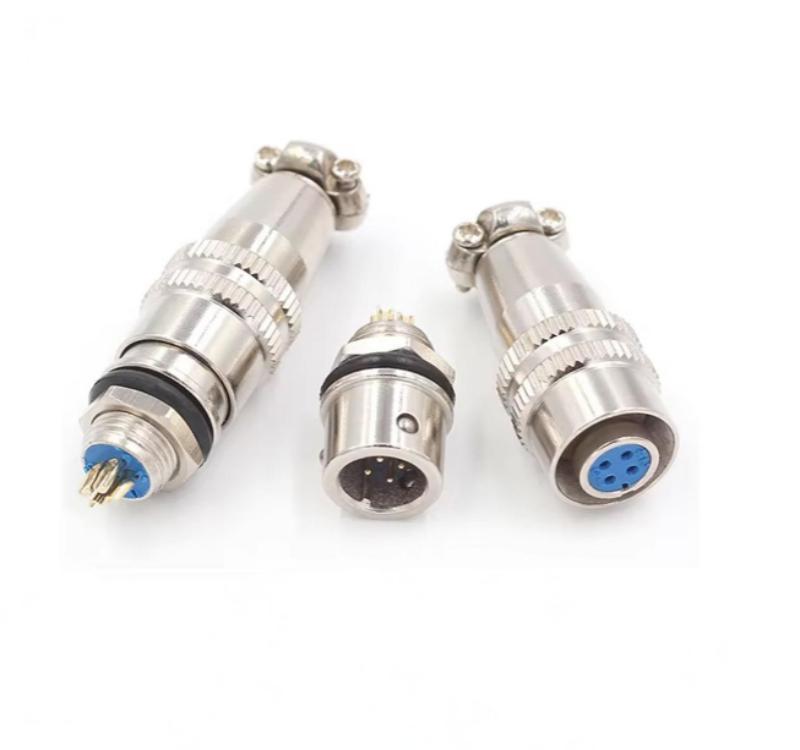

The XS8 connector features a compact circular design combined with a rugged nickel-plated brass housing for enhanced durability and long-term reliability. The metal shell provides resistance to wear, vibration, and mechanical impact compared with plastic alternatives. This construction helps maintain stable performance in environments involving frequent connection cycles or continuous operation. Additionally, the metal housing improves electromagnetic shielding performance, helping reduce interference and support more stable signal transmission.

4-Core Configuration and Mating Design

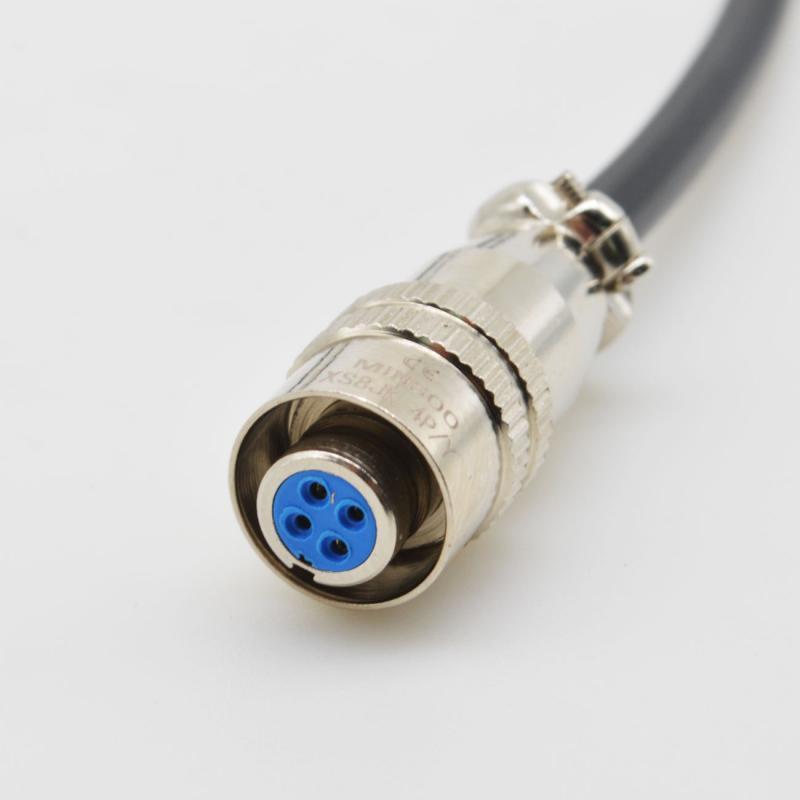

Designed with a 4-core layout, the XS8 aviation connector supports stable transmission for various signal and low-power applications. The structured pin arrangement ensures accurate contact alignment and reliable electrical performance during operation. Its compact size allows easier integration into devices with limited installation space. The connector adopts a threaded locking mechanism that ensures a firm and secure connection between the plug and socket, helping prevent accidental disconnection caused by vibration or movement. This locking structure is suited for industrial systems where stable connections are necessary for continuous operation, while remaining easy to install and remove for maintenance.

Selection Considerations for Buyers

When evaluating the XS8 4-core connector for your application, consider the following decision points:

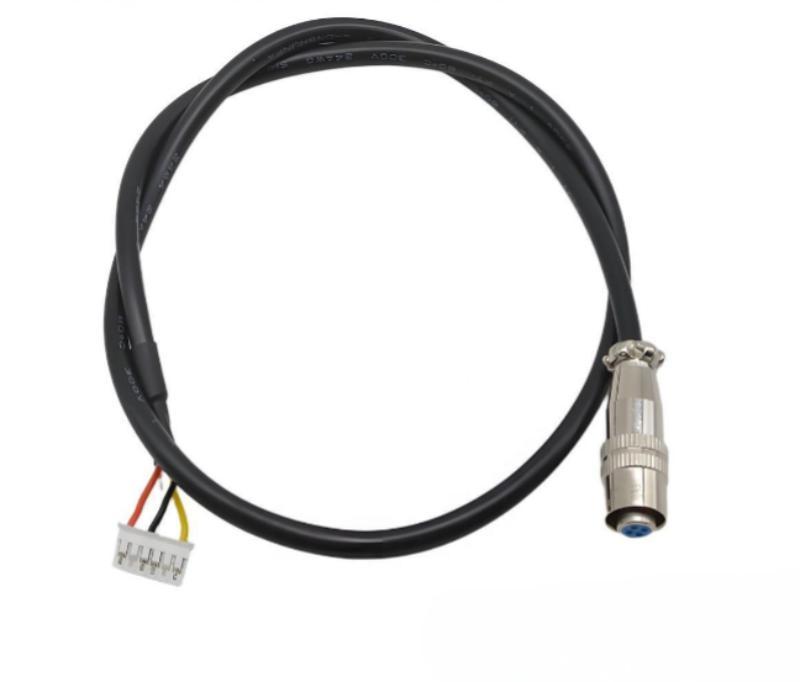

• Mating side: Confirm whether you need a plug, socket, or complete cable assembly, and verify the male/female configuration required.
• Electrical load: Review the rated current and voltage for your specific circuit; the 4-core layout supports signal and low-power applications.
• Environmental exposure: The nickel-plated brass housing provides mechanical durability; verify whether your environment requires additional sealing or protection.
• Installation space: The compact circular design is intended for tight spaces; confirm the mounting dimensions fit your panel or enclosure.
• Cable preparation: Provide the cable outside diameter and conductor size to confirm termination compatibility.

Suitable and Unsuitable Applications

The XS8 4-core connector is suited for industrial control systems, automation equipment, LED lighting devices, communication equipment, and compact electronic instruments. It is also used in robotics, motion control networks, sensor and actuator integration, control panels, and portable industrial devices.

For applications requiring high-current power transmission, high pin counts, or submersion-rated sealing, confirm the specific electrical and environmental ratings before selection. The XS8 series is not a substitute for connectors with higher IP-rated sealing or larger contact diameters.

Factory Capabilities and Quality Evidence

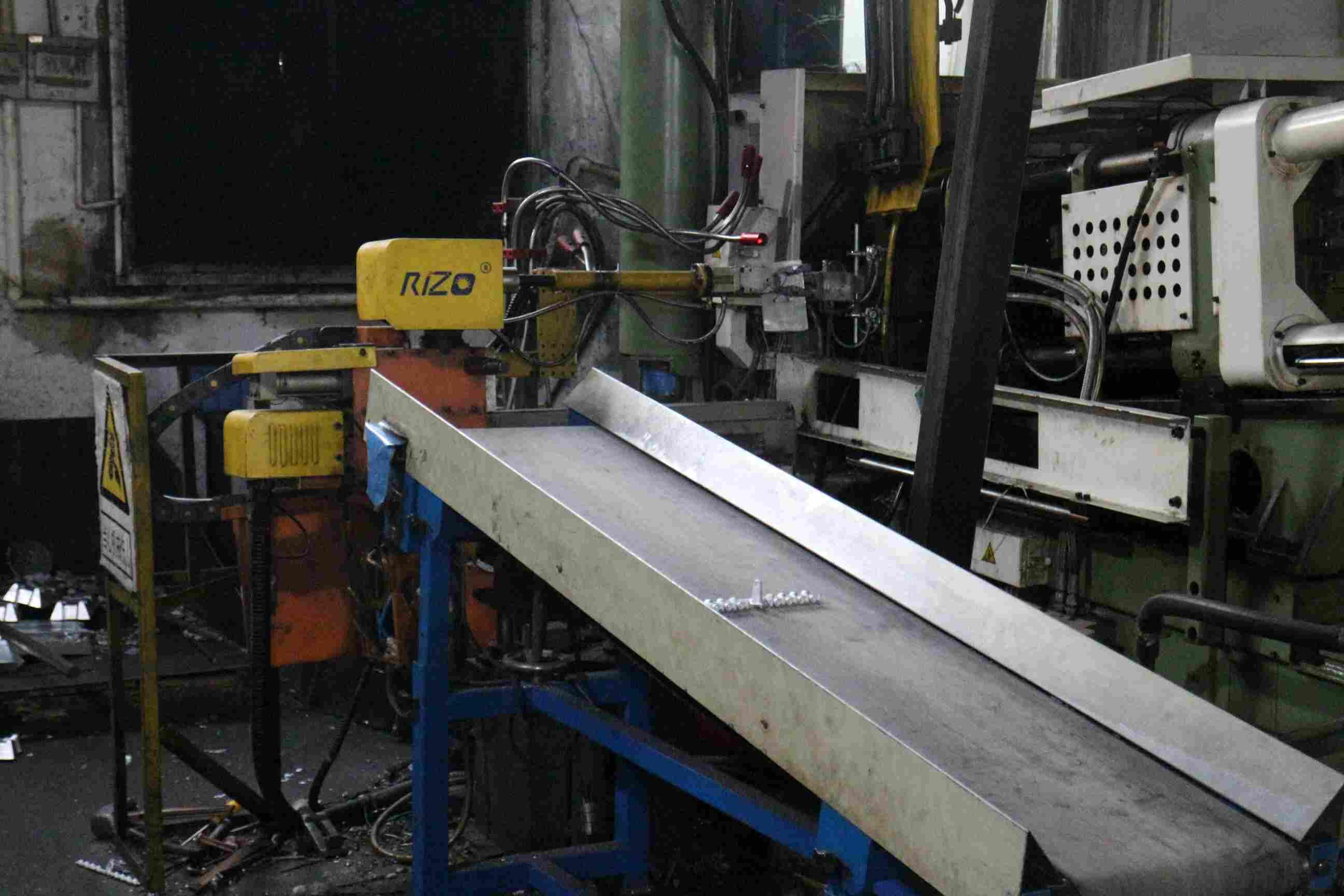

Our factory has over 15 years of experience producing XS8 aviation connectors, combining engineering expertise, precision manufacturing, and quality control. Capabilities include:

• R&D Excellence: Specialized designs for compact industrial and aviation connectors
• Precision Manufacturing: CNC machining, injection molding, and metal stamping for consistent quality
• Integrated Assembly: In-house assembly ensures precise connector-to-cable integration
• Comprehensive Testing: Electrical, mechanical, and environmental tests are performed to verify reliability
• Customization & OEM/ODM: Flexible pin counts, cable lengths, shielding, and branding options are available

Inquiry Checklist

To receive an accurate quotation and configuration recommendation, please provide the following information:

• Required quantity and target delivery schedule
• Mating-side requirement (plug, socket, or cable assembly)
• Pinout or wiring diagram
• Cable outside diameter and conductor size
• Electrical load (current and voltage)
• Operating environment and temperature range
• Any customization needs (cable length, shielding, branding)

For related connector options, see the Aviation Plug Connectors collection or review the XS10 2-4 Pin Aviation Circular Connector for an alternative series.

Contact us today for samples, technical support, and OEM/ODM customization services for the XS8 4-core aviation connector.
