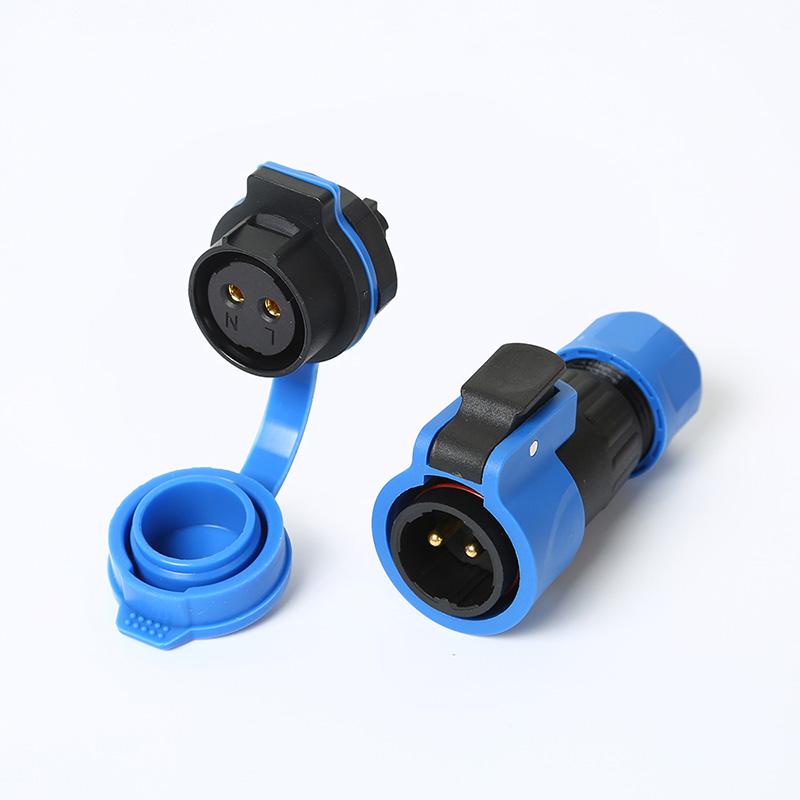

IP68 Connectors
< >

FD20 5 Pin Panel Mount Cable Connector for Industrial Power and Signal

MOQMOQ >200
PricePrice
>Number Of CoresNumber Of Cores 2-20 Pin
Contact DiameterContact Diameter(mm) 1.0mm / 1.5mm / 2.0mm
IP RatingIP Rating IP68
Shell MaterialShell Material PC/PA66
Temperature RangeTemperature Range -40°C to +105°C
TerminationTermination Solder / Crimp / PCB
Rated CurrentRated Current(A) 5–15 A
Rated VoltageRated Voltage(Ac.V) 250 V AC
Test VoltageTest Voltage(Ac.V)1Min 1500 V AC
Insulation ResistanceInsulation Resistance (MΩ) ≥1000MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 5 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+8619924482730

INDUSTRIAL CONNECTIVITY

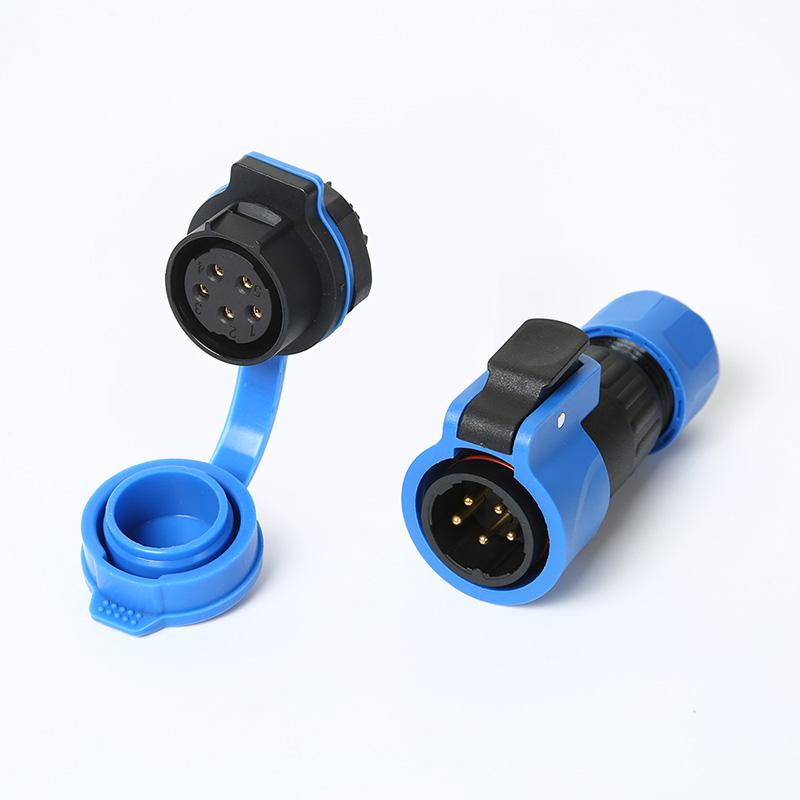

FD20 5 Pin Panel Mount
Cable Connector

Reliable industrial connection solution for power and signal transmission.

Compact panel mount structure · Secure locking · Stable connection for industrial equipment and control systems.

5 Pin Configuration Panel Mount Design OEM / ODM
FD20 panel mount cable connector product view
FD20 / 5 PIN KMYD CONNECTOR
MODEL
FD20 5 Pin
DESIGN
Panel Mount Cable Connector
USE CASES
Automation · Control · Equipment
SERVICE
OEM / ODM Customization

Product Overview

The FD20 5 Pin Panel Mount Cable Connector is a circular connector designed for stable power and signal transmission in industrial environments. Its compact panel mount structure supports secure electrical connection and convenient installation on equipment housings or control panels.

With a durable housing and precision-machined contacts, the FD20 series is suitable for industrial automation equipment, control systems, measurement instruments, communication devices, outdoor electrical equipment, and other applications requiring reliable connectivity.

PRODUCT DETAILS

Designed for Stable Industrial Connection

View the connector structure, panel mount interface, and cable-end configuration.

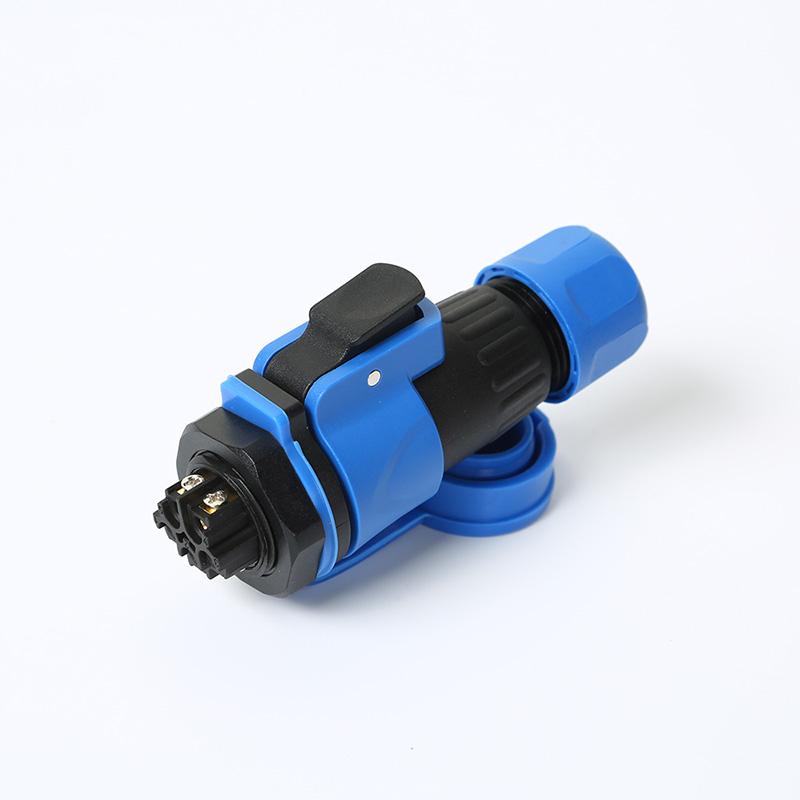

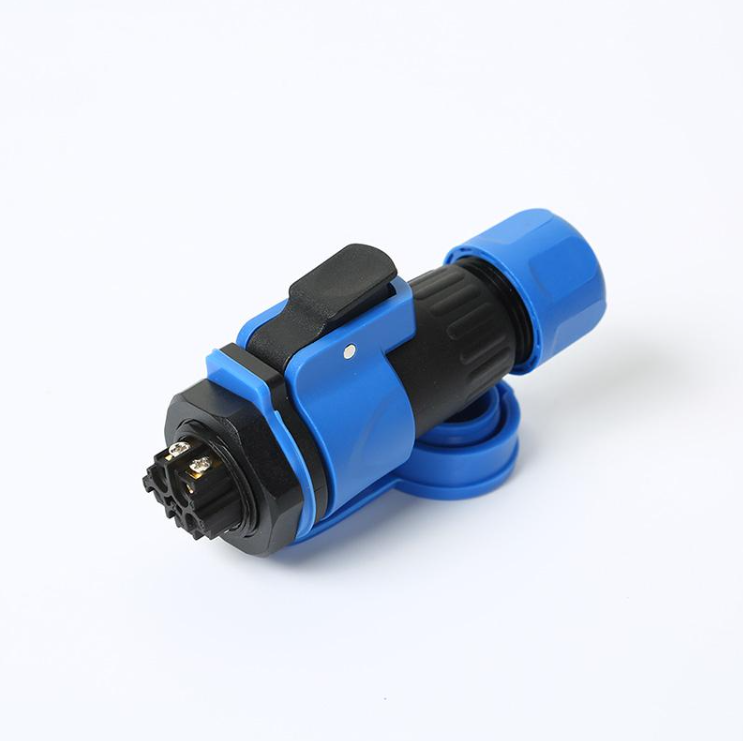

FD20 cable connector rear connection view
01 / PANEL MOUNT
Compact Panel Mount Structure
Designed for firm fixation on equipment housings and control panels.
FD20 connector cable-end connection structure
02 / CONNECTION
Secure cable-end connection structure.
One compact connector.
Flexible industrial applications.
The 5-pin configuration supports power and signal transmission requirements across a range of equipment connection applications.

Why Choose This FD20 Connector

Industrial equipment requires connectors that can maintain stable electrical performance, withstand vibration during operation, and support efficient installation. The FD20 panel mount design is built around these practical connection requirements.

Key Product Features

01   Stable Electrical Performance

High-quality conductive contacts support power and signal transmission with low contact resistance.

02   Rugged Mechanical Structure

A strong structure and secure locking design help support reliable mating performance during equipment operation.

03   Easy Panel Mount Installation

The panel mount design supports firm fixation, space-saving installation, maintenance access, and system integration.

04   Harsh Environment Adaptability

Robust construction supports applications exposed to dust, moisture, outdoor conditions, and industrial working environments.

05   Flexible Customization
OEM / ODM customization, cable lengths, pin configurations, and special material requirements can be developed according to project needs.

Application Areas

The FD20 connector is suitable for equipment requiring reliable power and signal connections.

01   Industrial automation systems
02   Electrical equipment and control systems
03   Communication equipment
04   Outdoor electrical equipment
05   Robotics and smart manufacturing

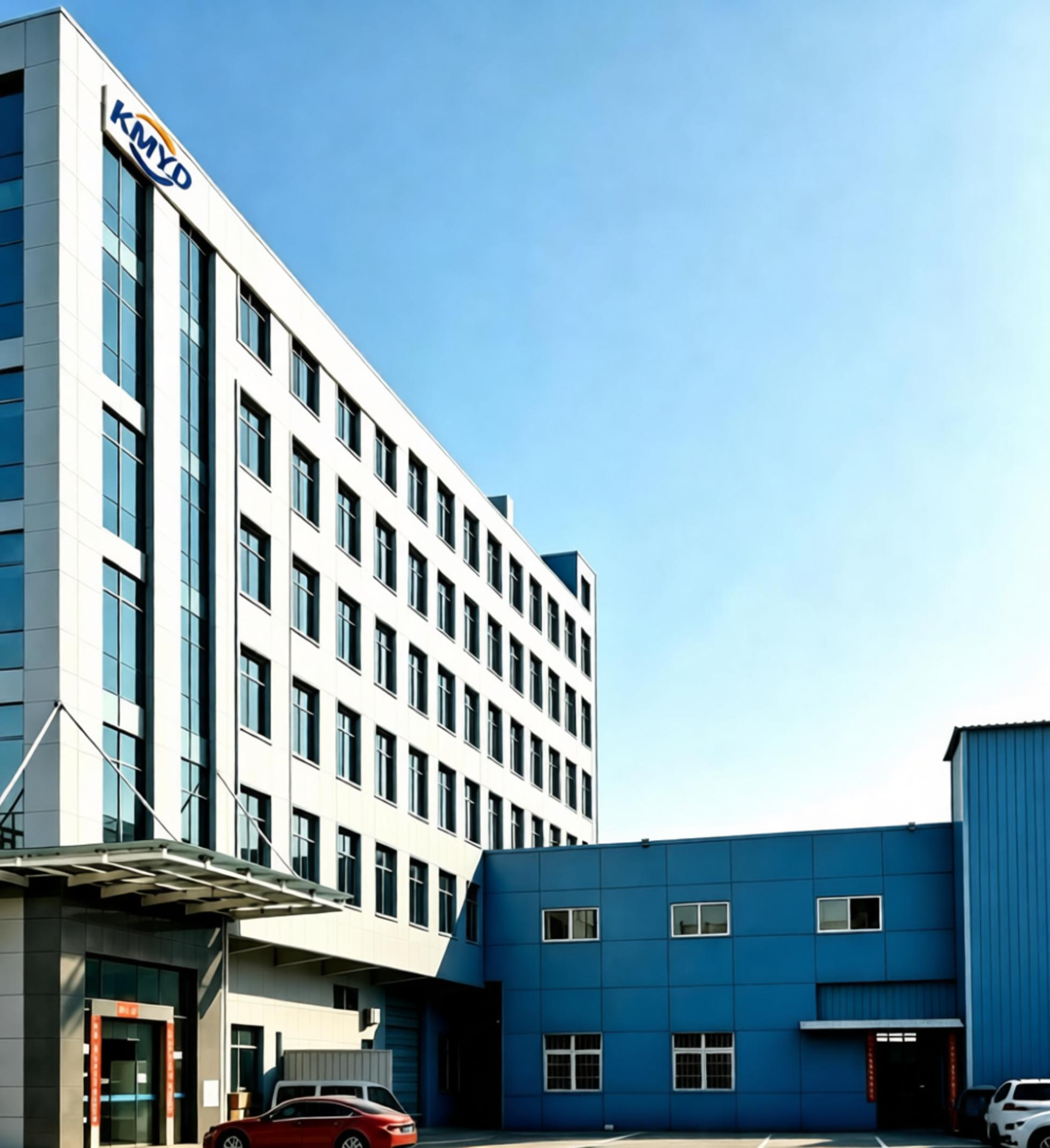

Manufacturing Strength

As a professional connector manufacturer with long-term production experience, we specialize in circular connectors, waterproof connectors, cable assemblies, and customized connection solutions.

Our factory integrates product design, precision manufacturing, assembly, and quality inspection to support consistent product performance and reliable delivery.

Connector production equipment
PRODUCTION CAPABILITY
Connector production equipment for stable manufacturing.
Cable assembly production equipment
CABLE ASSEMBLY
Cable assembly processing and inspection support.
OEM / ODM Customization Customized Cable Lengths Different Pin Configurations Batch Production Support

Quality Control

Strict process control is maintained throughout production, from raw material selection to finished product inspection, helping ensure stable connector performance for industrial applications.

Customization Support

From standard connectors to customized cable assemblies, we support project-based connection solutions according to customer application requirements.

Reliable FD20 Connection Solution for Industrial Equipment

The FD20 5 Pin Panel Mount Cable Connector combines stable electrical performance, compact installation, rugged structure, and customization support for industrial power and signal transmission applications.

Contact Us

Contact KMYD for FD20 connector specifications, customized cable assembly support, and OEM / ODM project solutions.

Send Inquiry

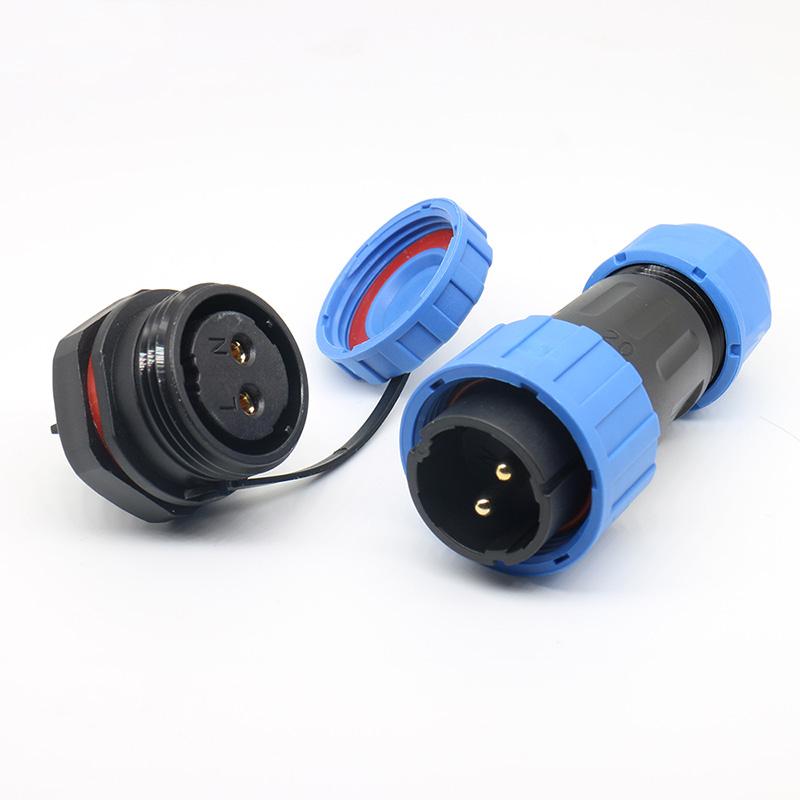

LD20/SP20 Waterproof Panel Mount Connectors

Item

Parameters

Number of Cores

2-20 Pin

Gender

Male/Female

Housing Material

PC/PA66

Contact Material

Brass, Gold Plated

Insulator Material

PPS

Locking System

Screw Locking

Temperature Range

-40°C to +105°C

Rated Current (A)

5A - 15A

Rated Voltage (AC.V)

250V

Test Voltage (AC.V) 1 Min

1500V

Insulation Resistance (MΩ)

1000 MΩ

Contact Resistance (MΩ)

≤5 MΩ

Termination

Solder
