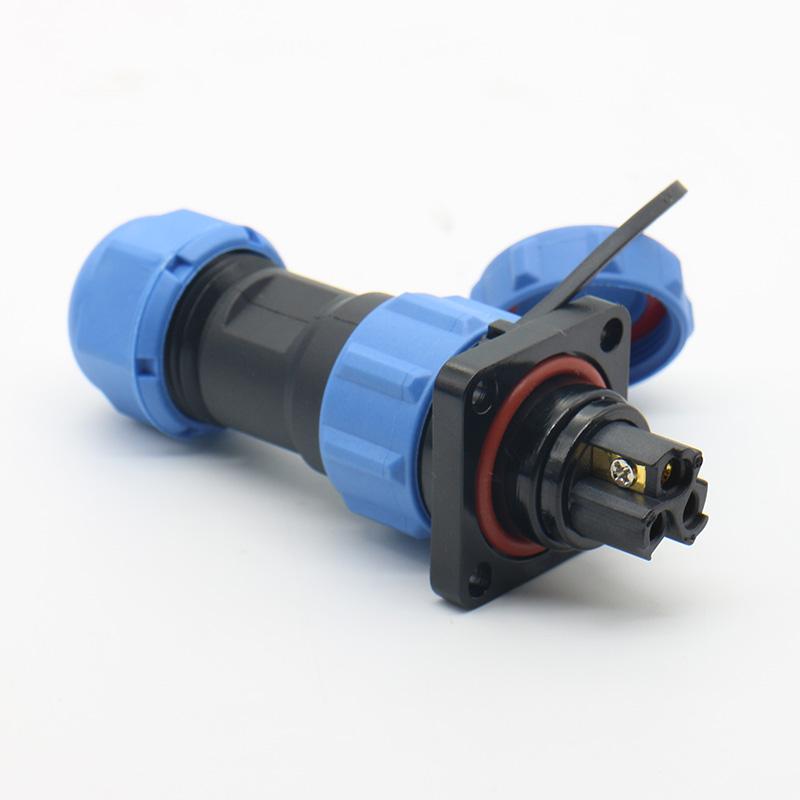

SP Waterproof Connectors with ±0.05mm Precision and IP68 Sealing

LD13 IP68 Flange Connectors Dimensions and Materials

Why Precision Manufacturing Matters for IP68 Waterproof Connectors

When you specify a waterproof connector for a demanding environment, the sealing performance is only as reliable as the manufacturing process behind it. Dimensional variance in the housing or contact carrier can compromise the O-ring compression and lead to leakage that is difficult to detect before installation. Our SP series connectors are built to eliminate that risk through precision engineering and fully verified quality control.

CNC Machining and Secondary Molding: The Foundation of Consistent Sealing

Each SP waterproof connector starts with CNC machining and secondary molding, holding tolerances of ±0.05mm. This level of dimensional control ensures that every mating face and sealing surface aligns correctly, providing consistent compression on the sealing elements. In contrast, many factories rely on conventional methods with manual assembly and sampled pressure tests, which can introduce dimensional variance and leave unseen leakage risks.

What This Means for Your Application

• Consistent mating: Tight tolerances ensure plugs and sockets align correctly every time, reducing installation issues in the field.
• Reliable sealing: Uniform compression on O-rings and gaskets prevents micro-leakage paths that can appear under thermal cycling or vibration.
• Fewer field failures: Precision manufacturing reduces the likelihood of warranty claims and unplanned downtime in your equipment.

Multi-Stage Testing: Verification Beyond Sampling

Every unit passes automated optical inspection and multi-stage testing, including full IP68 immersion and thermal cycling. This is a significant difference from factories that only test a sample from each batch. Full inspection means you can be confident that the connector you receive has been individually verified for sealing integrity, not just assumed to be good based on a statistical sample.

Test Coverage You Can Rely On

• Automated optical inspection: Detects surface defects, contamination, or dimensional anomalies that could affect sealing.
• Full IP68 immersion: Verifies that each connector meets the rated protection against continuous water immersion.
• Thermal cycling: Confirms that the seal remains intact across temperature fluctuations, which is critical for outdoor or industrial applications.

For applications where a connector failure is not an option, the choice between sampled testing and full verification is a direct trade-off between risk and reliability. Our integrated precision manufacturing and rigorous quality control are designed to deliver durable, high-performance seals in demanding environments.

If you are evaluating connectors for a new project or looking to improve the reliability of an existing design, we can help you match the right SP series connector to your electrical and environmental requirements. Browse our waterproof connector range or contact us with your application details to discuss the best solution.
