GX16 Connector
< >

GX16 Connector for PLC-Based Control Panels

MOQMOQ >200
PricePrice
>Number Of CoresNumber Of Cores 2-10Pins
Contact DiameterContact Diameter(mm) 1.2mm/2.5mm
IP RatingIP Rating IP55
Shell MaterialShell Material Zinc Alloy With Nickel Plated
Temperature RangeTemperature Range -30°C to +85°C
TerminationTermination Solder
Rated CurrentRated Current(A) 5A - 15A
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) ≥2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+8619924482730

GX16 Connector for PLC-Based Control Panels

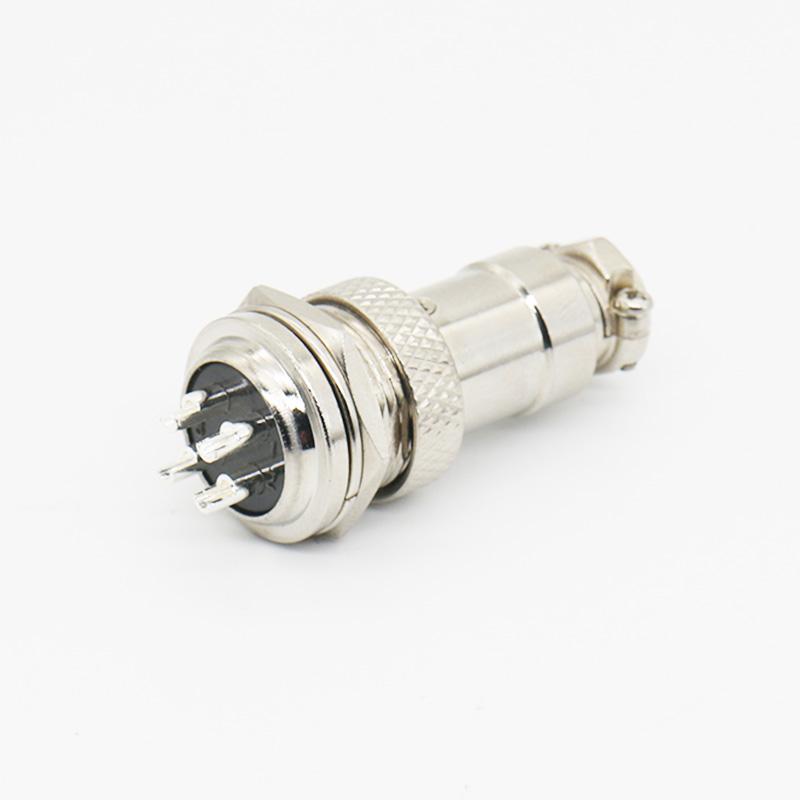

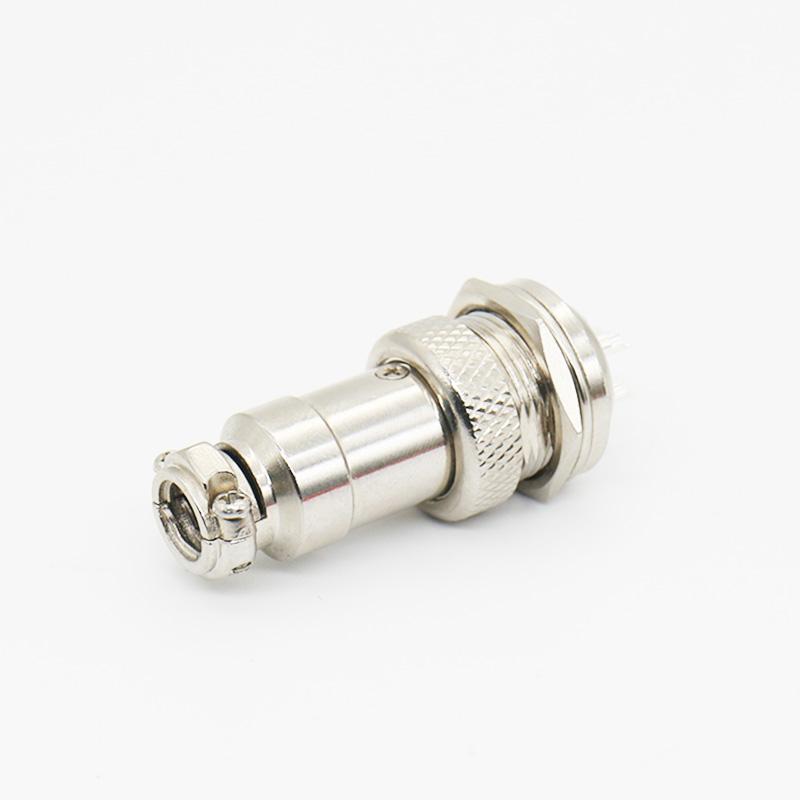

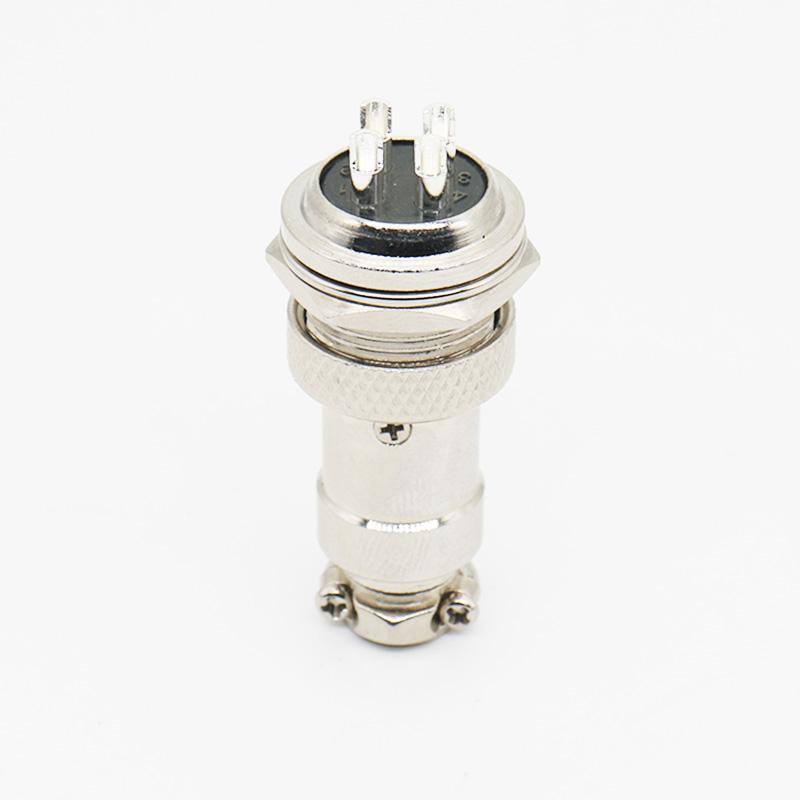

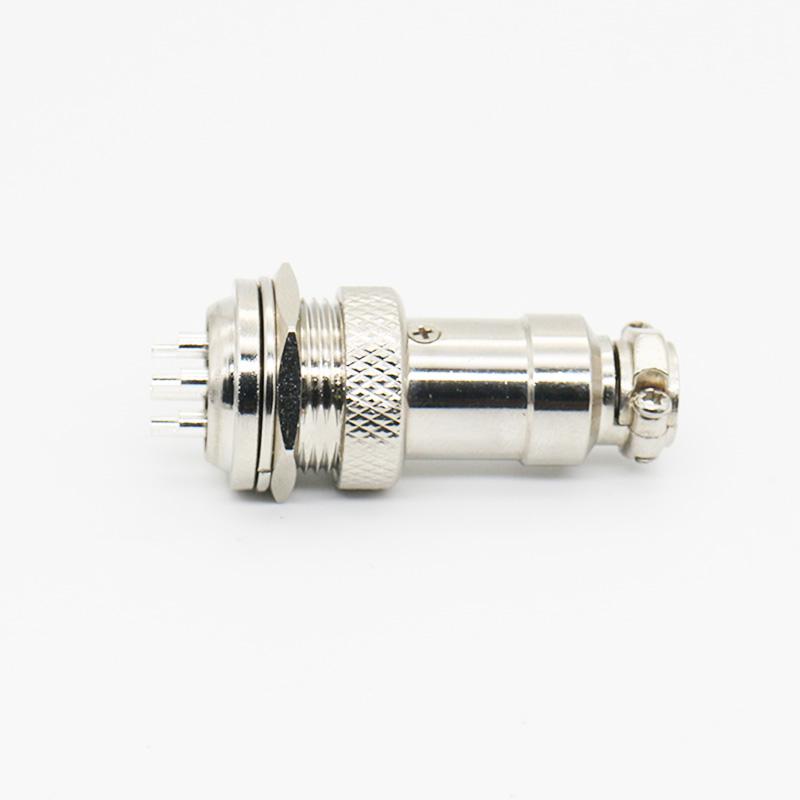

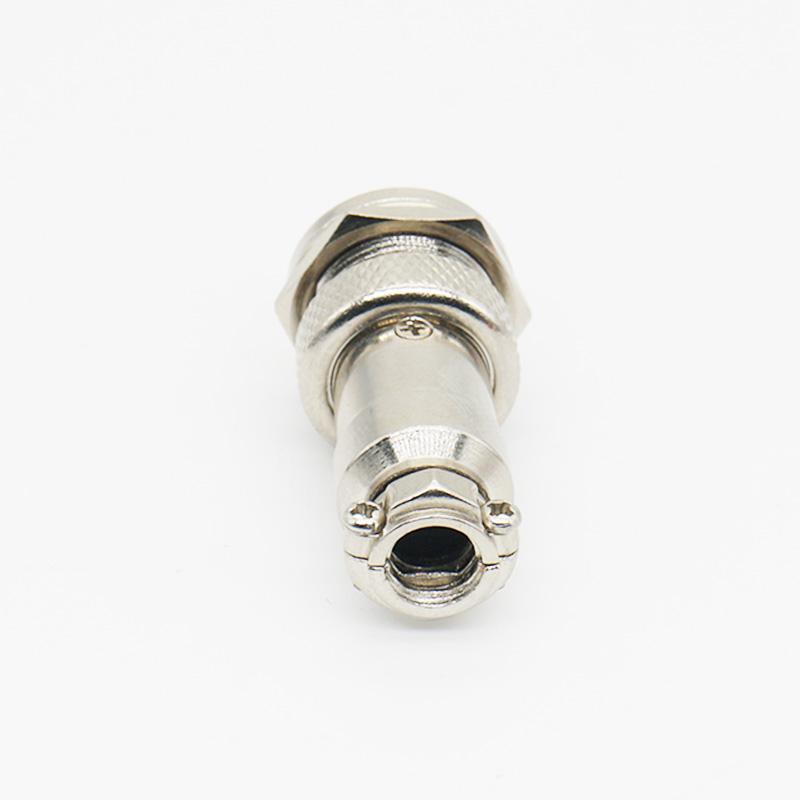

The GX16 connector is a reliable circular connector widely used in PLC-based control panels and industrial automation systems. Designed with a robust metal housing and secure threaded coupling mechanism, it ensures stable power and signal transmission in demanding electronic control environments.

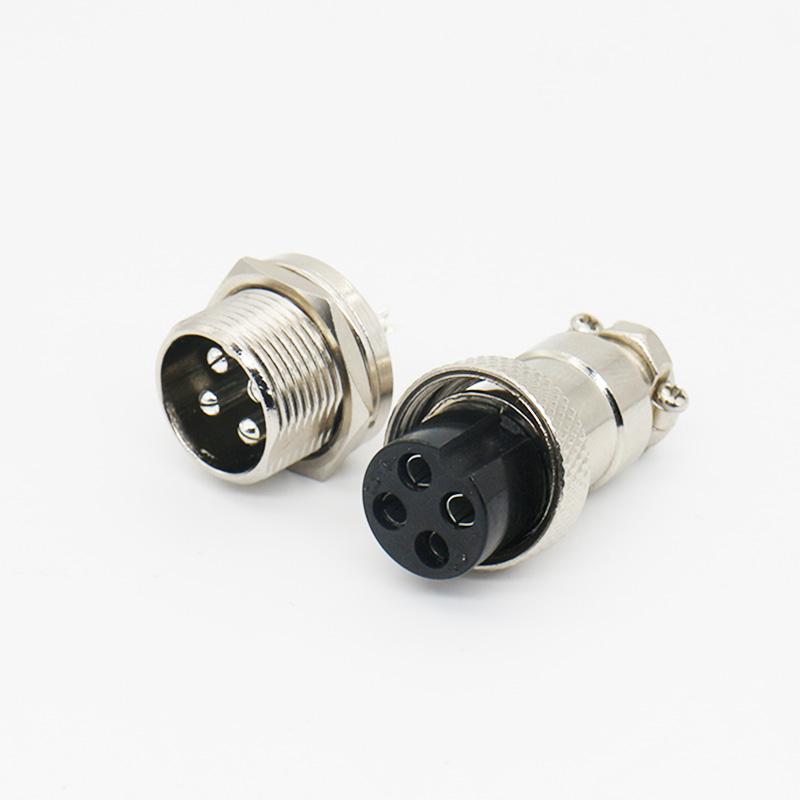

GX16 Connectors


Reliable Connection for Industrial Control Systems

In PLC control cabinets and automation panels, stable connectivity is critical. The GX16 connector provides secure electrical connections between controllers, sensors, power modules, and drive systems. Its screw-lock design prevents accidental disconnection caused by vibration or long-term operation.

Durable Metal Shell & Secure Locking Design

Manufactured with a high-strength metal shell, this GX16 connector offers excellent mechanical protection and long service life. The threaded locking structure enhances connection stability, making it suitable for continuous industrial operation.

Flexible Pin Configurations for Various Wiring Needs

Item

Parameters

Number of Cores

2-10Pin

Gender

Male/Female

Housing Material

Zinc Alloy with Nickel Plated

Cores Material

Brass Plated with Silver/Gold

Insulator Material

Phenolics

Locking System

Screw Locking

Temperature Range

-30℃, +85℃

Rated Current (A)

5A - 15A

Rated Voltage (AC.V)

250V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≤5㏁

Termination

Solder
