2-15 Pin WS20 Industrial Connector Customized Cable Assembly

SF Series Aviation Connectors Specifications and Performance Data

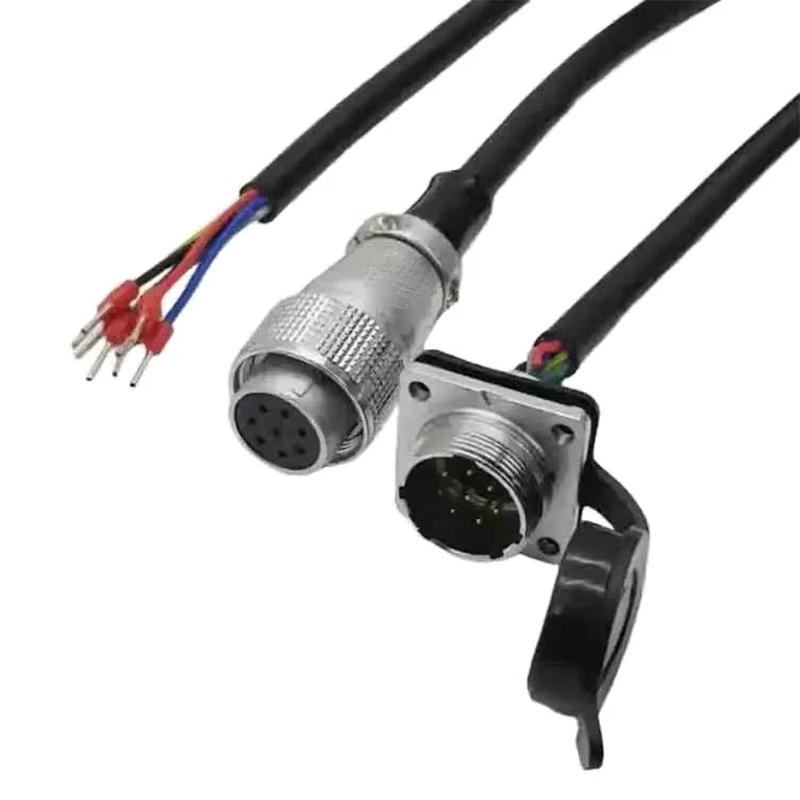

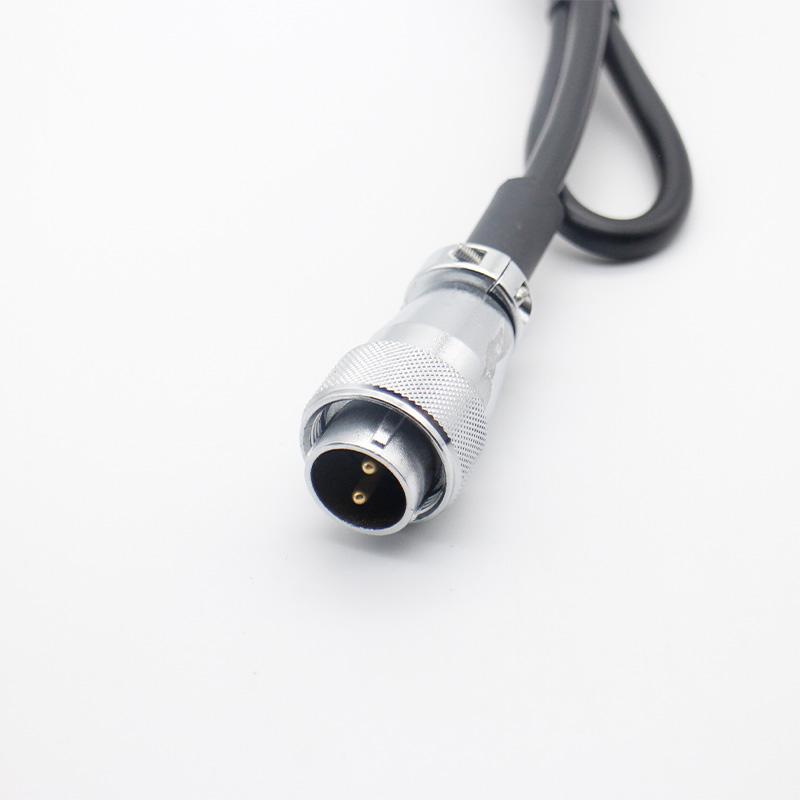

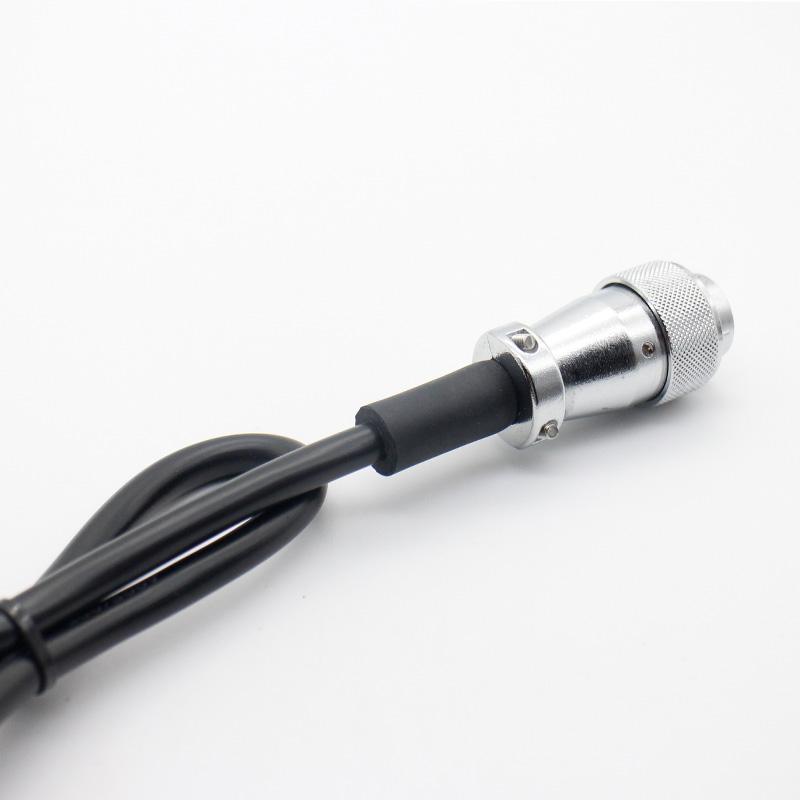

WS20 Industrial Connector Customized Cable Overview

The 2-15 Pin WS20 Industrial Connector with Customized Cable is engineered for equipment manufacturers who require dependable electrical connections combined with flexible wiring solutions. Designed with a rugged aviation-style structure and reinforced cable termination, this connector delivers stable performance in industrial environments where reliability and long service life are critical.

Unlike standard off-the-shelf connectors, the WS20 series is commonly supplied as a customized cable assembly, allowing seamless integration into machines, control systems, and field-installed equipment.

Designed for Industrial Reliability and Flexible Integration

The WS20 connector is built to handle both signal and power transmission across various industrial devices. Its solid metal housing and threaded locking mechanism provide secure connection stability, even in environments with vibration, dust, or continuous operation.

Key advantages include:

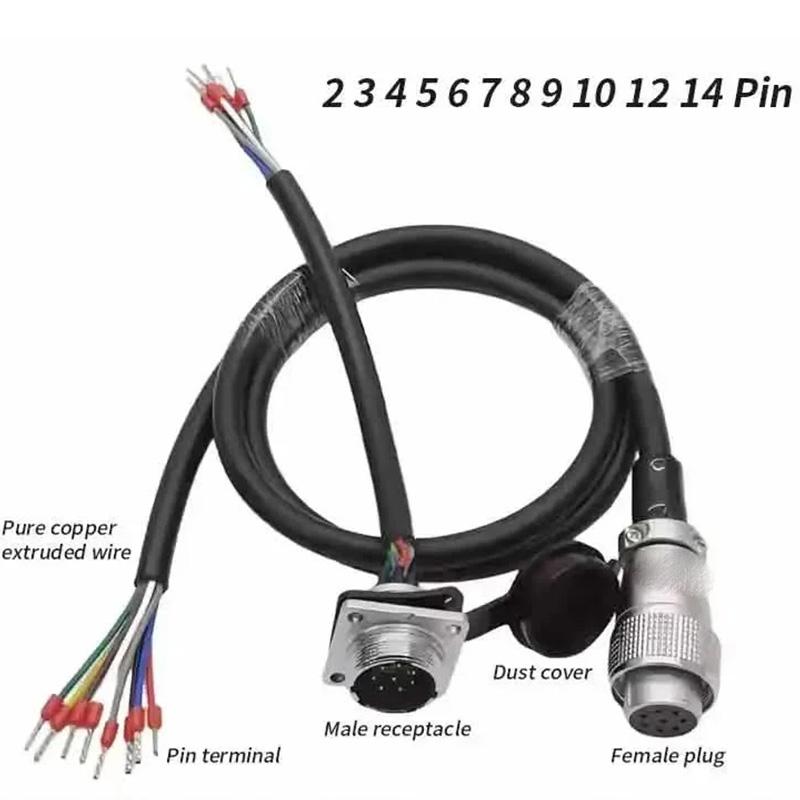

• 2-15 Pin configurations for diverse electrical requirements
• Heavy-duty metal shell for enhanced mechanical protection
• Secure threaded locking to prevent accidental disconnection
• Stable electrical performance for long-term operation
• Reinforced cable outlet structure for durability
• Suitable for industrial-grade continuous use

Custom Cable Manufacturing Capability

One of the core strengths of the WS20 connector lies in its adaptability to real project requirements. Instead of simply supplying connectors, we manufacture complete cable assemblies tailored to customer equipment specifications.

Customization capabilities include:

• Custom cable length based on installation layout
• Selection of PVC, rubber, or PUR cable materials
• Different wire gauges for power or signal transmission
• Shielded cable design for noise-sensitive systems
• Multi-core wiring and color identification
• Connector-to-connector or connector-to-terminal solutions

This production flexibility helps reduce installation time and ensures consistent wiring quality across batches.

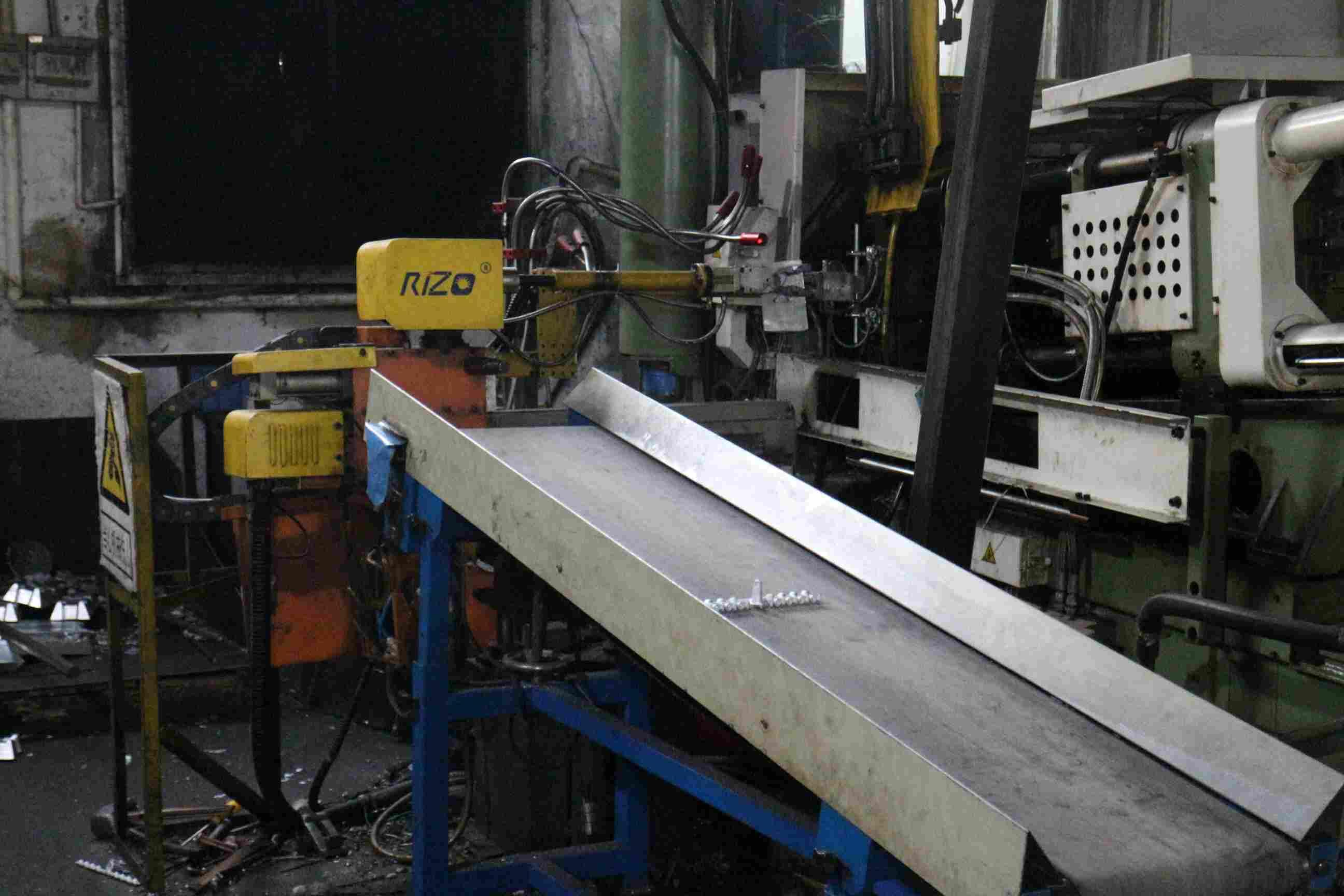

Factory Strength for Engineering Projects

Our manufacturing system is structured to support industrial customers, equipment manufacturers, and OEM projects that require stable supply and consistent quality over time. We operate a fully integrated production process covering connector machining, cable processing, assembly, and inspection, allowing strict control over both mechanical structure and electrical performance.

Factory strengths include:

• Dedicated production lines for circular connectors and cable assemblies
• In-house tooling and process control for stable product consistency
• Experienced technical team supporting OEM and engineering projects
• Ability to handle repeat orders with identical specifications
• Fast response capability for customized production requirements
• Stable export experience supporting global industrial customers

This level of control helps customers reduce risk in mass production and long-term equipment deployment.

Typical Applications for WS20 Connector

The WS20 industrial connector with customized cable is widely used in systems where strong mechanical connection and reliable wiring are essential, such as:

• Industrial machinery and automation equipment
• Power distribution and control systems
• Manufacturing production lines
• Testing and inspection equipment
• Outdoor electrical devices
• Transportation and mechanical systems

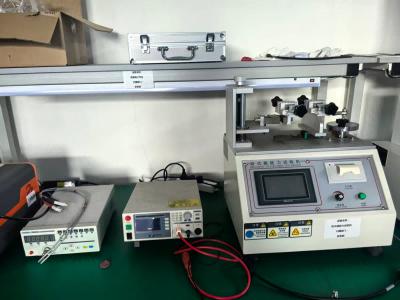

Quality Control Focused on Long-Term Performance

Each connector assembly is inspected using standardized testing procedures to ensure dependable operation in real working environments.

Quality assurance includes:

• Electrical continuity and insulation testing
• Contact stability and resistance verification
• Mechanical strength and connection durability testing
• Cable termination reliability inspection
• Visual and dimensional quality control

Our production system operates under internationally recognized standards, including ISO9001 Quality Management System, CE Certification, and RoHS Compliance.

Selection Guidance and Inquiry Checklist

To ensure the WS20 connector assembly matches your application, please provide the following details when requesting a quotation:

• Required pin count (2-15) and gender (male or female)
• Cable length, jacket material (PVC, rubber, PUR), and conductor size
• Electrical load: current, voltage, and whether signal or power transmission
• Shielding requirements for noise-sensitive environments
• Mating-side connector or terminal requirements
• Operating environment: temperature range, vibration, moisture, or outdoor exposure
• Order quantity and target delivery schedule

For related connector options, review the Aviation Plug Connectors series or consult the SF Series Aviation Connectors Specifications and Performance Data for alternative configurations.

A Manufacturing Partner for Reliable Industrial Connectivity

The 2-15 Pin WS20 Industrial Connector Customized Cable is more than a standard connector—it is a tailored connection solution supported by a factory capable of delivering consistent quality, flexible customization, and reliable long-term supply for industrial applications.
