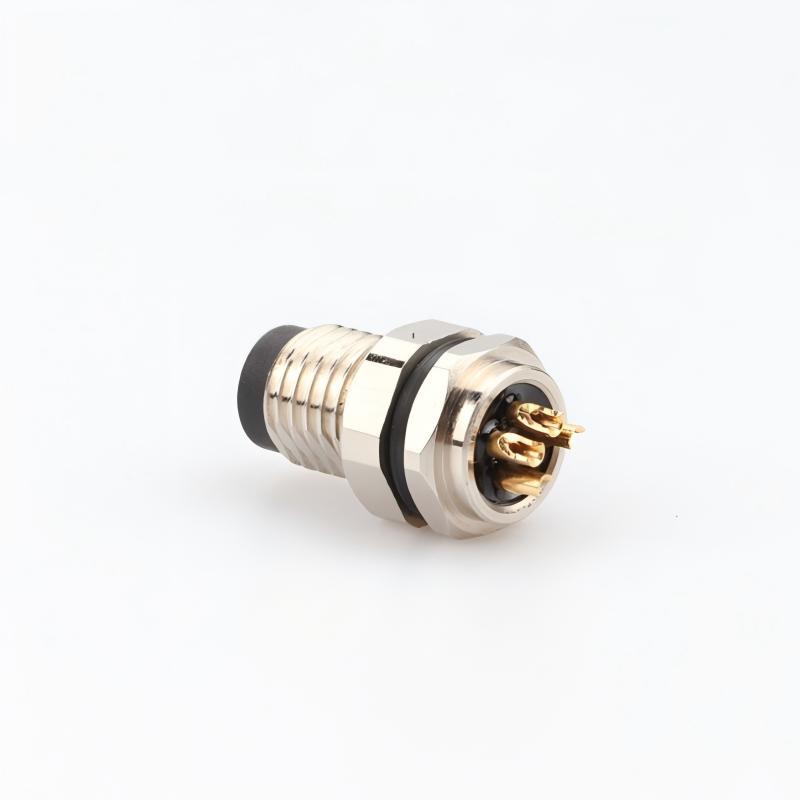

M8 4-Pin Male Connector for Industrial Automation

The M8 4-pin male connector is a compact circular interface used to link sensors, actuators, and other field devices to control systems in industrial automation, robotics, and automotive electronics. Its value lies in providing a secure, space-saving connection for both power and signal transmission. This guide explains the connector's typical applications, installation considerations, and the key checks buyers should perform before specifying it for a project.

Connecting Sensors in Industrial Automation

In industrial automation, the M8 4-pin male connector is frequently used to connect sensors to control systems. These sensors monitor variables such as temperature, pressure, and proximity, providing the data that informs automated machinery operation. The connector's small form factor is particularly useful in control cabinets and on machine frames where space is at a premium.

For a typical manufacturing line, sensors installed on multiple machines send data to a central control system. The M8 4-pin male connector provides a secure and stable interface for both power and signal transmission in these space-constrained environments. When selecting this connector, confirm the pin assignment matches the sensor's output type (e.g., PNP or NPN) and that the current rating is sufficient for the sensor's load.

Powering Actuators and Motors in Robotics

Robotic systems require multiple connections for power, control signals, and grounding. The M8 4-pin male connector is an efficient solution for powering actuators and motors in these applications. Its design supports the reliable delivery of power and control signals needed for precise movement.

In an automated assembly line, robotic arms rely on M8 connectors to transmit power and control signals to motors and actuators. This facilitates precise control of movement and ensures reliable power delivery, which is critical for the robotic system's performance. Verify the connector's voltage and current ratings against the motor's inrush current and steady-state draw to avoid overheating.

Facilitating Communication in Sensor Networks

M8 4-pin male connectors are widely used to enable communication in sensor networks, which are integral to industrial plants and smart factories. These networks monitor machinery performance, environmental conditions, and inventory levels. The connector's compact design allows for easy installation in tight spaces without compromising performance.

In a smart factory, an extensive network of sensors collects data from different parts of the production line. The M8 4-pin male connector connects each sensor to the central data collection system, enabling real-time monitoring of operational conditions. For network applications, confirm the connector's shielding and data rate capabilities if used for fieldbus protocols like IO-Link or CANopen.

Supporting Automotive Systems and Electronics

In the automotive industry, the M8 4-pin male connector is used to connect sensors, cameras, and other electronics within vehicles. These connectors ensure that electrical systems function reliably in challenging automotive environments, which include vibration, temperature fluctuations, and exposure to fluids.

Modern vehicles are equipped with numerous sensors for systems such as parking assistance, collision detection, and engine monitoring. The M8 4-pin male connector establishes secure and stable connections between these sensors and the vehicle's central control unit. Its compact size and durable construction make it suitable for automotive applications where space is limited and reliability is critical. Check the connector's IP rating and temperature range against the specific mounting location (e.g., engine bay vs. cabin).

Overcoming Challenges in Harsh Industrial Environments

M8 4-pin male connectors are designed to perform reliably in harsh industrial environments, but exposure to moisture, dust, and extreme temperatures can affect their performance if not properly addressed. The connector's sealing and material selection are critical factors in these conditions.

In a food processing facility, machinery operates in humid and dusty conditions. Sensors and controllers connected using M8 connectors can suffer from corrosion without proper sealing, leading to system malfunctions. For such environments, specify a connector with an appropriate IP rating (e.g., IP67) and verify that the mating faces are clean and undamaged before connection. Confirm the housing material (e.g., nickel-plated brass or stainless steel) is compatible with any cleaning agents used on site.

Best Practices for Installing and Maintaining M8 4-Pin Male Connectors

Proper installation and maintenance are essential for ensuring the longevity and performance of M8 4-pin male connectors. Following best practices prevents connection failures and ensures reliability, whether used in industrial automation, robotics, or automotive systems.

In a manufacturing facility with frequent replacement of sensors and devices, any lapse in proper installation can lead to continuity issues or connection failure. Adhere to these practices:

• Verify pinout before mating: Always confirm the pin assignment on both the male connector and the mating female socket to prevent short circuits.
• Check torque: Tighten the coupling nut to the manufacturer's specified torque. Over-tightening can damage threads; under-tightening can cause intermittent contact.
• Inspect seals: Before each mating, inspect the O-ring or gasket for cuts, deformation, or debris that could compromise the IP rating.
• Use proper strain relief: Ensure the cable is secured so that flexing or pulling forces are not transmitted to the connector's termination points.
• Document the configuration: Record the pinout, cable type, and installation date for each connection to simplify future troubleshooting.

Frequently Asked Questions

Conclusion

The M8 4-pin male connector is a vital component for connecting sensors, actuators, and other devices in industrial, automotive, and robotics applications. Its compact size, durability, and reliability make it an excellent choice where space is limited and performance is critical. To maximize its effectiveness, confirm the pinout, electrical ratings, and environmental sealing against your specific application requirements.

Before specifying, verify the connector's IP rating, current and voltage limits, and material compatibility with your operating environment. If you are unsure about the correct pin assignment or cable specification, request the manufacturer's drawing or consult the technical datasheet. For project-specific requirements, prepare a clear list of your electrical, mechanical, and environmental needs to discuss with a supplier.
