GX12 Aviation Connector for UAV Systems in Japan

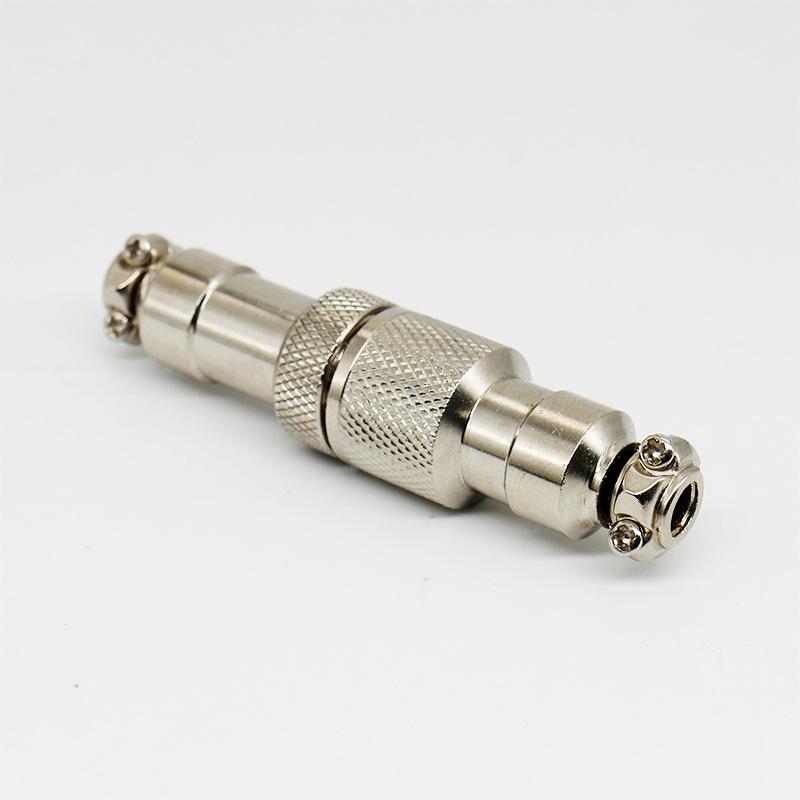

GX12 Aviation Connector

Project Background: GX12 Connectors in Japanese UAV Systems

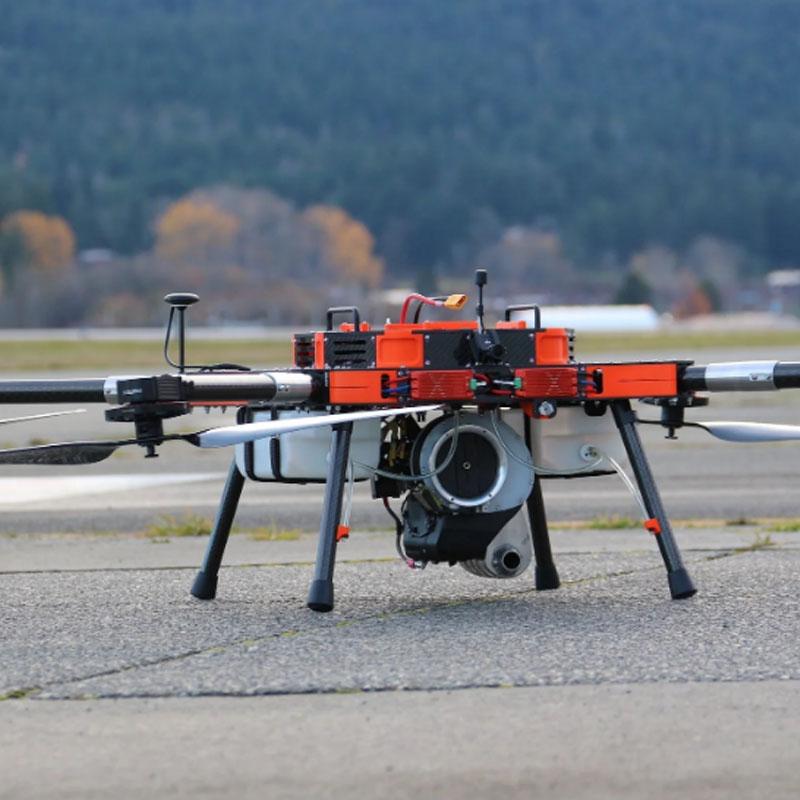

A customer in Japan integrated our GX12 aviation connectors into their unmanned aerial vehicle (UAV) systems. The connectors were primarily used for onboard control circuits and sensor signal transmission, where reliable electrical contact and vibration resistance are critical for flight safety and data integrity.

Interface and Environmental Requirements

The customer required connectors that could meet the following operational demands:

• Maintain stable electrical connections during high-speed UAV operation
• Withstand continuous vibration and occasional mechanical shocks encountered during flight and landing
• Support precise sensor signal transmission for flight control systems
• Provide a secure mating mechanism to prevent accidental disconnection

After evaluating several options, the customer chose GX12 connectors due to their compact size, reliable contacts, and secure threaded locking mechanism, which are essential for aerospace applications.

Connector Solution and Configuration

The GX12 series was selected for its balance of size, electrical performance, and mechanical robustness. The threaded coupling design ensures a positive lock, while the precision-machined contacts provide consistent conductivity for both power and signal lines within the UAV's control architecture.

Commissioning and Delivery Process

During the integration phase, the customer verified the connector fit with their existing cable assemblies and panel layouts. The assembly process was straightforward, allowing technicians to complete wiring and mating checks efficiently. Sample validation confirmed that the connectors maintained contact integrity under simulated vibration conditions before full deployment.

Verified Results and Performance

In operation, the GX12 connectors delivered the following verified outcomes:

• Stable power and signal transmission during UAV flight
• Threaded locking prevented loosening under vibration and movement
• Lightweight and compact form factor, ideal for weight-sensitive aerospace applications
• Easy assembly and maintenance for field technicians

The customer reported that the connectors consistently provided reliable performance, contributing to safer and more efficient UAV operations.

Why GX12 Was Selected for This Application

• Compact and lightweight design suited for aerospace payload constraints
• Reliable electrical contacts and mechanical locking mechanism
• Supports both power and signal transmission in a single interface
• Engineered for high-vibration environments typical of UAV operations

For engineers evaluating similar connector requirements, the GX12 series offers a proven solution where secure mating and consistent signal integrity are non-negotiable. Related case studies and product details are available for further reference.
