Name: MS27473E12B4S 4-Pin Bayonet Coupling Connector for Radar Power Amplifiers
Brand: KMYD
SKU: 4 Pins
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (17 reviews)

MS27473E12B4S 4-Pin Bayonet Coupling Connector for Radar Power Amplifiers

MOQ	>200
Price
Number Of Cores	4 Pins
Contact Diameter(mm)	1.02 mm
IP Rating	IP67
Shell Material	Aluminum Alloy
Temperature Range	-65°C to +175°C
Termination	Crimp
Rated Current(A)	7.5A
Rated Voltage(Ac.V)	600V
Test Voltage(Ac.V)1Min	1800V
Insulation Resistance (MΩ)	≥ 5000 MΩ
Contact Resistance (MΩ)	≤ 3 mΩ
Certification	CE, RoHS,BASCI,ISO9001

MS27473E12B4S Connector for Radar Power Amplifier Units

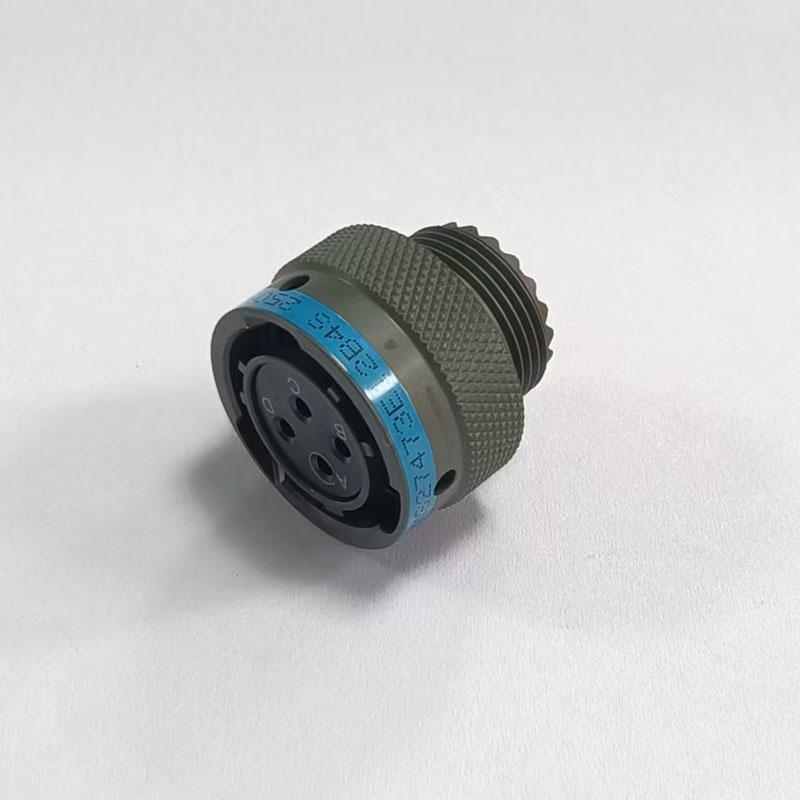

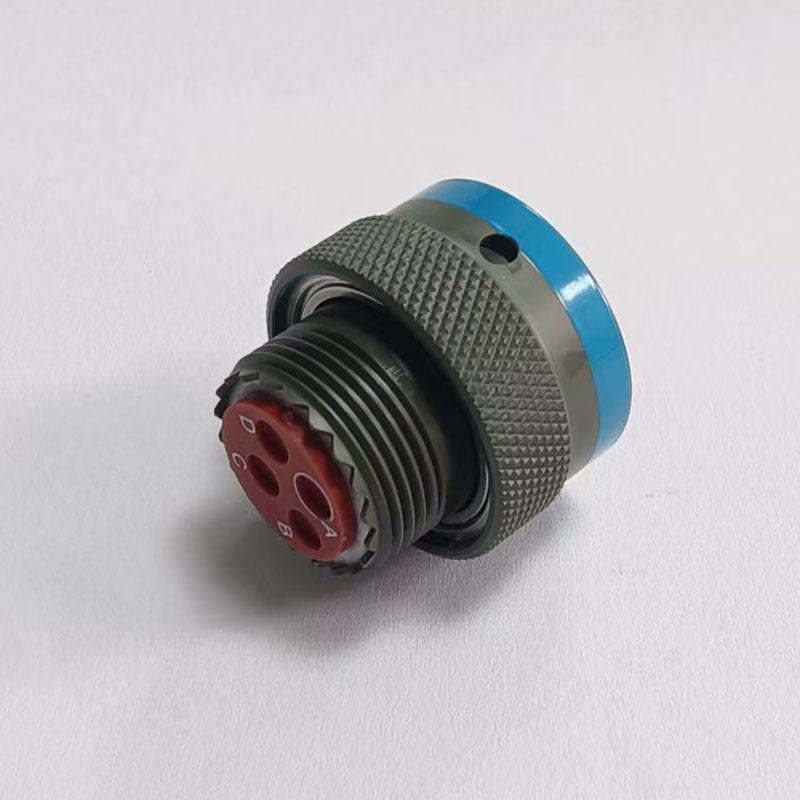

The MS27473E12B4S is a 4-pin circular connector from the MS27473 series, designed for reliable power and signal connections in radar power amplifier units. Its socket configuration and aluminum alloy housing make it a practical choice for communication radar systems where stable transmission and secure mating are required.

How to Select the Right MS27473E12B4S Configuration

Choosing the correct connector for your radar power amplifier unit depends on several factors that affect both electrical performance and mechanical fit. Consider the following points before ordering:

Pin count and gender: This model is a 4-pin socket. Confirm that your cable assembly or mating plug matches this layout and gender.
Contact material: Brass contacts with gold plating support reliable conductivity and corrosion resistance for signal integrity.
Housing material: The aluminum alloy shell provides a rugged enclosure suitable for demanding environments.
Mating interface: Verify the corresponding plug series and shell size to ensure proper locking and alignment.

Application Scope for Radar Power Amplifier Units

This connector is intended for use in radar power amplifier modules across naval, airborne, and ground-based systems. Its compact design supports integration into equipment where space is limited but connection reliability is critical.

Typical deployment areas include communication radar systems that require stable power delivery and signal transmission under operational conditions. The connector is not intended for high-vibration rotating machinery or submersion applications unless additional protection is provided.

Construction and Installation Considerations

The MS27473E12B4S features a threaded coupling mechanism typical of the MS27473 series, which helps maintain a secure connection under shock and vibration. The socket is designed for panel or cable mounting depending on the specific variant.

During installation, verify the following:

Correct orientation and keying before mating to avoid pin damage.
Proper cable strain relief to prevent mechanical stress on contacts.
Compatibility of the mating plug's shell size and insert arrangement.

Suitable and Unsuitable Use Cases

Suitable: This connector fits radar power amplifier units in communication systems where a 4-pin socket with gold-plated brass contacts is required. It is appropriate for applications needing a rugged aluminum housing and stable electrical contact.

Unsuitable: Do not use this connector for high-current power distribution beyond its rated capacity, for underwater or high-pressure environments, or in applications requiring a different pin count or gender. Always confirm the exact mating plug series and shell size before integration.

Information to Include in Your Inquiry

To ensure accurate matching and timely support, please provide the following details when contacting us:

Exact model number and series (e.g., MS27473E12B4S).
Required pin count, gender, and shell size.
Cable outer diameter and wire gauge for termination planning.
Mounting style (panel, cable, or free-hanging).
Application environment (temperature range, vibration level, IP rating needed).
Any drawings or pinout diagrams for verification.

For further assistance, please use the inquiry form or contact us via WhatsApp. You can also review related connector options in our Aviation Plug Connectors catalog or explore the MS27472 Military Connector series for additional configurations.

Item

Parameters

Number of Cores

4 Pins

Gender

Male/Female

Housing Material

Aluminum Alloy

Cores Material

Brass Plated with Gold

Insulator Material

PEFT

Locking System

Bayonet Coupling

Temperature Range

-65°C to +175°C

Rated Current (A)

7.5A

Rated Voltage (AC.V)

600V

Test Voltage (AC.V) 1 Min

1800V

Insulation Resistance (MΩ)

5000 MΩ

Contact Resistance (MΩ)

≤3 MΩ

Termination

Crimp

Customer Reviews

Score

Remove

Review Title Title exceeds limit The title can not be blank

Review Text Please enter 1 ~ 3000 characters the content can not be blank

VG95234 3-Pin Connector for Harsh Conditions

ZevioX 2026-02-04

Explore the rugged VG95234 3-pin connector, built for stable performance and durability in demanding industrial environments.

VG95234-4 Pin Connector Smooth Secure Mating

EchoTrailblazeX 2026-02-04

Discover the VG95234-4 pin connector with smooth plug-in and firm locking for dependable operation in demanding industrial applications.

High-Precision Military Connector VG95234-2 Pin

AltorX 2026-02-04

VG95234 2-pin military connector delivers reliable, precise connections for aerospace and defense applications. Explore its specifications and suitability.

VG95234 2-Pin Compact Robust Connector

DriftAlmanacX2 2026-02-04

Explore the VG95234 2-pin connector, a space-saving yet sturdy solution for demanding industrial projects requiring reliable power connections.

The MS27473E12B4S is a military-grade 4-pin bayonet coupling connector with aluminum alloy housing and gold-plated brass contacts, engineered for reliable radar power amplifier unit connections in communication systems.
