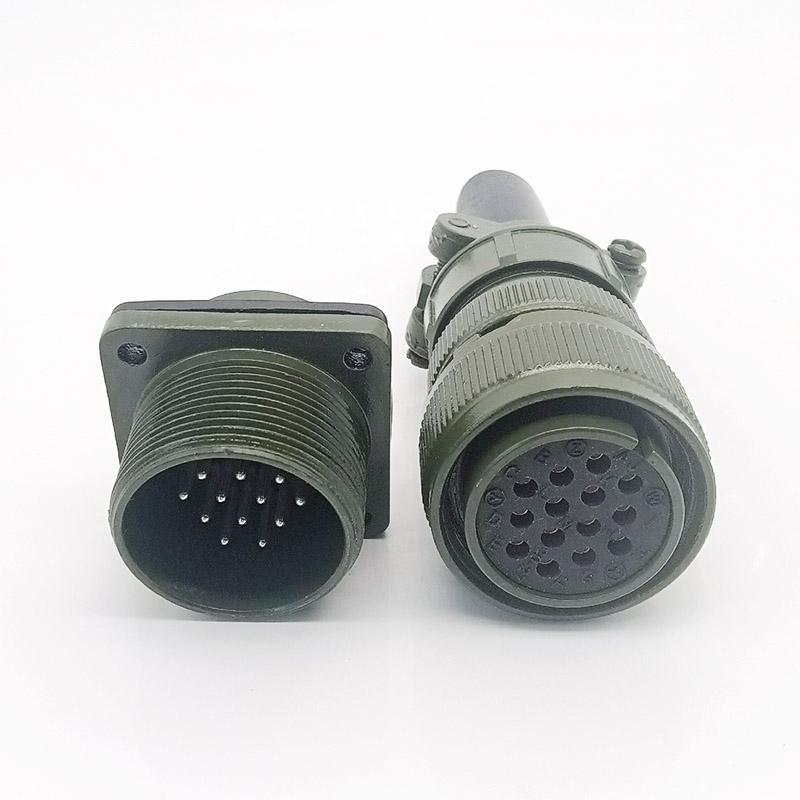

MIL-DTL-5015 Connector
< >

MIL-DTL-5015 Connector for Radar Antenna Drive Systems

>Number Of CoresNumber Of Cores 2-52Pin
Contact DiameterContact Diameter(mm) 1.5mm/2.5mm/3.5mm
IP RatingIP Rating IP67
Shell MaterialShell Material Aluminum Alloy
Temperature RangeTemperature Range -55℃ ~ +125℃
TerminationTermination Solder
Rated CurrentRated Current(A) 5A-50A
Rated VoltageRated Voltage(Ac.V) 500V-2000V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) ≥5000MΩ
Contact ResistanceContact Resistance (MΩ) ≤2.0 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

MIL-DTL-5015 Connector for Radar Antenna Drive Systems

The MIL-DTL-5015 Connector is widely used in communication radar equipment, especially in radar antenna drive systems responsible for antenna rotation and positioning. It provides stable electrical connections for power supply, control signals, and data transmission within radar systems.

Rugged Design for Harsh Radar Environments

The MIL-DTL-5015 Connector features a durable aluminum alloy shell and high-strength contacts that ensure reliable operation in harsh environments. Its threaded coupling mechanism provides secure locking and vibration resistance, making it ideal for outdoor radar installations.

Reliable Signal and Power Transmission

Designed for demanding electronic systems, the MIL-DTL-5015 Connector supports stable power distribution and signal transmission between radar control units, antenna drive motors, and communication modules.

Connectors


Applications

The MIL-DTL-5015 Connector is commonly used in:

Radar antenna drive systems

Communication radar control units

Ground surveillance radar equipment

Radar signal transmission modules

Item

Parameters

Number of Cores

2-52Pin

Gender

Male/Female

Housing Material

Aluminum Alloy

Cores Material

Brass Plated with Gold

Insulator Material

PPS/PEI

Locking System

Bayonet Locking

Temperature Range

-55℃, +125℃

Rated Current (A)

5A-50A

Rated Voltage (AC.V)

500V-2000V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

≥5000㏁

Contact Resistance (㏁)

≤20㏁

Termination

Solder
