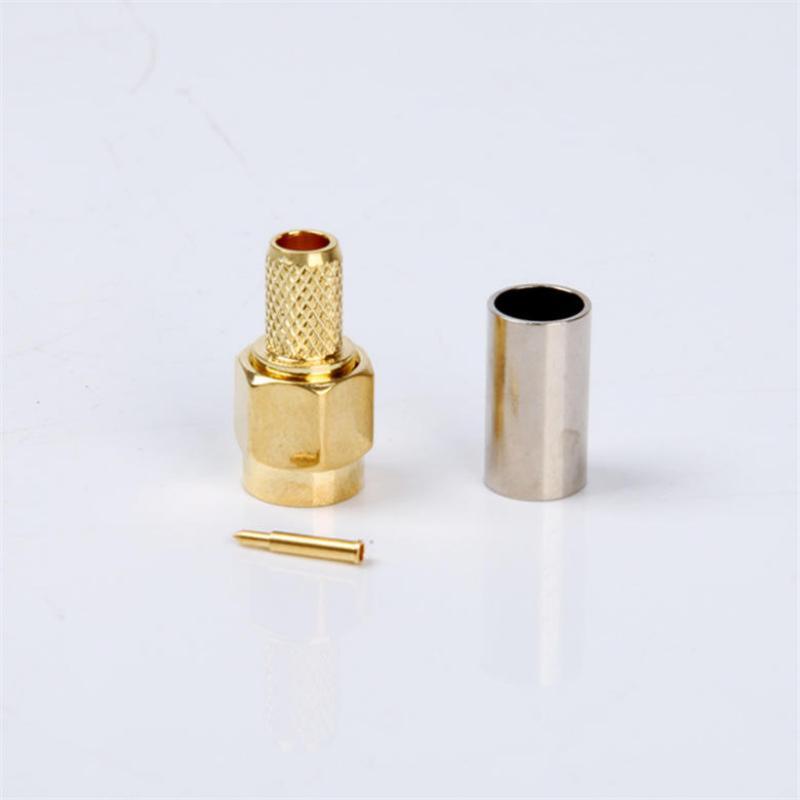

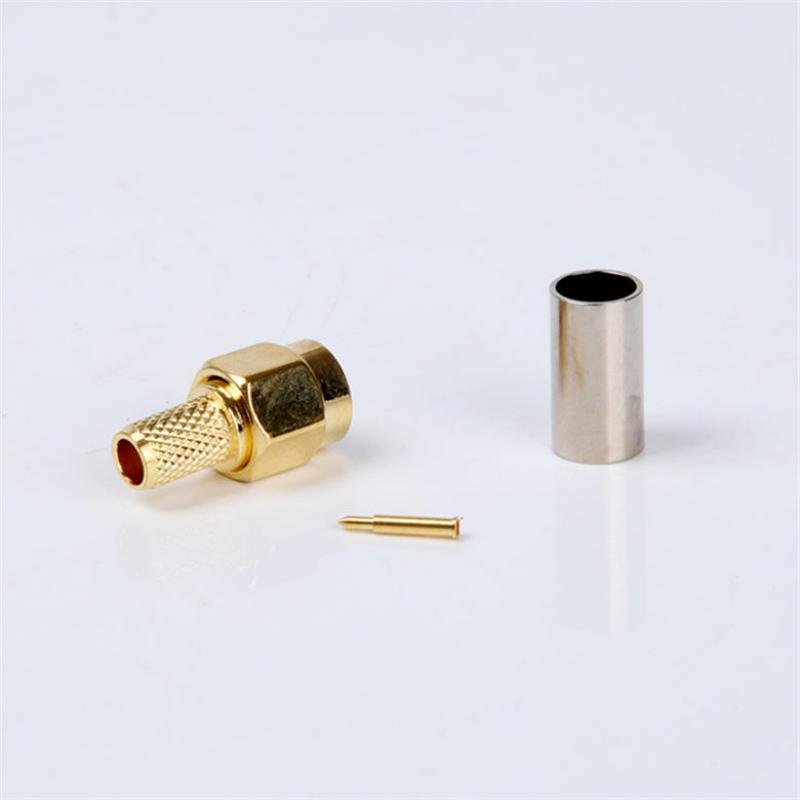

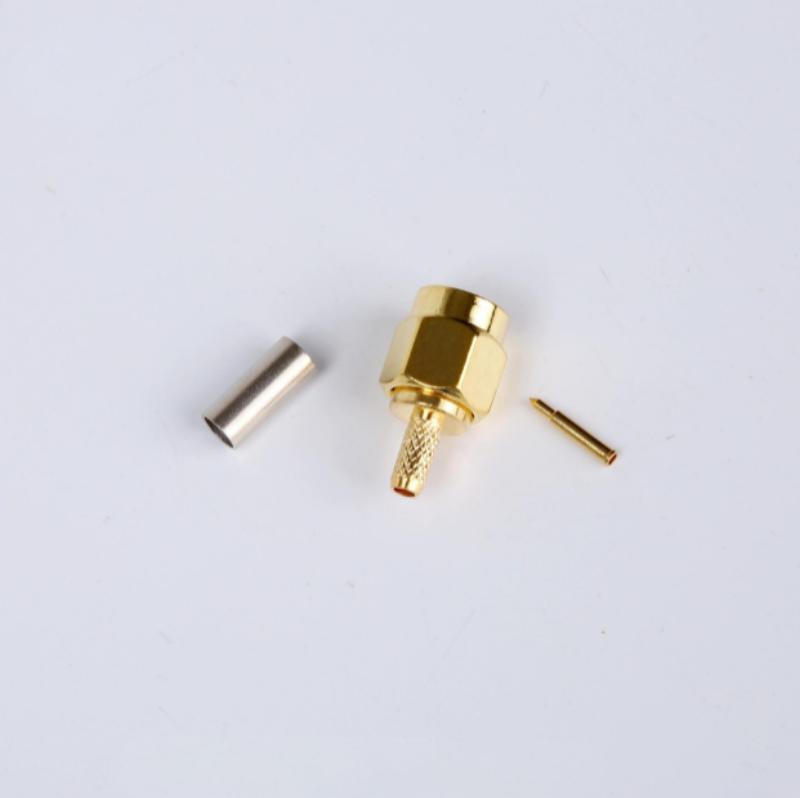

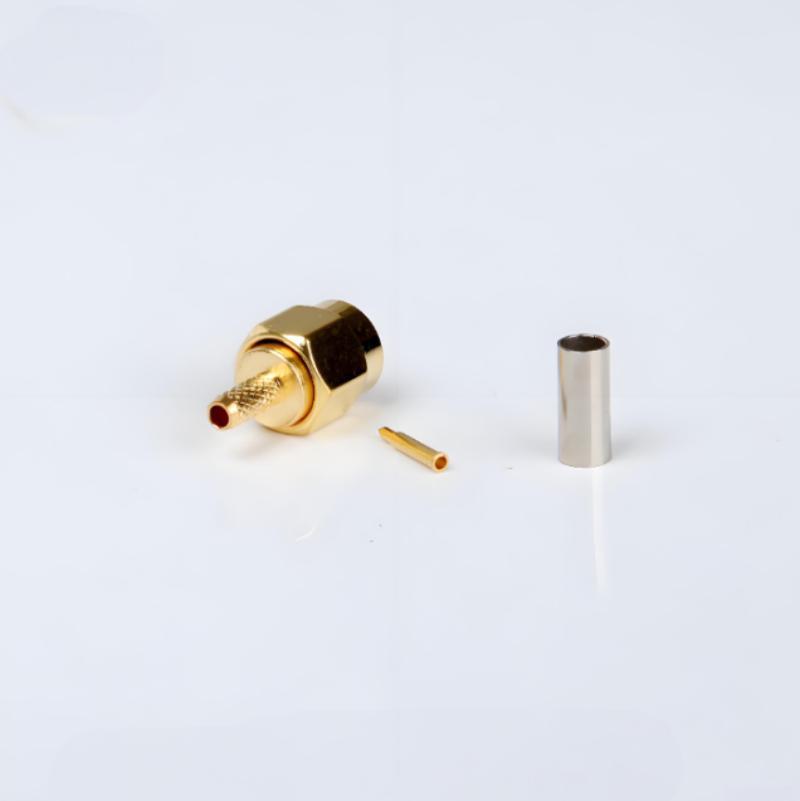

SMA Male Plug Connector for RG58 Coaxial Cable

SMA male plug connectors are precision RF connectors engineered for stable signal transmission in high-frequency communication systems. This male plug variant is specifically designed to terminate RG58 coaxial cable, a flexible 50-ohm cable widely used in radio frequency applications. The threaded coupling mechanism provides a secure mechanical connection that helps maintain consistent RF performance in environments subject to vibration or movement.

These connectors are commonly specified for wireless communication devices, antenna systems, RF modules, GPS equipment, and electronic testing setups where signal integrity is critical.

Key Selection Considerations for SMA Male Plugs

When evaluating SMA male plug connectors for RG58 cable, buyers should focus on the following decision points:

• Termination method: Confirm whether the connector supports crimp or solder attachment, as this affects installation tooling and field serviceability.
• Mating interface: Verify the connector is a male plug (pin center contact) intended to mate with an SMA female jack or bulkhead receptacle.
• Cable compatibility: Ensure the connector is manufactured for RG58 cable dimensions, including dielectric diameter and jacket thickness, to achieve proper impedance matching.
• Application environment: Consider whether the installation is indoors, outdoors, or in a vibrating assembly, since the threaded coupling provides mechanical retention but not environmental sealing.
• Frequency requirements: Confirm the operating frequency range of your system against the connector's rated performance to avoid signal degradation.

Designed for RG58 Coaxial Cable

RG58 coaxial cable is a flexible, widely used transmission line for RF signals. SMA male plug connectors designed for RG58 ensure proper impedance matching and secure termination, which are essential for maintaining signal quality. When paired with RG58 cable, the SMA connector provides several advantages:

• Stable impedance performance
• Reliable RF signal transmission
• Reduced signal loss
• Strong mechanical connection

The precise design of the connector helps ensure that the cable and connector interface performs consistently in both professional and industrial applications.

Threaded Coupling for Secure Connection

One of the defining features of SMA connectors is their threaded coupling mechanism. Unlike push-in connectors, the threaded design allows the connector to be securely tightened onto the mating interface. This design provides several key benefits:

• Improved vibration resistance
• Secure mechanical locking
• Stable electrical contact
• Reduced risk of accidental disconnection

Because of this locking mechanism, SMA connectors are widely used in systems where reliable RF connections are essential.

Common RF and Communication Applications

Thanks to their compact design and reliable performance, SMA male plug connectors are used across many industries and electronic systems. Common applications include:

• Wireless communication devices
• RF antennas and radio systems
• GPS modules and navigation equipment
• Telecommunications infrastructure
• Laboratory RF testing equipment
• Industrial signal transmission systems

In these systems, SMA connectors serve as critical interfaces for maintaining stable RF signal connections between devices.

Installation and Cable Termination Guidance

SMA male plug connectors for RG58 cables are designed for convenient installation and reliable cable termination. Depending on the design, connectors may support crimp or solder termination, allowing technicians to securely attach the connector to the cable. Once installed, the connector provides a strong mechanical and electrical interface that ensures stable signal transmission during operation.

The compact structure of the SMA connector also makes it suitable for equipment where space is limited but high performance is required.

Suitable and Unsuitable Use Cases

Suitable applications include indoor RF modules, antenna pigtails, test bench connections, and equipment racks where the connector remains stationary or experiences minimal flexing after installation.

Unsuitable applications include outdoor installations without additional weatherproofing, high-flex cable assemblies, or systems requiring repeated quick disconnect cycles. For outdoor or high-vibration environments, consider a connector with an IP-rated housing or a different interface such as an aviation plug connector.

Buyer Inquiry Checklist

To ensure the correct SMA male plug connector is selected for your project, please provide the following information when requesting a quote:

• Required quantity and target unit price
• Termination preference: crimp or solder
• Cable type and jacket outer diameter (confirm RG58 specification)
• Mating connector type: SMA female jack, bulkhead, or PCB mount
• Operating frequency range and power level
• Environmental conditions: temperature range, humidity, vibration exposure
• Any specific plating requirement (e.g., gold, nickel) for the contact and body

For a broader understanding of RF connector families, materials, and electrical specifications, refer to our RF connector technical guide.

Conclusion

The SMA male plug connector for RG58 coaxial cable is a reliable solution for RF signal transmission in modern communication systems. With its threaded coupling design, excellent electrical performance, and compatibility with widely used RG58 cable, this connector provides secure and stable connections for high-frequency applications.

Whether used in wireless communication devices, antenna systems, or laboratory testing equipment, SMA connectors remain an essential component for engineers and manufacturers who require dependable RF connectivity.
