XS10 2-4 Pin Aviation Circular Connector for Industrial Power and Signal

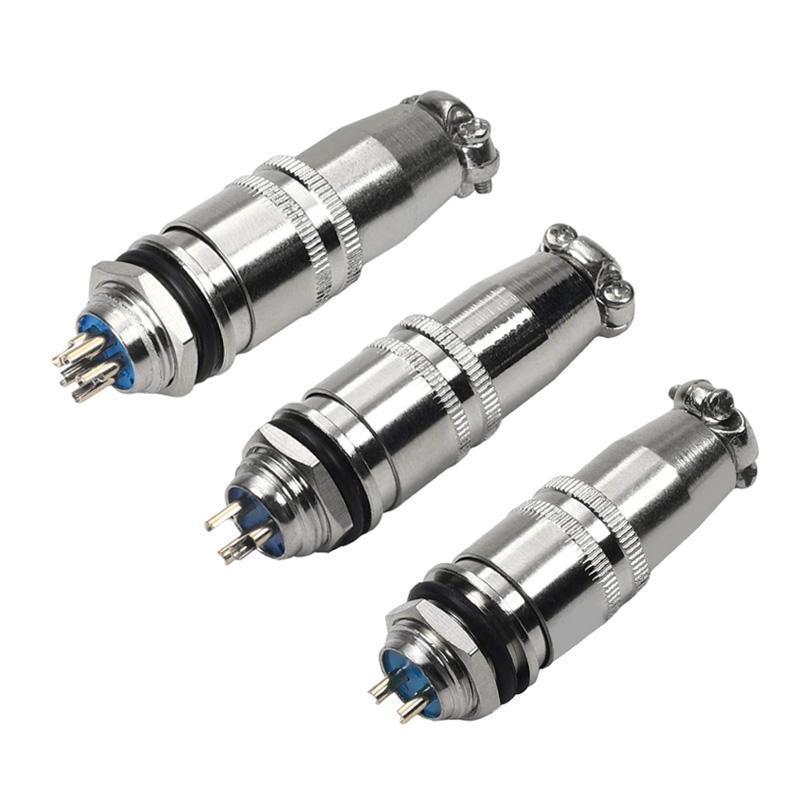

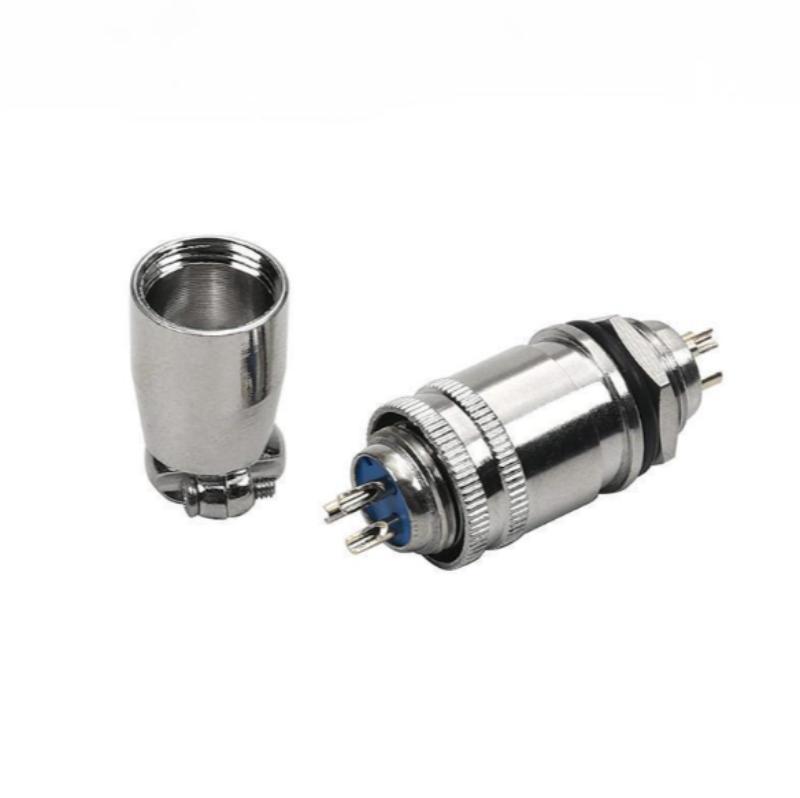

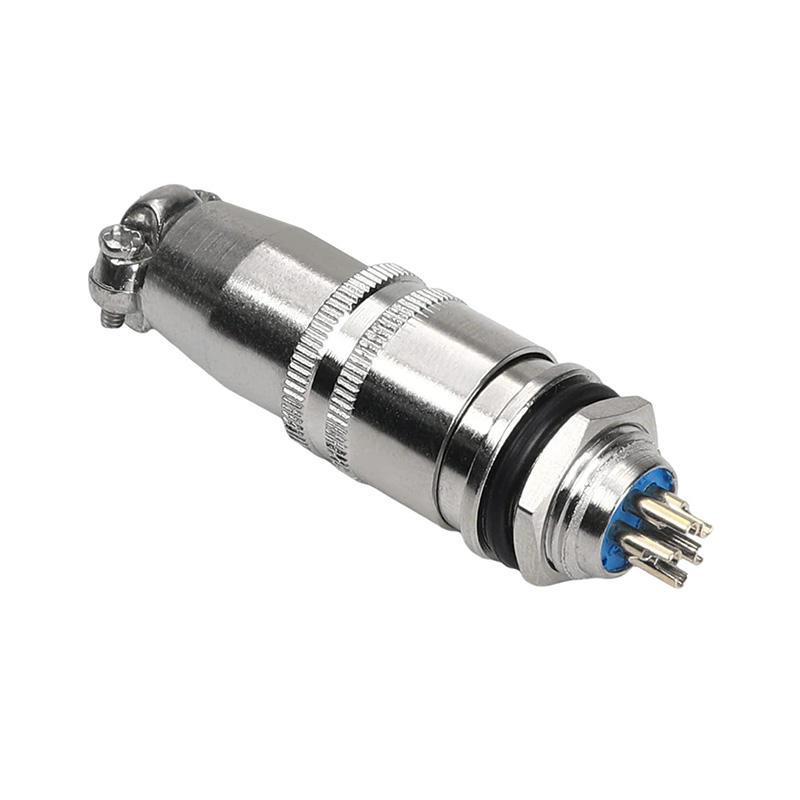

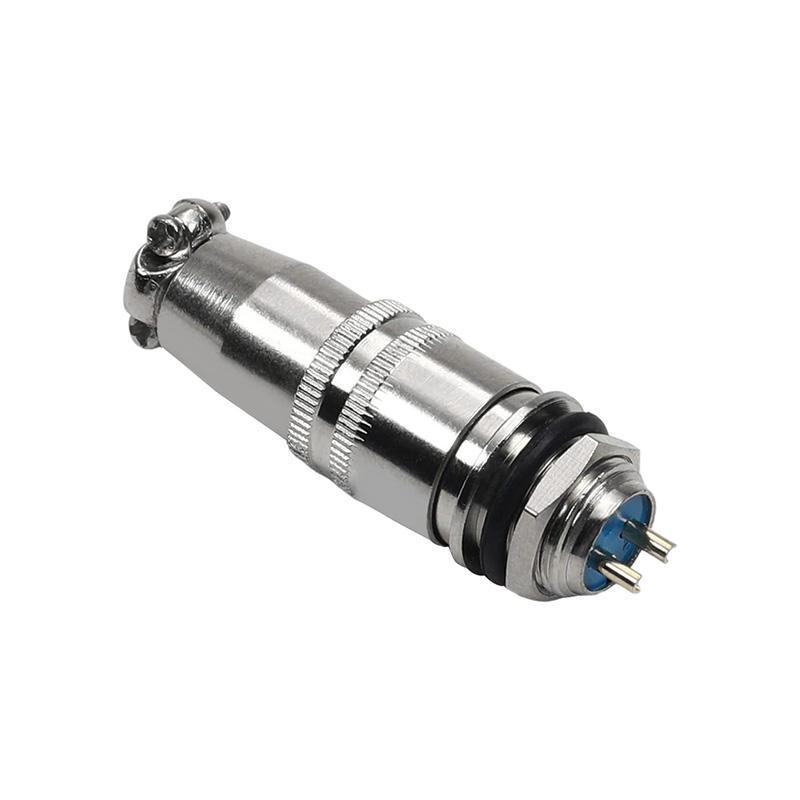

The XS10 2-4 pin aviation circular connector is designed for industrial automation, control systems, and machinery that require reliable power and signal transmission in a compact circular interface. Its push-pull self-locking mechanism and copper housing are engineered for repeated mating and demanding environments.

Selecting the Right XS10 Configuration

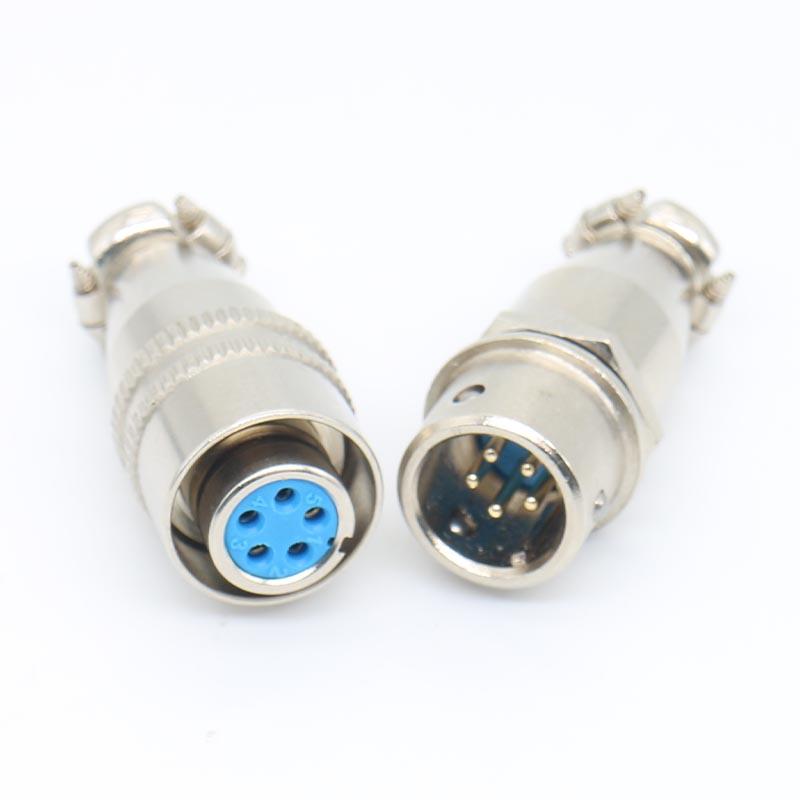

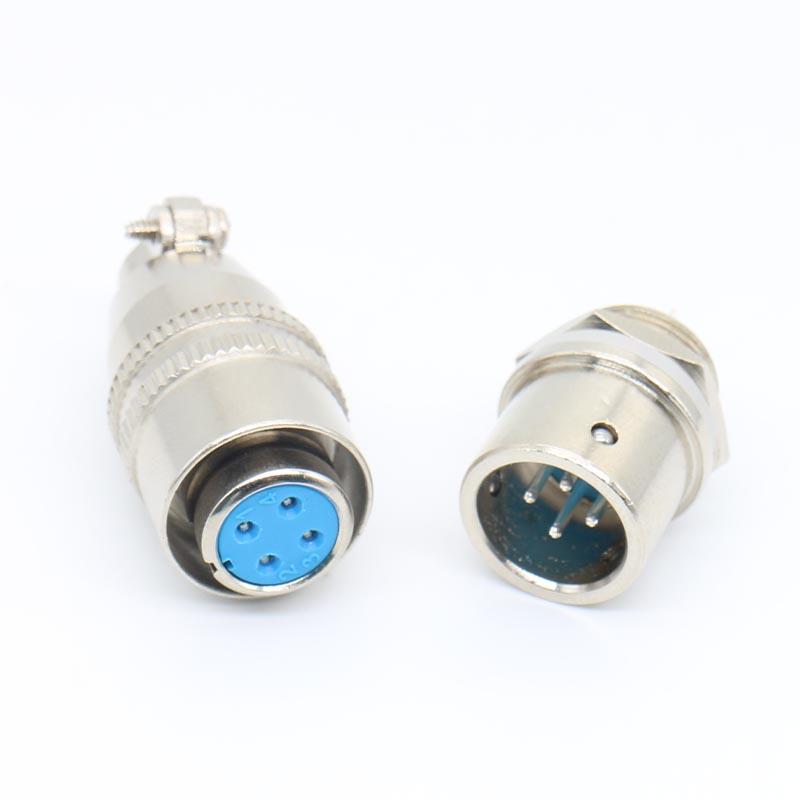

Choose the XS10 based on your circuit count and gender requirements. The series supports 2, 3, or 4 cores in male or female versions, allowing you to match your cable and panel needs.

• Pin count: 2-4 pin options for power, signal, or mixed circuits.
• Gender: Male or female versions to fit your mating side.
• Locking: Push-pull self-locking for secure, quick connections.
• Housing: Copper construction for durability and conductivity.

Application Fit and Boundaries

The XS10 is suited for industrial power distribution, sensor networks, and machinery control. It is also used in robotics and motion control systems where space is limited.

This connector is not intended for high-vibration applications requiring threaded locking, nor for submersion in liquids. For environments with continuous water exposure, consider a connector with a higher IP rating.

Installation and Mating Considerations

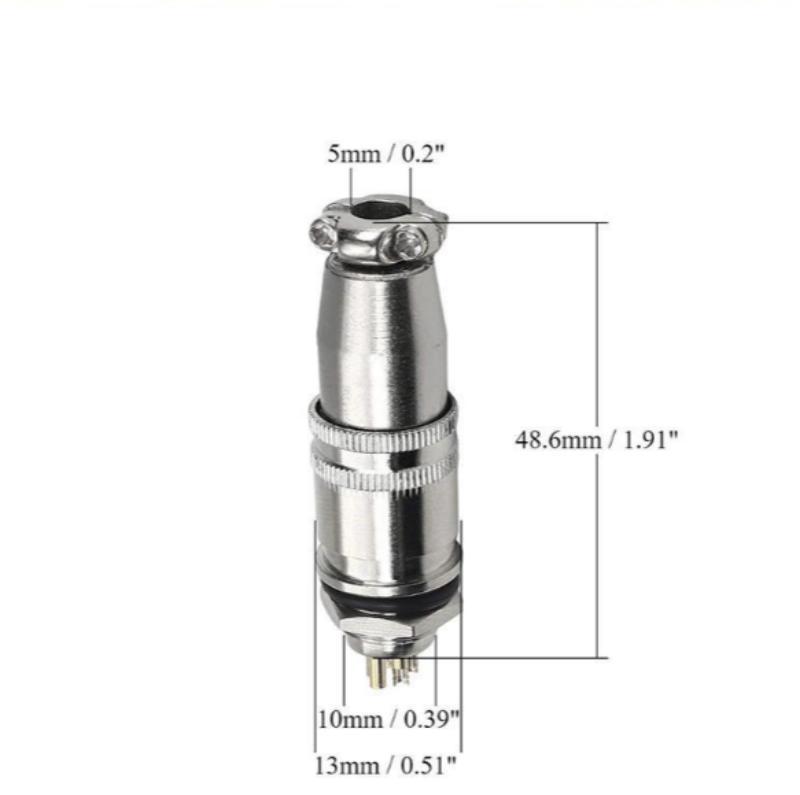

Before ordering, confirm the mating connector gender and pinout. For panel-mount versions, verify the panel cutout dimensions. For cable-mount versions, ensure the cable diameter fits the connector's cable range.

Prepare the cable by stripping the insulation to the recommended length and using the correct crimp tool for the contact size. Always verify the pin assignment against your wiring diagram before final assembly.

Factory Capabilities and Customization

Our factory supports OEM/ODM requests, including custom pin configurations, cable lengths, and shielding. We perform electrical, mechanical, and environmental testing to verify reliability.

For a complete overview of our aviation connector series, see the 12G Series Circular Connectors. For related in-line solutions, review the SP Series Waterproof Wire Connector with Cable.

Inquiry Checklist

To receive an accurate quotation and technical match, please provide the following details:

• Required pin count (2, 3, or 4) and gender (male/female)
• Mating connector type (panel or cable mount)
• Cable outside diameter and conductor size
• Electrical load (current and voltage)
• Environmental requirements (temperature, exposure)
• Order quantity and target delivery date

Contact Us for Samples and Support

We offer samples and technical support for your application. Contact us for factory-direct XS10 solutions with tailored configurations.
