GX12 Connector for Smart Door Access Control Devices

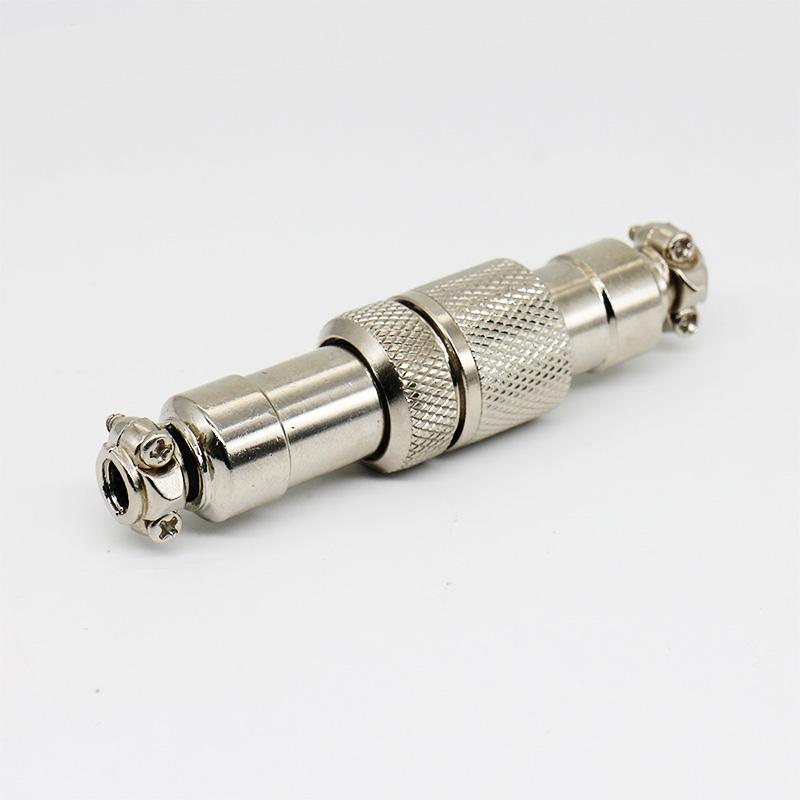

The GX12 connector for smart door access control devices is a compact circular connector designed for reliable electrical connections in smart home security systems. It provides stable signal and power transmission for access control panels, smart locks, and door management devices.

Reliable Connection for Smart Home Security

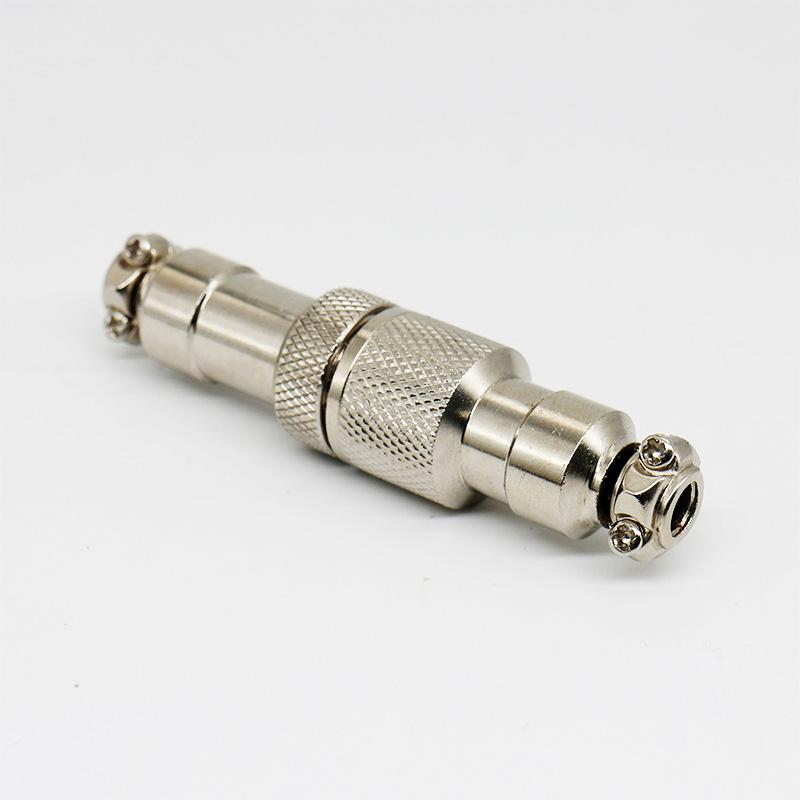

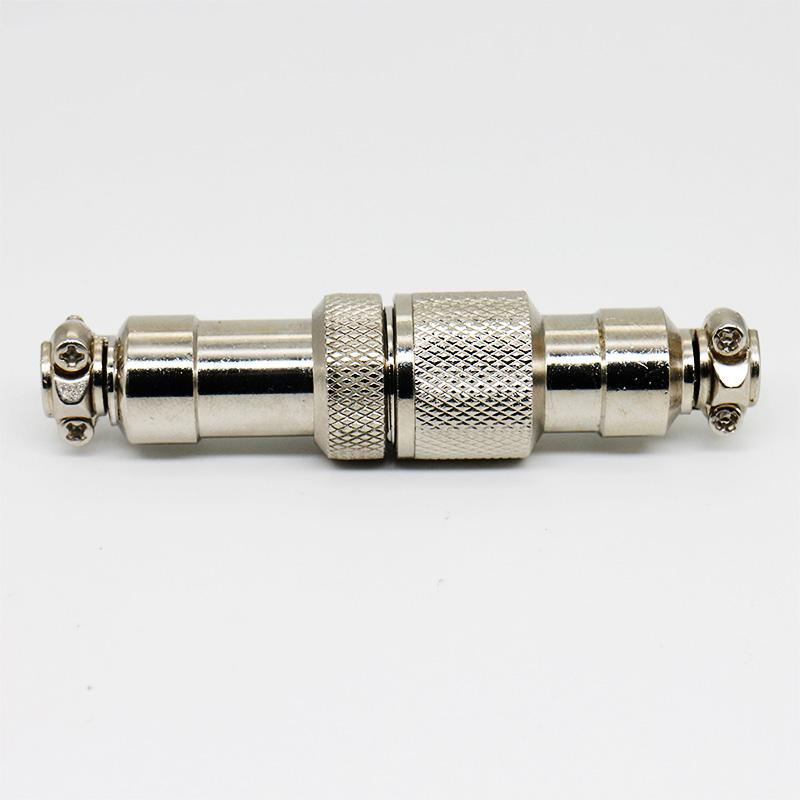

GX12 connectors feature a threaded locking mechanism that ensures a secure and stable connection, preventing accidental disconnection in access control systems. The screw-locking design is particularly suited for installations where vibration or incidental cable pull could otherwise interrupt service.

Durable Structure for Long-Term Use

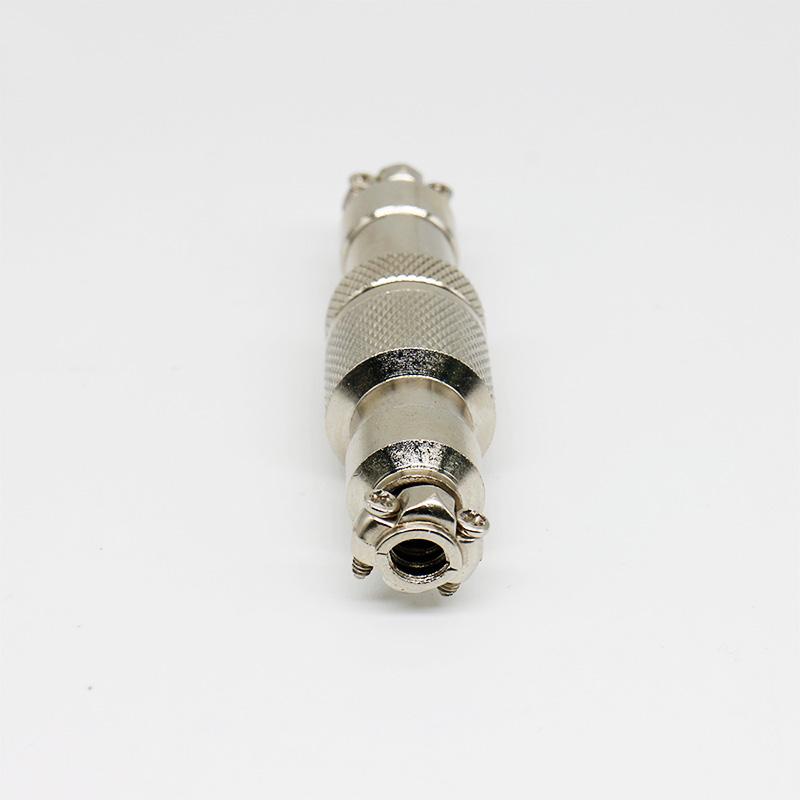

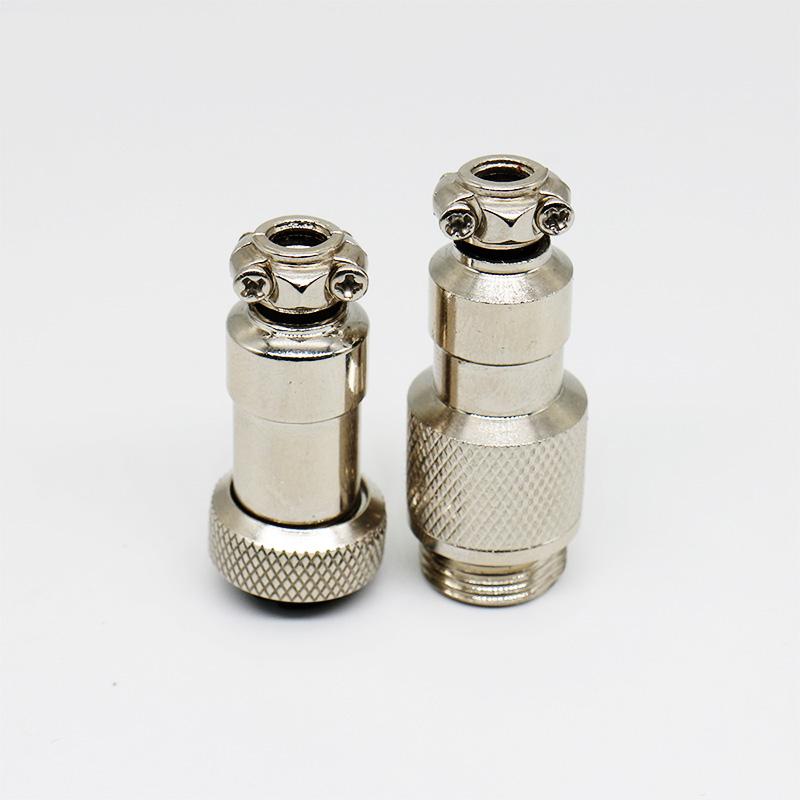

With a high-strength metal shell and quality insulation materials, the GX12 connector offers excellent durability and resistance to wear, making it suitable for continuous operation in smart home devices. The housing is constructed from zinc alloy with nickel plating, while the contacts are brass plated with gold or silver for consistent conductivity.

Ideal for Smart Door Control Equipment

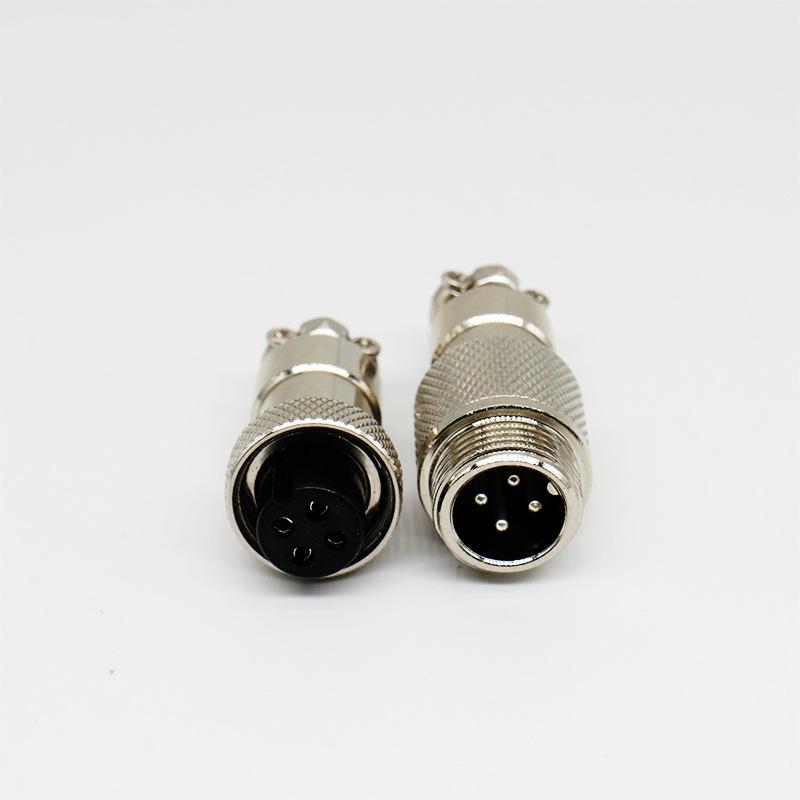

This connector is widely used in smart door access control devices, intercom systems, security panels, and other home automation equipment that require reliable electrical connectivity. It is available in 2 to 7 pin configurations with male or female gender options to match your device layout.

Selection Considerations

• Pin count: Confirm the number of signal and power lines your access control board requires before selecting a 2-7 pin variant.
• Gender and mounting: Determine whether your panel needs a male or female connector and whether cable or chassis mounting fits the enclosure design.
• Environmental fit: The metal-shell construction suits indoor security panels; verify if your installation area demands additional protection beyond the connector's standard design.

Application Boundaries

This GX12 connector is appropriate for indoor smart door access control, intercom, and security panel wiring. It is not intended for outdoor exposed installations, high-vibration industrial machinery, or high-current power distribution without prior engineering review.

Inquiry Checklist

When requesting a quote or sample, please provide the following details to ensure correct matching:

• Required pin count and gender (male/female)
• Cable diameter and conductor size for your application
• Panel cutout dimensions or mounting style preference
• Operating environment and expected mating cycles

For related connector options in smart home systems, review the GX16 connector for smart home security control panels or consult the connector selection guidance for home smart door locks.
