GX16 Connector for Smart Home Security Control Panels

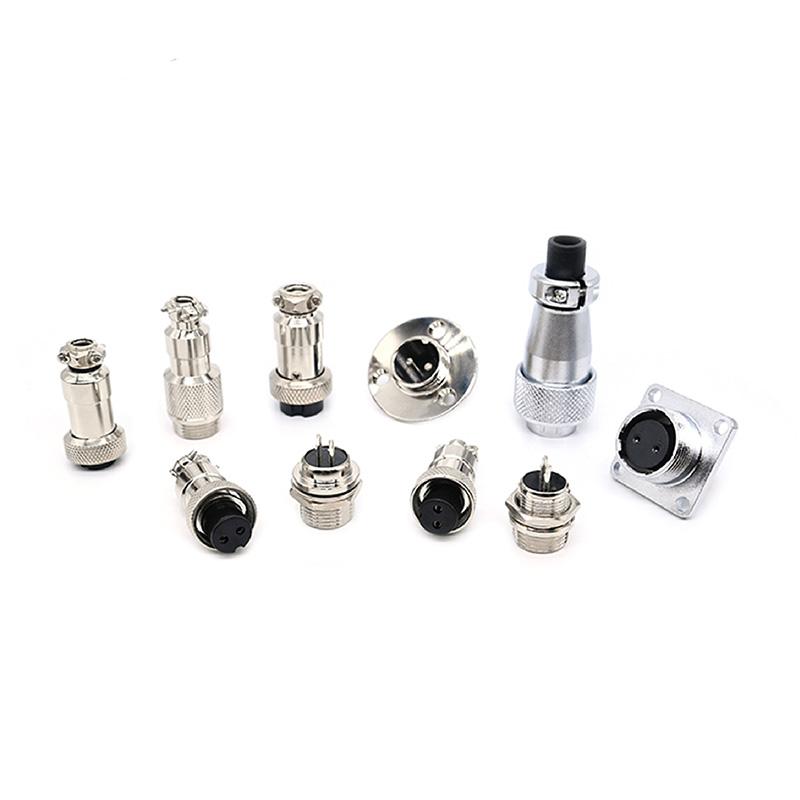

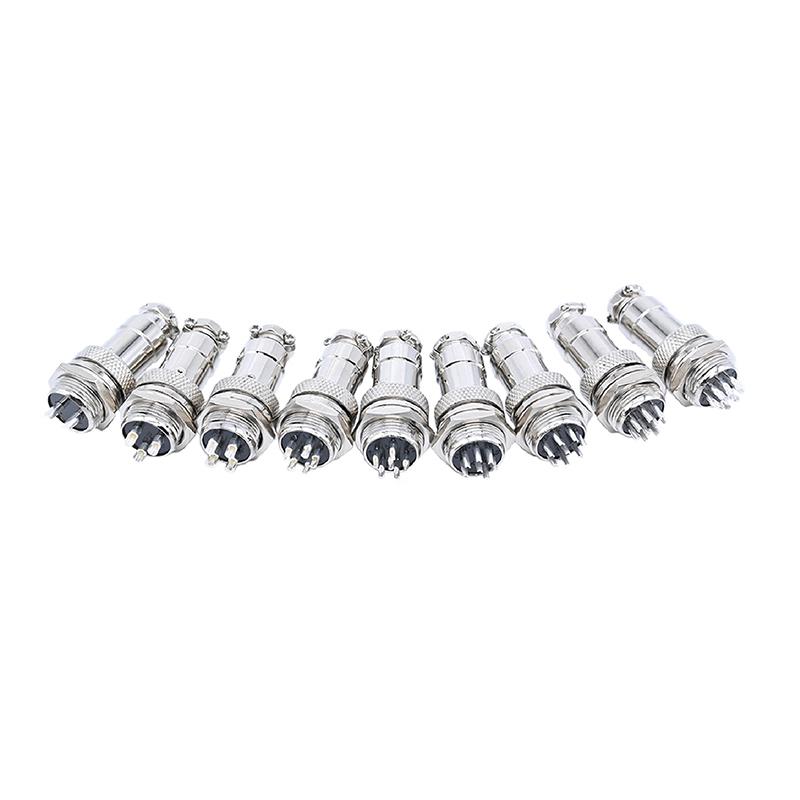

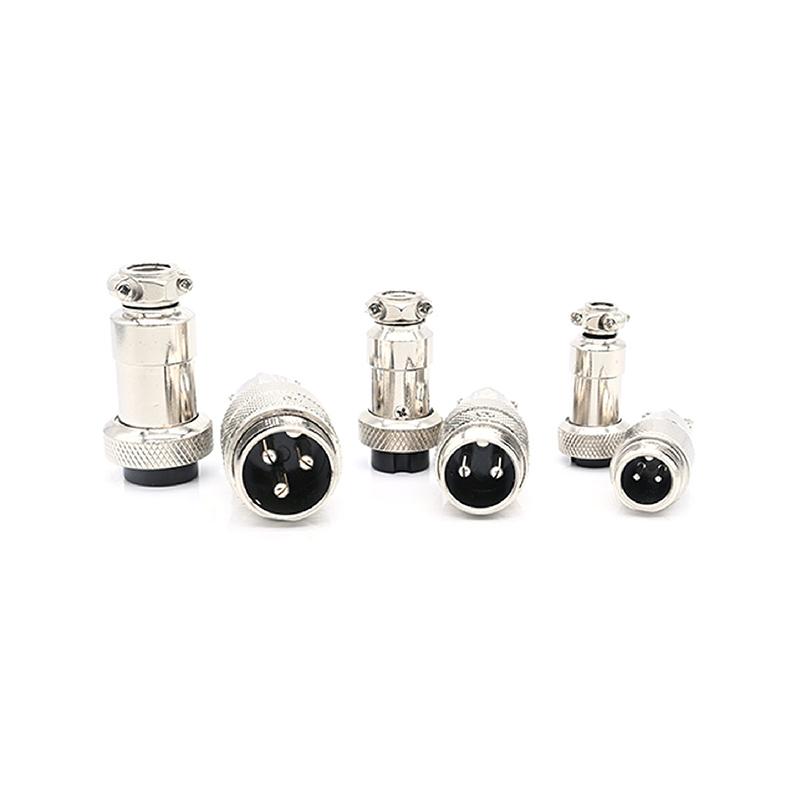

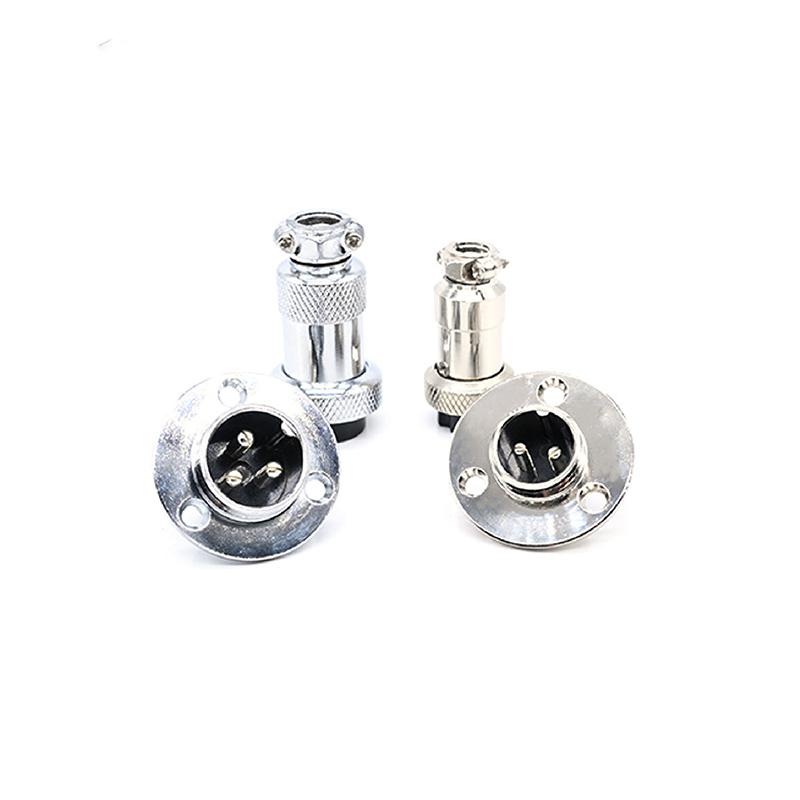

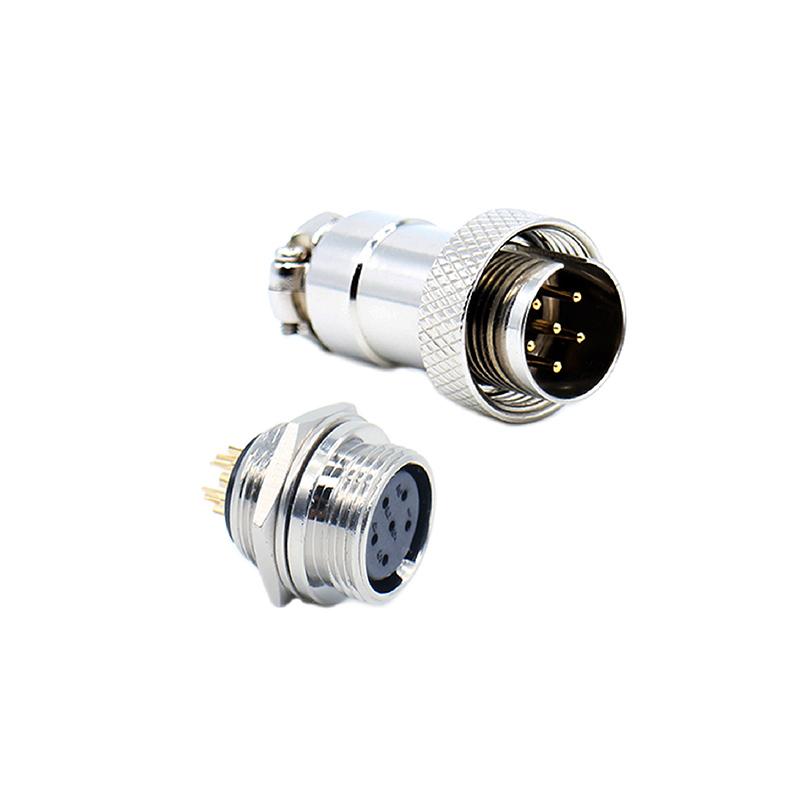

The GX16 connector is a circular interconnect engineered for smart home security control panels, where stable signal and power transfer directly affect system reliability. Its zinc alloy housing with nickel plating and screw-locking mechanism provides a secure, vibration-resistant connection suitable for wall-mounted and panel-mounted equipment.

Why the GX16 Fits Security Control Panel Designs

Security panels demand connections that stay intact during installation, routine servicing, and everyday operation. The GX16 addresses these needs through a combination of mechanical and electrical characteristics:

• Secure mating: Threaded screw locking prevents accidental disconnection from vibration or cable strain.
• Durable shell: Zinc alloy housing with nickel plating resists corrosion and mechanical wear in indoor control environments.

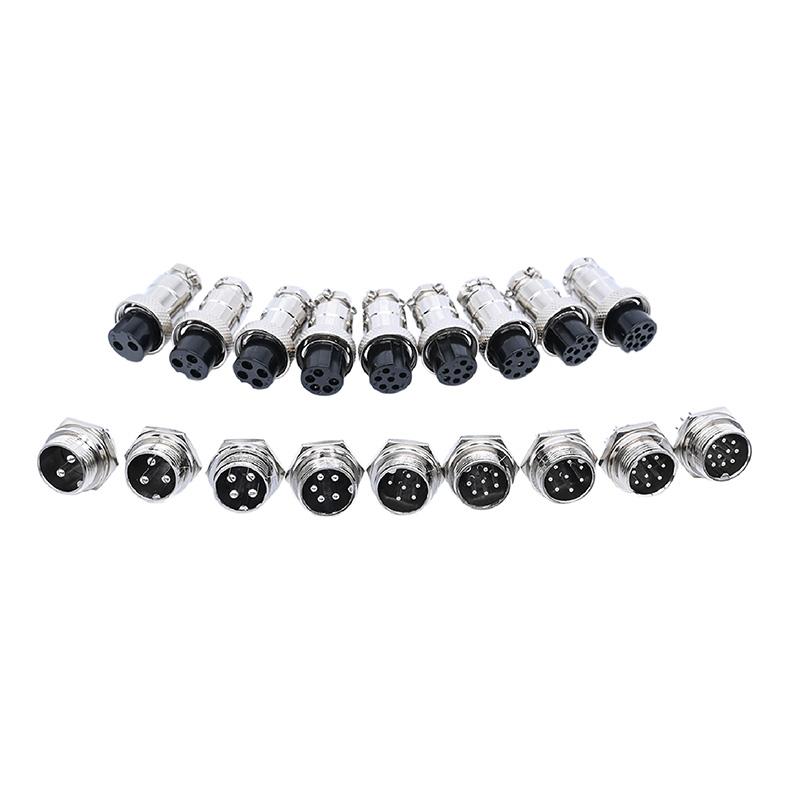

• Flexible pin options: Available in 2 to 8 pin configurations to match different sensor, alarm, and power line requirements.
• Compact footprint: Circular form factor suits space-constrained control panel enclosures and PCB or panel mounting.

Typical Applications in Smart Home Security

This connector is commonly specified for interconnections between control panels and peripheral devices, including:

• Security alarm controllers and keypads
• Door and window sensor wiring
• Access control readers and locks
• Home automation hubs and relay modules

For similar low-power smart home interconnects, the GX12 connector for smart door access control devices offers an alternative form factor worth comparing.

Selection Considerations Before Ordering

To ensure the correct GX16 variant for your control panel, confirm the following with your design team or supplier:

• Pin count and gender: Determine the number of cores required and whether male or female contacts are needed on the panel side versus the cable side.
• Cable entry: Verify the cable diameter and whether a straight or right-angle cable exit fits your enclosure layout.
• Termination method: Confirm whether solder, crimp, or PCB termination suits your assembly process.
• Environmental exposure: Although suited to indoor control panels, confirm whether the mounting location requires additional strain relief or sealing.

Installation and Wiring Guidance

Proper installation is essential for long-term connection integrity. When integrating the GX16 into a security control panel:

• Ensure the mating halves are fully threaded and tightened to the recommended torque to avoid partial engagement.
• Route cables with adequate bend radius and secure them to prevent pulling force on the connector body.
• Verify pin-to-pin continuity after soldering or crimping before final panel assembly.

When the GX16 Is Not the Right Choice

While the GX16 is well suited to indoor smart home control panels, it may not be appropriate for every application. Consider alternatives if your design requires:

• High-density contacts: A larger circular interface such as the 12G series circular connectors may offer more pins in a similar footprint.
• Outdoor or washdown environments: A connector with a higher ingress protection rating should be evaluated for moisture-prone locations.
• High-current power distribution: Verify the GX16 current rating against your load; for higher currents, a dedicated power connector is recommended.

Information to Include in Your Inquiry

To receive an accurate quotation and sample recommendation, please provide the following details:

• Required pin count and gender (male/female)
• Cable outer diameter and conductor size
• Termination preference (solder, crimp, or PCB)
• Panel thickness and mounting hole dimensions
• Operating environment and expected mating cycles

For a broader overview of available options, you may also request the industrial connector catalog to compare series before finalizing your design.
