SY Series Circular Connectors for Home Security Systems in Canada

Project Background

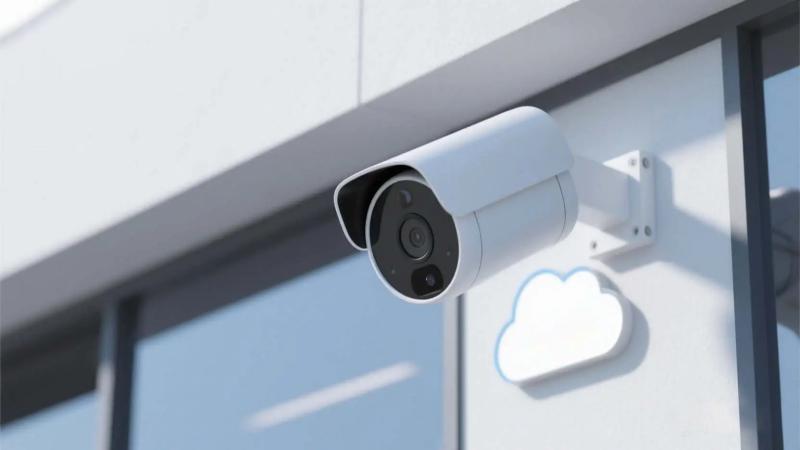

Home security systems in Canada integrate surveillance cameras, door and window sensors, and alarm panels to protect residential properties. These systems must operate reliably across varied indoor and semi-outdoor conditions, including damp basements, garages, and covered entryways. Dependable power and signal connections are essential to maintain uninterrupted monitoring and alarm response.

Customer Requirement

The installation project required a connector solution that could support both power delivery and signal transmission for multiple security devices. Key requirements included a secure locking mechanism to prevent accidental disconnection, environmental sealing suitable for semi-outdoor locations, and a compact form factor that fits within the limited space of camera housings and sensor enclosures.

Connector Solution

SY series circular connectors, specifically the SY17 and SY21 models, were selected for this application. These connectors are used for:

• Connecting security cameras to control units
• Powering motion and contact sensors
• Wiring alarm and monitoring devices to central panels

The SY series features a bayonet locking mechanism, which provides a quick yet secure connection that resists vibration and accidental pull-out. With an IP67 rating, these connectors maintain performance even in damp or semi-outdoor environments commonly found in residential installations.

Commissioning and Delivery

During the commissioning phase, each connection point was verified for proper mating and sealing. The bayonet coupling allowed installers to confirm a positive lock by audible and tactile feedback, reducing installation time. The IP67 sealing was checked at cable entry points and panel interfaces to ensure protection against moisture ingress. All devices powered and communicated correctly through the SY connectors during system testing.

Result

The SY series circular connectors provided a reliable and flexible wiring solution for the home security system. The secure locking design and environmental sealing met the project's requirements for dependable operation in residential settings. For similar installations requiring robust circular connectors, the 12G Series Circular Connectors offer an alternative with comparable sealing performance. For guidance on selecting between compact connector sizes for security cameras, refer to this M8 vs M12 connector selection FAQ.
