SP13 Circular Connector for Home Energy Monitoring Devices

SP13 Connector for Home Energy Monitoring Devices

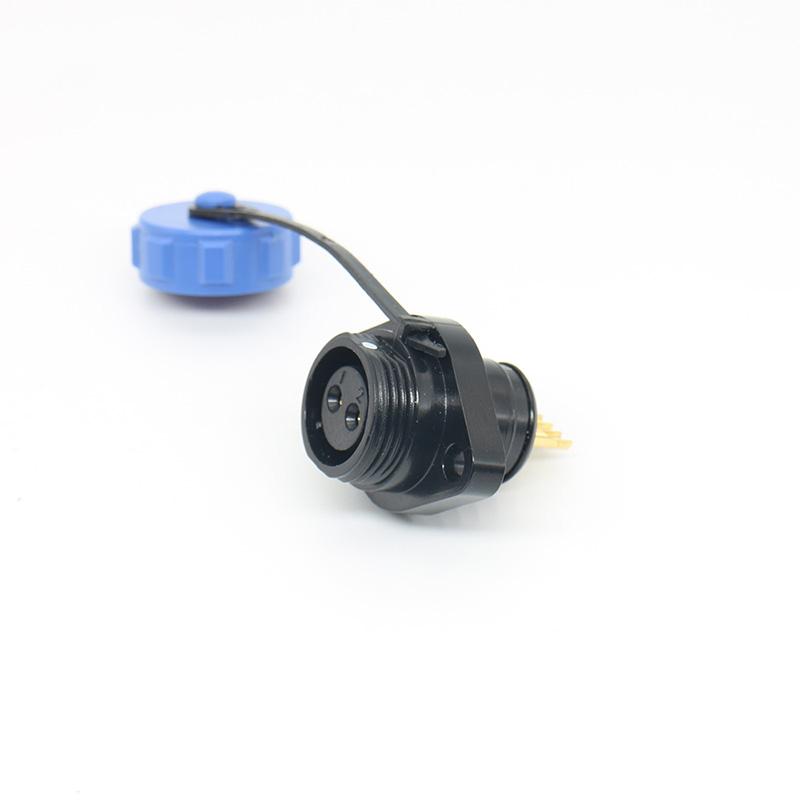

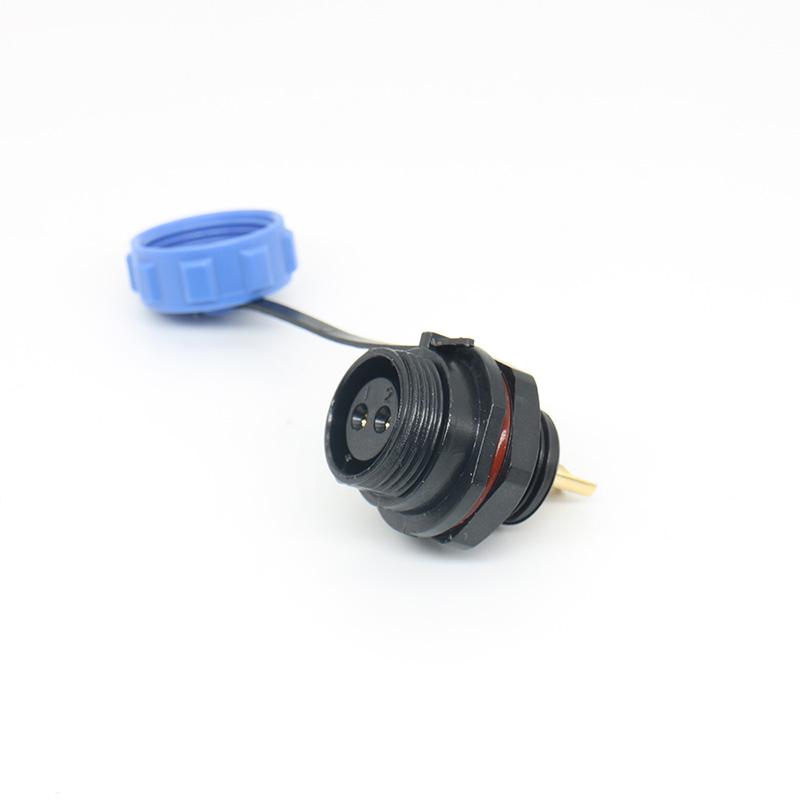

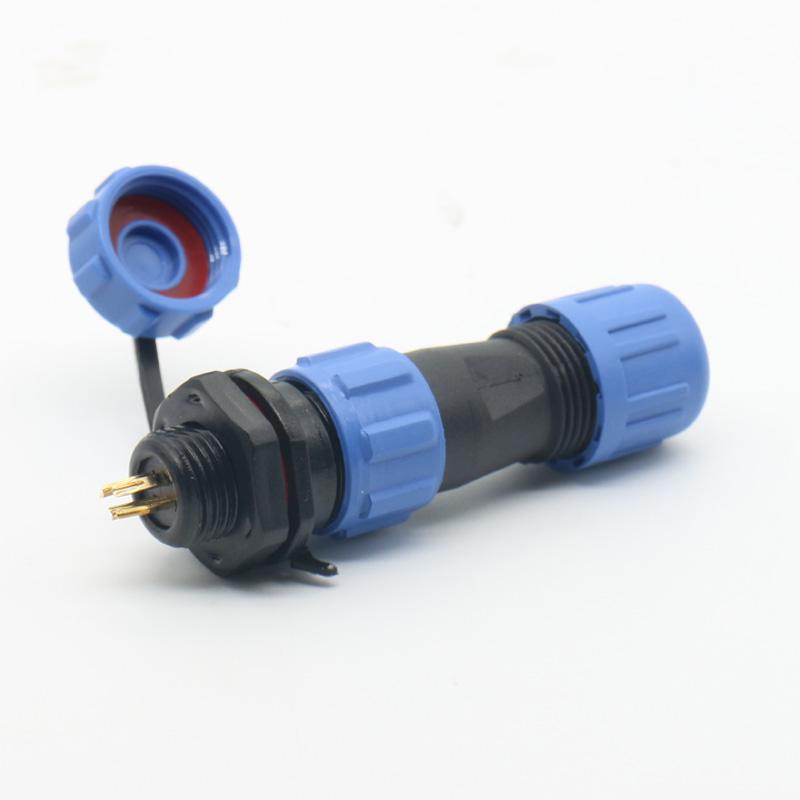

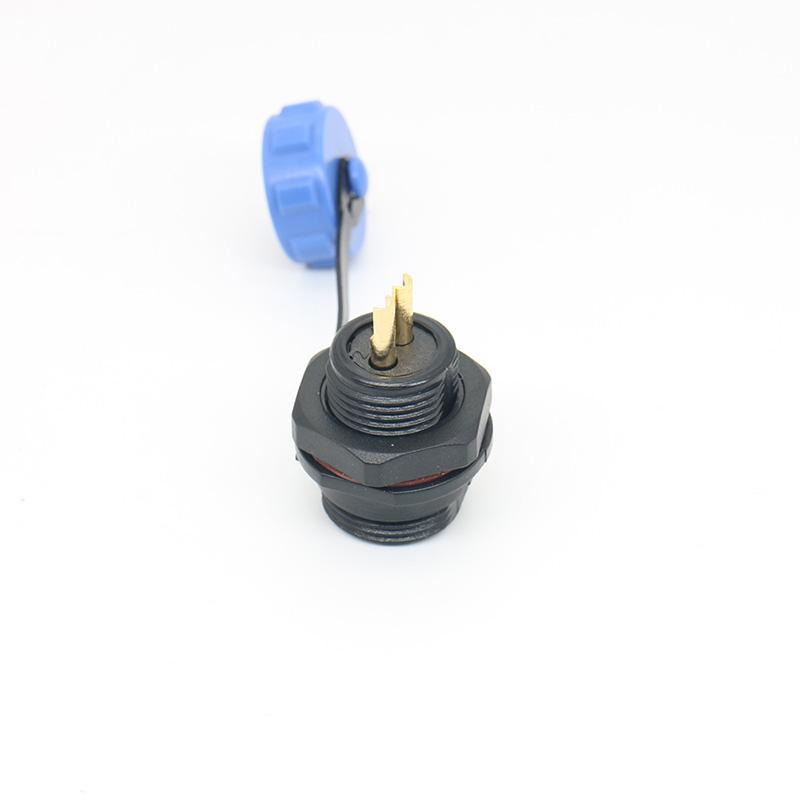

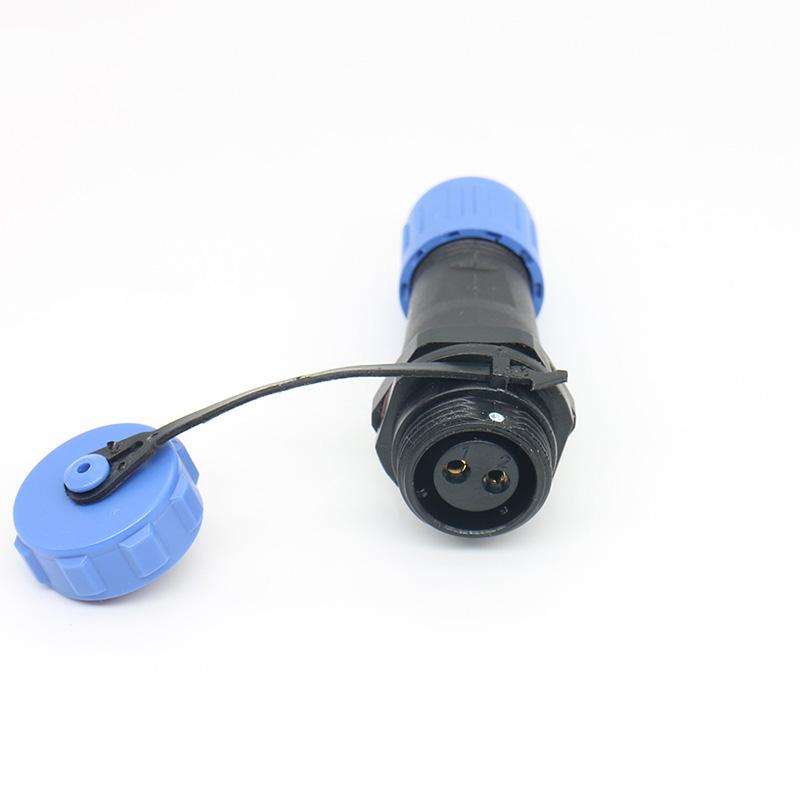

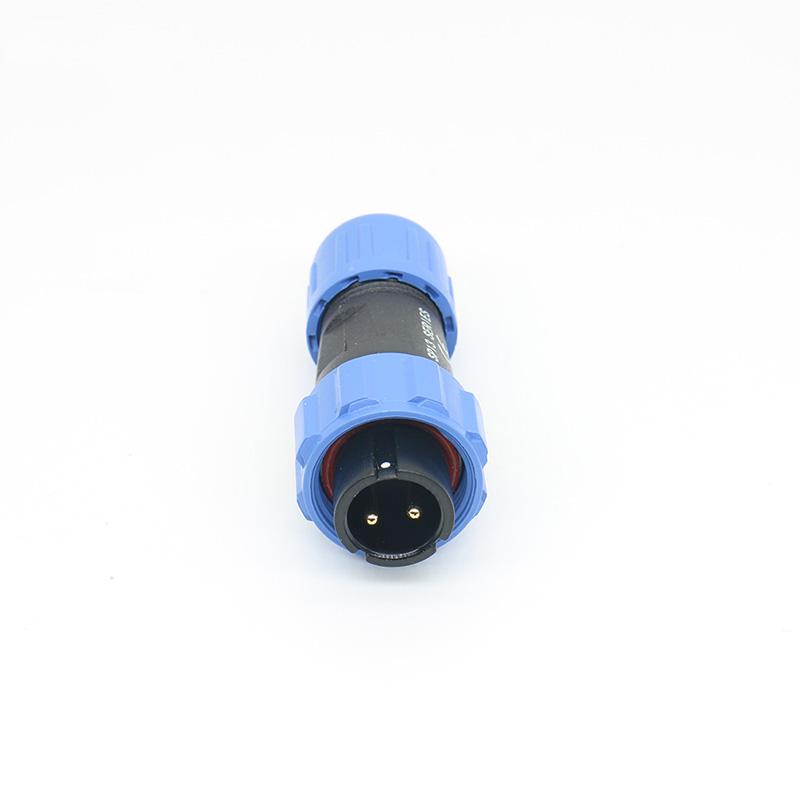

The SP13 connector is a compact circular docking connector engineered for stable electrical connections in smart home energy monitoring systems. It is commonly integrated into smart energy meters, power consumption monitoring modules, and home automation control units where reliable signal and power transmission are essential for accurate data collection.

Key Selection Criteria for Your Monitoring Application

When evaluating the SP13 for your energy monitoring device, consider these decision points:

• Pin configuration: Available in 2 to 9 pin arrangements to match your signal and power requirements.

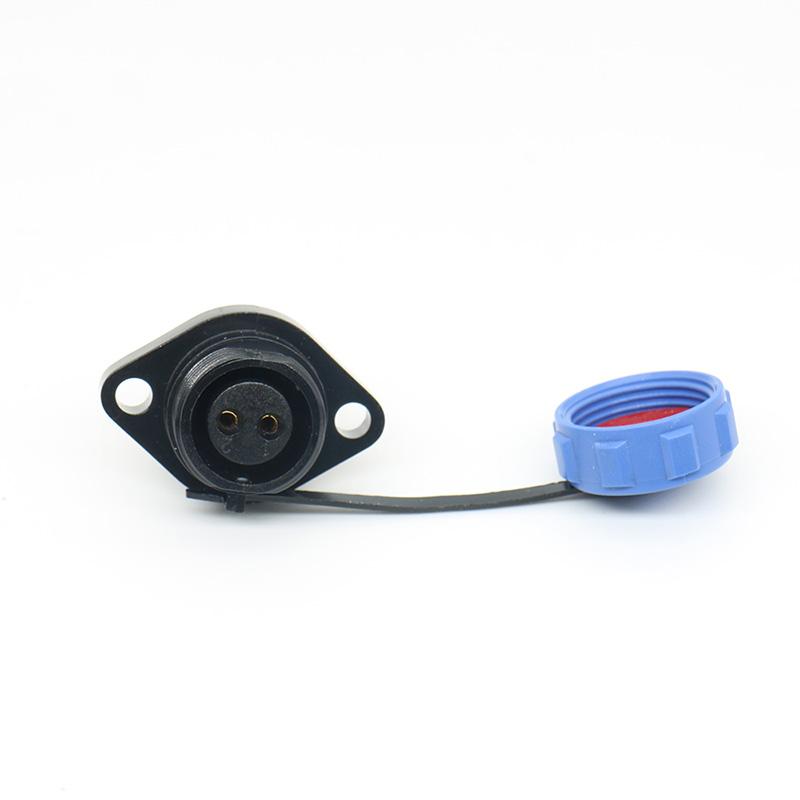

• Gender options: Male and female versions support standard plug-and-socket mating for cable-to-panel or cable-to-cable connections.
• Locking system: Threaded coupling provides a secure, vibration-resistant connection suitable for fixed installations.
• Material compatibility: PC/PA66 housing with PPS insulator and gold-plated brass contacts supports long-term reliability in indoor environments.

Application Fit for Smart Home Energy Systems

The SP13 is designed for compact smart home equipment where space efficiency and dependable connectivity are required. Its small form factor and durable construction make it suitable for energy meters, monitoring modules, and control units that demand stable data communication. For applications requiring higher pin counts or different mounting styles, review the SD13/SP13 Circular Docking Connector series for additional configuration options.

Installation and Maintenance Considerations

The threaded locking mechanism enables quick installation and secure mating while simplifying maintenance access. Before specifying, confirm the required cable diameter, termination method, and whether a panel-mount or cable-mount version fits your enclosure design. For related smart home connectivity needs, the M12 Connector for Smart Home HVAC and Lighting Systems offers an alternative interface for different device layouts.

Suitable and Unsuitable Use Cases

The SP13 is well suited for indoor smart home energy monitoring equipment requiring compact, secure connections. It is not intended for outdoor or high-moisture environments unless additional enclosure protection is provided, as the IP rating is not specified for unmated or exposed conditions. Verify the electrical limits and environmental ratings against your application before finalizing the design.

Information to Include in Your Inquiry

To receive an accurate quotation and configuration support, provide the following details:

• Required pin count and gender (male or female)
• Cable type, conductor size, and outer diameter
• Mounting style: cable, panel, or PCB
• Operating temperature range and environmental conditions
• Target current and voltage per contact
• Any specific housing color or marking requirements

For a complete overview of available connector families, download the Industrial Connector Catalog to compare series and specifications.
