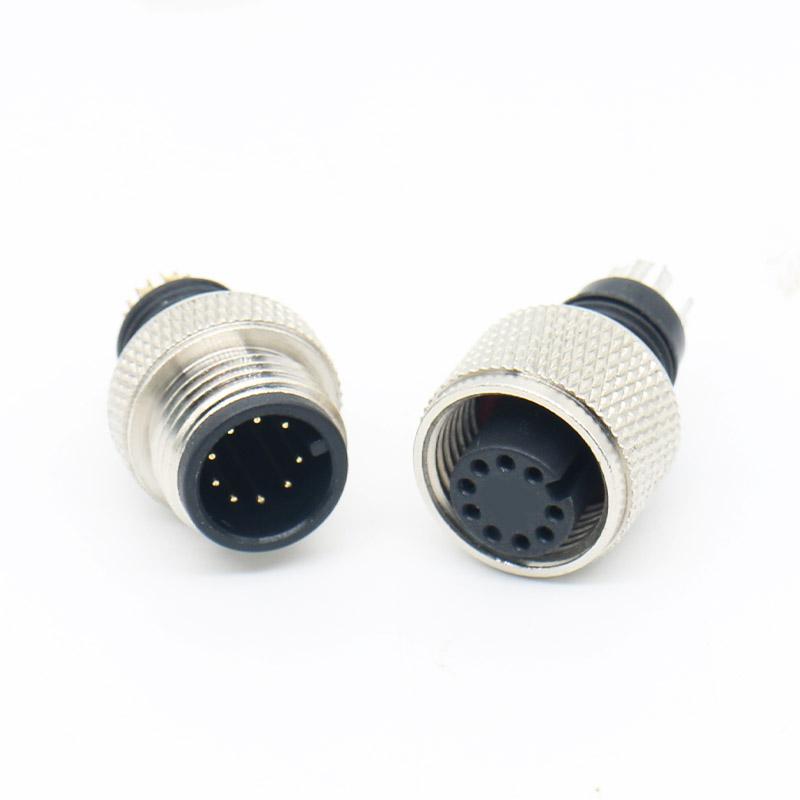

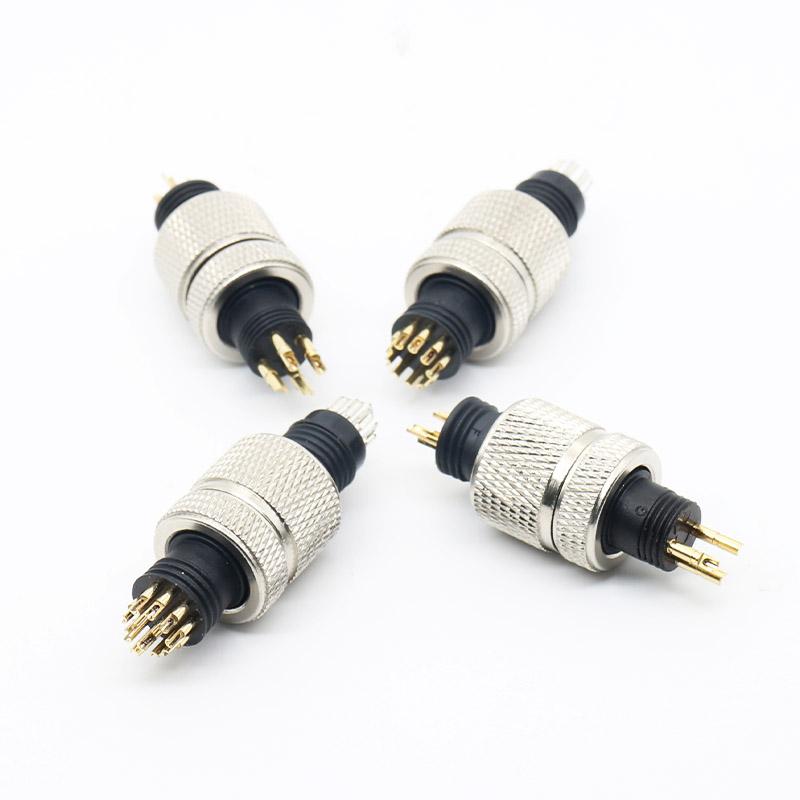

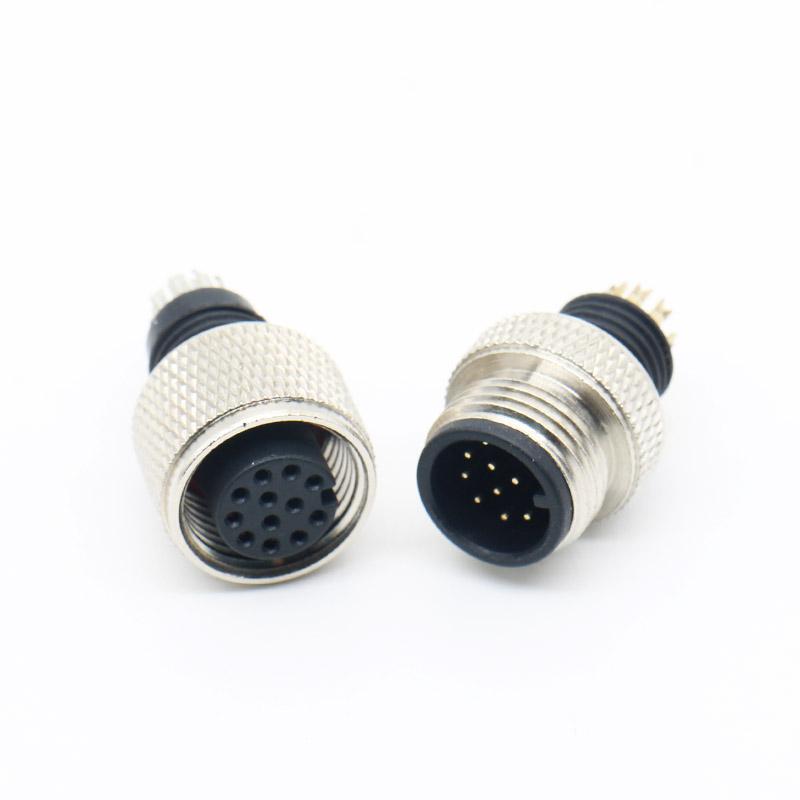

M12 Connector for Smart Home HVAC and Lighting Systems

The M12 connector is designed for smart home systems, providing reliable and secure connections for lighting, HVAC, and other automation devices. Compact and robust, it ensures seamless integration in modern smart homes.

Key Features

• Durable Construction – High-quality materials ensure long-lasting performance.
• Easy Installation – Simple plug-and-play design saves time and effort.
• Versatile Applications – Perfect for smart lighting, HVAC units, and home automation control systems.
• Reliable Connectivity – Maintains stable data and power transmission in demanding environments.

Why Choose This M12 Connector?

Engineered for smart home applications, this connector combines durability, reliability, and ease of use. Ideal for homeowners, installers, and smart home system integrators who demand top performance and seamless connectivity.

Selection Considerations for Your Smart Home Project

When selecting an M12 connector for your smart home deployment, consider the following decision points:

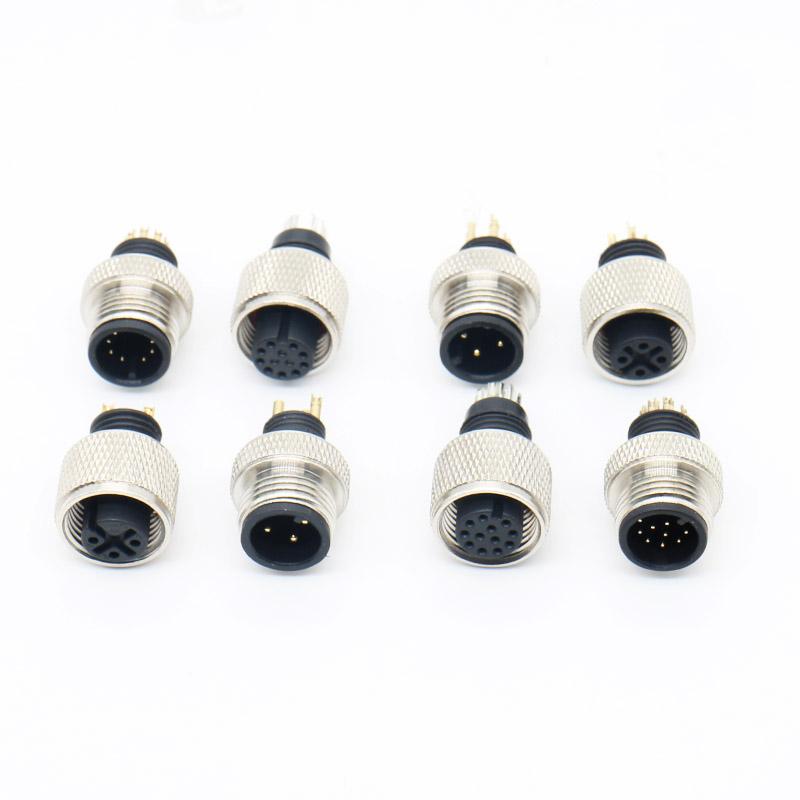

• Pin Configuration – Available in 2 to 17 pin configurations to match your signal and power requirements.

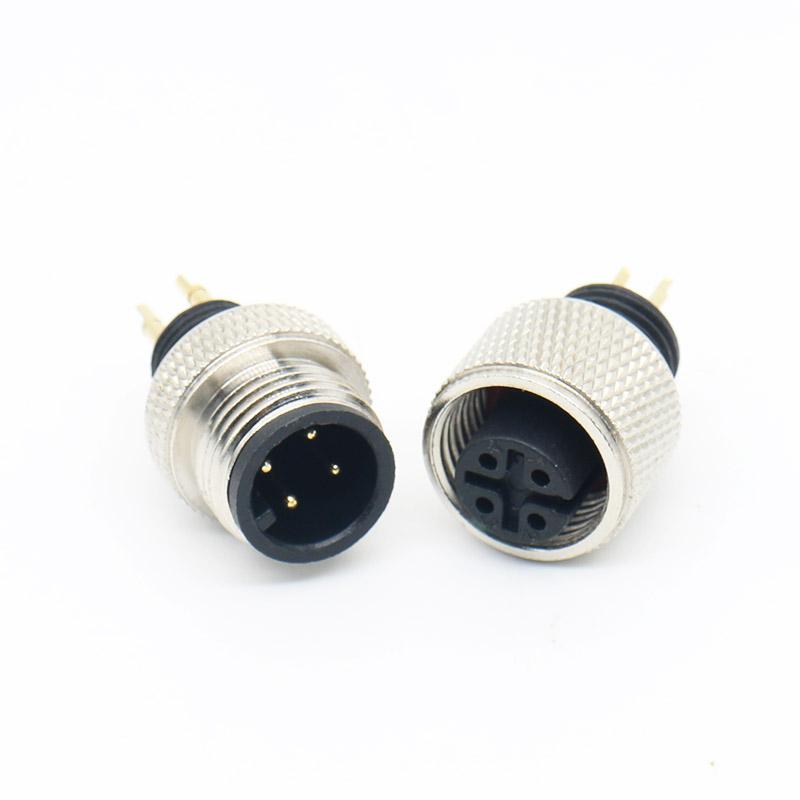

• Gender Selection – Choose male or female variants based on your cable and panel mounting needs.
• Environmental Fit – Verify the housing material (PA66 or nickel-plated brass) suits your installation environment.
• Contact Plating – Silver or gold-plated brass contacts support different signal integrity and corrosion resistance needs.

Application Scope

This M12 connector is well-suited for smart lighting control, HVAC system communication, and home automation networks. Its compact form factor fits space-constrained installations while maintaining dependable connectivity.

Installation and Integration Notes

For proper mating and reliable performance, confirm your cable diameter, termination method, and mounting orientation before ordering. Provide your wiring diagram and pinout requirements so the correct configuration can be matched to your system.

Inquiry Checklist

To receive an accurate quotation and configuration recommendation, please prepare the following information:

• Required pin count and gender (male/female)
• Cable type and conductor size
• Mounting style (panel mount, cable mount, or field-wireable)
• Operating environment (indoor, outdoor, temperature range)
• Electrical requirements (current, voltage, signal type)

Related Resources

For broader connector options, review the Aviation Plug Connectors catalog. For smart lighting applications specifically, see the M8 Connector for Smart Lighting Control Systems.

For detailed technical parameters including pin count, contact diameter, current rating, voltage rating, IP protection, and material specifications, please refer to the Technical Specifications section. Contact our engineering team with your project requirements for configuration assistance.
