SMA RF Connector for 5G Small Cell Base Stations in Spain

LD20/SP20 Heavy-Duty Square Connector

Project Background: 5G Small Cell Deployment in Spain

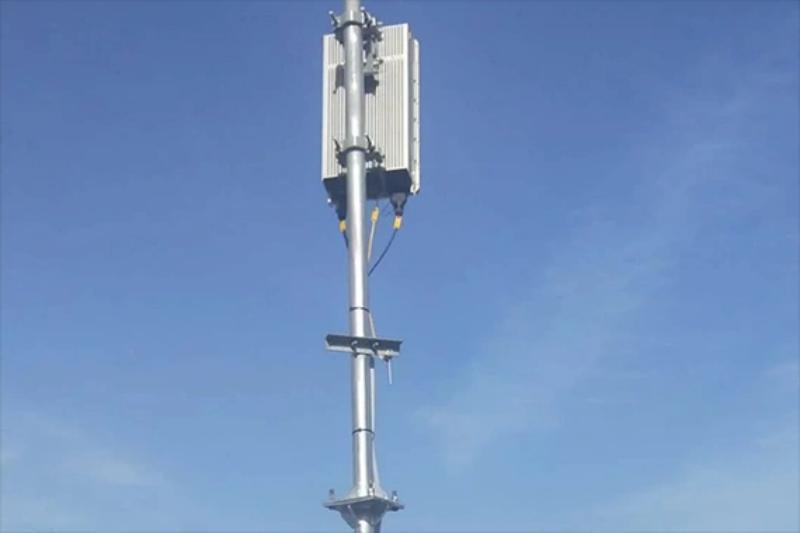

In Spain, the expansion of 5G networks has driven the deployment of small cell base stations across urban environments. These compact units are typically installed on streetlights, building facades, and public infrastructure to enhance signal coverage and increase network capacity in densely populated areas. The shift toward small cell architecture reflects the need for higher data throughput and lower latency in metropolitan zones.

Interface and Environmental Requirements

Within these small cell systems, the SMA RF connector serves as a critical interface for connecting RF modules, antennas, and signal transmission cables. The connector must support high-frequency communication signals while fitting within the compact enclosures typical of small cell equipment. Space constraints in these installations make component size and layout key factors in the selection process.

Connector Solution: SMA RF Connector

The SMA connector's compact design enables efficient integration into space-limited enclosures without compromising signal path integrity. Its threaded coupling mechanism provides secure mating between components, which helps reduce the risk of signal interruption caused by vibration or environmental factors commonly encountered in outdoor urban installations.

Verification and Delivery Process

Before deployment, sample connectors were evaluated against the project's electrical and mechanical specifications. Configuration details, including interface dimensions and mating requirements, were confirmed with the engineering team. The connectors were then supplied for installation in the small cell units, with attention to proper torque application during assembly to ensure consistent RF performance.

Verified Results

The SMA RF connectors supported stable RF connections between the RF modules and antennas, helping maintain consistent communication performance in the deployed small cell units. The threaded interface provided reliable retention in outdoor mounting positions where vibration resistance is required.

For related RF interconnection solutions used in telecom infrastructure, see our Aviation Plug Connectors or review the RF Connectors for 5G Base Station Antenna Systems in Czech Republic case study.

If you are selecting RF connectors for small cell or similar telecom equipment, contact our engineering team with your frequency range, power handling, and environmental protection requirements to confirm the appropriate connector configuration.
