SP16 Connectors
< >

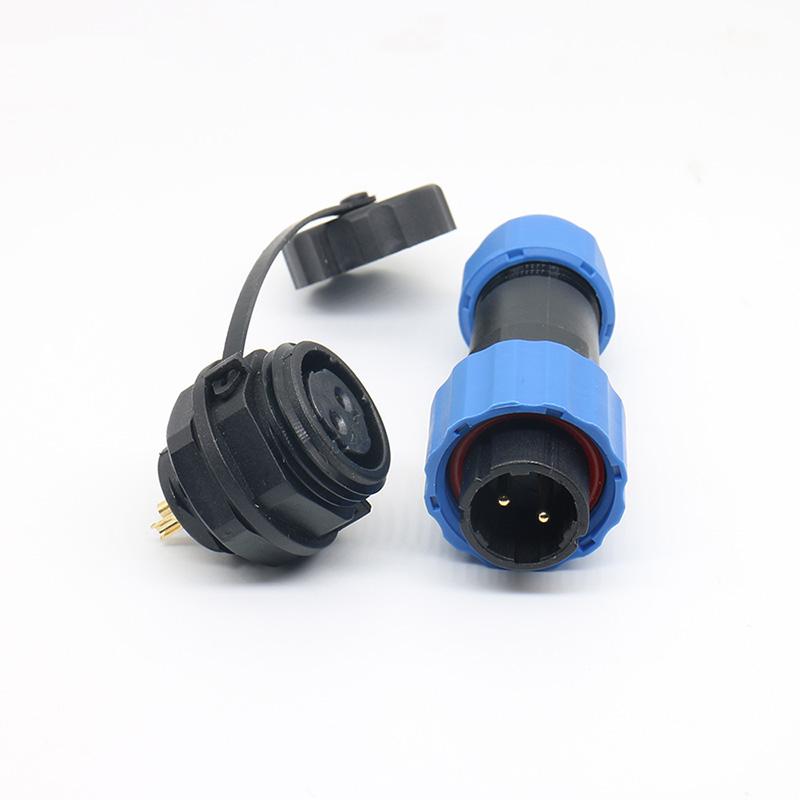

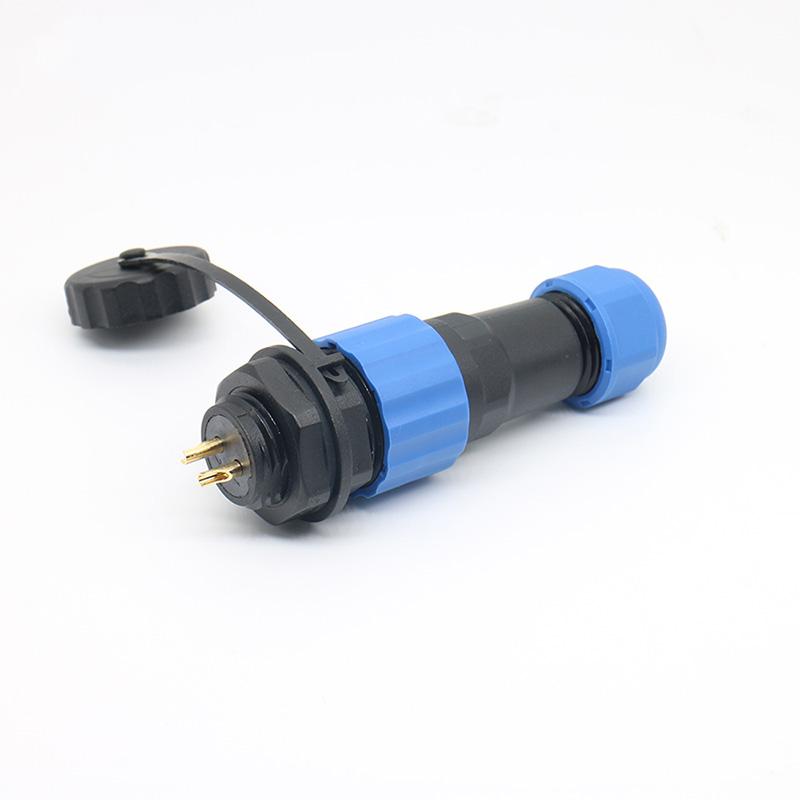

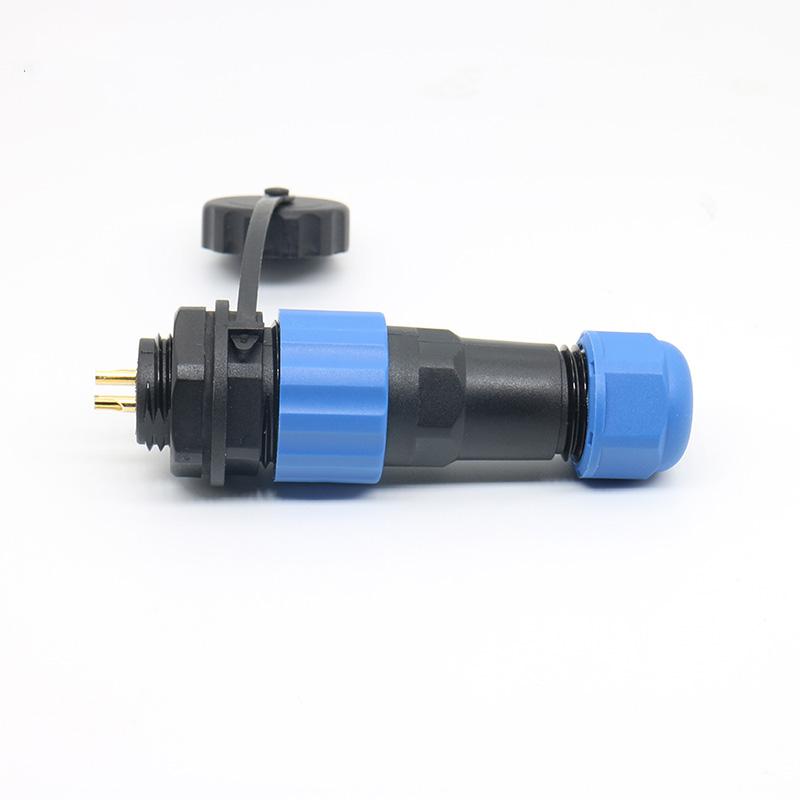

SD16/SP16 Cable Mount Connector Cable Aseembly

>Number Of CoresNumber Of Cores 2 - 9Pins
Contact DiameterContact Diameter(mm) 1.0mm/1.8mm
IP RatingIP Rating IP68
Shell MaterialShell Material Thermoplastic PA66/PA6
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Welding
Rated CurrentRated Current(A) 5A/10A
Rated VoltageRated Voltage(Ac.V) 250V/380V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

SD16 / SP16 Panel Mount Connector - Stable IP68 Rated Equipment Interface Solution

The SD16 / SP16 Panel Mount Connector is designed as a fixed interface solution for industrial equipment, providing a reliable and organized connection point between internal circuits and external systems. It is widely used in applications where stable installation, long-term durability, and structured wiring management are required.

Connectors

Unlike cable-side connectors, this panel mount version is intended to be permanently integrated into equipment housings, becoming a standardized connection port for power and signal access.

Built for Equipment Integration and System Structuring

In modern industrial design, separating internal wiring from external connections is essential for safety, maintenance, and system clarity. The SD16/SP16 panel mount connector helps achieve this by providing a clear, stable, and serviceable interface on the equipment panel.

Connectors

It allows engineers to:
Standardize external connection points
Improve equipment maintenance efficiency
Reduce internal wiring complexity
Enhance overall system reliability

Key Features
Secure Panel Mount Design
The connector is firmly fixed to the equipment panel, ensuring stable mechanical performance and reducing loosening risk caused by vibration or long-term operation.
Reliable Electrical Transmission
Precision contact design ensures stable conductivity for both power and signal applications.
Compact SD16 / SP16 Structure
Optimized size allows integration into space-limited equipment without compromising strength or performance.
Flexible Pin Options
Supports multiple pin configurations depending on system requirements, suitable for different industrial applications.
Industrial-Grade Durability
Designed for continuous operation in demanding environments such as automation systems, control equipment, and outdoor devices.

Manufacturing Strength Behind the Product

We are a professional connector manufacturer with more than 15 years of experience in waterproof connectors and cable assembly solutions.

Connectors

Our factory operates a fully integrated production system, including:
Mold design and tooling development
Zinc alloy die-casting
CNC precision machining
Injection molding
Connector assembly and integration
Connectors
This in-house manufacturing capability ensures consistent quality control, stable production capacity, and fast response to customer requirements.

Strict Quality Control System
Every SD16/SP16 panel mount connector is tested before shipment to ensure reliability:
Electrical conductivity and continuity testing
Mechanical strength and stability verification
Plugging cycle durability testing
Dimensional accuracy inspection

Environmental performance evaluation

Connectors

All products are manufactured under ISO9001 quality management standards and comply with international requirements such as CE and RoHS.
Connectors
Customization Support for Industrial Applications
We provide flexible customization services, including:
Pin configuration adjustment
Material and structure optimization
Cable integration solutions
Application-specific interface design
Our engineering team supports customers from design stage to mass production.

Typical Applications
Industrial control systems
Automation equipment
Power distribution units
Communication devices
Smart manufacturing systems
Outdoor electronic equipment

A Reliable Panel Interface for Industrial Systems
The SD16/SP16 panel mount connector is designed to provide a stable, standardized, and long-lasting equipment interface, helping improve system structure and maintenance efficiency.

Contact Us
We provide samples, technical drawings, and customized solutions.
Contact us today for professional support and competitive quotations.

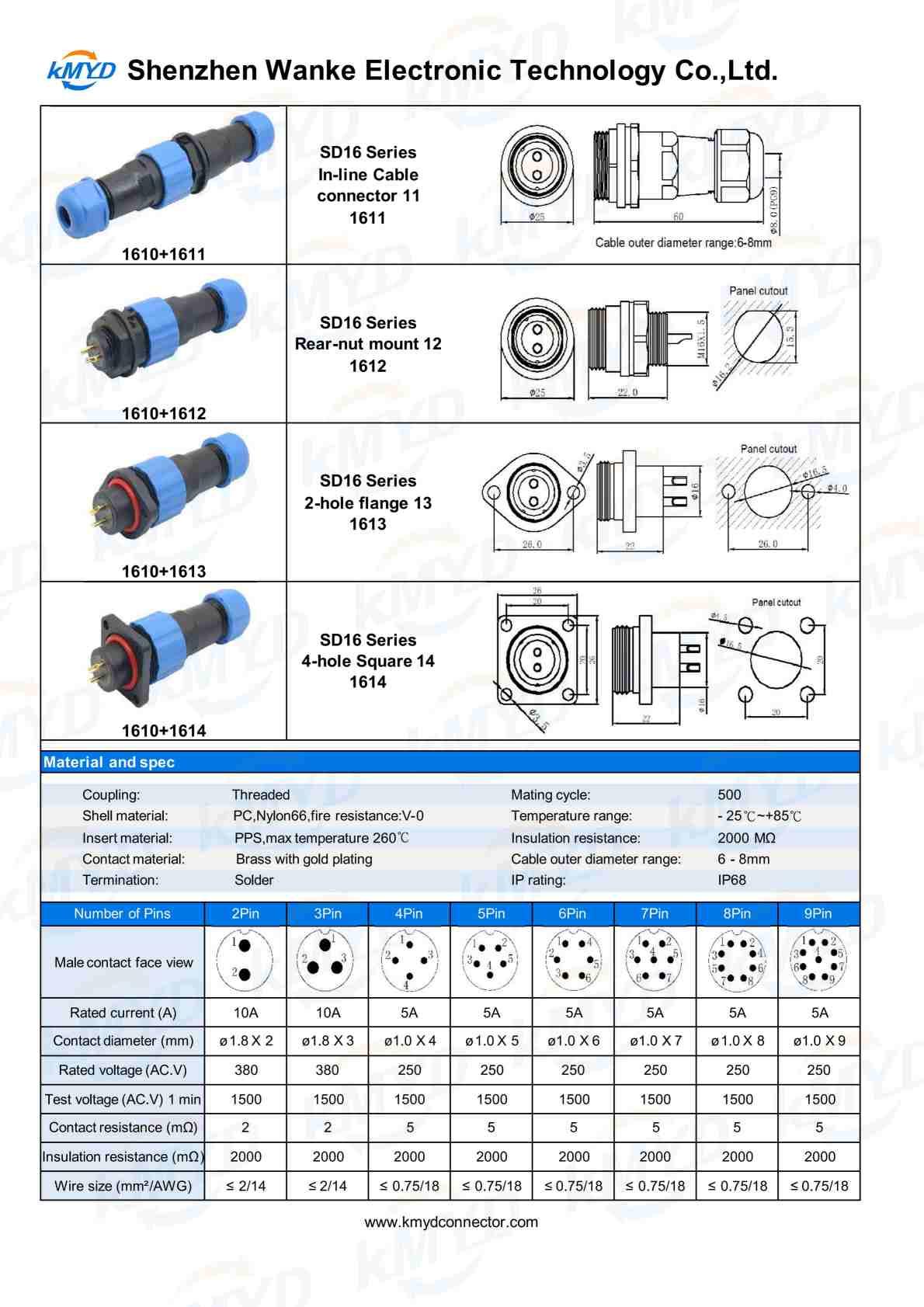

 Item
