SD13 Connectors
< >

SD13/SP13 2 Pins Panel Mount Connector Waterproof

>Number Of CoresNumber Of Cores 1 - 7 Pin
Contact DiameterContact Diameter(mm) 1.0mm - 2.8mm
IP RatingIP Rating IP68
Shell MaterialShell Material Thermoplastic PA66/PA6
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Welding
Rated CurrentRated Current(A) 5A - 25A
Rated VoltageRated Voltage(Ac.V) 250V/380V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

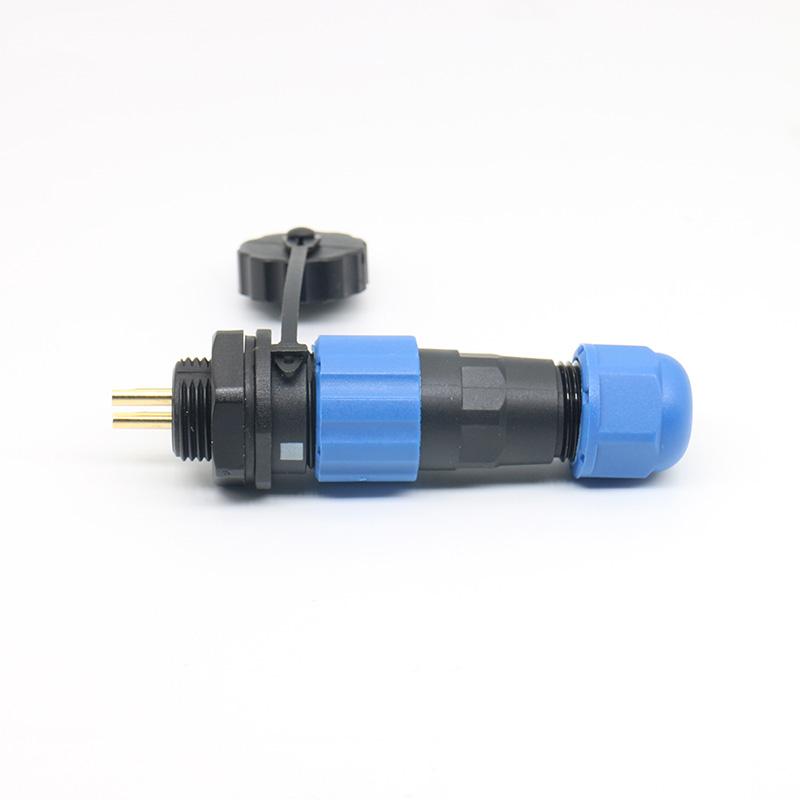

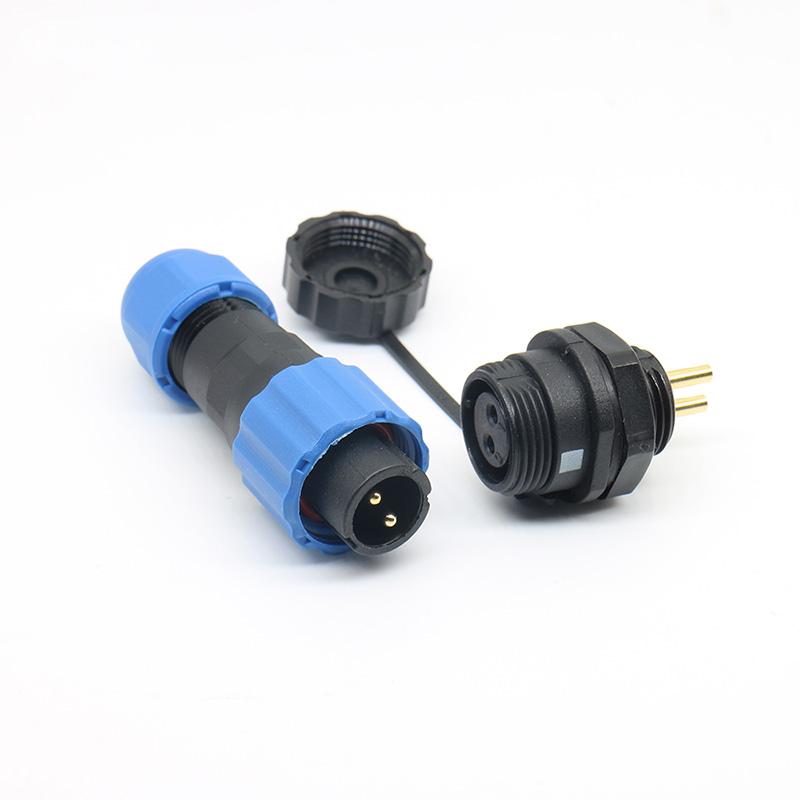

SD13 / SP13 2 Pins Panel Mount Connector Waterproof - Compact Power Interface for Small Equipment
The SD13 / SP13 2 Pins Waterproof Panel Mount Connector is designed for compact equipment that requires a simple, stable, and sealed power interface on the device panel. With its small SD13/SP13 housing and IP68 rated sealing structure, it provides reliable electrical connection in environments where space is limited but performance stability is essential.
Connector
This 2-pin configuration is optimized for basic power input/output applications, making it an efficient solution for devices that do not require complex signal integration but demand long-term connection reliability.

Designed for Clean and Stable Panel Integration
In many compact devices, internal wiring needs to be separated from external power access points in a safe and organized way. This panel mount connector provides a fixed and standardized interface on the equipment housing, helping improve system structure and maintenance convenience.
It is especially suitable for applications that require:
A stable external power entry point
Simple and clear wiring structure
Reduced internal connector complexity

Long-term installation reliability

Connector

Key Product Advantages

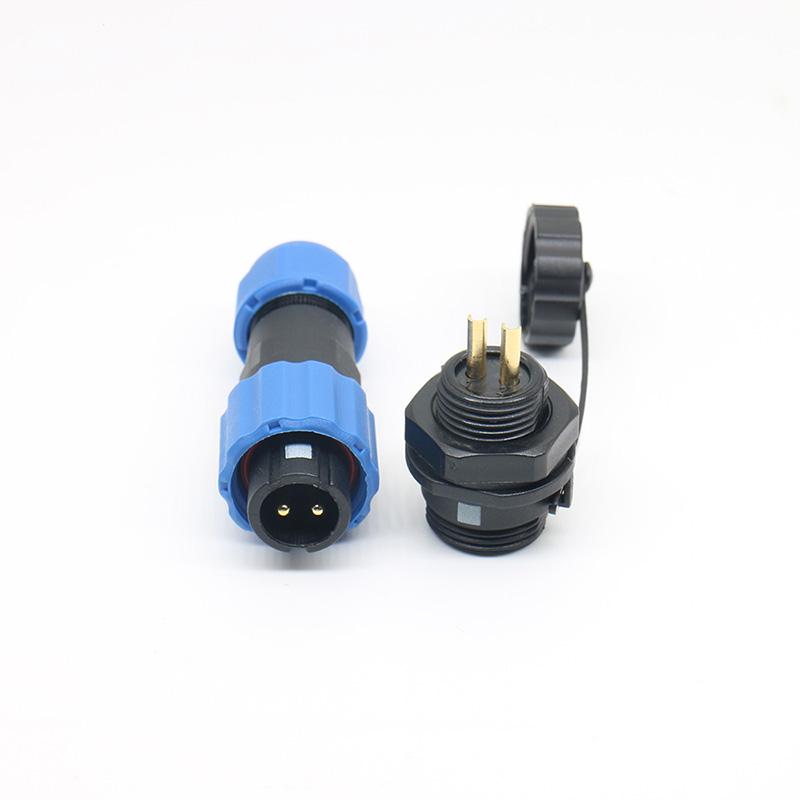

2 Pins for Dedicated Power Transmission
Designed specifically for stable power input/output, ensuring consistent electrical performance with minimal complexity.

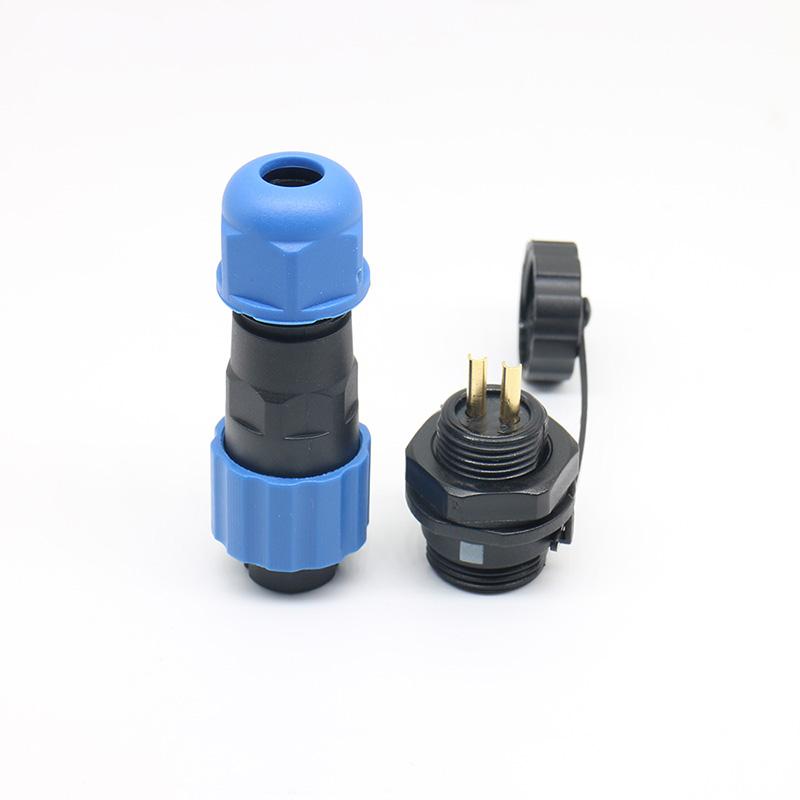

Panel Mount Structure for Fixed Installation
Secure mounting design ensures strong mechanical stability and reduces the risk of loosening caused by vibration or long-term operation.

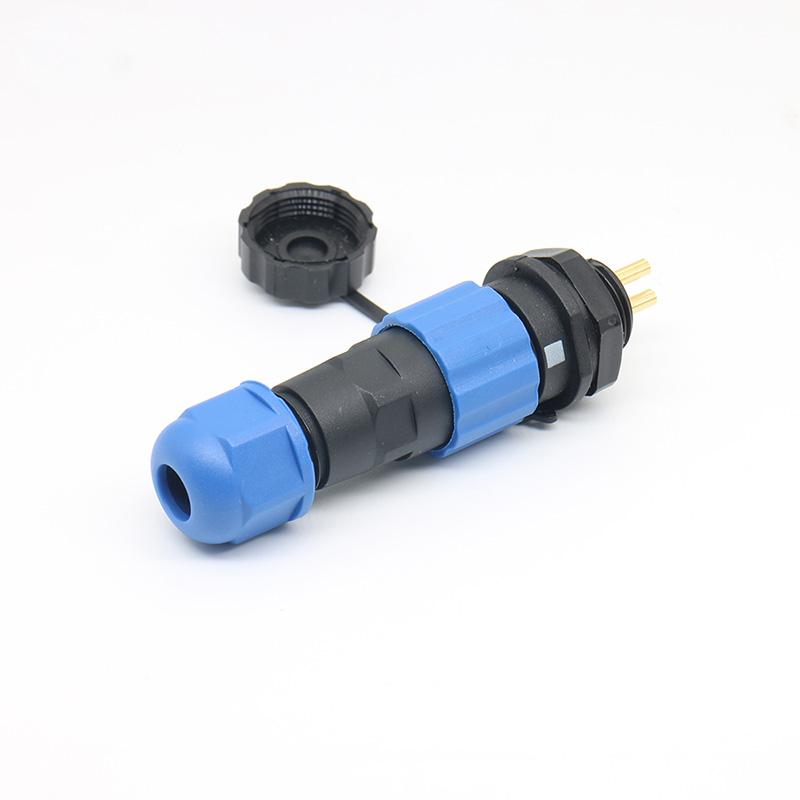

Waterproof Sealing Protection
IP68 rated sealing structure helps protect internal contacts from water, dust, and environmental exposure.

Compact SD13/SP13 Size
Small footprint design makes it ideal for space-constrained equipment and miniaturized systems.

Stable Electrical Contact System
Precision contact design ensures reliable conductivity and long service life.

Manufacturing Strength Behind Reliable Performance
We are a professional connector manufacturer with over 15 years of experience in waterproof connectors and cable assembly solutions, serving customers in industrial automation, smart devices, energy systems, and outdoor electronics.
Connector
Our factory operates a fully integrated production system, including:
Mold design and tooling development
Zinc alloy die-casting
CNC precision machining
Injection molding

Connector assembly and cable processing

Connector

This in-house manufacturing capability allows us to ensure stable quality, consistent production, and efficient delivery for global customers.

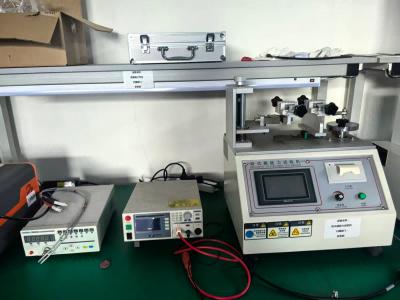

Strict Quality Control System
Each SD13/SP13 panel mount connector undergoes multiple inspections before shipment:
Waterproof sealing test
Electrical conductivity and continuity testing
Mechanical durability and vibration resistance testing
Plugging cycle life testing

Dimensional accuracy inspection

Connector

All products are manufactured under ISO9001 quality management standards and comply with CE and RoHS requirements.
Connector
Customization Support
We provide flexible OEM/ODM services to meet different project needs:
Cable length customization (for rear wiring integration)
Pin configuration options (2 pins standard or modified)
Material and structure optimization
Application-specific interface design
Our engineering team supports customers from sample development to mass production.

Application Areas

Compact industrial equipment
LED and lighting systems
Smart control devices
Outdoor electronic equipment
Small automation modules
Power supply interfaces
A Simple Yet Reliable Power Interface

The SD13/SP13 2-pin panel mount connector is designed to provide a clean, stable, and waterproof power connection point for compact electronic and industrial systems.

Contact Us
We provide samples, technical support, and customized production services.
Contact us today for professional connector solutions and quotation support.

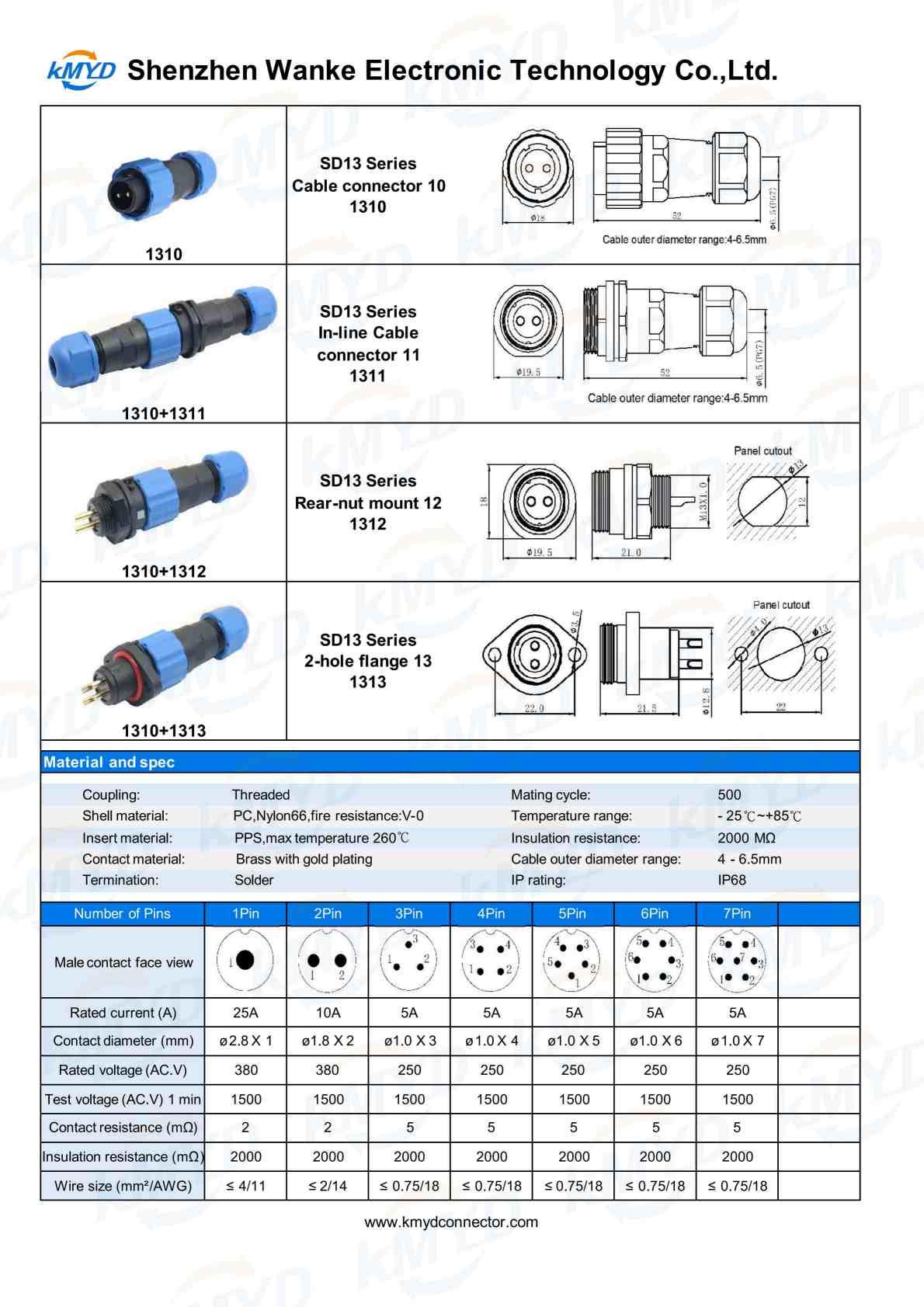

Item

Parameters

Number of Cores

1-7Pin

Gender

Male/Female

Housing Material

Thermoplastic PA66/PA6

Cores Material

Brass Plated with Silver

Insulator Material

PPS

Locking System

Threaded Connection

Temperature Range

-20℃, +85℃

Rated Current (A)

5A - 25A

Rated Voltage (AC.V)

250V/380V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≤5㏁

Termination

Welding
