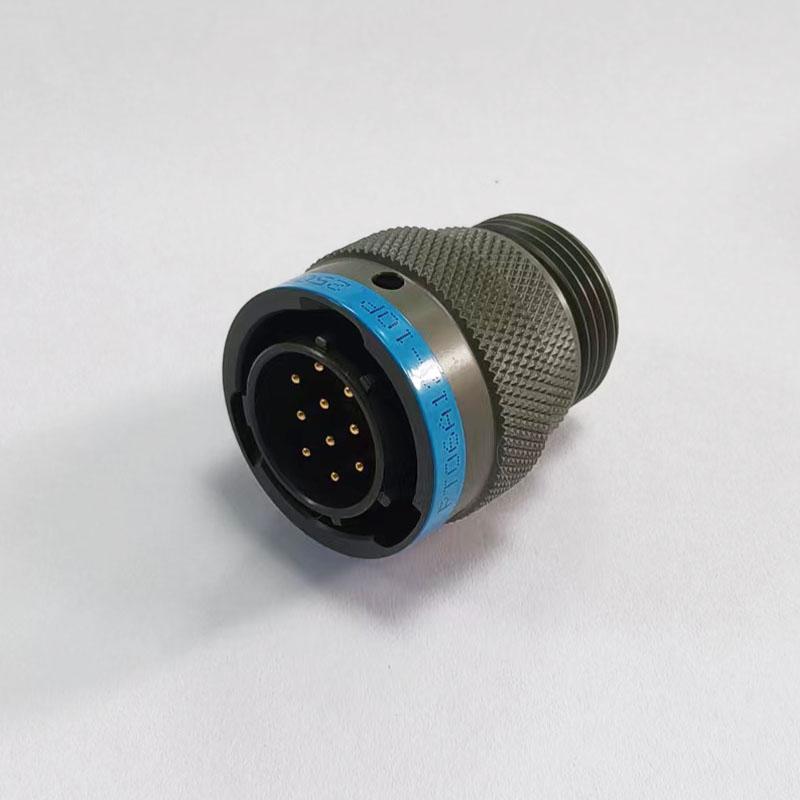

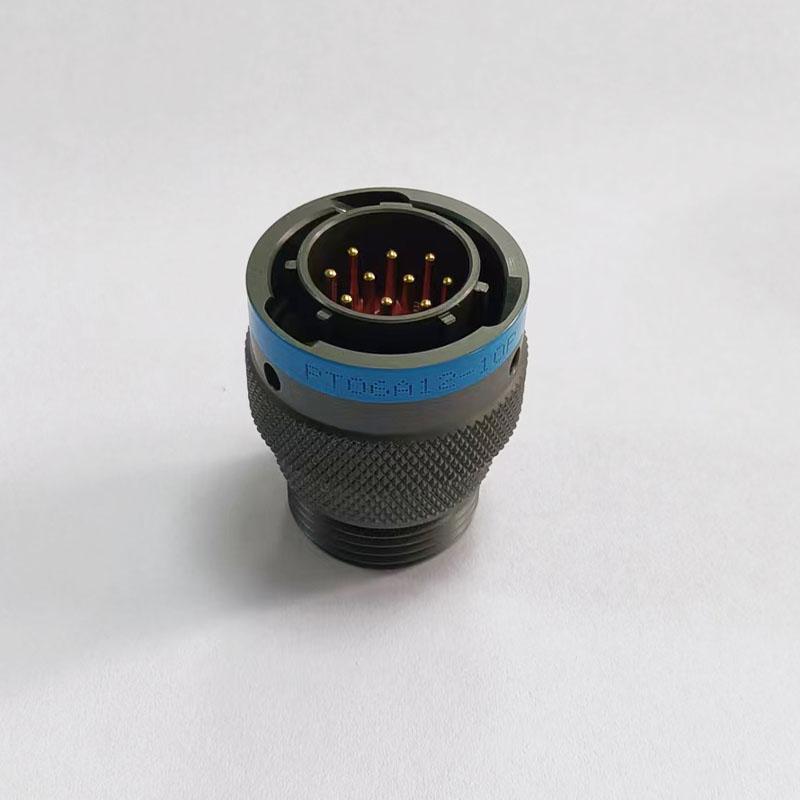

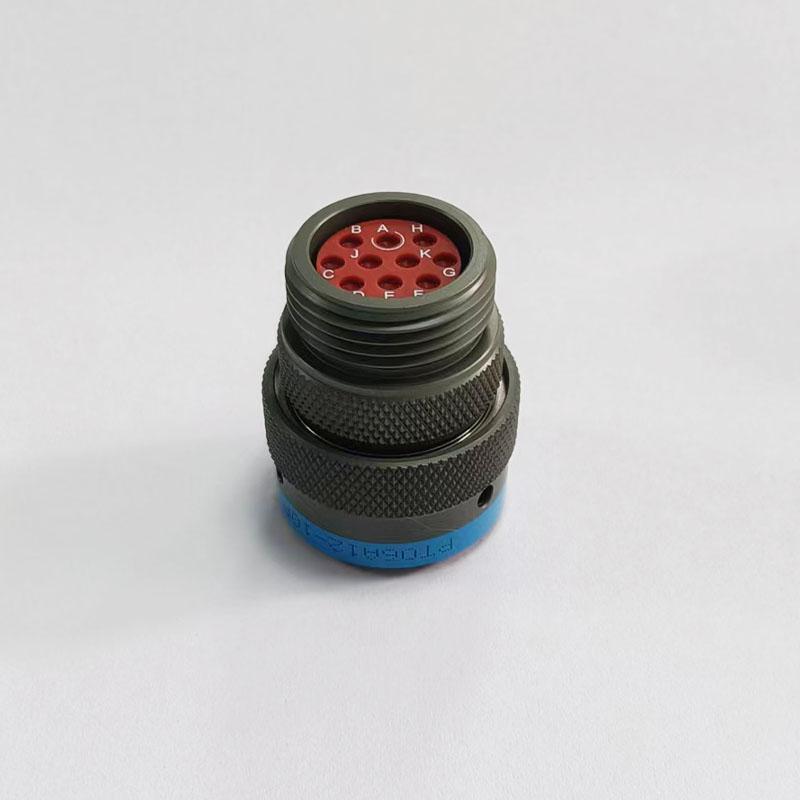

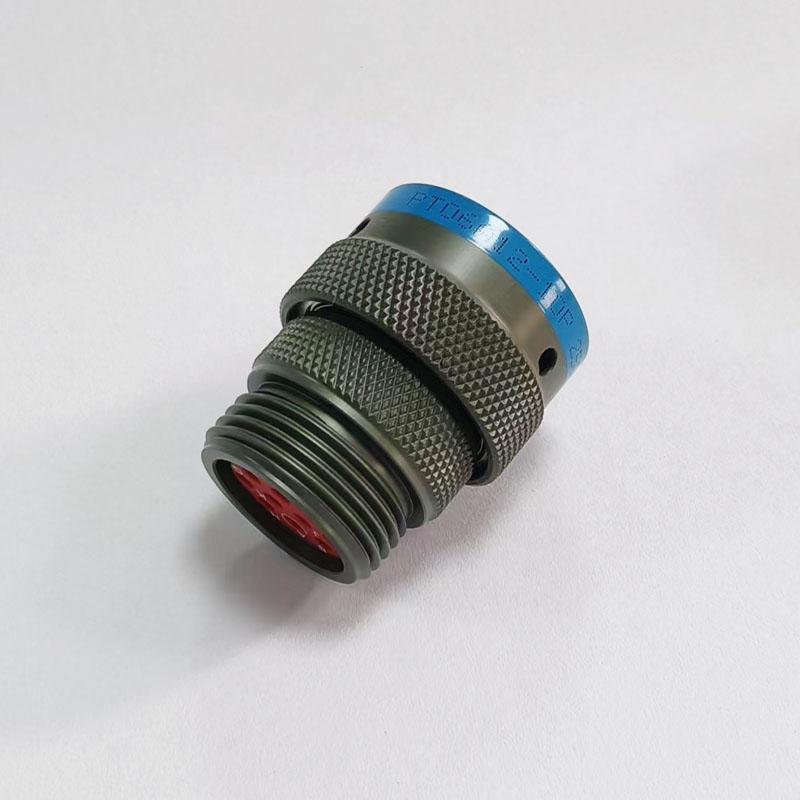

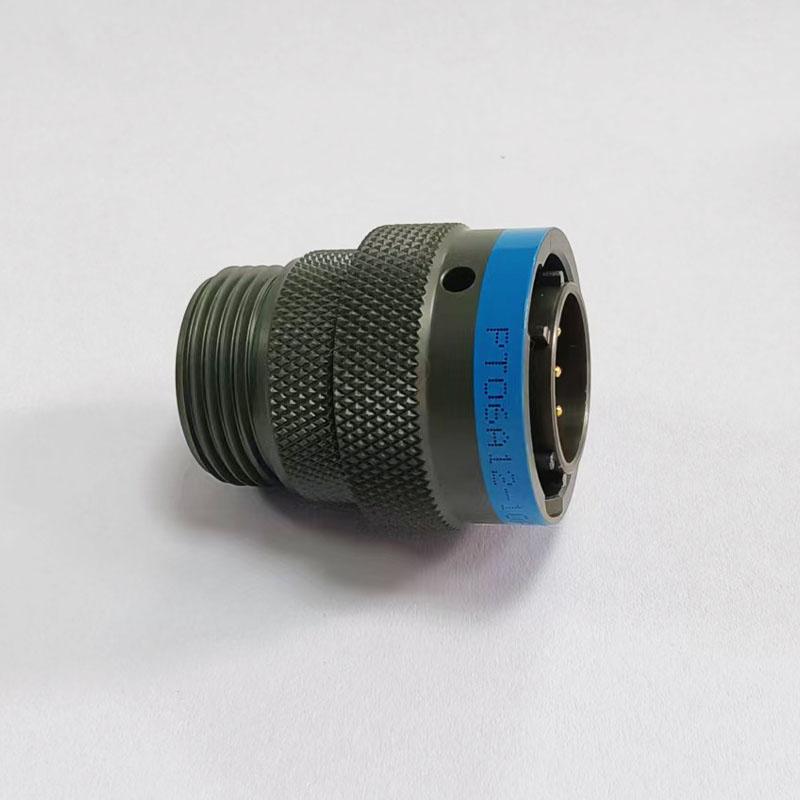

PT06A12-10P
< >

PT06A12-10P Military Connector for Harsh Environments

>Number Of CoresNumber Of Cores 10Pins
Contact DiameterContact Diameter(mm) 1.0 mm
IP RatingIP Rating IP67
Shell MaterialShell Material Aluminum Alloy
Temperature RangeTemperature Range -55℃ ~ +125℃
TerminationTermination Solder
Rated CurrentRated Current(A) 7.5A
Rated VoltageRated Voltage(Ac.V) 500V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) ≥5000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

The PT06A12-10P is a high-reliability military circular connector designed for demanding electrical connection applications. Featuring a durable aluminum alloy shell and a 10-pin configuration, it provides stable signal and power transmission in harsh environments.

This connector is built to withstand vibration, moisture, and extreme temperatures, making it suitable for use in aerospace equipment, industrial control systems, communication devices, and other rugged electronic applications. The secure locking structure ensures reliable mating and long-term performance.

Its compact design and excellent electrical insulation properties make the PT06A12-10P an ideal choice for systems requiring dependable connectivity and durability.


 Item

 Parameters

 Number of Cores

 10Pin

 Gender

 Male/Female

 Housing Material

 Aluminum Alloy

 Cores Material

 Brass Plated with Gold

 Insulator Material

 Thermosetting Plastic

 Locking System

 Bayonet Locking

 Temperature Range

 -55℃, +125℃

 Rated Current (A)

 7.5A

 Rated Voltage (AC.V)

 500V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 ≥5000㏁

 Contact Resistance (㏁)

 ≤5㏁

 Termination

 Solder


Related Products

More》

Related Resource


PT06A12-10P Military Connector
PT06A12-10P Military Connector for Harsh EnvironmentsManufacturer Advantage
One-Stop Service to Save Time and Costs
One-Stop Service to Save Time and Costs
One-Stop Service to Save Time and Costs: From design and production to after-sales support, we provide end-to-end integrated solutions. There's no need to coordinate with multiple suppliers, reducing communication efforts and avoiding potential issues in process coordination.
Customized Solutions Tailored to Specific Scenarios
Customized Solutions Tailored to Specific Scenarios
Customized Solutions Tailored to Specific Scenarios: In addition to standardized products, we specialize in developing customized connector solutions for unique requirements such as high temperatures, high frequencies, and miniaturization. Whether it's for niche sectors like new energy equipm
Active Global Engagement-WANKE Connecting the World
Active Global Engagement-WANKE Connecting the World
Active Global Engagement- WANKE Connecting the World ： WANKE actively participates in leading international professional exhibitions, such as the Hong Kong Global Sources Electronics Fair, Beijing Defense Electronics Exhibition, and Shenzhen Connector, Cable, and Wire Harness Exhibition. Thr
Factory Visits for Transparent Trust-Building
Factory Visits for Transparent Trust-Building
Factory Visits for Transparent Trust-Building Clients are welcome to visit our facility at any time to observe the entire process—from RD, molding, and die-casting to injection molding, assembly, and testing. Through face-to-face communication and on-site verification, clients gain a clear u
PT06A12-10P Military Connector for Harsh EnvironmentsRelated Quality Control

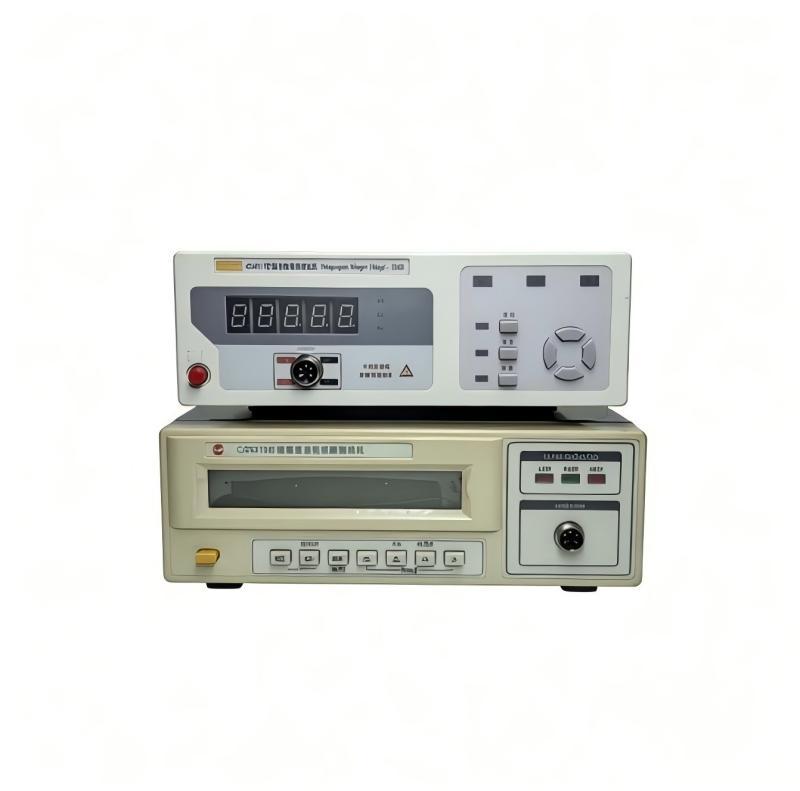

Resistance Testing in Connector Quality Control

Resistance Testing in Connector Quality Control

Resistance testing is essential in connector quality control to ensure low contact resistance, stable signal transmission, and reliable electrical performance. Our testing process verifies connector integrity, detects defects, and ensures compliance with industry standards....
Connector Airtightness Testing – Ensuring Secure Sealing

Connector Airtightness Testing – Ensuring Secure Sealing

Our airtightness tester verifies connector sealing performance to prevent moisture and dust ingress, ensuring long-lasting performance and durability....

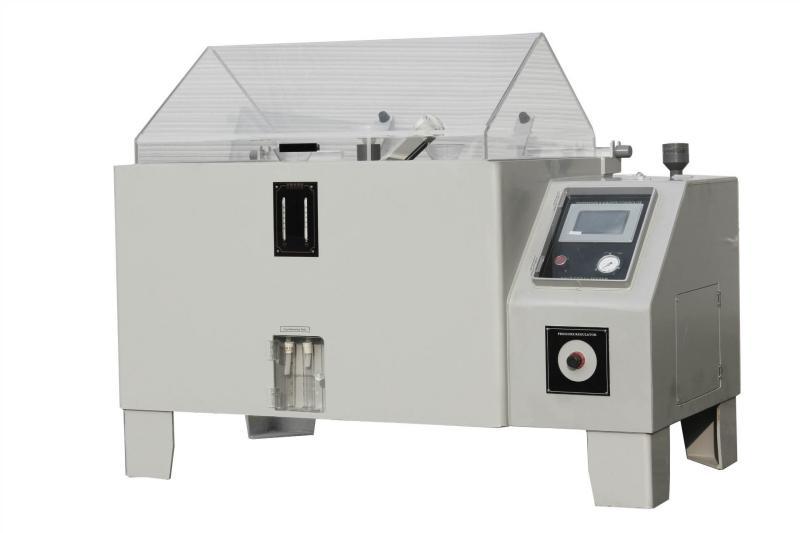

Corrosion Resistance Testing for Connectors – Salt Spray Test
