MS27505E17B35P
< >

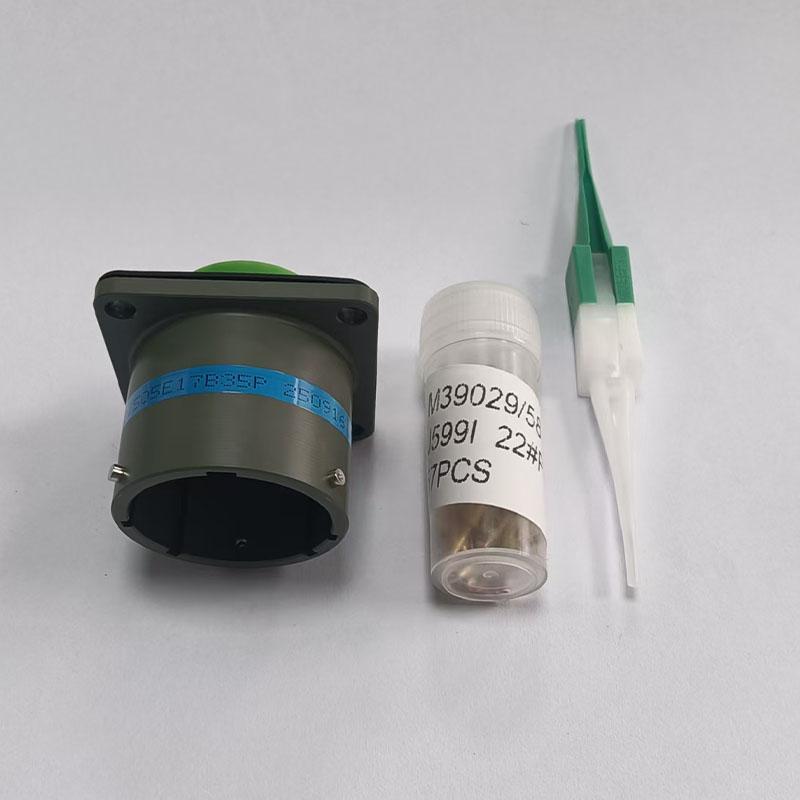

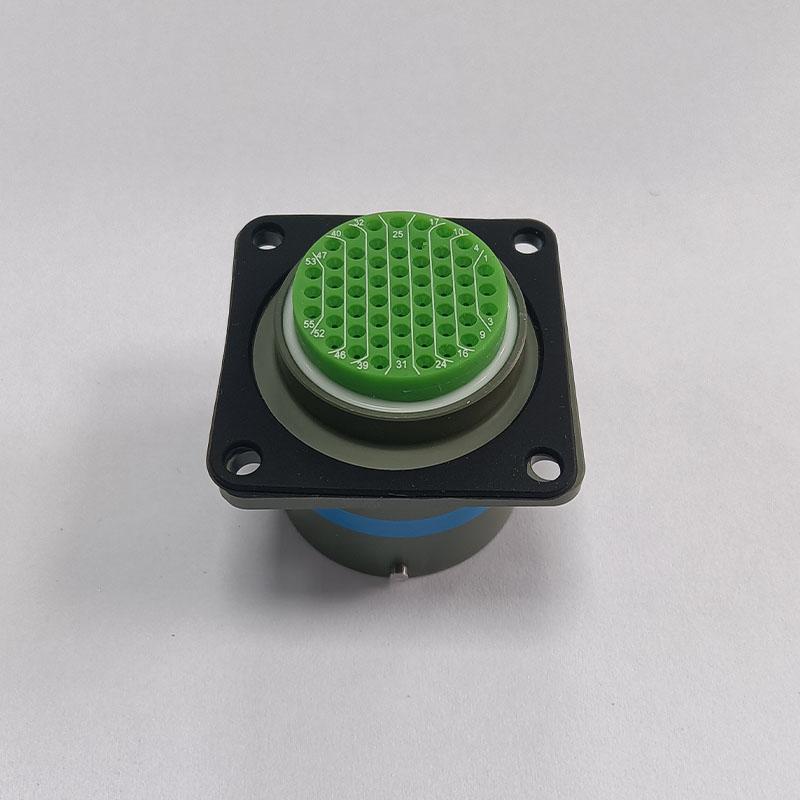

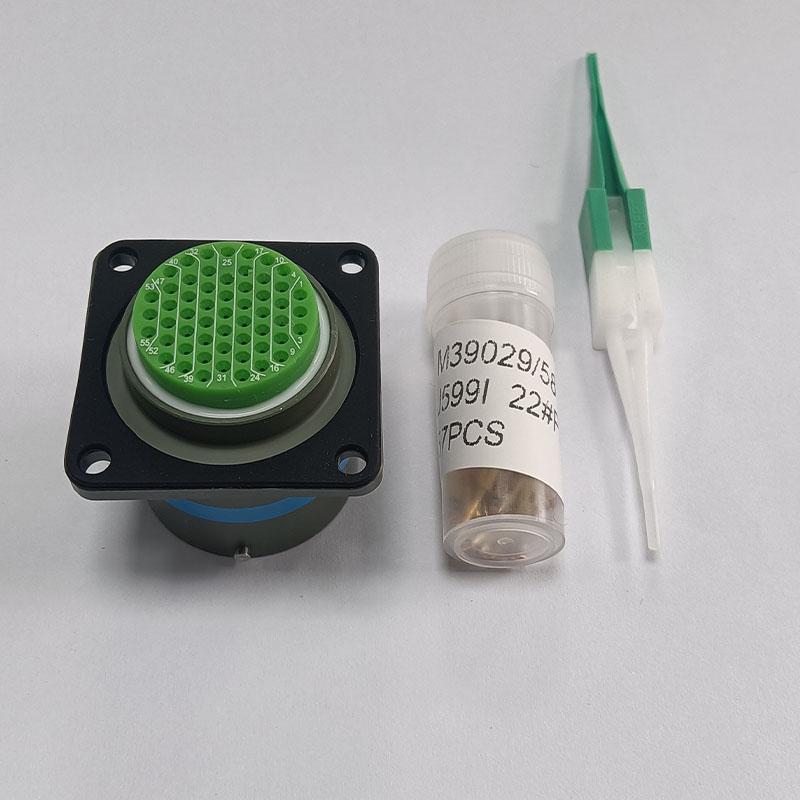

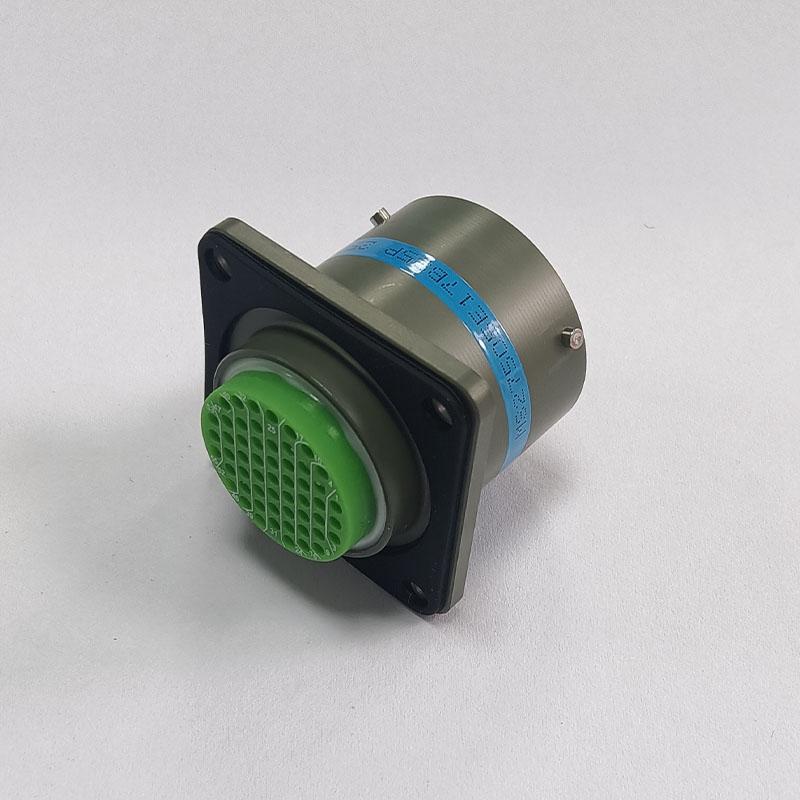

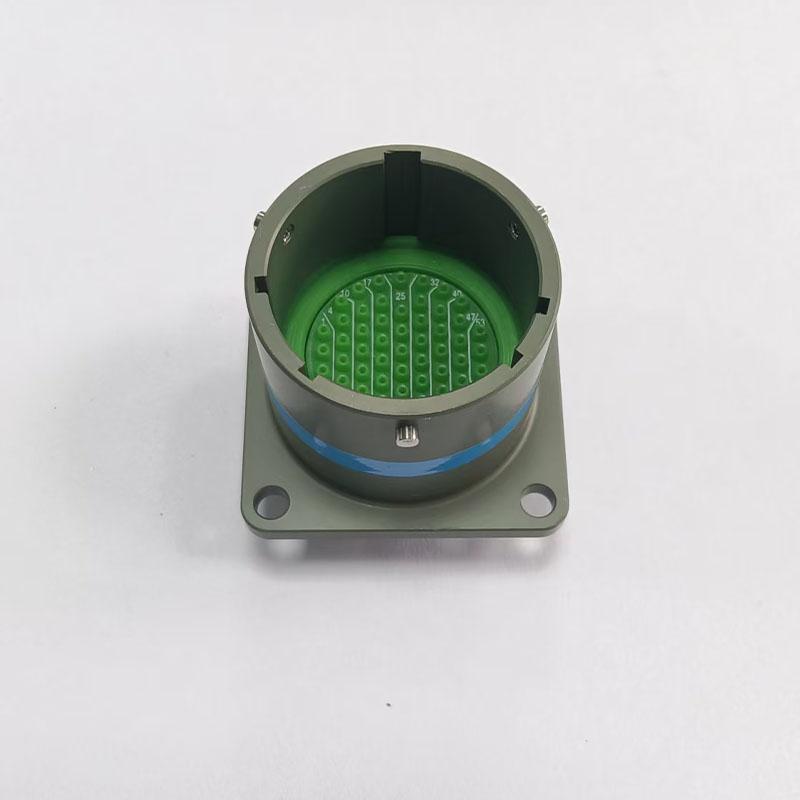

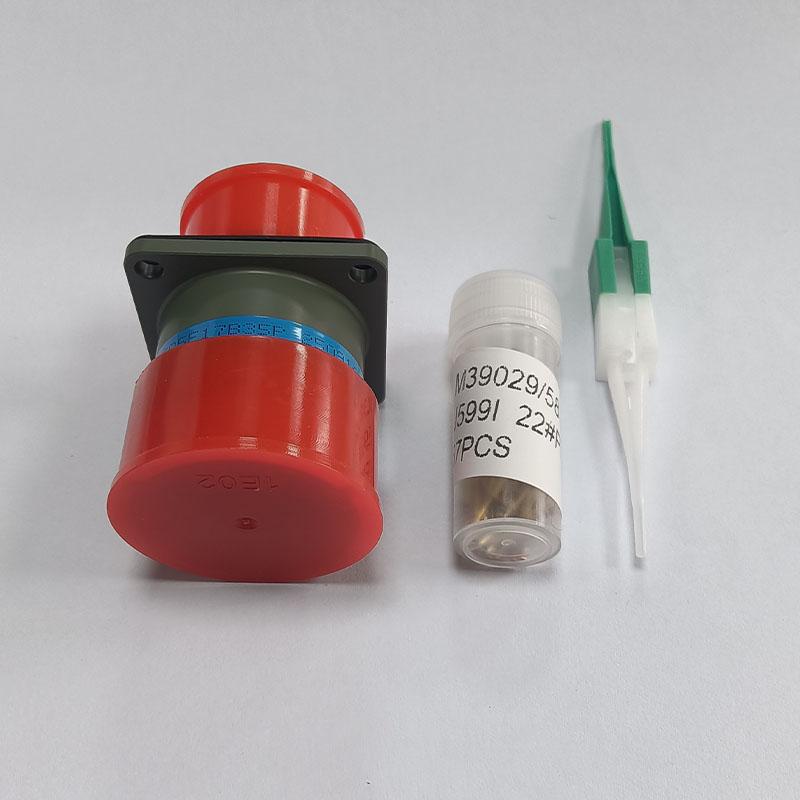

MS27505E17B35P MIL-Spec Connector for Aircraft Control Systems

>Number Of CoresNumber Of Cores 55Pins
Contact DiameterContact Diameter(mm) 1.02 mm
IP RatingIP Rating IP67
Shell MaterialShell Material Aluminum Alloy
Temperature RangeTemperature Range −65°C to +200°C
TerminationTermination Crimp
Rated CurrentRated Current(A) 5A
Rated VoltageRated Voltage(Ac.V) 500V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) ≥5000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

The MS27505E17B35P MIL-Spec connector is a high-performance circular connector designed for demanding aerospace and aviation applications. Built to meet strict military specifications, it provides reliable electrical connections for aircraft control systems and other mission-critical equipment.

Connectors


Engineered for durability, this connector offers excellent resistance to vibration, moisture, and harsh environmental conditions commonly found in aerospace environments. Its robust design ensures secure signal and power transmission, helping maintain stable operation in complex aviation systems.

The MS27505E17B35P connector is widely used in aircraft electrical systems, avionics equipment, and other high-reliability applications where consistent performance and long service life are essential.

 Item

 Parameters

 Number of Cores

 6Pins

 Gender

 Female

 Housing Material

 Aluminum Alloy

 Cores Material

 Brass Plated with Gold

 Insulator Material

 PEFT

 Locking System

 Bayonet Coupling

 Temperature Range

 -65°C to +200°C

 Rated Current (A)

 5A

 Rated Voltage (AC.V)

 500V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 5000㏁

 Contact Resistance (㏁)

 ≤5㏁

 Termination

 Crimp
