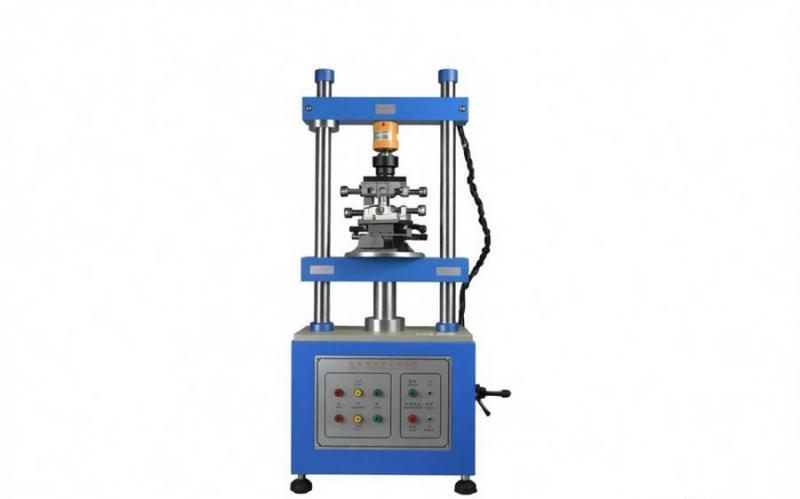

Insertion Withdrawal Force Tester for Connector Quality Testing

RF Connector Types, Materials, and Electrical Specs

Why Insertion and Withdrawal Force Testing Matters for Connector Reliability

For engineers and buyers selecting circular or waterproof connectors, the feel of a mating cycle is not just a matter of convenience. Insertion and withdrawal force directly affects how easily a connector can be assembled in the field, how securely it stays mated under vibration, and how consistently it performs over its service life. A connector that is too tight can damage contacts or slow down production; one that is too loose risks intermittent signal loss or power failure. The insertion withdrawal force tester is the standard tool used to quantify these characteristics and verify that a connector design meets its intended specification.

What the Tester Measures

The tester repeatedly inserts and removes the connector from its counterpart, measuring key performance indicators that help you judge whether a connector will suit your application. The core measurements include:

• Insertion and withdrawal force – ensuring connectors are neither too tight nor too loose for reliable mating and unmating.
• Electrical contact performance – verifying stable connectivity during and after the mating cycle, which helps confirm the contact interface is sound.
• Durability under repeated cycles – simulating long-term use to reveal how force and contact resistance change over the connector's expected lifetime.

Interpreting the Results for Your Application

When reviewing test data, consider how the measured forces align with your own assembly process and operating environment. A connector intended for frequent field servicing may benefit from a lower withdrawal force, while one used in a high-vibration setting may require a higher retention force to prevent accidental disconnection. The tester's cycle data also helps you compare different connector series or contact plating options before committing to a design. If you are evaluating a specific connector model, ask the supplier for its insertion and withdrawal force specification and the number of cycles it was tested to, rather than assuming a generic value.

Next Step: Request Test Data for Your Candidate Connector

Before finalizing a connector choice, request the insertion and withdrawal force test report for the specific series and pin count you are considering. This data, combined with electrical and environmental test results, gives you a clearer picture of long-term reliability. If you need help interpreting a test report or selecting a connector that meets your force and durability requirements, contact our engineering team with your application details.
