MS27472 Wall Mount Receptacle MIL-DTL-38999 Series II Connector

MIL-DTL-38999 MS27467 Circular Connectors

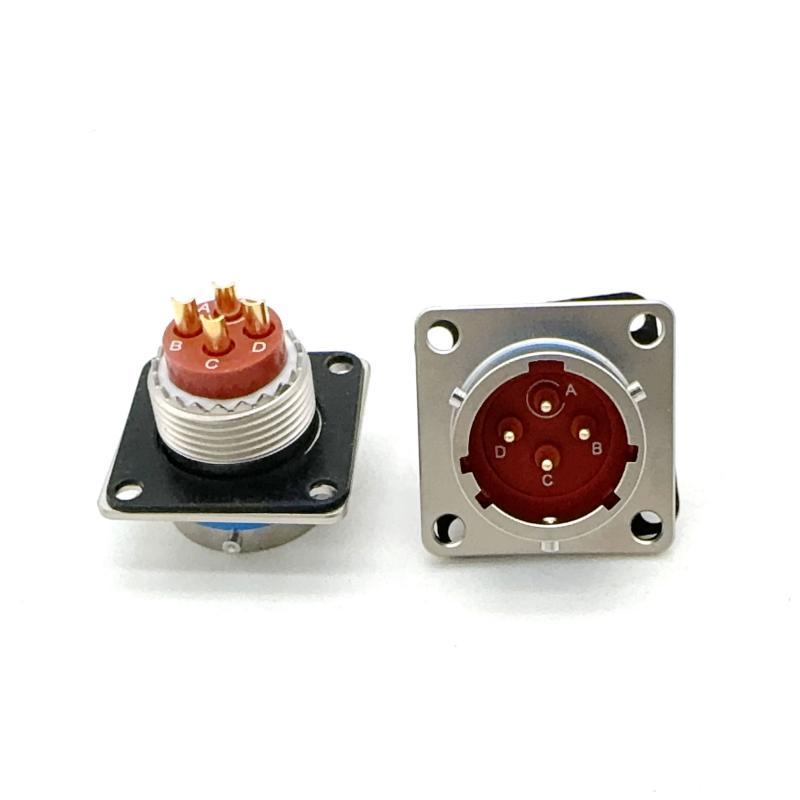

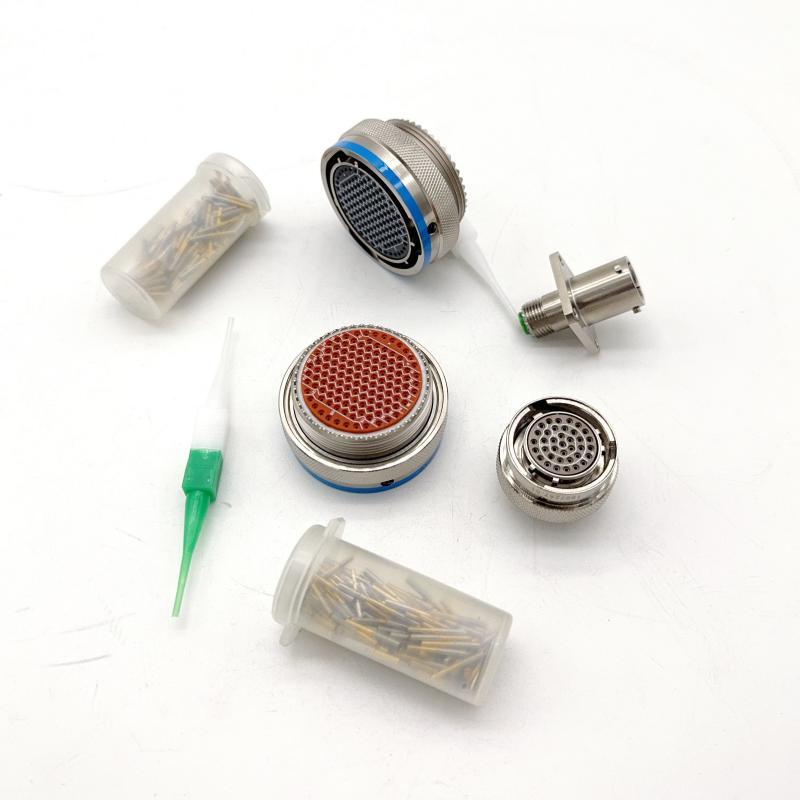

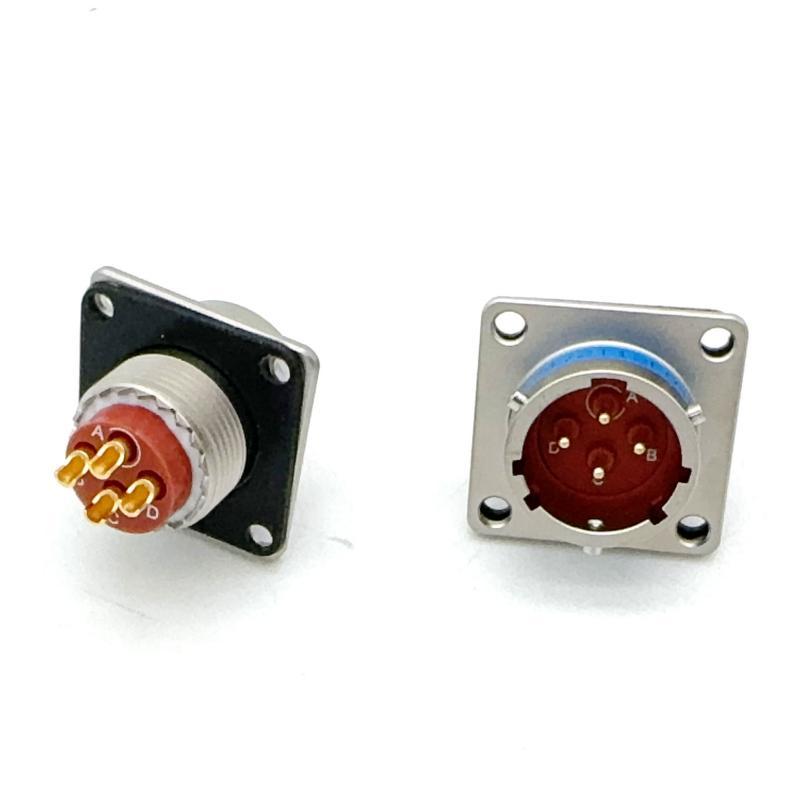

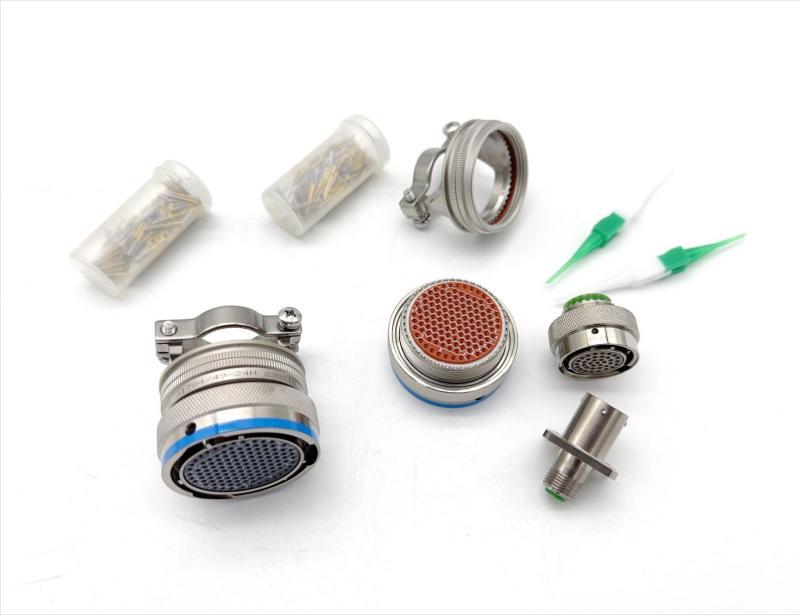

MS27472 Wall Mount Receptacle Overview

The MS27472 circular connector is a durable and reliable wall mount receptacle designed for high-performance electrical systems. Built according to the MIL-DTL-38999 Series II specification, it provides stable electrical connections and strong environmental protection for demanding applications.

This connector is commonly used as a wall mounting receptacle, allowing secure installation directly onto equipment housings or structural panels.

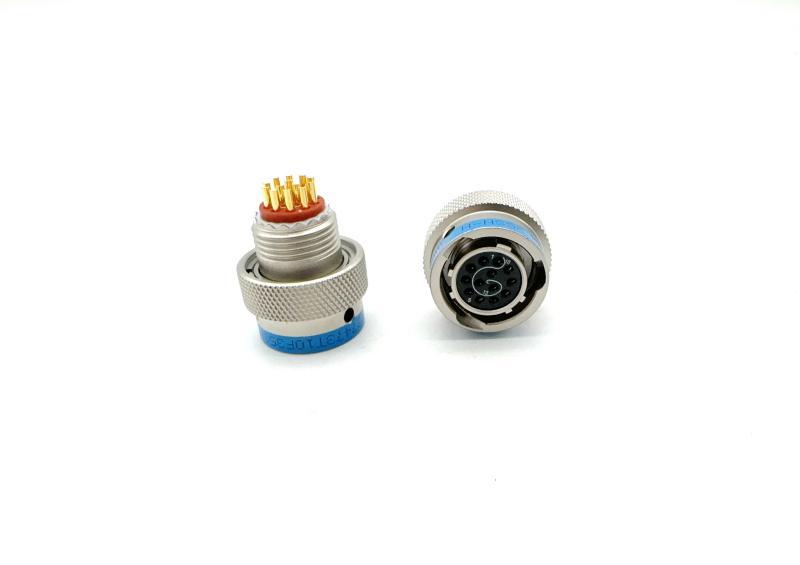

Wall Mount Receptacle Structure and Mounting Benefits

The MS27472 connector features a wall mount receptacle design, which enables the connector to be firmly attached to equipment surfaces. This structure provides strong mechanical stability and helps protect internal electrical contacts.

The wall mounting configuration offers several advantages:

• Strong mechanical support
• Reliable connection stability
• Secure equipment integration
• Efficient cable routing

Because of these characteristics, MS27472 connectors are widely used in aerospace and defense electronic systems.

Rugged Environmental Performance

Designed to meet MIL-DTL-38999 Series II requirements, the MS27472 connector offers excellent resistance to harsh environmental conditions.

Its robust metal shell protects the connector from:

• Mechanical vibration
• Impact and shock
• Corrosion
• Dust and moisture

This makes it suitable for equipment operating in challenging environments where reliability is critical.

Electrical Stability and Mating Durability

The MS27472 circular connector is engineered for reliable electrical transmission. Precision contacts ensure consistent conductivity and minimal signal loss.

The connector design also supports repeated mating cycles, making it suitable for systems that require long service life and dependable electrical connections.

Typical Applications

MS27472 connectors are commonly used in:

• Aerospace electronic systems
• Military communication equipment
• Navigation and radar systems
• Defense electronics
• Industrial automation equipment

Selection Considerations and Inquiry Checklist

When selecting an MS27472 wall mount receptacle, confirm the following details to ensure correct mating and installation:

• Required pin count and contact arrangement
• Mating plug series (e.g., MS27467) and shell size
• Cable outside diameter and conductor size for termination
• Electrical load (current and voltage) and environmental exposure
• Mounting hole pattern and panel thickness

For detailed specifications, refer to the Technical Specifications section. For related MIL-DTL-38999 options, see the MIL-DTL-38999 MS27467 Circular Connectors catalog. For a specific 3-pin variant, review the MS27472E8B98P MIL-DTL-38999 3-Pin Military Circular Connector.

Conclusion

The MS27472 circular connector provides a durable and stable wall-mount connection solution. With its rugged construction, reliable electrical performance, and MIL-DTL-38999 compliance, it is widely used in aerospace and defense systems.
