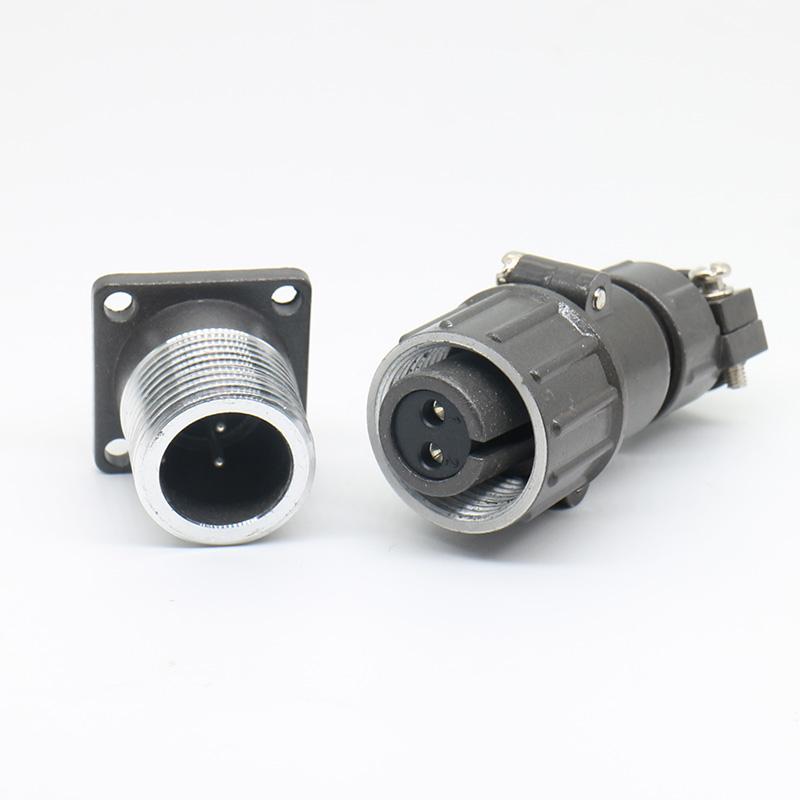

GOST P Series Circular Connectors with 2-47 Cores and Screw Locking

GOST OHS Circular Connector with Multiple Core Count Options

P Series Circular Connectors: Reliable Indoor Industrial Connection Solution

P Series circular connectors are designed for stable power and signal transmission in indoor industrial environments. They combine a threaded coupling design with a choice of core counts to support equipment connection needs across machinery, instrumentation, and automation systems.

Key Selection Criteria for P Series Connectors

Choosing the right P Series connector depends on your equipment's electrical load, cable diameter, and mounting space. The following points outline the main variables to consider before ordering.

Thread Locking for Vibration Resistance

The precise thread-locking mechanism ensures a firm, anti-loosening connection. This design helps prevent disconnections caused by equipment vibration, supporting uninterrupted operation in industrial settings.

Series Range and Core Configurations

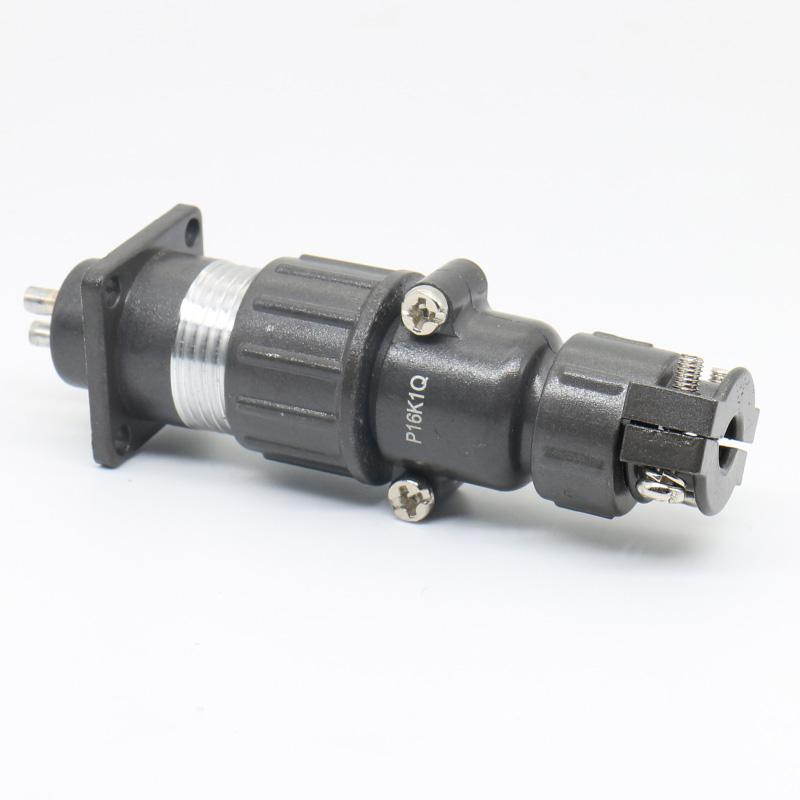

The P Series covers P20, P25, P28, P30, P32, P40, P48, P55, and P60 models with 2 to 47 core options. This range provides flexibility for different power and signal transmission requirements, but the exact pinout and contact arrangement must be confirmed against your application.

Construction and Installation Considerations

The connectors use a heavy-duty aluminum housing with brass contacts plated with silver. This construction is intended for indoor conditions where dust and minor mechanical impacts are present. The user-friendly design matches standard industrial interfaces for quick installation, but you should verify the mating thread size and panel cutout before mounting.

Application Scope for P Series Connectors

These connectors are suited for indoor use in the following areas:

• Industrial machinery, including processing equipment and assembly lines.
• Instrumentation for measuring, testing, and monitoring devices.
• Automation systems with sensors and control modules.
• Indoor electrical equipment in workshops and factories.

Selection and Inquiry Checklist

To ensure the correct connector match, please confirm the following details when making an inquiry:

• Mating requirement: plug or socket, male or female contacts.
• Required pin count and pinout or wiring diagram.
• Cable outside diameter and conductor size for termination.
• Electrical load: current and voltage per contact.
• Mounting style: cable, panel, or weld type.
• Order quantity and target delivery schedule.

For a broader view of compatible options, review the GOST OHS Circular Connector with Multiple Core Count Options. For a related product with a different coupling style, see the P Series 3 Pin Male Weld Circular Connector Aluminum Housing.

P Series circular connectors offer a cost-effective and reliable choice for indoor industrial operations. Confirm your application details with our team to verify the correct model and configuration before ordering.
