Project Background: Push-Pull Connectors in China's EV Charging Infrastructure

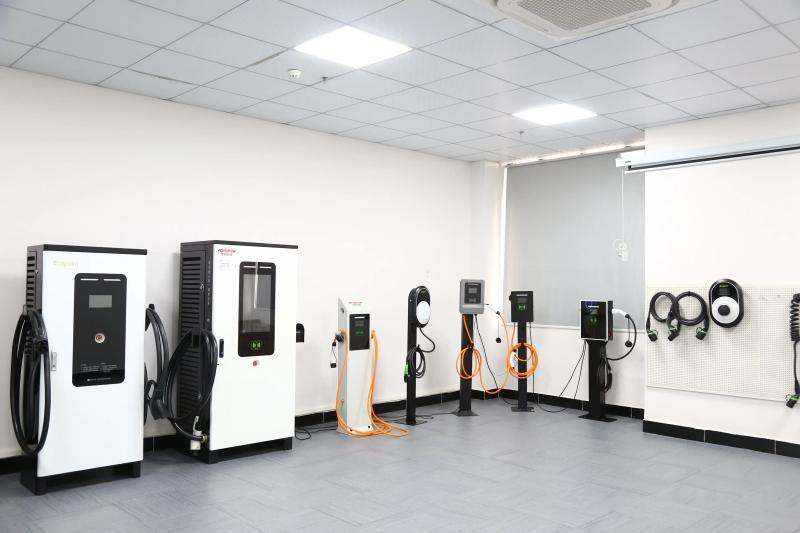

As electric vehicle adoption accelerates across China, the demand for reliable and efficient charging infrastructure has grown significantly. EV charging stations, whether AC or DC, must deliver consistent power while enduring frequent use and harsh outdoor conditions. The electrical connections between the charging interface, power modules, and station control electronics are critical to operational safety and uptime. This case examines how push-pull connectors support modular design and dependable performance in these demanding environments.

Connector Application in Charging Station Modules

Push-pull connectors are deployed across several key interfaces within a charging station's architecture. Their primary role is to provide secure, tool-free connections that simplify assembly and maintenance. Typical applications include:

• Modular AC/DC power interfaces, enabling flexible configuration of power stages.
• Signal and control connections between station electronics and external cables, ensuring accurate data transmission for charging protocols.
• Quick replacement or maintenance of charging modules, minimizing station downtime during service.

Design Characteristics for Frequent Use

The push-pull locking mechanism is a defining feature of these connectors. Unlike threaded or bayonet couplings, push-pull connectors allow for quick and secure connection without rotation. This design reduces installation time and the risk of improper mating. The contact system is engineered to maintain reliable electrical performance under repeated connection cycles, which is essential for charging stations that experience high daily usage.

Operational Environment and Performance Requirements

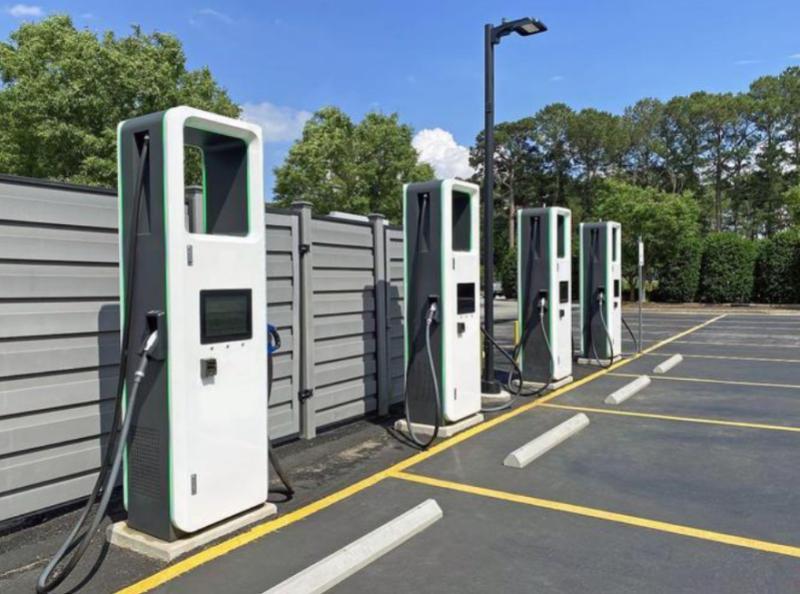

Charging stations are often installed in outdoor or semi-protected locations, exposing internal components to a range of environmental stressors. Connectors must withstand vibration from nearby traffic and internal cooling fans, as well as significant temperature variations between day and night. The frequent connection and disconnection cycles associated with module replacement or maintenance demand a connector with high mechanical endurance. The push-pull design addresses these factors by providing a stable, vibration-resistant connection that maintains contact integrity over its service life.

Conclusion

For EV charging station manufacturers in China, push-pull connectors offer a practical and reliable solution for modular connections. Their combination of quick mating, secure locking, and durable contact design supports the operational demands of modern charging infrastructure. For engineers evaluating connector options, the push-pull series provides a balance of installation efficiency and long-term reliability suited to this application.
