LD12 2 Pin In-line Cable Connector IP68 Waterproof

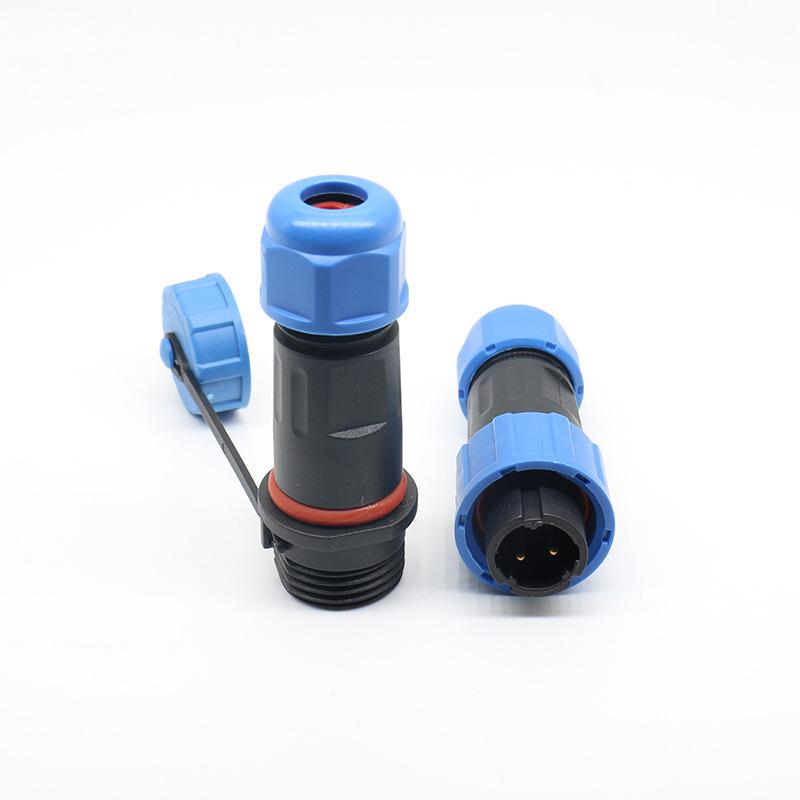

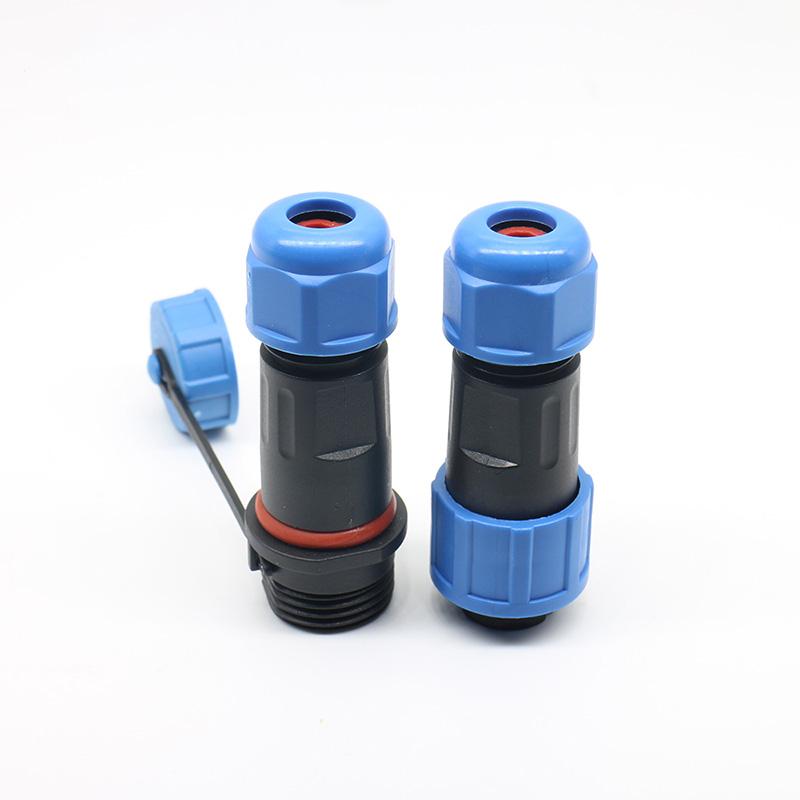

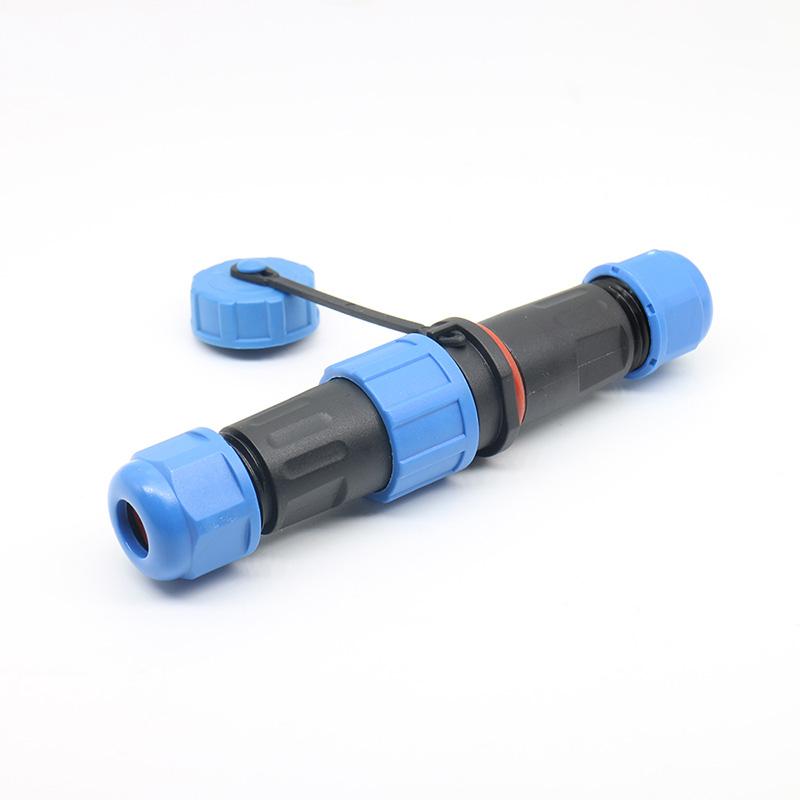

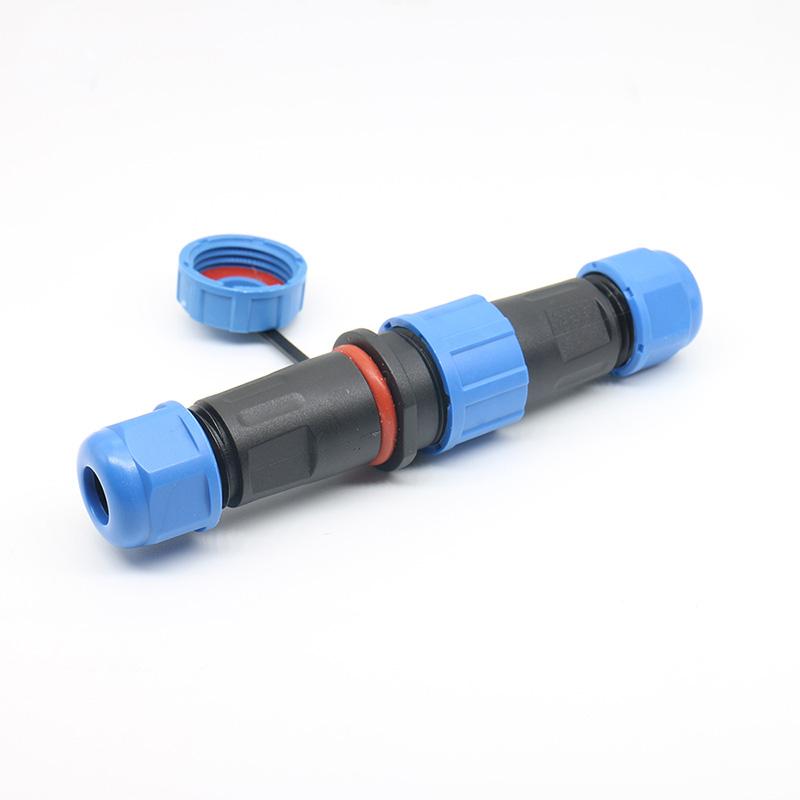

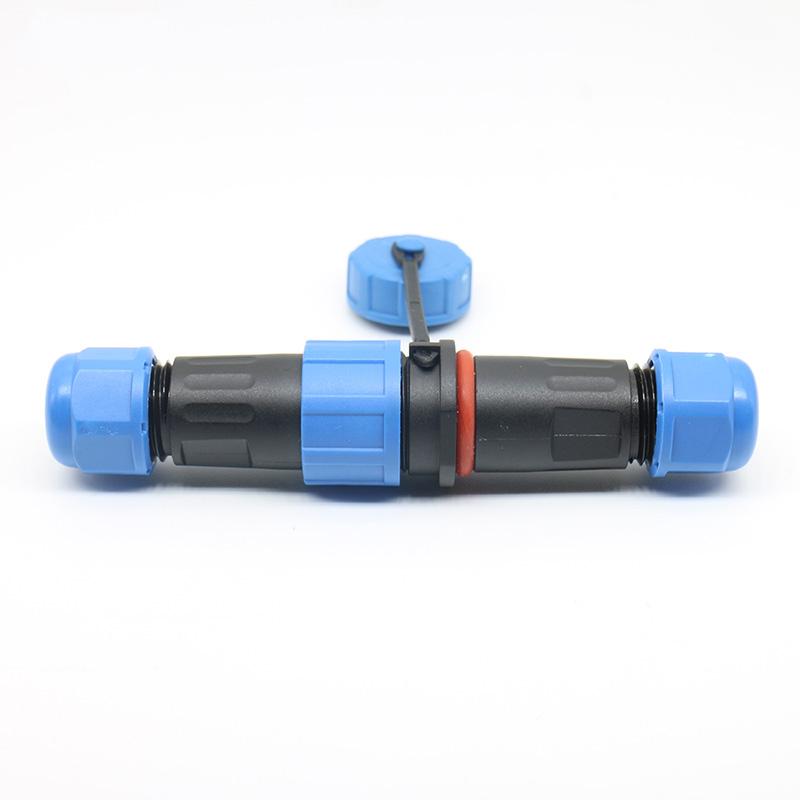

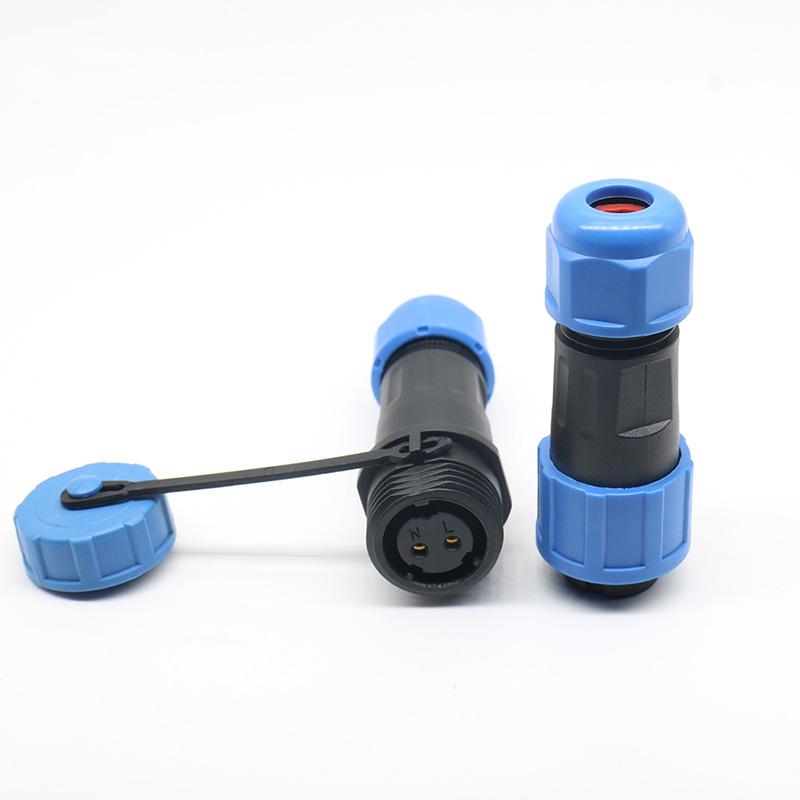

The LD12 2 Pin In-line Cable Connector is a waterproof electrical connector designed for reliable power and signal transmission in demanding environments. With an IP68 rating, it is intended to maintain stable performance under outdoor exposure, moisture, and industrial conditions. This in-line connector suits applications such as industrial automation, LED lighting systems, and outdoor equipment requiring secure cable connections.

Key Selection Considerations

When evaluating the LD12 2-pin connector for your project, consider the following decision points:

• Mating and Locking: Confirm the locking system (threaded or snap-lock) required for your application to prevent disconnection under vibration.
• Environmental Fit: The IP68 rating supports outdoor and washdown environments, but verify the unmated condition and specific immersion requirements with the manufacturer.
• Electrical Load: Define your current and voltage requirements to confirm the connector's rated capacity matches your load.
• Cable and Termination: Specify cable outside diameter, conductor size, and termination preference (solder, crimp, or pre-assembled harness) for proper integration.
• Material Compatibility: The housing is available in PC or Nylon66; confirm the right material for your chemical and temperature exposure.

Construction and Materials

The connector uses a PC or Nylon66 housing for mechanical strength and aging resistance. Contacts are brass with gold plating to support stable conductivity. The insulator is PPS. These materials are selected for industrial service, but final suitability depends on your specific environmental and electrical conditions.

Applications

The LD12 2-pin connector is commonly considered for:

• LED outdoor lighting systems
• Industrial automation equipment
• Sensors and monitoring devices
• Power supply and signal transmission systems
• Outdoor electrical installations

Customization and OEM Support

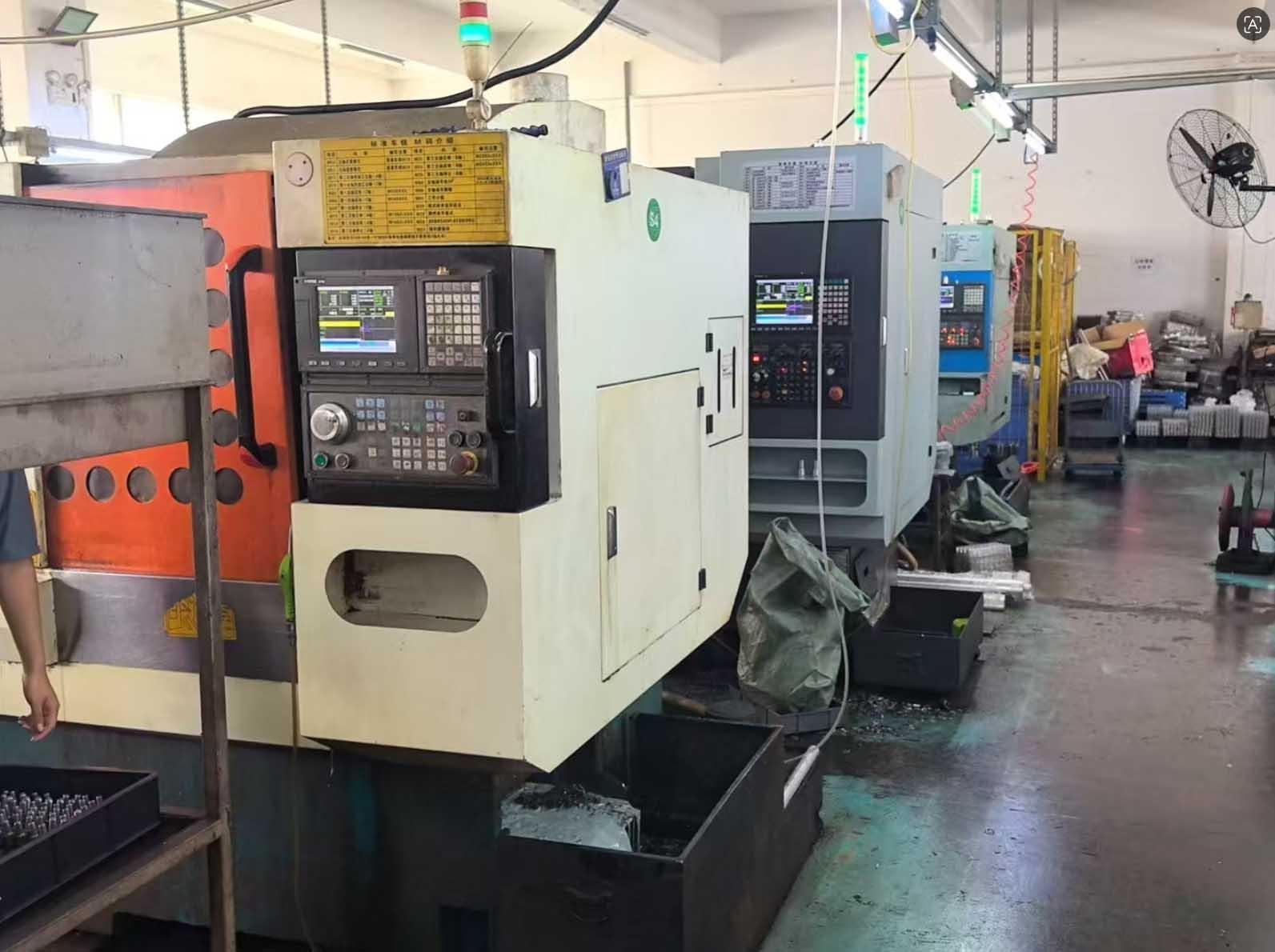

As a factory supplier, we support OEM/ODM projects with in-house mold design, injection molding, and precision manufacturing. Customization options include pin configuration, cable length and wire gauge, housing color, and logo branding. Pre-assembled cable harness solutions are also available. For a precise quotation, please provide your mating-side requirement, pinout or drawing, cable specifications, electrical load, and order quantity.

Quality and Testing

Our production system follows ISO9001, CE, and RoHS compliance frameworks. Quality control includes waterproof testing, electrical testing, salt spray testing, and durability testing. These processes support consistent quality for long-term industrial supply.

Inquiry Checklist

To receive an accurate recommendation and quotation, please prepare the following information:

• Mating-side connector type and gender (male/female)
• Pinout or wiring diagram
• Cable outside diameter and conductor size (AWG/mm²)
• Operating voltage and current
• Environmental conditions (temperature, immersion depth, chemical exposure)
• Required quantity and target lead time

Related Resources

For dimensional details and material specifications, see the LD12 Rear Nut Connector Dimensions and Materials. To explore the broader product range, visit the Waterproof Connectors catalog.
