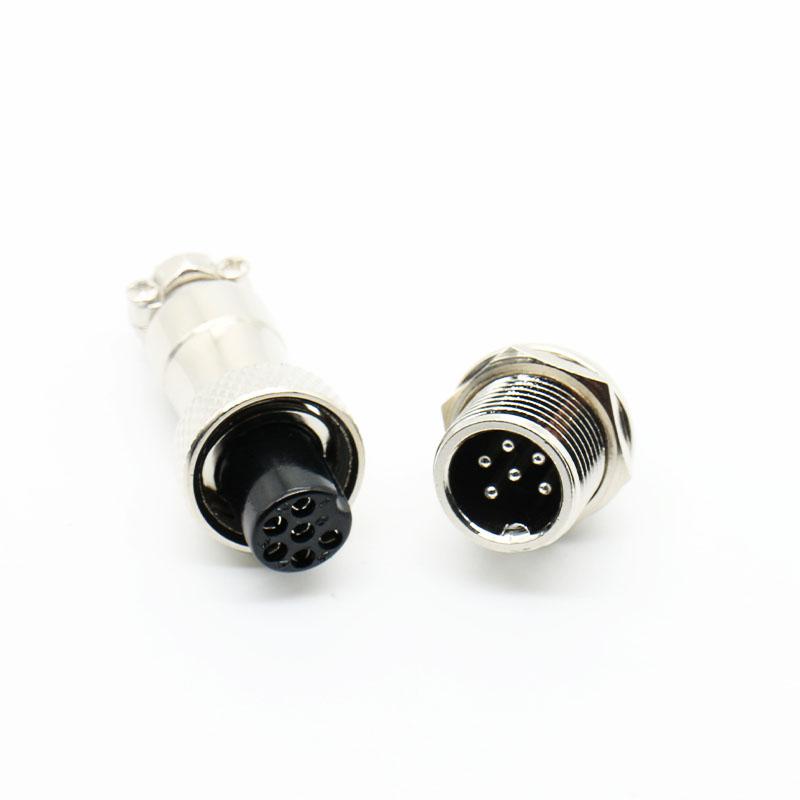

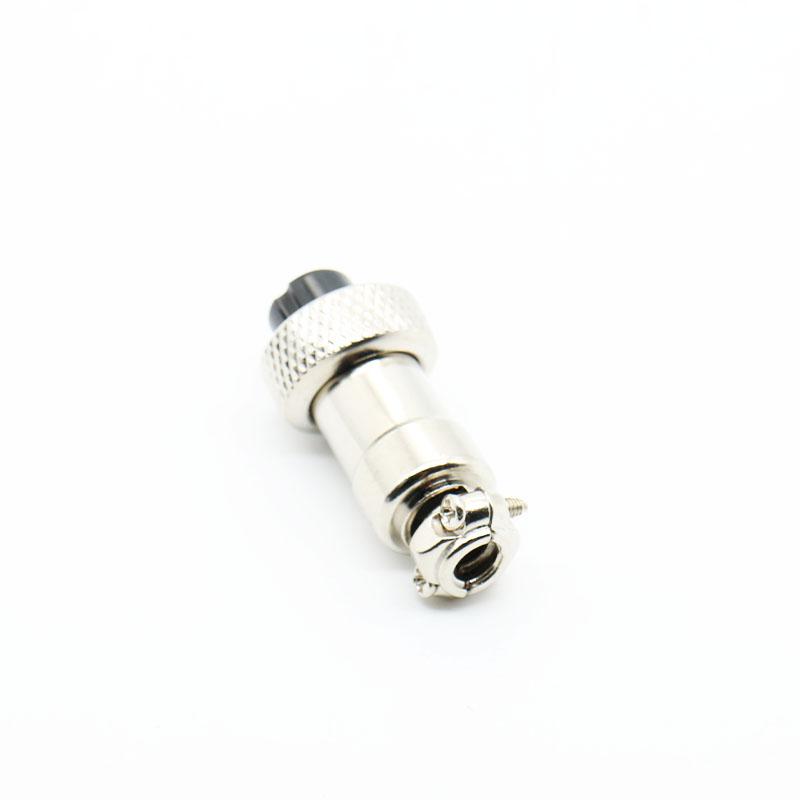

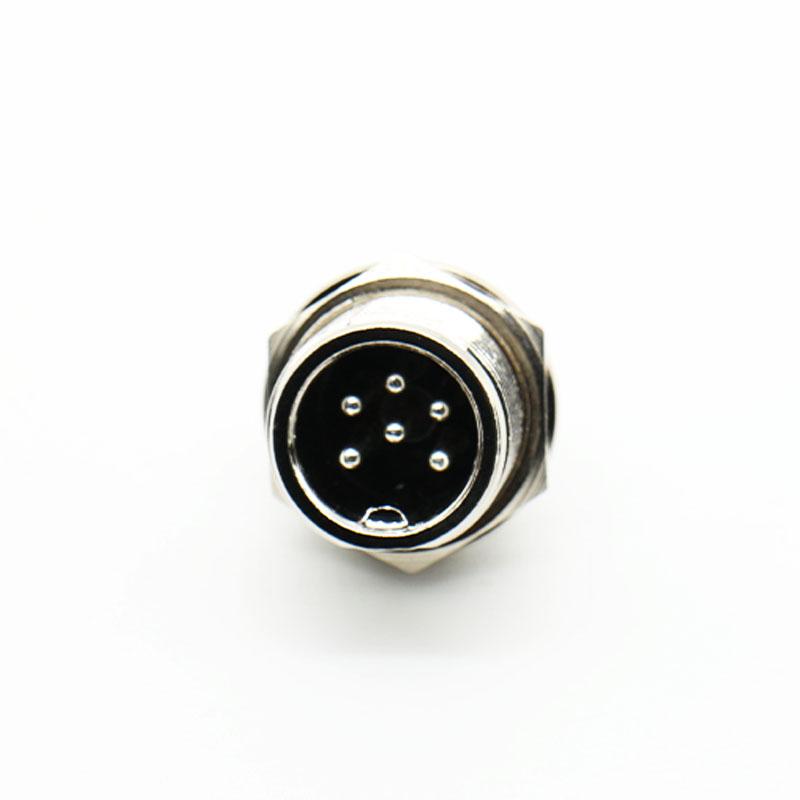

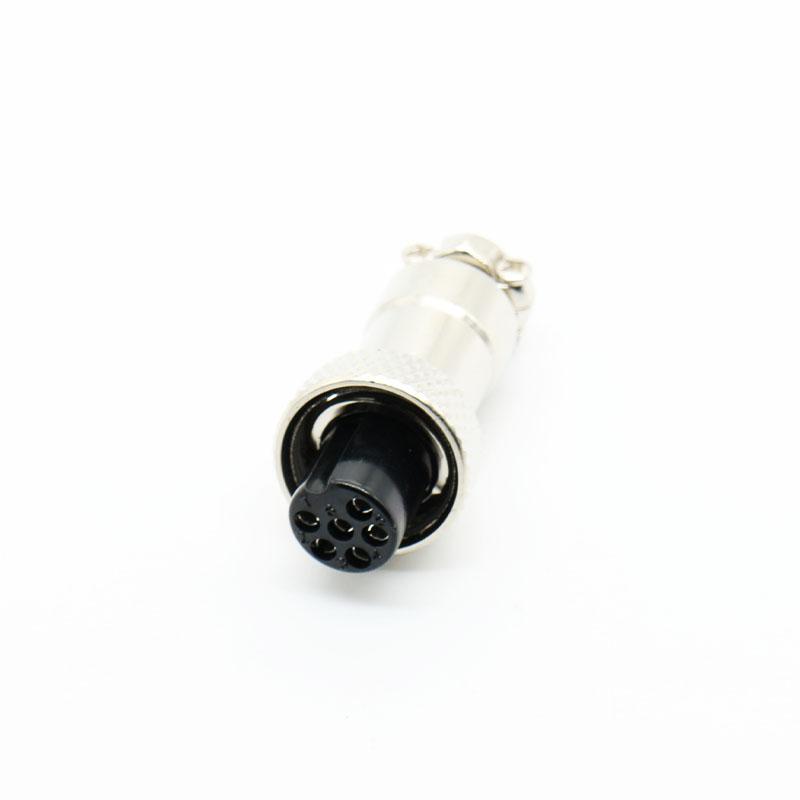

GX12 Connector for Industrial Robotics: Selection and Application Guide

The GX12 Connector provides a reliable and secure connection for industrial robotics. Designed to withstand harsh conditions, it is ideal for CNC machines, robotic arms, and automated factory equipment. This guide focuses on how to select the correct GX12 configuration for your control and signal wiring needs.

Key Selection Criteria for Your Application

Before specifying a GX12 connector, confirm the following variables to ensure a correct match with your equipment:

• Pin Count and Gender: Available in 2 to 7 pins, with male or female configurations. Verify the pin layout of your mating cable or panel receptacle.
• Locking Mechanism: The screw-locking system provides a vibration-resistant connection, suitable for moving robotic axes and machinery.
• Environmental Fit: The zinc alloy housing with nickel plating is built to resist dust, vibration, and industrial wear. Confirm your specific IP rating requirement for the installation environment.
• Contact Plating: Brass contacts are available with gold or silver plating. Choose based on your signal integrity needs and mating cycle expectations.

Construction and Material Integrity

The GX12's robust shell and high-quality contacts guarantee consistent signal and power transmission. The housing is constructed from zinc alloy with nickel plating, while the insulator uses phenolics for reliable dielectric performance. This material combination supports long-lasting performance and minimal maintenance in demanding factory settings.

Installation and Maintenance Planning

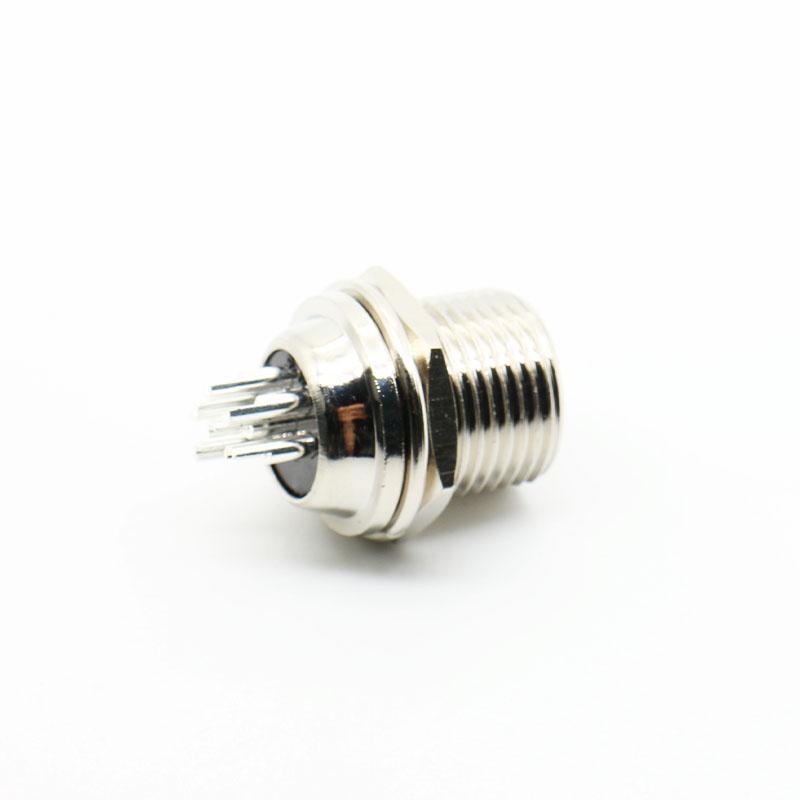

The GX12 Connector features a user-friendly design for quick installation and replacement, reducing downtime and improving workflow efficiency. For field wiring, ensure your cable diameter is compatible with the connector's clamping range. For panel-mount versions, verify the panel cut-out dimensions and mounting thread before installation.

Application Scope and Boundaries

This connector is well-suited for CNC machinery, robotic automation systems, and other factory automation equipment where a secure screw-locked connection is required. It simplifies wiring while enhancing operational reliability.

However, it is not designed for high-current power distribution or applications requiring frequent blind-mating connections. For high-power requirements, consider a dedicated power connector series. For applications needing higher pin counts, review the Aviation Plug Connectors range for alternative configurations.

Information Checklist for Quotation

To receive an accurate quotation and ensure compatibility, please provide the following details with your inquiry:

• Required pin count (2-7) and gender (male/female).
• Cable outer diameter and conductor size (AWG/mm²).
• Mounting style: cable (straight/angled) or panel mount.
• Contact plating preference: gold or silver.
• Operating environment details (temperature, exposure to oils/coolants).

For a broader view of compatible industrial connection solutions, you may also consult the Industrial Connector Catalog.
