XS8 2-4 Pin Push-Pull Aviation Socket Connector

WF Series Aviation Connectors Configurations and Specs

XS8 2-4 Pin Push-Pull Aviation Socket Connector Overview

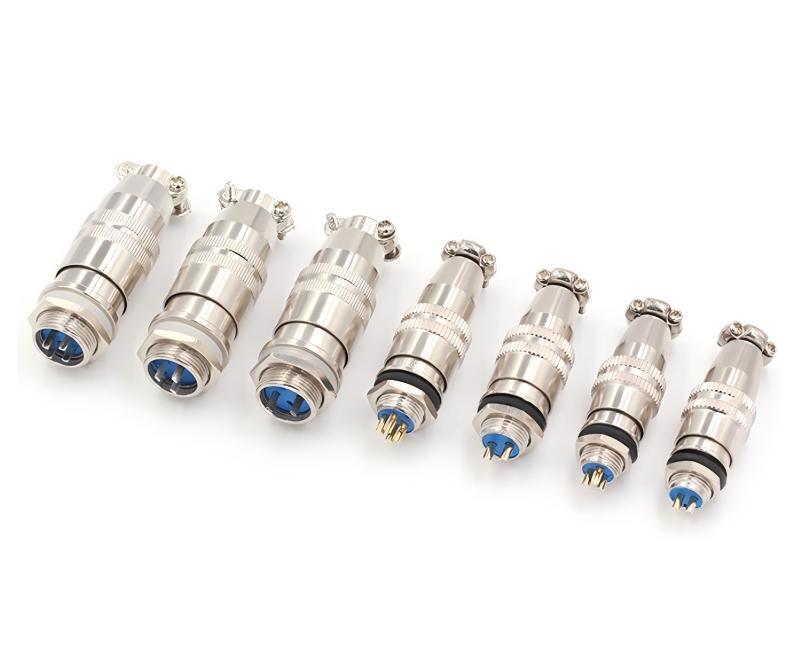

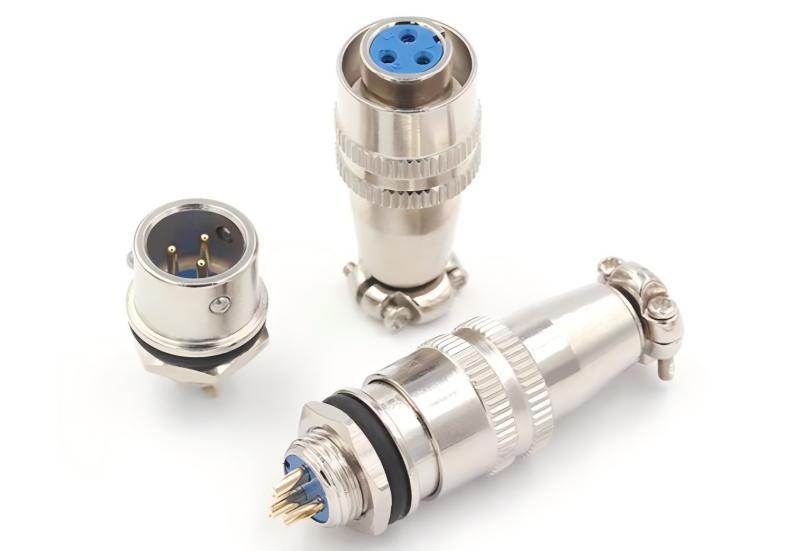

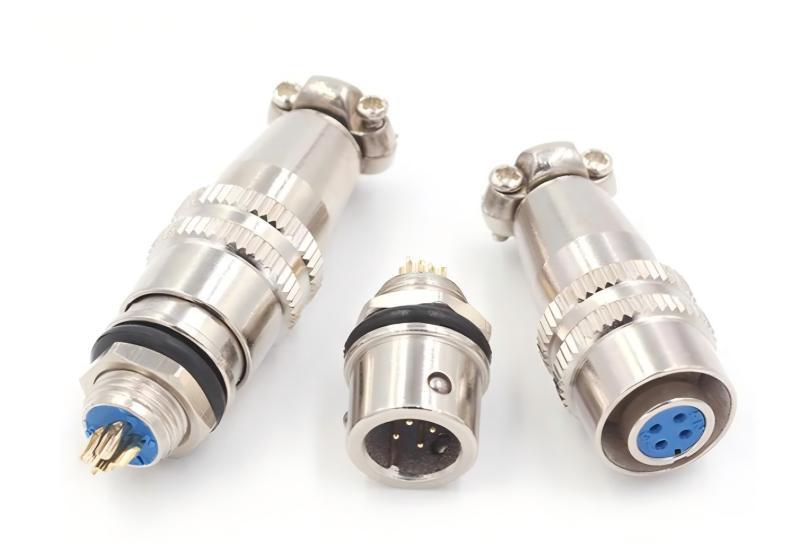

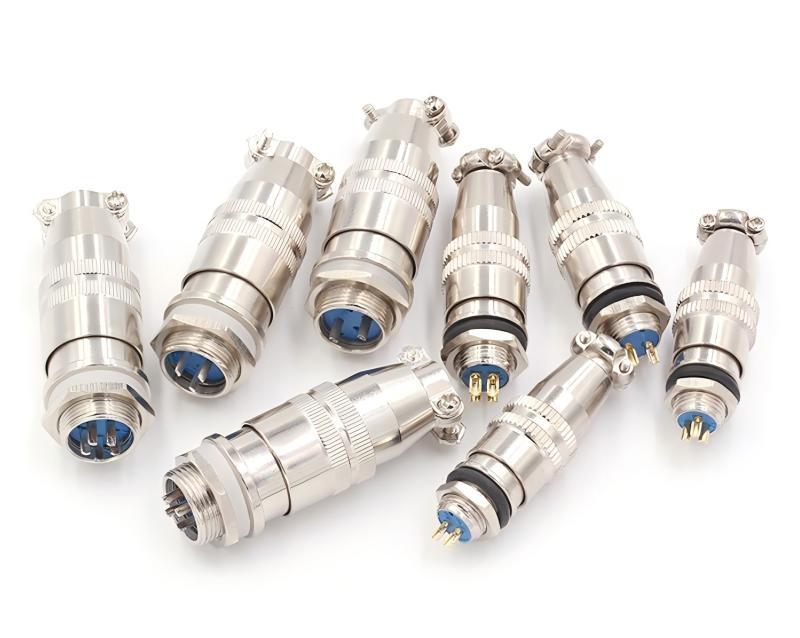

The XS8 2-4 Pin Push-Pull Aviation Socket Connector is a circular connector designed for industrial automation, aerospace instrumentation, and precision equipment. Its push-pull locking mechanism enables fast, secure, and tool-free connections, supporting applications where frequent mating cycles and reliable performance are required.

With a 2-4 pin configuration, this connector balances compactness with flexibility, accommodating power, signal, or mixed circuits within a single interface.

Push-Pull Mechanism: Quick, Secure, and Maintenance-Friendly

Unlike traditional screw-lock aviation connectors, the XS8 series uses a tool-free push-pull design that:

• Enables rapid connection and disconnection, reducing assembly or maintenance time
• Provides automatic locking to prevent accidental disconnection in high-vibration environments
• Maintains stable electrical performance across repeated mating cycles
• Optimizes panel space with a compact circular form factor

This design suits control cabinets, sensor networks, aerospace instruments, and industrial machinery.

Key Features

• 2-4 Pin Layouts: Flexible options for signal, power, or mixed circuits, enabling compact multi-line integration.
• Push-Pull Socket Design: Ensures secure, fast, and repeatable connections without tools.
• Industrial-Grade Construction: Reinforced metal housing and precision contacts resist vibration, impact, and repeated mating cycles.
• Environmental Resistance: Designed to withstand dust, moisture, and harsh industrial or aerospace conditions.
• Compact Circular Form Factor: Ideal for space-limited equipment and control panels, integrating easily without compromising performance.

Factory Capabilities and Quality Assurance

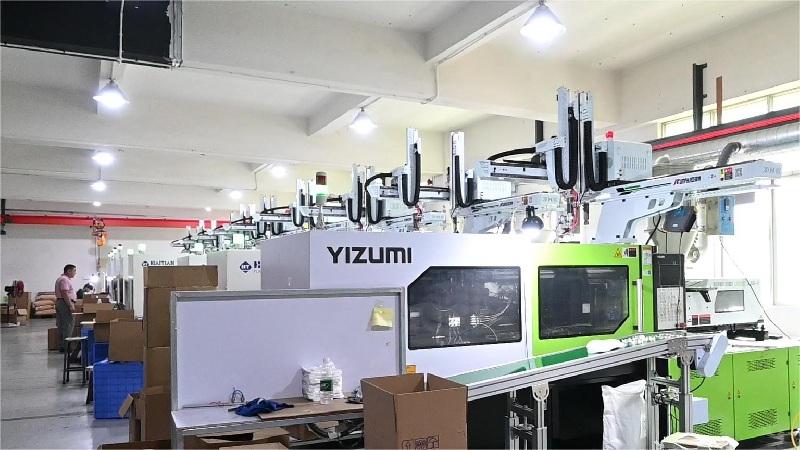

Our factory has over 15 years of experience producing XS8 Push-Pull Aviation Connectors, combining engineering expertise, advanced manufacturing, and strict quality control:

• Research & Development: Optimized designs for push-pull aviation connectors
• Precision Production: CNC machining, metal stamping, and injection molding for tight tolerances
• Assembly Excellence: In-house assembly for sockets, panels, and cable-integrated options
• Rigorous Testing: Electrical, mechanical, and environmental tests ensure long-term reliability
• Customization & OEM/ODM: Pin configurations, cable lengths, shielding, and branding

With vertical integration and in-house production, we provide factory-direct XS8 connectors for industrial and aerospace applications.

Typical Applications

• Aerospace and avionics instrumentation
• Industrial automation and control systems
• Robotics and motion control networks
• Sensor and actuator connectivity
• Electrical control panels and monitoring systems
• Harsh-environment electronics requiring quick-connect solutions

Selection Considerations

When selecting the XS8 2-4 Pin Push-Pull Aviation Socket Connector, confirm the following with your engineering team:

• Mating plug type and gender (male/female) required for your application
• Pin count (2, 3, or 4) and pinout arrangement
• Cable outside diameter and conductor size for termination
• Electrical load (current and voltage) and environmental exposure
• Panel mounting dimensions and space constraints

For detailed electrical ratings, contact specifications, and material data, refer to the Technical Specifications section. For related configurations, see the WF Series Aviation Connectors Configurations and Specs or the XS8 4 Core Aviation Connector for Compact Industrial Applications.

Unsuitable Use Cases

The XS8 push-pull connector is not intended for high-current power distribution above its rated capacity, nor for applications requiring hermetic sealing or submersion. For higher pin counts or different locking mechanisms, consider other series in the aviation connector range.

Inquiry Checklist

To receive an accurate quotation and configuration recommendation, please provide:

• Required pin count and gender (plug or socket)
• Mating connector type and pinout drawing if available
• Cable type, outside diameter, and conductor size
• Operating environment (temperature, vibration, moisture exposure)
• Order quantity and target delivery timeline

Contact us for samples, technical support, and OEM/ODM customization services. We offer factory-direct XS8 2-4 Pin Push-Pull Aviation Socket Connector solutions combining precision engineering, high reliability, and flexible configurations.
