GX16 2-8 Pin Panel Mount Connector

MOQMOQ >200
PricePrice
>Number Of CoresNumber Of Cores 2-8 Pin
Contact DiameterContact Diameter(mm) 1.0mm
IP RatingIP Rating IP50
Shell MaterialShell Material Zinc Alloy, Nickel Plating
Temperature RangeTemperature Range -30℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 5A-7A
Rated VoltageRated Voltage(Ac.V) 200V-250V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+8619924482730

AEROSPACE + INDUSTRIAL

GX16 2–8 Pin Panel Mount
Connector

Reliable connectivity for demanding aerospace and industrial systems.

Secure panel installation · Threaded locking · Stable power and signal transmission under vibration and mechanical stress.

IP50 Rated -30°C ~ +85°C OEM / ODM CE · RoHS · ISO9001

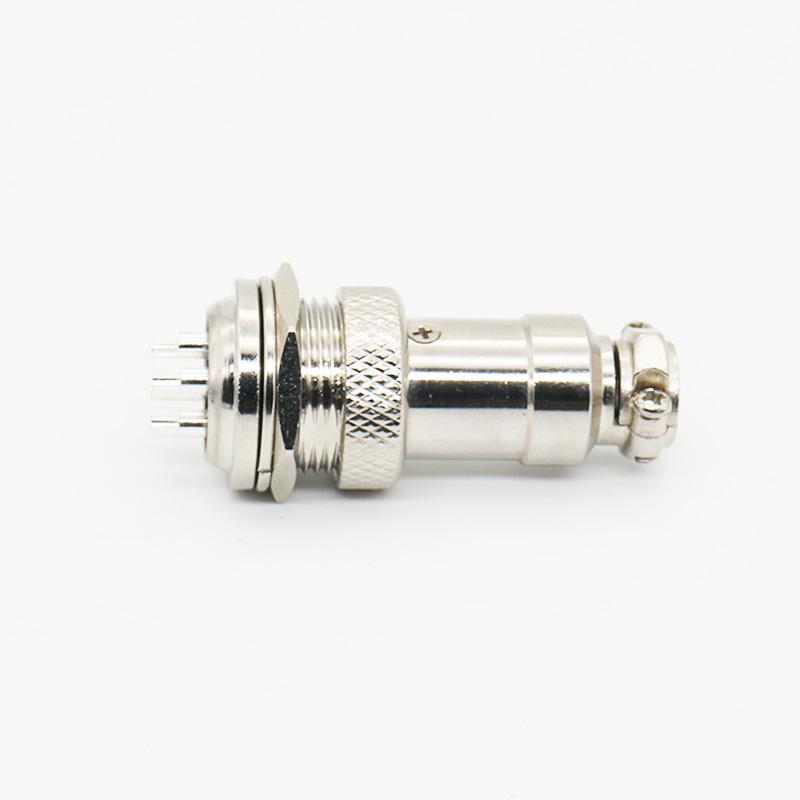

GX16 aviation connector main product view
GX16 / PANEL MOUNT KMYD CONNECTOR
MODEL
GX16 Aviation Circular
DESIGN
Panel Mount Design
USE CASES
Automation · Robotics · Instrumentation · Aerospace
SERVICE
OEM / ODM · Sample Support

Product Overview

The GX16 2–8 Pin Panel Mount Connector is engineered for high-performance aerospace and industrial applications that demand secure, stable, and compact connectivity. Its panel-mount structure reduces installation complexity while supporting precise signal and power transmission in mission-critical environments.

A threaded coupling mechanism helps prevent accidental disconnection, while flexible 2–8 pin configurations support power, signal, and mixed-circuit requirements.

PRODUCT DETAILS

Built for Reliable Connection

Explore the connector interface, panel-mount structure, and configurable structures from different viewing angles.

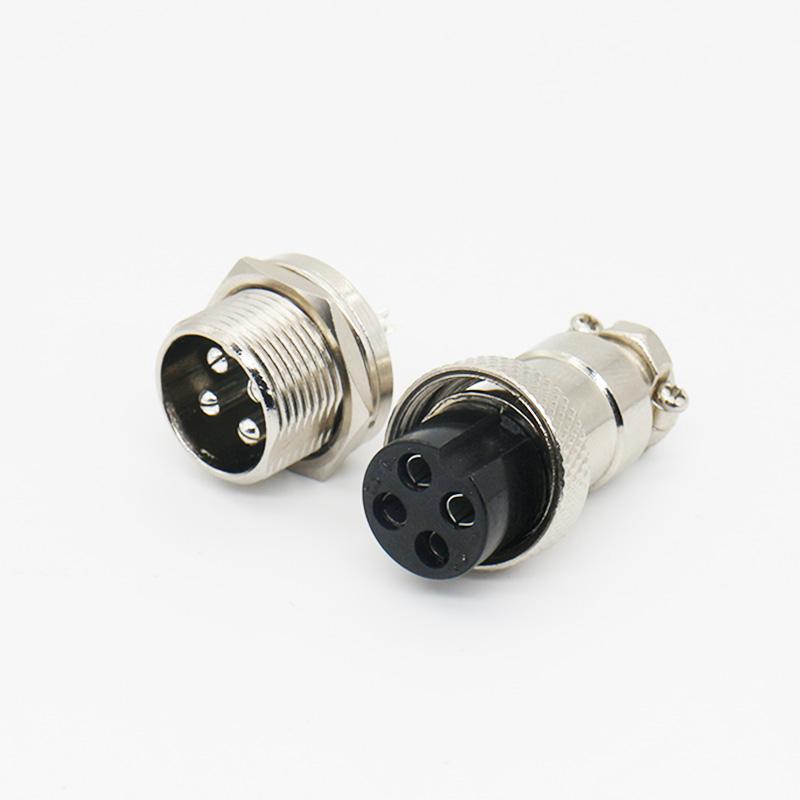

GX16 panel mount connector interface detail
01 / INTERFACE
Connector Interface
A closer view of the circular mating structure and contact arrangement.

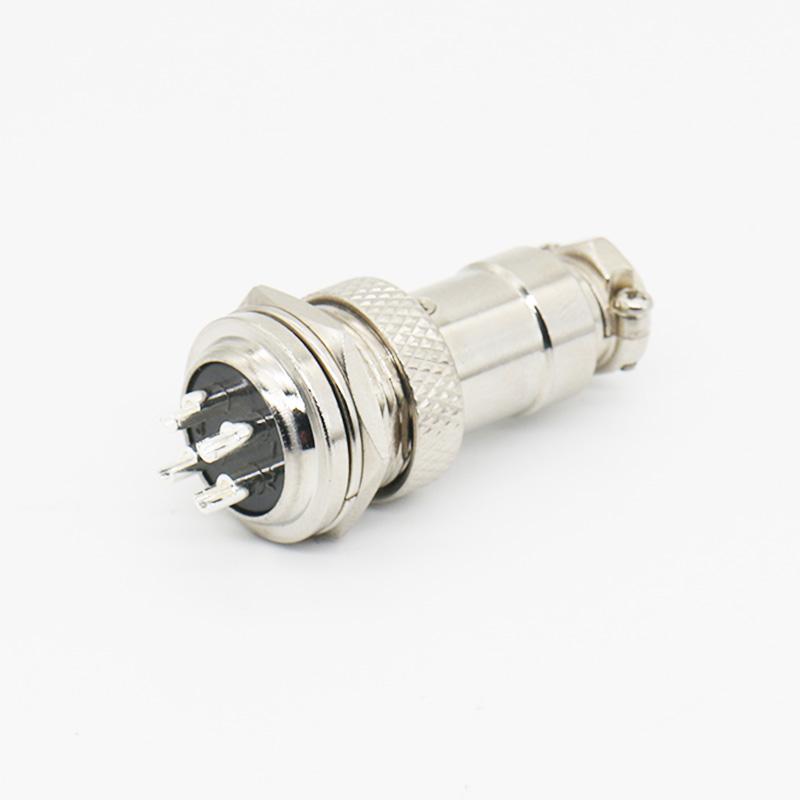

GX16 threaded coupling and panel mount structure
02 / ASSEMBLY
Secure panel installation for equipment housings and control systems.
One connector platform.
Multiple project possibilities.
Pin count, housing finish, cable integration, branding, and packaging can be adapted to project requirements.
GX16 2–8 pin connector configurations
03 / CONFIGURATION
Adaptable to Different Equipment Requirements
Select from 2–8 pins according to circuit layout, current requirements, installation space, and equipment design.
?

Why Choose This GX16 Connector

In aerospace and industrial equipment, connectors must do more than join cables. They need to keep signal integrity stable, reduce installation risk, resist environmental stress, and remain dependable through repeated operation. This GX16 panel-mount solution is designed around those requirements.

Key Product Features

01
Panel Mount Design

The flange structure mounts securely to equipment panels and enclosures for stable long-term operation.

02
2–8 Pin Flexibility

Multiple pin arrangements support power, signal, and mixed-circuit wiring in compact equipment.

03
Stable Electrical Performance

Precision contacts support reliable power and signal transmission under vibration, shock, and repeated mating cycles.

04
Environmental Resistance

Designed for industrial environments with exposure to dust, temperature fluctuation, vibration, and mechanical stress.

05
Flexible Customization
Pin configuration, housing finish, cable integration, cable length, branding, and packaging can be adjusted for project needs.

Application Areas

The GX16 panel mount connector is suitable for equipment requiring compact installation and stable electrical connection.

01
Avionics and aerospace instrumentation
02
Industrial automation and control systems
03
Robotics and motion control devices
04
Sensors and actuator networks
05
Data acquisition and monitoring equipment
06
Test instruments and monitoring equipment

Factory Expertise & Manufacturing Strength

Professional connector manufacturer with over 19 years of experience, specializing in aviation and aerospace-grade connector solutions. In-house production ensures consistent quality, fast delivery, and flexible OEM/ODM customization.

Precision mold & tooling design
CNC machined contacts & housings
Injection molding for insulation
panel-mount structure
Full functional & environmental testing

Quality Assurance

Each GX16 Panel Mount Connector undergoes electrical continuity inspection, contact resistance verification, vibration and shock testing, mating cycle assessment, environmental exposure testing, and structural inspection.

ISO9001 CE RoHS BASCI

Customization Options

✓ Cable length and wire specification
✓ Shielded or anti-interference cable options
✓ Housing material or structural modifications
✓ Pin configuration adjustments
✓ OEM / ODM branding and packaging

Secure, Compact, and Panel-Ready

The GX16 2–8 Pin Panel Mount Connector combines a rugged metal housing, threaded locking, and flexible pin configurations for dependable industrial, instrumentation, robotic, and aerospace connectivity.

KMYD CONNECTOR 19+ years of manufacturing excellence
GET IN TOUCH

Contact Us for Samples & Quotation

We provide factory-direct pricing, technical support, sample service, and OEM/ODM customization. Reach us through any of the channels below for product details and quotation support.

EMAIL
info@kmydconnector.com
Send your inquiry or RFQ directly
WHATSAPP / PHONE
+86 199 2448 2730
Available for WhatsApp & calls
WEBSITE
www.kmydconnector.com
Browse full product catalog online
RESPONSE TIME
24h
Prompt quotation and technical support
Contact us for current service hours
✓  Sample support    ✓  OEM / ODM supported    ✓  Factory-direct pricing
KMYD CONNECTOR —19+ YRS

 Item

 Parameters

 Number of Cores

 2-8Pin

 Gender

 Male/Female

 Housing Material

 Zinc Alloy with Nickel Plated

 Locking System

 Screw Locking

 Temperature Range

 -30℃, +85℃

 Rated Current (A)

 5A-7A

 Rated Voltage (AC.V)

 200V-250V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 2000㏁

 Contact Resistance (㏁)

 ≤5㏁

 Termination

 Solder
